DOOR

TSB Revision

BODY

42A-123

INSPECTION

M1423006000731

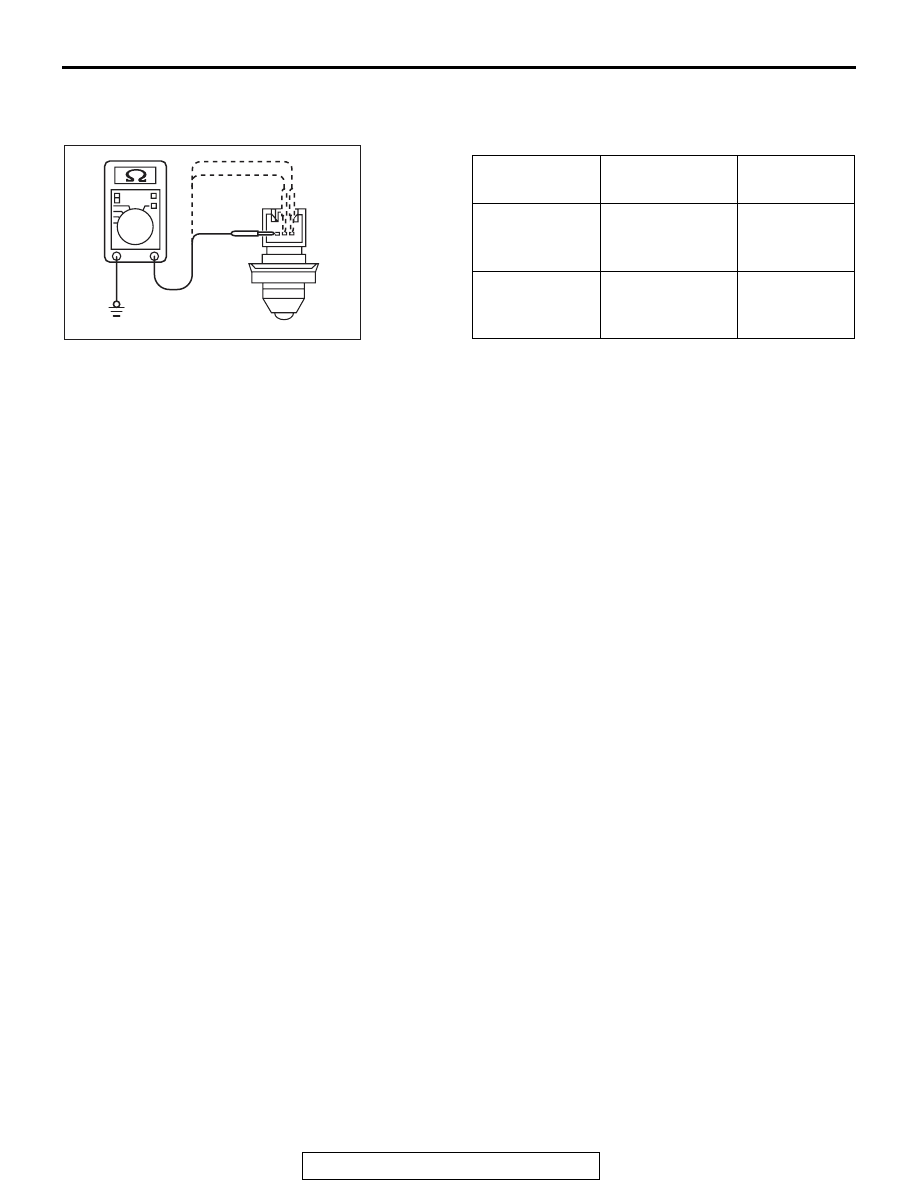

DOOR SWITCH CHECK

Switch
position

Terminal
number

Normal value

Release (ON)

1

− Ground, 2 −

Ground, 3

−

Ground

Continuity
exists (2

Ω or

less)

Depressed
(OFF)

1

− Ground, 2 −

Ground, 3

−

Ground

Open circuit

AC211414AB

1

2

3

DOOR

TSB Revision

BODY

42A-124

DOOR GLASS AND REGULATOR

REMOVAL AND INSTALLATION

M1429001301170

Required Special Tool:

• MB990480: Window Glass Holder

Pre-removal operation
• Door trim assembly removal (Refer to GROUP 52A, Door

Trim

P.52A-15

).

• Waterproof film removal (Refer to

P.42A-136

).

Post-installation operation
• Door window glass adjustment (Refer to

P.42A-114

.)

• Waterproof film installation (Refer to

P.42A-136

).

• Door trim assembly installation (Refer to GROUP 52A,

Door Trim

P.52A-15

).

• Learning procedures of the power window fully closed

position <Driver’s side only> (Refer to

P.42A-117

.)

AC609369

AC607390

6

7

8

AC

7

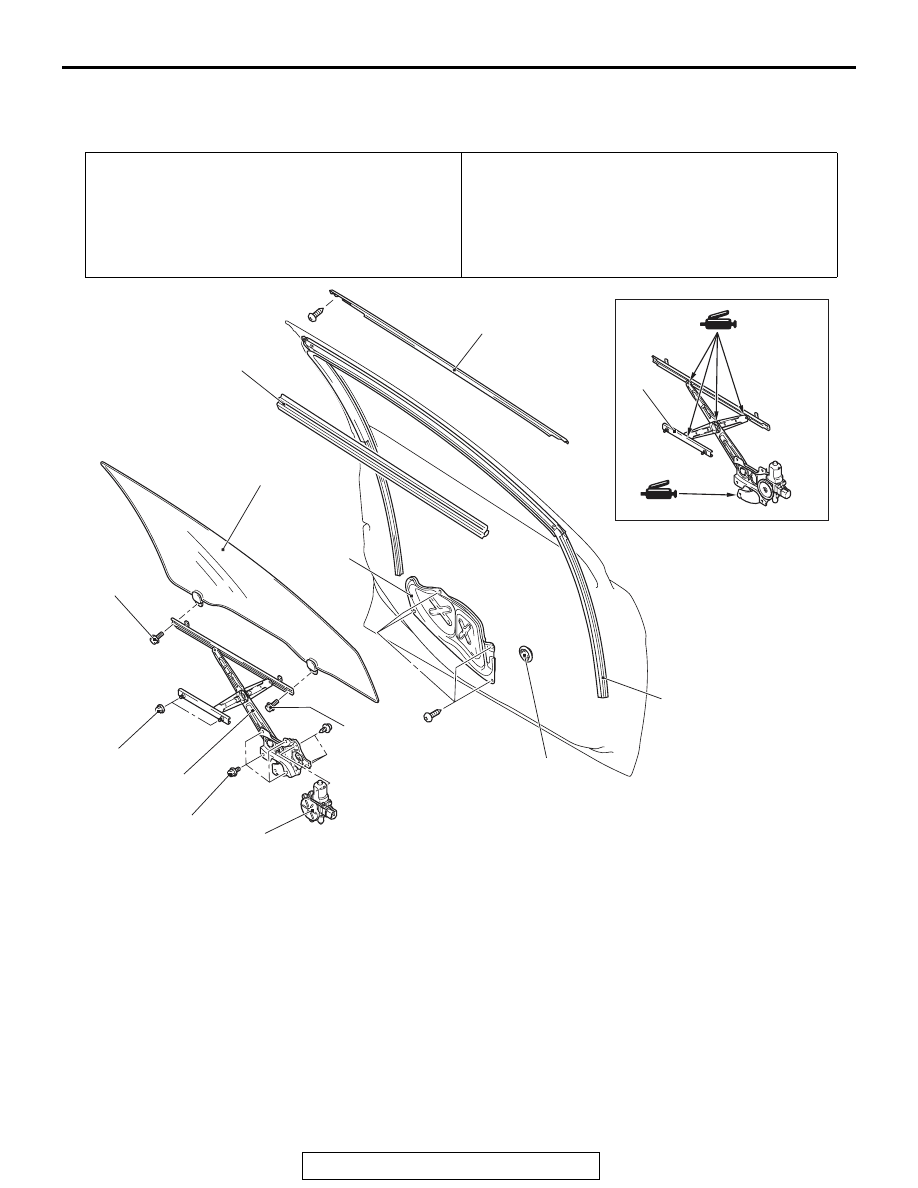

<Front door>

4.0 ± 2.0 N·m
35 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

6.0 ± 1.0 N·m
53 ± 9 in-lb

6.0 ± 1.0 N·m
53 ± 9 in-lb

1

3

2

4

5

Door window glass assembly
removal steps

1.

Door window glass run channel

•

Door mirror assembly (Refer to
GROUP 51, Door Mirror

P.51-79

.)

2.

Door beltline weatherstrip inner

3.

Door beltline molding

4.

Door speaker bracket

5.

Grommet

6.

Door window glass assembly

Power window regulator
removal steps

4.

Door speaker bracket

5.

Grommet

<<A>>

7.

Power window regulator

8.

Power window motor

DOOR

TSB Revision

BODY

42A-125

Required Special Tool:

• MB990480: Window Glass Holder

AC609370

AC607391

8

4

1

5

2

6

3

7

9

AC

8

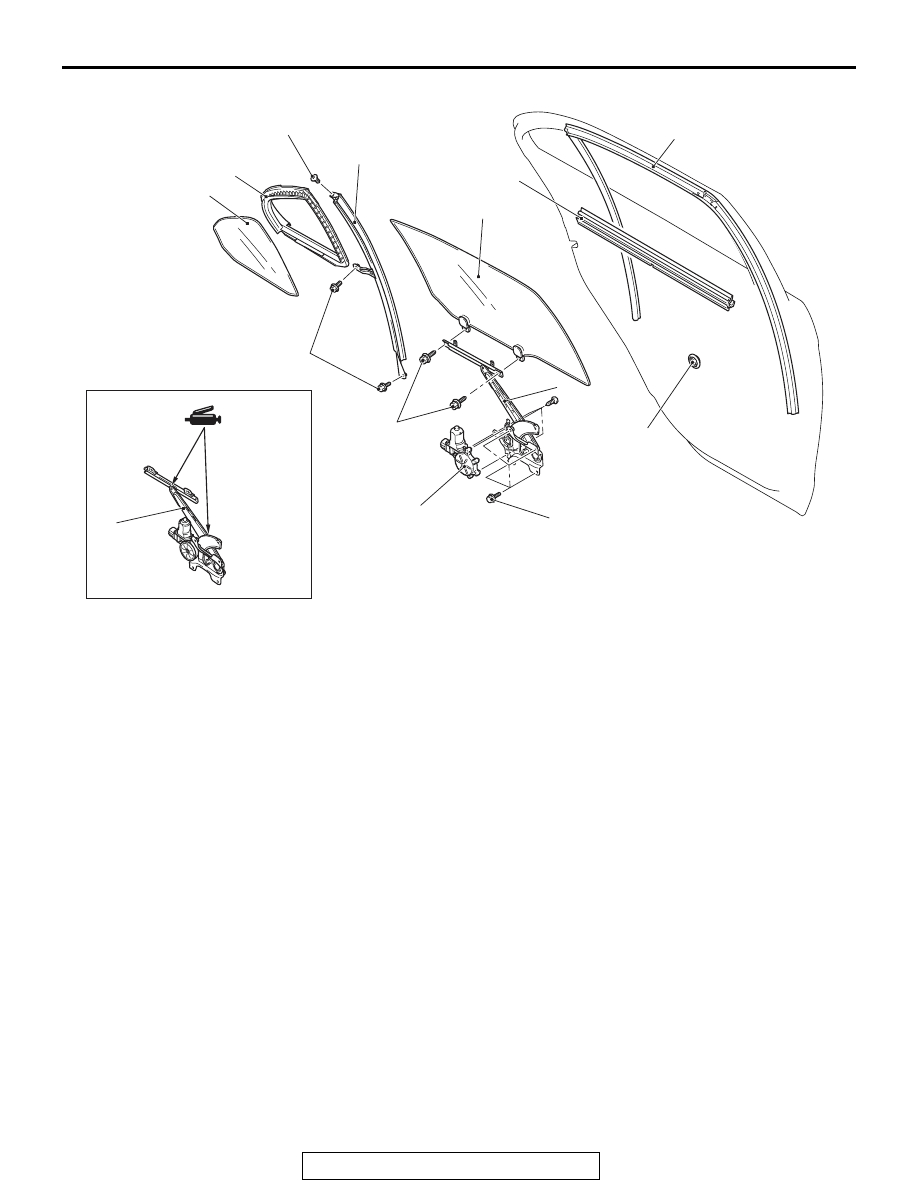

<Rear door>

4.0 ± 2.0 N·m
35 ± 17 in-lb

5.5 ± 1.5 N·m
49 ± 13 in-lb

2.5 ± 0.5 N·m
23 ± 4 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

Door window glass assembly
and stationary window glass
removal steps

1.

Door window glass run channel

2.

Door beltline weatherstrip inner

3.

Grommet

4.

Door window glass assembly

<<B>>

5.

Door center sash

6.

Stationary window weatherstrip

7.

Stationary window glass

Power window regulator removal
steps

3.

Grommet

<<A>>

8.

Power window regulator

9.

Power window motor

DOOR

TSB Revision

BODY

42A-126

AC607392

AC609052

AC609053
AC608432

4

1

AC

5
6

2

3

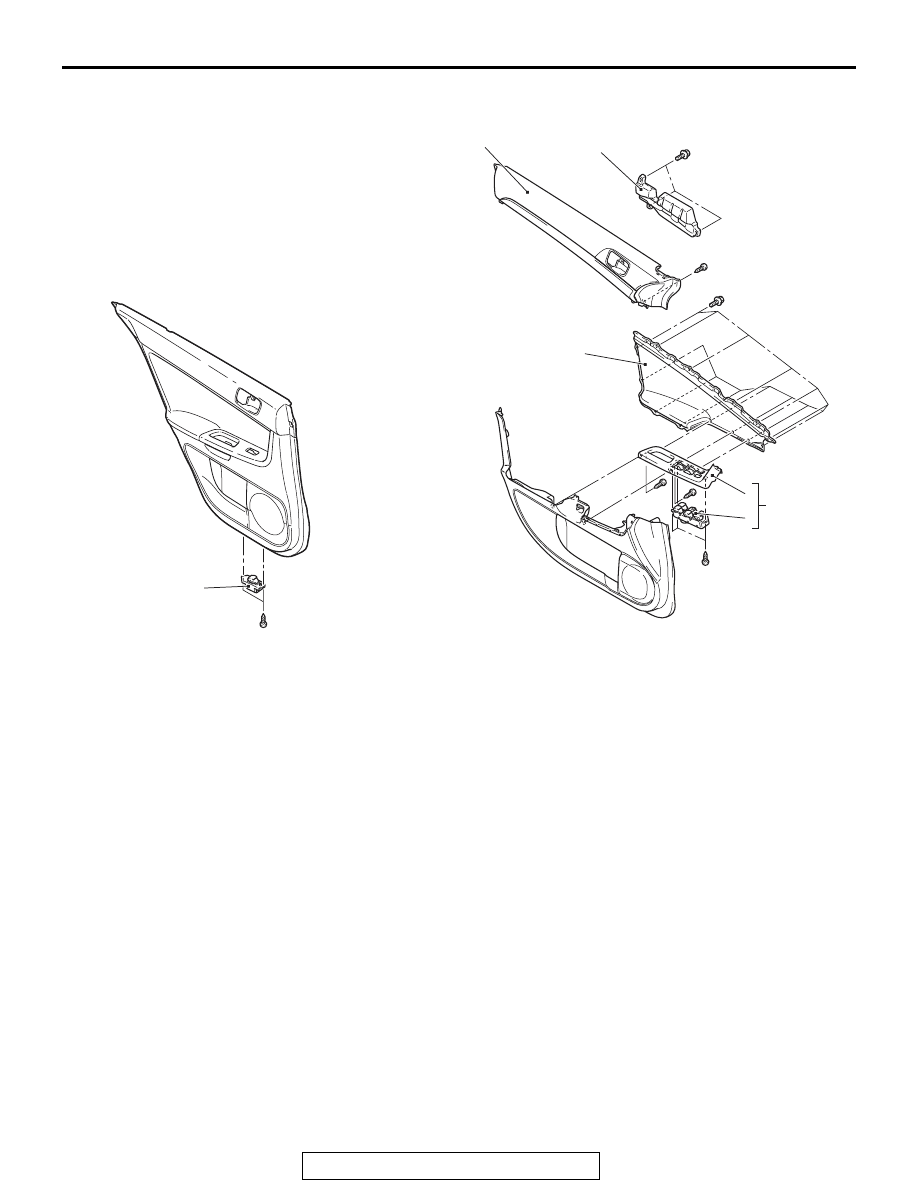

<Front door>

<Rear door>

7

Power window switch <Front
door> removal step

1.

Front upper pad energy absorption

2.

Front door ornament

3.

Front door trim upper

4.

Power window switch panel
assembly

5.

Power window switch panel

6.

Power window main switch
<Driver's side>, power window sub
switch <Front passenger's side>
Power window sub switch <Rear
door> removal step

7.

Power window sub switch

Power window switch <Front
door> removal step (Continued)
