DOOR INSIDE HANDLE CHECK

M1423001500667

DOOR INSIDE HANDLE KNOB PLAY CHECK

1. Check that the door inside handle knob play meets the

standard value.

Standard value (B):
Front driver’s side: 10.0

− 23.7 mm (0.39 − 0.93 inch)

[Target value: 17.0 mm (0.67 inch)]
Except Front driver’s side: 5.0

− 18.7 mm (0.2 − 0.74

inch) [Target value: 12.0 mm (0.47 inch)]

2. Check the door inside handle and door latch assembly, and

replace them if they are out of the standard value.

DOOR INSIDE HANDLE LOCK KNOB STROKE
CHECK

1. Remove the door trim assembly (Refer to GROUP 52A

−

Door Trim

P.52A-15

).

2. Check that the stroke of the door inside handle lock knob

meets the standard value.

Standard value (B): 13.7

− 15.0 mm (0.54 − 0.59 inch)

[Target value: 14.7 mm (0.58 inch)]

AC605583

A

A

B

AC

Section A – A

AC605584

A

B

AC

A

Section A – A

DOOR

TSB Revision

BODY

42A-120

3. If it is outside the standard value, adjust the stroke of the

inside handle lock knob by using the outer cable end, which
connects the inside handle lock knob to the inside lock
cable.

CONFIGURATION FUNCTION

M1429007800222

Using the ETACS system of scan tool MB991958,
the following function can be programmed. The pro-
grammed information is held even when the battery
is disconnected.

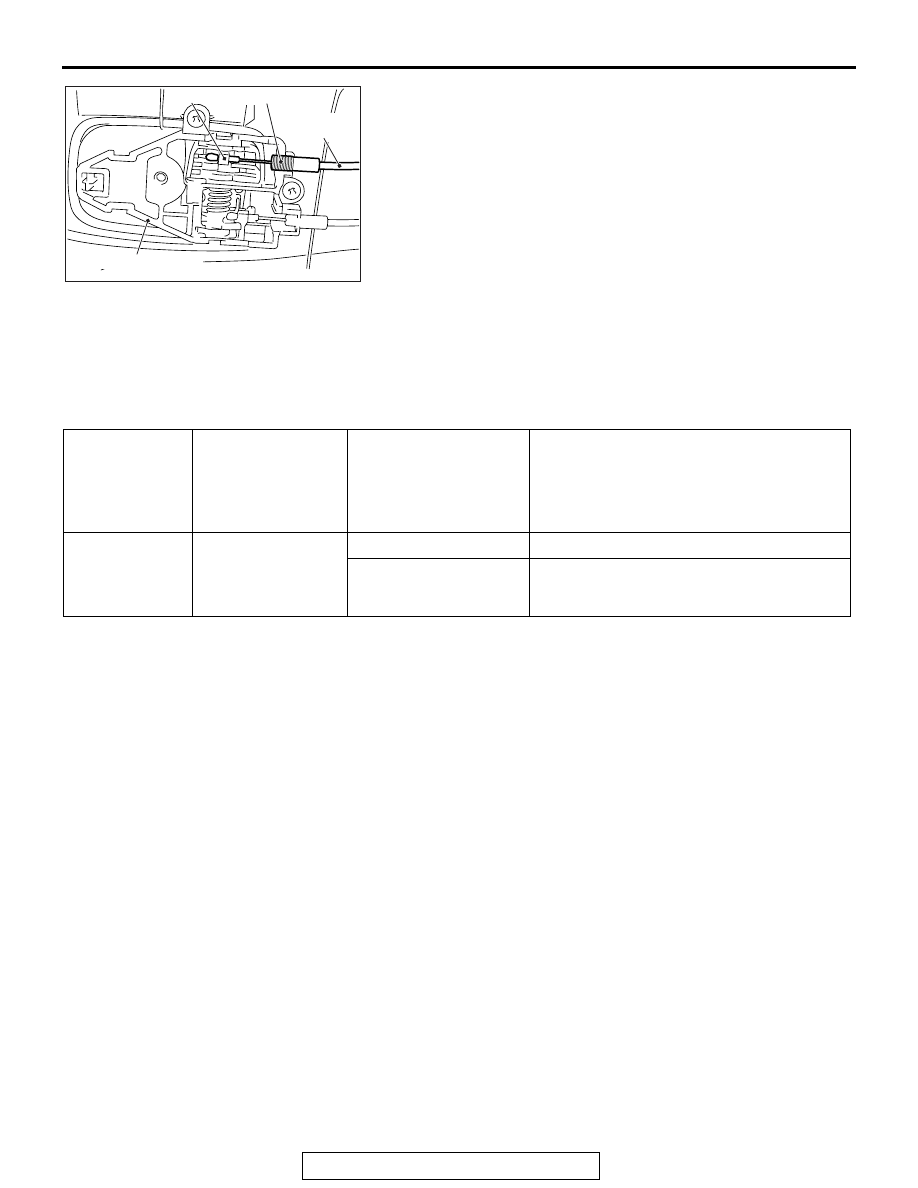

AC605585 AC

Clip

Outer cable end

Inside lock

cable

Door inside handle

Adjustment
item (scan tool
MB991958
M.U.T.-III
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

Auto door
unlock by P
position

Auto door unlock by
P position function
<Vehicles with
TC-SST>

Disable

No function (default)

Always enabled

Always with function

DOOR

TSB Revision

BODY

42A-121

DOOR ASSEMBLY

REMOVAL AND INSTALLATION

M1423002200885

Post-installation Operation
• Door Fit Adjustment (Refer to

P.42A-111

).

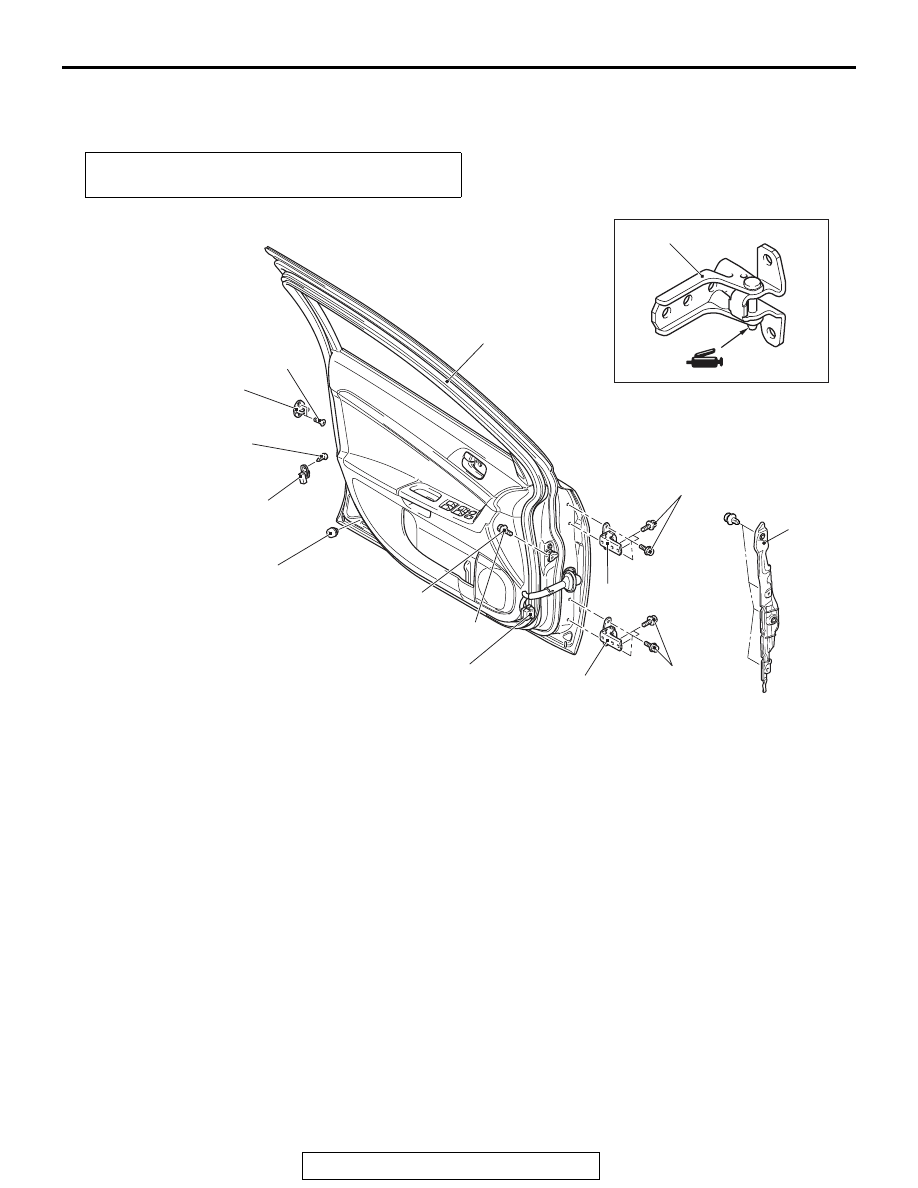

AC607387

8

9

2

1

6

5

3

4

7

AE

26 ± 6 N·m
19 ± 5 ft-lb

26 ± 6 N·m
19 ± 5 ft-lb

25 ± 4 N·m
19 ± 3 ft-lb

20 ± 5 N·m
15 ± 3 ft-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

<Front door>

5, 6

Front door assembly removal
steps

•

Cowl side trim (Refer to GROUP
52A, Trim

P.52A-11

.)

•

Bottom cover assembly
<Passenger’s side> (Refer to
GROUP 52A,  Glove Box

P.52A-6

.)

1.

Wiring harness connector
connection

2.

Door check connecting bolt

3.

Front door assembly

Front door hinge removal steps

3.

Front door assembly

4.

Fender protector rear

5

Front door upper hinge

6.

Front door lower hinge
Striker removal steps

>>A<<

7.

Striker
Damper removal

8.

Damper
Door switch removal

•

Center piller trim lower (Refer to
GROUP 52A - Interior Trim

P.52A-11

.)

9.

Door switch

DOOR

TSB Revision

BODY

42A-122

INSTALLATION SERVICE POINT

.

>>A<< STRIKER INSTALLATION

Align the center of the striker and latch within

±1.5 mm (0.06

inch), and install.

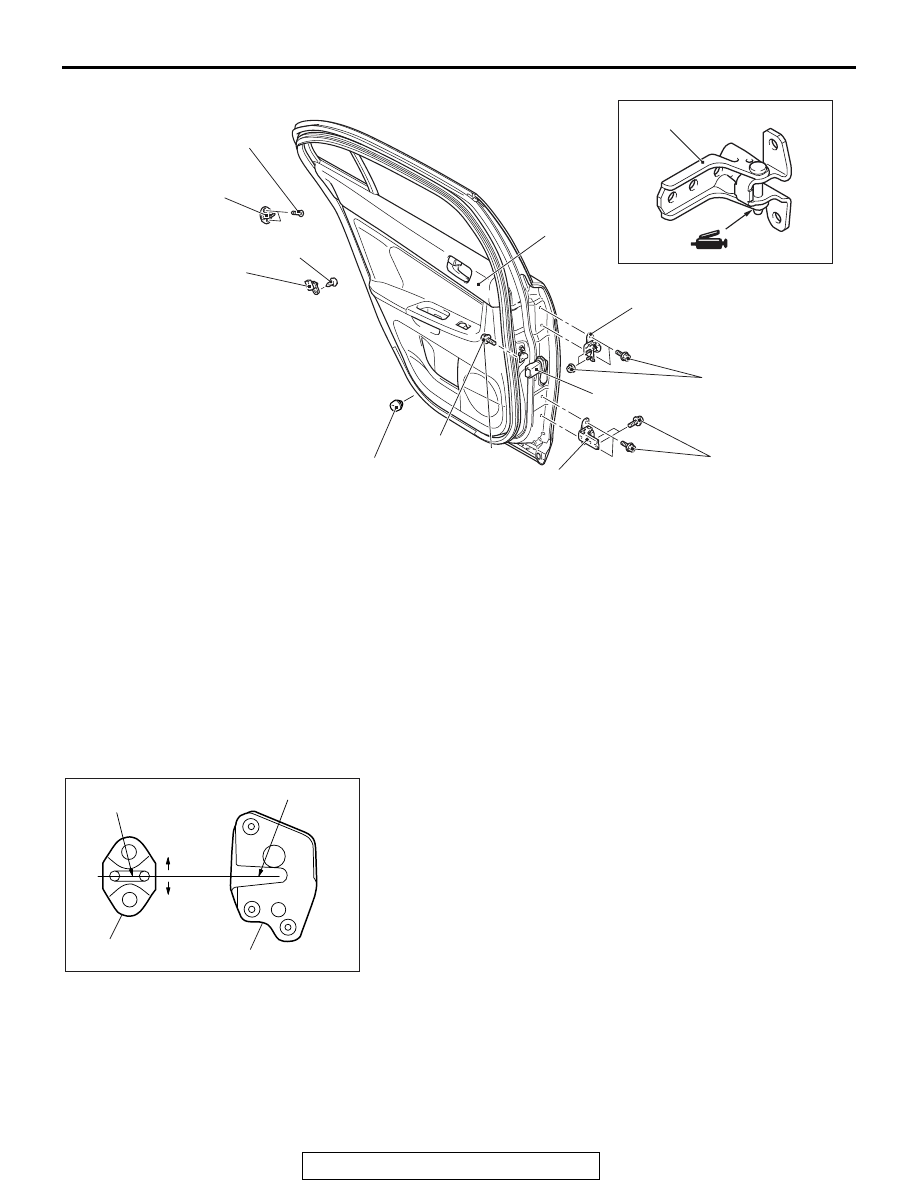

AC607388

7

5

2

3

1

6

8

AC

<Rear door>

26 ± 6 N·m
19 ± 5 ft-lb

26 ± 6 N·m
19 ± 5 ft-lb

25 ± 4 N·m
19 ± 3 ft-lb

18 ± 7 N·m
13 ± 5 ft-lb

18 ± 7 N·m
13 ± 5 ft-lb

20 ± 5 N·m
15 ± 3 ft-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

3

2

4, 5

4

Door assembly removal steps

1.

Wiring harness connector
connection

2.

Door check connecting bolt

3.

Door assembly
Rear door hinge removal steps

•

Center pillar trim lower (Refer to
GROUP 52A, Trim

P.52A-11

.)

3.

Door assembly

4.

Rear door upper hinge

5.

Rear door lower hinge
Striker removal

>>A<<

6.

Striker
Damper removal

7.

Damper
Door switch removal steps

8.

Door switch

Rear door hinge removal steps

AC006126AC

Striker center

Striker

Latch center

Latch

+1.5 mm

(0.06 in)

-1.5 mm

(0.06 in)
