Mitsubishi Evolution X. Manual - part 469





TWIN CLUTCH SST CONTROL MODE SWITCH

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-333

ACD OPERATION CHECK

M1225008900011

Refer to GROUP 22A

 On-vehicle Service

P.22A-119

.

HYDRAULIC PRESSURE CHECK

M1225009000011

Refer to GROUP 22A

 On-vehicle Service

P.22A-119

.

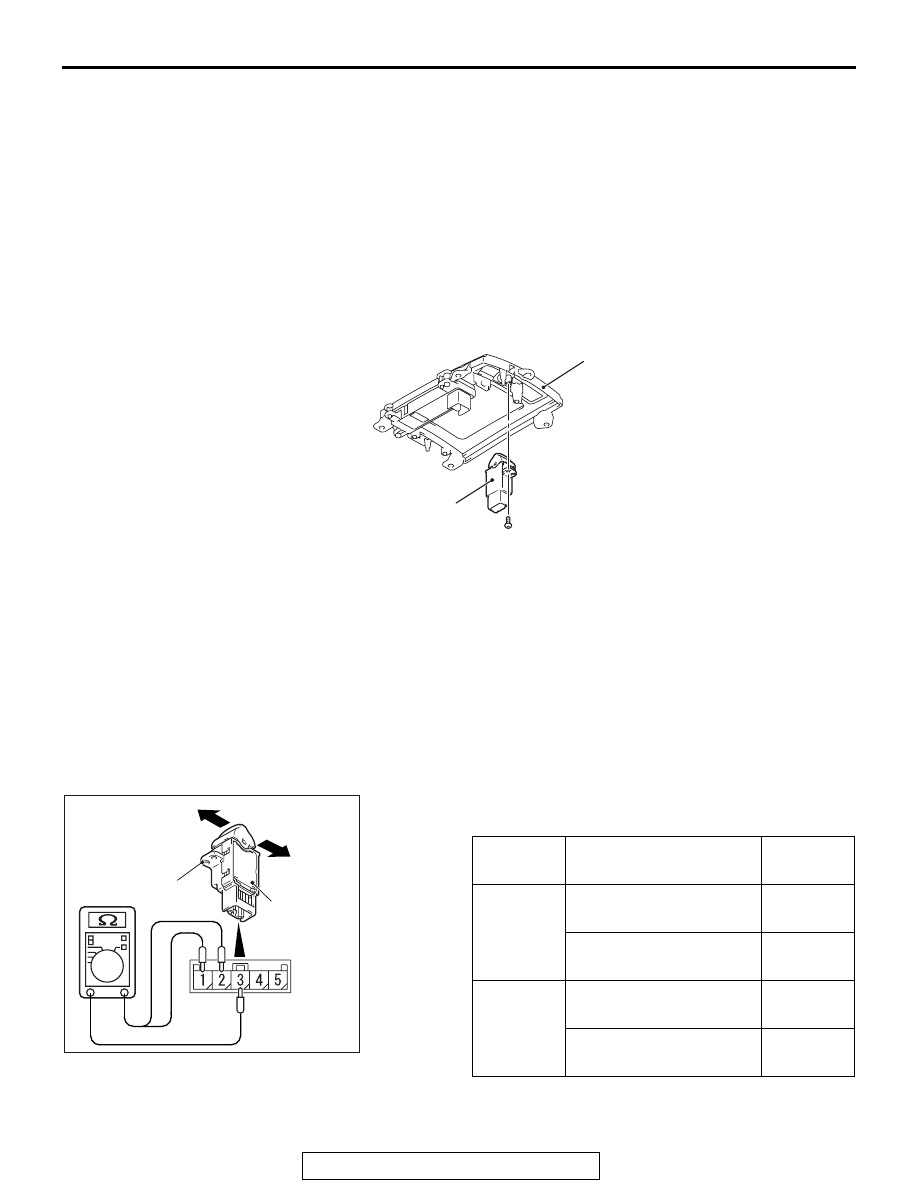

TWIN CLUTCH SST CONTROL MODE SWITCH

REMOVAL AND INSTALLATION

M1225009200015

INSPECTION

TWIN CLUTCH SST CONTROL MODE SWITCH
CHECK

M1225009100018

1. Check the continuity between the connector terminals of

twin clutch SST control mode switch.

2. When other than above, replace the twin clutch SST control

mode switch.

AC710482AB

1

2

Removal steps

1.

Floor console panel assembly
(Refer to GROUP 52A

− Floor

Console Assembly

P.52A-9

).

2.

Twin clutch SST control mode
switch

Terminal
number

Switch position

Continuity

− 3

Operate to direction A,
then hold.

Yes (2

Ω or

less)

Other than above

Not
present

− 3

Operate to direction B,
then hold.

Yes (2

Ω or

less)

Other than above

Not
present

AC708087AD

Twin clutch
SST control
mode switch

Bracket

A

B

TRANSMISSION CONTROL

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-334

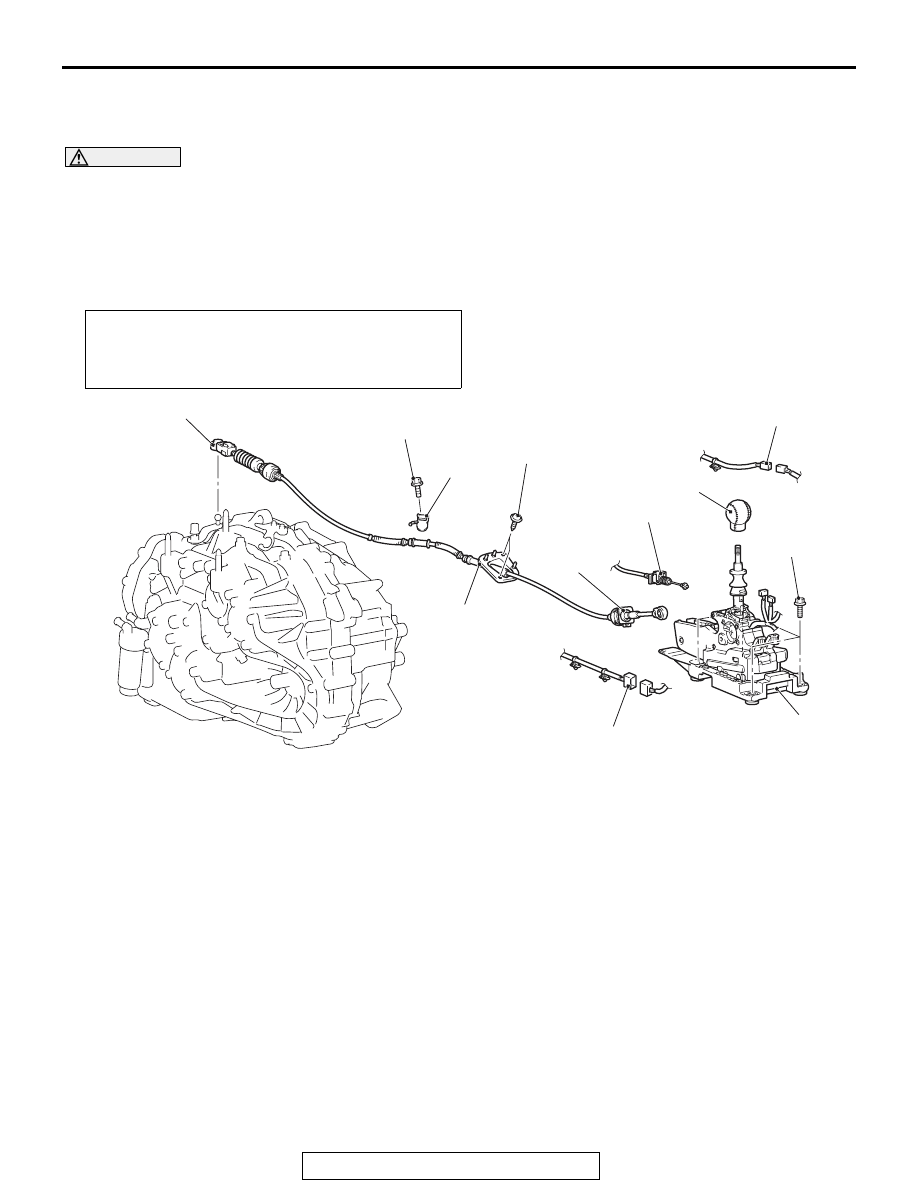

TRANSMISSION CONTROL

REMOVAL AND INSTALLATION

M1225009600013

CAUTION

When the transaxle control cable is disconnected, check after the installation that the cable is prop-
erly connected, and that the parking lock mechanism operates normally. At this time, do not check by
simply using the display on the combination meter and shift indicator panel. Always check according
to the procedure below.

• With the P range, the vehicle does not move on a slight slope or when pushed by hands.
• When driving at 5 km/h or less, the vehicle stops when the shift lever is moved to the P range.

Post-installation Operation
• Key interlock mechanism check (Refer to

P.22C-330

.)

• Shift lock mechanism check (Refer to

P.22C-332

.)

• Shift lever operation check (Refer to

P.22C-330

.)

AC705526

1

2

9

8

3

4

5

7

6

AC

7.0 ± 3.0 N·m
62 ± 26 in-lb

9.5 ± 3.5 N·m
85 ± 30 in-lb

11 ± 4 N·m
98 ± 35 in-lb

SHIFT LEVER ASSEMBLY
REMOVAL STEPS

1. Shift knob
• Floor console bracket (A)

(Refer to GROUP 52A

− Floor

Console Assembly

P.52A-9

.)

>>

B

<<

2. Key interlock cable connection

(shift lever side)

3. Transaxle control cable

connection (shift lever side)

4. Shift lever-ECU connector

connection

5. Shift lock solenoid connector

connection

6. Shift lever assembly

Transaxle control cable
removal steps

1. Shift knob
• SRS-ECU (Refer to GROUP

52B

− SRS-ECU

P.52B-383

.)

• G and yaw rate sensor and G

and yaw rate sensor bracket
(Refer to GROUP 35C

− G and

Yaw Rate Sensor

P.35C-278

.)

>>

A

<<

3. Transaxle control cable

connection (shift lever side)

• Air cleaner assembly (Refer to

GROUP 15

− Air Cleaner

P.15-10

.)

• Engine control wiring harness

connector bracket (Refer to
GROUP 54A

− Battery

P.54A-10

.)

TRANSMISSION CONTROL

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-335

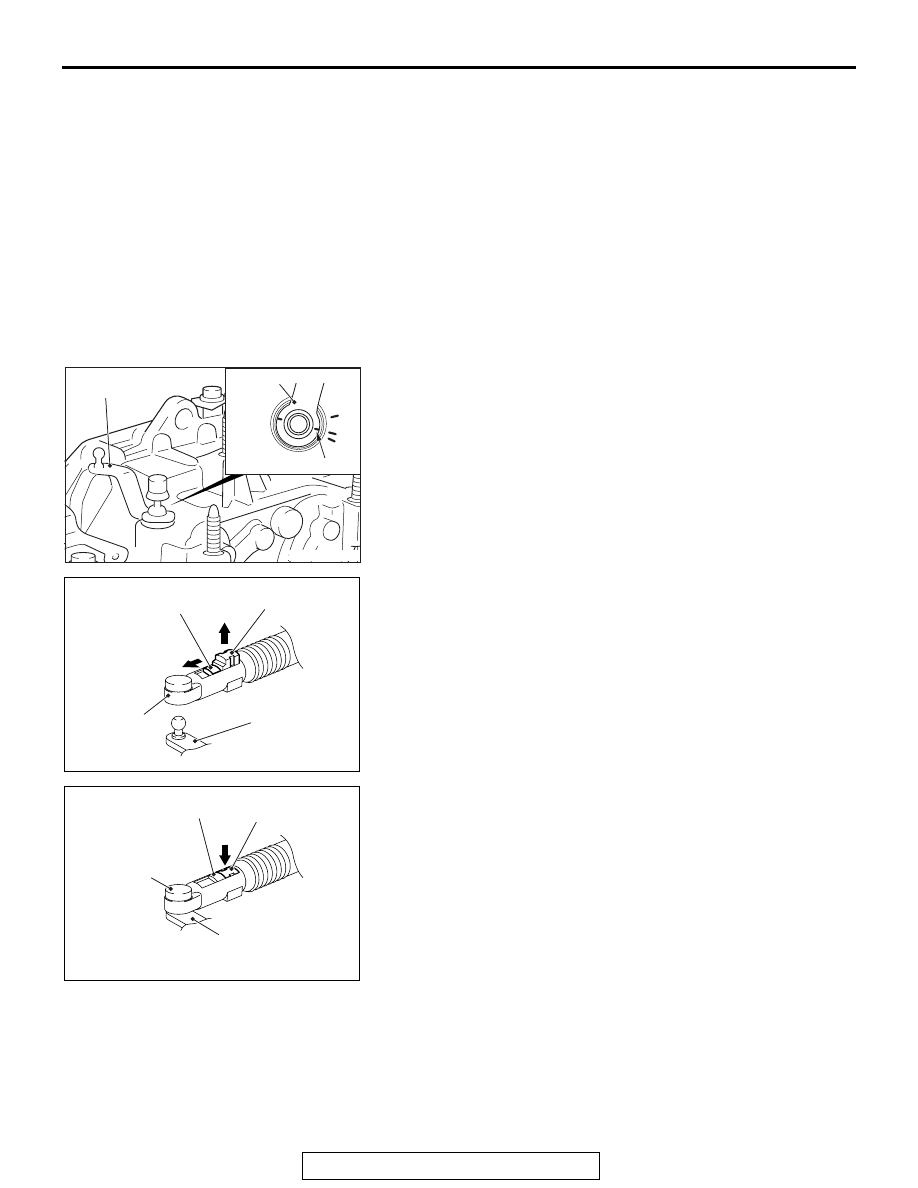

INSTALLATION SERVICE POINTS

.

>>A<< TRANSAXLE CONTROL CABLE (TRAN-
SAXLE SIDE/SHIFT LEVER SIDE) INSTALLATION

1. Connect the transaxle control cable (shift lever side) to the

shift lever assembly.

2. Set the shift lever to the N position.
3. Operate the lever so that the shift control lever positioning

mark is set to the N position.

4. Move the slider of the transaxle control cable (transaxle

side) tip to the direction A to pull up the lock piece to the
direction B.

5. Align the transaxle control cable and the shift control lever

joint (positioning only, do not connect), and firmly push down
the lock piece to lock it. Then, connect the transaxle control
cable and the shift control lever.
NOTE:

.

The slider automatically returns to the fixed position by
the spring.

The lock position of transaxle control cable is automati-
cally adjusted by a spring.

.

>>

A

<<

7. Transaxle control cable

connection (transaxle side)

8. Transaxle control cable

bracket

9. Transaxle control cable

Transaxle control cable
removal steps (Continued)

AC707764

P

N

D

AC

Shift control lever

Mark

Shift control lever

AC707742

AC

Shift control
lever

Lock piece

Slider

Transmission
control cable

A

B

AC707743

AC

Shift control
lever

Lock piece

Slider

Transmission
control cable

TRANSMISSION CONTROL

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-336

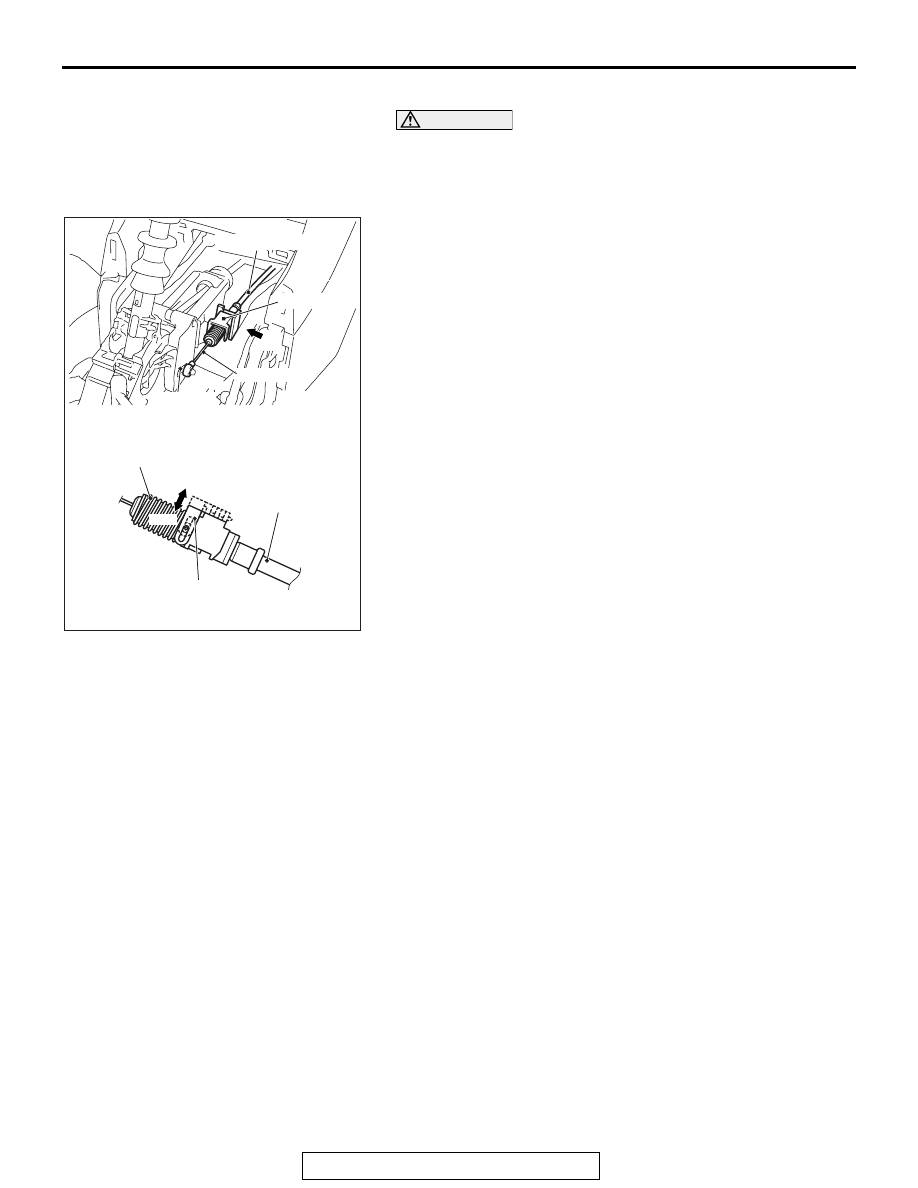

>>B<< KEY INTERLOCK CABLE INSTALLATION

CAUTION

Leave the ignition switch in the LOCK (OFF) position until
the key interlock cable installation is completed.
1. Move the shift lever to the P position, and turn the ignition

switch to the LOCK (OFF) position.

2. Install the tip of key interlock cable to the lock cam of shift

lever assembly, using a caution not to twist the inner cable.

3. Install the adjuster case with its lock guide pulled up

(unlocked).

4. Firmly push down the lock guide to lock it.

NOTE: The lock position of the key interlock cable is auto-
matically adjusted by a spring.

AC707937

AC707782

AD

Inner cable

Key interlock cable

A

Spring

Lock

Key interlock cable

Lock guide

Lock guide

View A

Lock cam

Unlock
