SPECIAL TOOLS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-111

SPECIAL TOOLS

M1552000600646

Tool

Tool number
and name

Supersession

Application

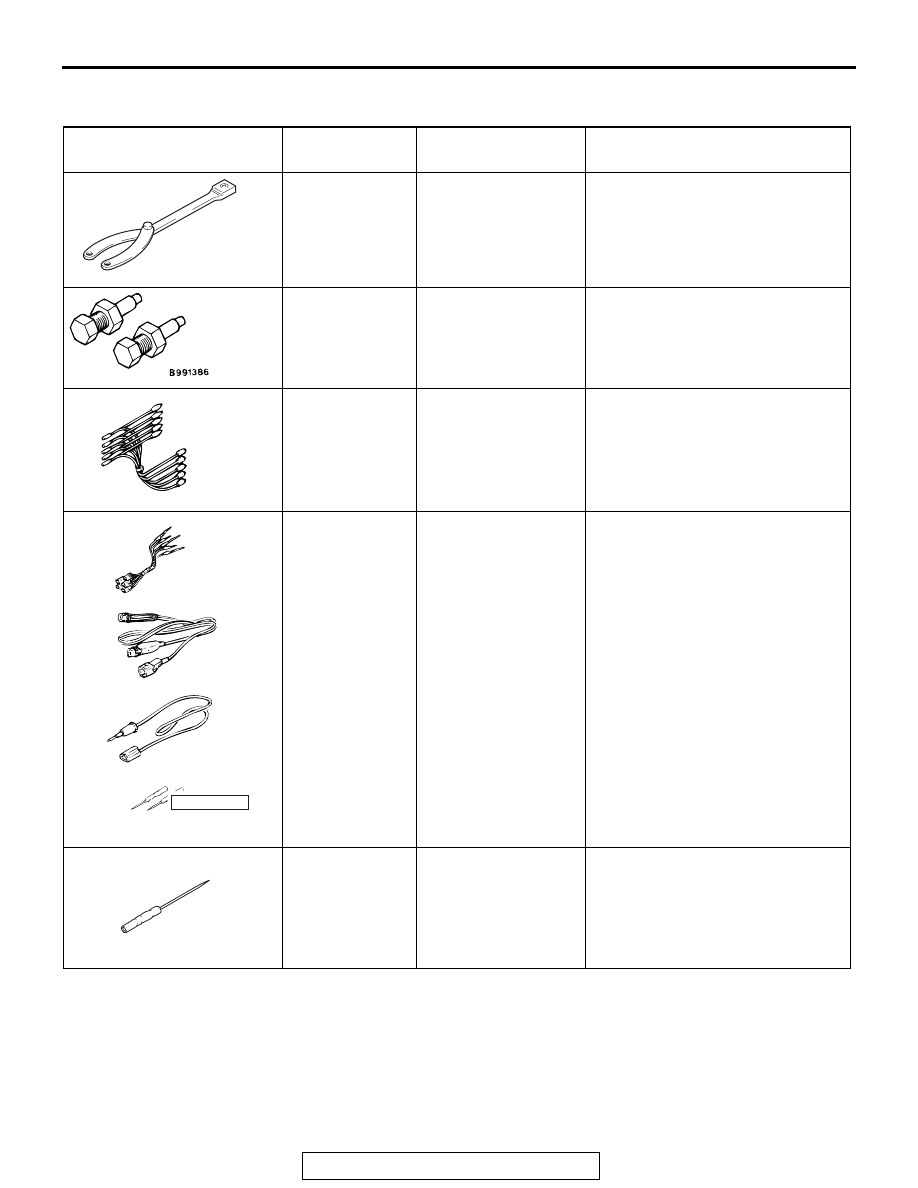

MB991367
Special spanner

MB991367-01

Armature mounting nut of
compressor removal and
installation

MB991386 Pin

MIT217213

Armature mounting nut of
compressor removal and
installation

MB991658
Test harness set

Tool not available

Inspection of throttle position
sensor

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally sourced

tester

MB992006
Extra fine probe

General service tool

Making voltage and resistance
measurement during
troubleshooting

B991367

MB991658

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

SPECIAL TOOLS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-112

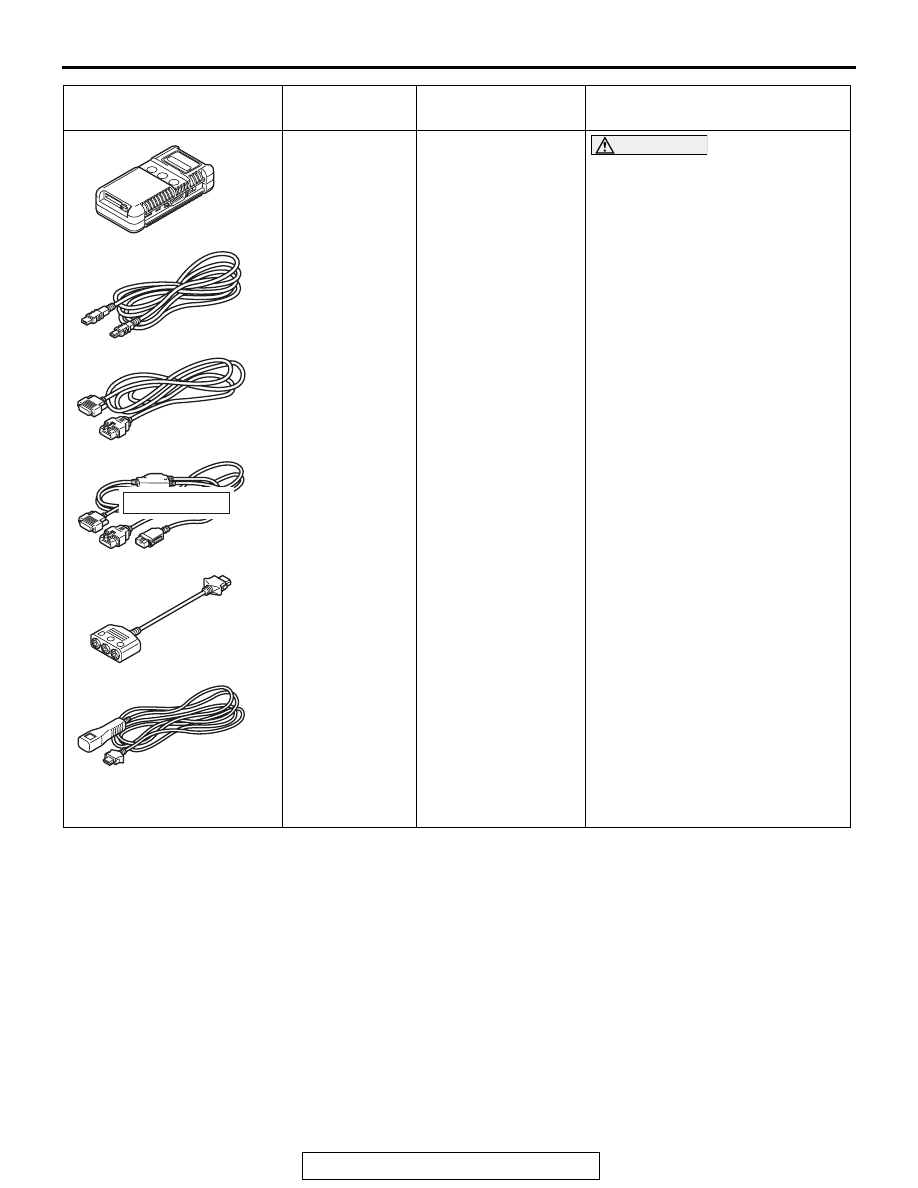

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

Communication
Interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III measure

adapter

f. M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.
A/C-ECU check (Diagnosis code,
service data, actuator test)

Tool

Tool number
and name

Supersession

Application

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

ON-VEHICLE SERVICE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-113

ON-VEHICLE SERVICE

REFRIGERANT LEVEL TEST

M1552008400594

Use the refrigerant recovery station to remove all of the refrig-
erant, and then calculate the amount of the refrigerant and
charge it.

A/C COMPRESSOR CLUTCH TEST

M1552019900128

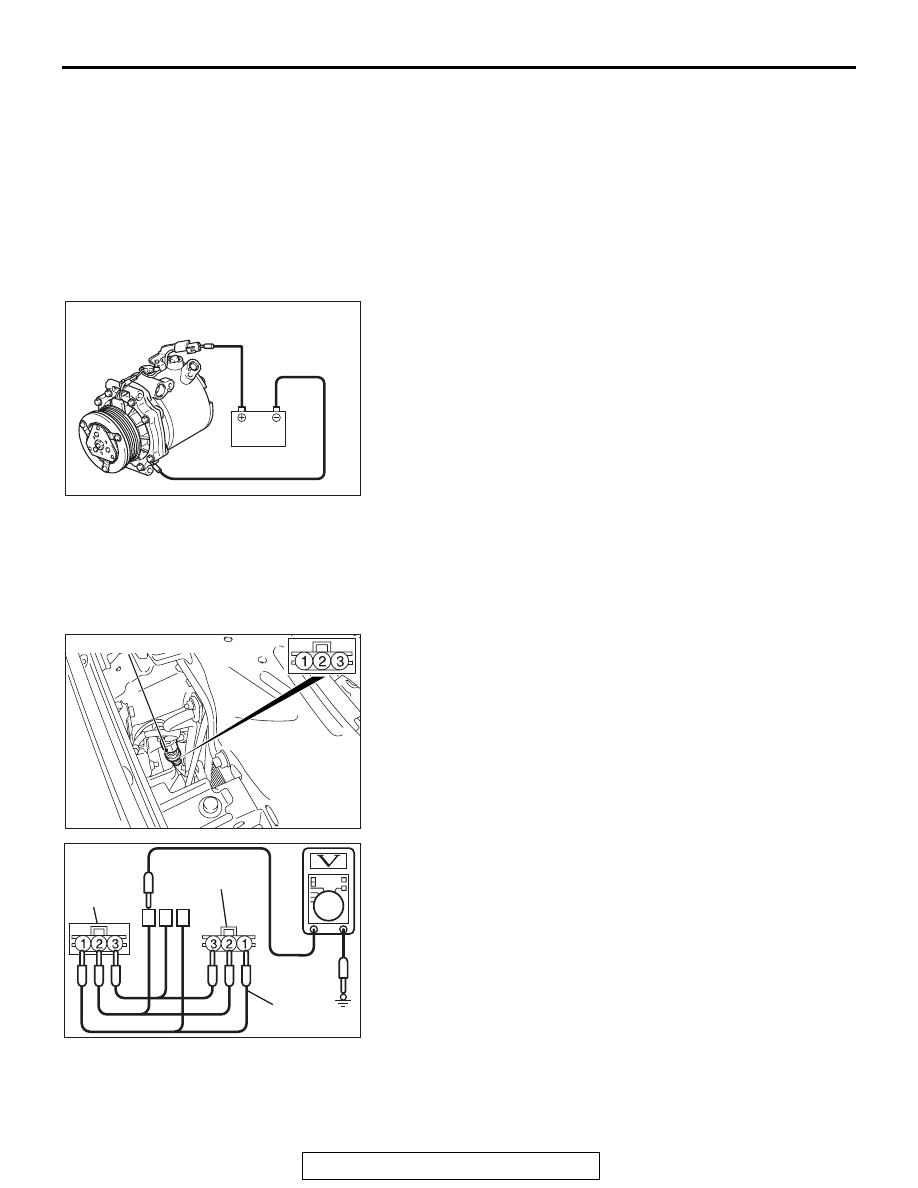

1. Disconnect the A/C compressor clutch connector to the A/C

compressor clutch.

2. Connect positive battery voltage directly to the connector for

the A/C compressor clutch.

3. Supply a ground to the A/C compressor assembly.
4. If the A/C compressor clutch is normal, there will be a "click."

If the pulley and armature do not make contact ("no click"),
there is a malfunction.

SIMPLE INSPECTION OF THE A/C PRESSURE
SENSOR

M1552014700464

1. Assemble a gauge manifold on the high pressure service

valve.

2. Disconnect the A/C pressure sensor connector and connect

special tool test harness MB991658 as shown in the illustra-
tion.

3. Turn ON the engine and then turn ON the air conditioner

switch.

AC506471

AC609413

A/C pressure sensor

AB

AC307368

A/C
pressure
sensor
side

MB991658

AC

Harness side

ON-VEHICLE SERVICE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-114

4. At this time, check to see that the voltage of A/C pressure

sensor terminal No. 2 reflects the specifications of the fig-
ure.
NOTE: The allowance shall be defined as

±

5%.

COMPRESSOR DRIVE BELT ADJUSTMENT

M1552001001082

Refer to GROUP 11A, On-vehicle Service

− Drive Belt tension

check and adjustment

P.11A-8

CHARGING

M1552001200663

Use the refrigerant recovery station to charge the refrigerant.

METHOD BY USING REFRIGERANT RECOVERY
AND RECYCLING UNIT

Using the refrigerant recovery and recycling unit, refill the
refrigerant.
NOTE: Refer to the Refrigerant Recovery and Recycling Unit’s
Instruction Manual for operation of the unit.

DISCHARGING SYSTEM

Use the refrigerant recovery unit to discharge refrigerant gas
from the system.
NOTE: Refer to the Refrigerant Recovery and Recycling Unit’s
Instruction Manual for operation of the unit.

REFILLING OF OIL IN THE A/C SYSTEM

Too little oil will provide inadequate compressor lubrication and
cause a compressor failure. Too much oil will increase dis-
charge air temperature.
When a compressor is installed at the factory, it contains 140
cm

3

 (4.7 fl.oz) of refrigerant oil. While the A/C system is in

operation, the oil is carried through the entire system by the
refrigerant. Some of this oil will be trapped and retained in vari-
ous parts of the system.
When the following system components are changed, it is nec-
essary to add oil to the system to replace the oil being removed
with the component.

Compressor oil: SUN PAG 56
Quantity:

Evaporator: 60 cm

3

 (2.0 fl.oz)

Condenser: 15 cm

3

 (0.5 fl.oz)

Suction hose: 10 cm

3

 (0.3 fl.oz)

AC208297AG

Refrigerant pressure MPa (psi)

Output voltage

(V)

0

1

2

3

5

4

1 (145)

2 (290)

3 (435)
