WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-6

WINDSHIELD WIPER AND WASHER

M2510007000853

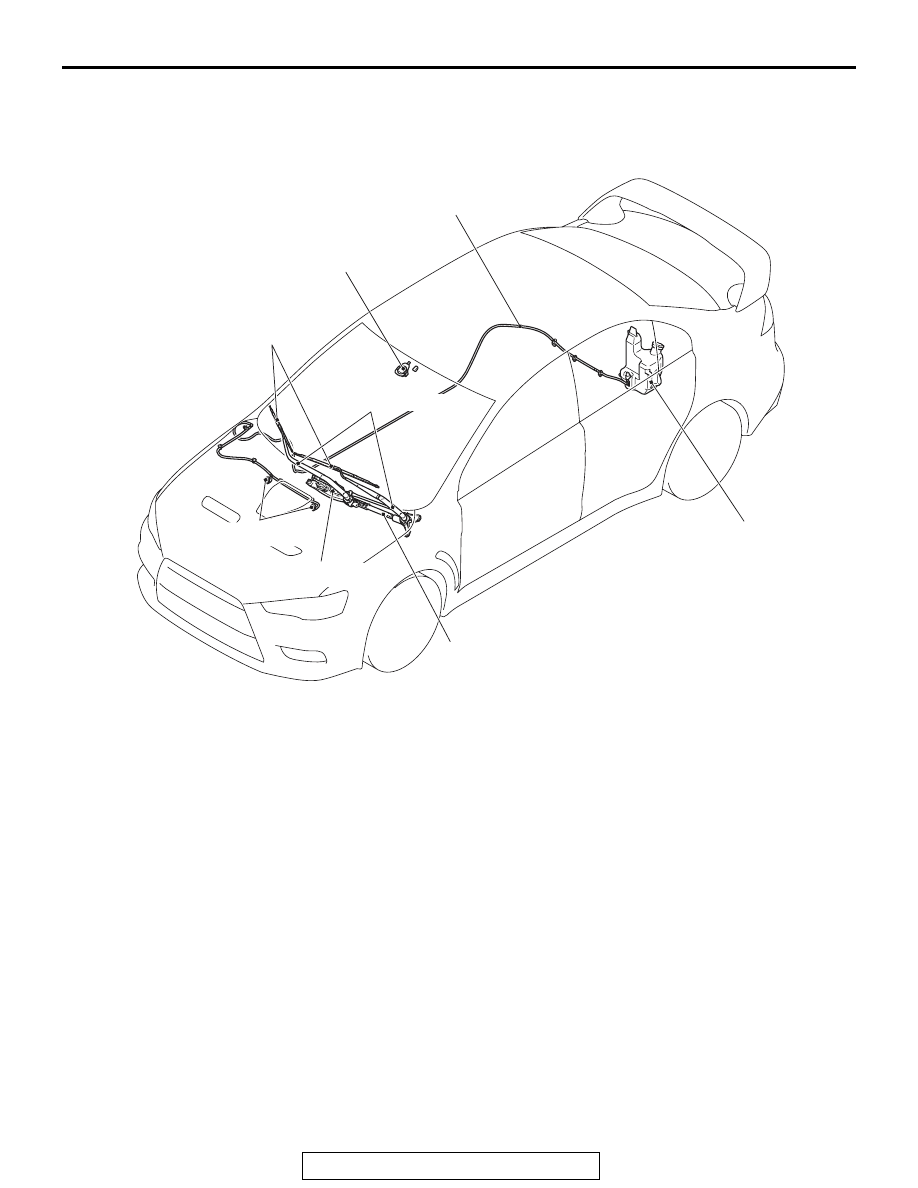

CONSTRUCTION DIAGRAM

• 2-speed (low/high speed) windshield wiper has

been adopted.

• The intermittent wiper features a vehicle

speed-dependent variable intermittent time sys-
tem*.

• Rain sensitive AUTO wiper system*

<Optional:Vehicles for USA with lighting control
sensor (rain sensor)>

• With the windshield washer, the washer spraying

area has been enlarged by the adoption of 2-noz-
zle diffusion washer type, improving the wiping
performance of windshield wiper.

• The mist wiper is turned ON by operating the mist

switch in the opposite direction of the wiper
switch for easy operation. The mist wiper is
equipped with the function that quickly wipes
raindrops away at high speed when the mist
switch is ON, and when the mist switch is OFF, at
low speed until the stop position is reached.
When the mist switch is briefly turned ON, the
wiper operates once at low speed.

• Washer-linked wiper function* has been adopted.

The washer fluid can be injected without operat-
ing the wiper. When the ignition switch is turned
ON while the washer switch is ON, the washer
motor operates but the wiper does not.

• Windshield washer tank is arranged in the trunk

room, contributing to the optimization of
front-to-back weight distribution for the vehicle.

NOTE: **Using the customization function, the vehi-
cle speed-dependent variable intermittent time sys-
tem, rain sensitive AUTO wiper system and the
washer-linked wiper function can be selected (Refer
to

P.51-12

).

AC708711AB

Windshield washer hose

Windshield wiper blade

Wiper link assembly

Windshield washer tank

Lighting control sensor
(rain sensor)

Windshield wiper arm

Windshield wiper

motor

Windshield

washer nozzles

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-7

DESCRIPTION OF CONSTRUCTION AND OPERATION

.

Intermittent control (Vehicle speed-dependent
variable type) <Initial condition: with function>

1. ETACS calculates the windshield intermittent wiper interval

T1 from the position of the windshield intermittent wiper
switch on the column switch and the vehicle speed signal
(sent from the combination meter to ETACS via CAN com-
munication).
NOTE: Using the configuration function, the vehicle
speed-dependent intermittent function can be invalidated
(Refer to

P.51-12

).

2. When ETACS receives the ON signal of the windshield

intermittent wiper switch, it turns the windshield wiper relay
ON. When the wiper reaches the stop position, the wind-
shield wiper auto-stop signal turns OFF, and the windshield
wiper relay turns OFF.
When the intermittent time T1 calculated by step 1 has
elapsed after the windshield wiper relay ON, the windshield
wiper relay turns ON again, and the above-mentioned oper-
ation is repeated.

.

Mist wiper control

When the windshield wiper mist switch on the column switch is
turned ON while the ignition switch is in ACC or ON position,
the column switch turns the windshield wiper relay ON. At the
same time, the wiper speed switching relay turns ON (HI).
When the windshield mist wiper switch is ON, the windshield
wiper operates at high speed.

.

AC101502 AC

FAST

SLOW

0

100

30

0

30

Variable intermittent wiper
control switch position

Intermittent
time T1
(seconds)

Intermittent
time T1
(seconds)

Change in intermittent time by variable
intermittent wiper control switch
(when vehicle is stationary)

Change in intermittent time according
to vehicle speed

When at FAST position

When at SLOW position

Vehicle speed  (km/h)

AC101493AJ

ON

OFF

ON

OFF

Windshield
wiper auto-
stop signal

Windshield
wiper relay

T1

T1

T1

AC207004AI

ON

OFF

ON

OFF

ON

OFF

ON (HIGH)

Windshield mist
wiper switch

Windshield wiper
auto-stop signal

Windshield wiper
relay

Windshield wiper
speed switching
relay

OFF (LOW)

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-8

Low speed wiper and high speed wiper control

When the windshield low speed wiper switch on the
column switch is turned ON while the ignition switch
is in ACC or ON position, the column switch turns the
windshield wiper relay ON. Also, the wiper speed
switching relay turns OFF (LO), and the windshield
wiper operates at low speed.

When the windshield high speed wiper switch is
turned ON, the windshield wiper relay turns ON.
Also, the wiper speed switching relay turns ON (HI),
and the windshield wiper operates at high speed.

.

AC506610AH

ON

OFF

ON

OFF

ON

OFF

(HI) ON

Windshield low-speed
wiper switch

Windshield high-speed
wiper switch

Windshield wiper auto-stop
signal

ON

OFF

Windshield wiper
relay

Windshield wiper speed
switching relay

(LO) OFF

Low speed operations

High speed operations

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-9

Windshield wiper linked with washer function <Initial condition: with function>

When the windshield washer switch on the column
switch is turned ON while the ignition switch is in
ACC or ON position, ETACS turns the windshield
washer relay ON.
When the windshield washer switch is kept ON for
0.3 seconds or longer, the windshield wiper relay (the
wiper relay output time varies depending on the con-
ditions. For details, see the table.) is turned ON, and
the windshield wiper operates at LO speed. The
windshield wiper is turned OFF with 3 seconds delay
after the windshield washer switch is turned OFF.
Even when the windshield washer switch is turned
ON while the windshield wiper is operating intermit-
tently, the intermittent action starts again after the
linked operation is finished.

If the ignition switch is turned from OFF to ACC posi-
tion while the windshield washer switch is ON, the
windshield washer relay turns ON, but the windshield
wiper does not perform the linked operation. When
the windshield washer switch is turned OFF and then
ON, the windshield wiper starts the linked operation.
NOTE:

.

•

Using the configuration function, the washer
linked windshield wiper function can be invali-
dated (Refer to

P.51-12

).

•

Using the configuration function, when the
washer linked windshield wiper function is invali-
dated, only the washer operates. It is useful to
melt down the ices of the frozen windshield.

.

AC707462 AB

t

ON

OFF

ON

OFF

ON

OFF

ON

OFF

T

T

Windshield wiper
auto stop signal

Windshield washer relay

Windshield washer switch

Windshield wiper relay

Wiper switch in
off position

Wiper switch in intermittent
operation position

t: 0.3 second
T: Intermittent wiper intermittent time

Wiper switch

OFF position
AUTO position

Low-speed or high-speed
operation position

Washer switch ON time (t)

0.3
second
or less

0.3 to 0.5
second

0.5
second
or more

-

Intermittent wiper time (T)

0 second 1

seconds

3
seconds

3 seconds
