GENERAL INFORMATION

TSB Revision

EXTERIOR

51-2

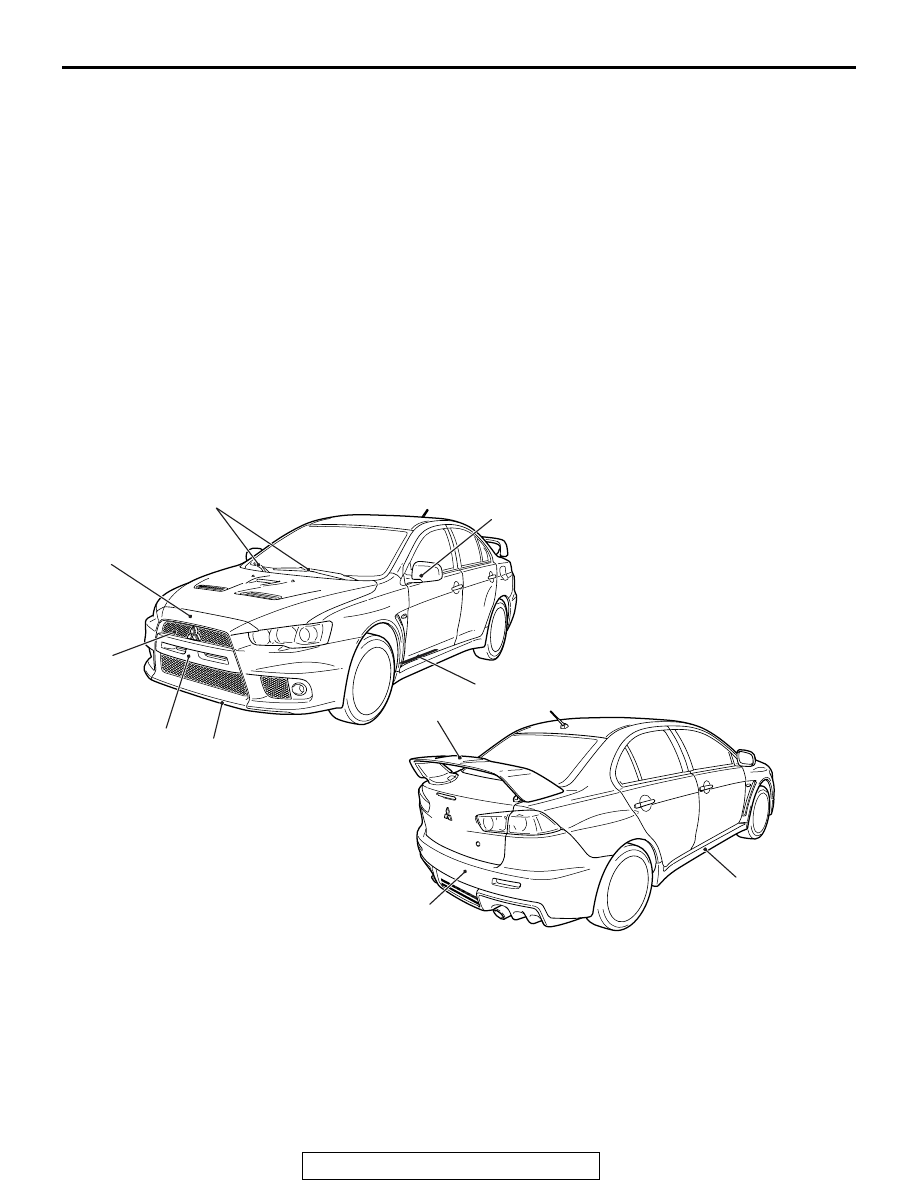

GENERAL INFORMATION

M2510000102101

.

BETTER APPEARANCE

1. Specially-shaped upper section of front bumper

emphasizes the front mask, and decreases the
air resistance.

2. Mesh type radiator grille gives a sleek front mask

and sporty image.

3. Large front bumper appealing the robust front

mask

4. Large rear bumper extending to side body

.

BETTER AERODYNAMIC
CHARACTERISTICS

5. Air dam skirt panel
6. Side air dams
7. Rear spoiler <GSR: Standard type, MR: Large

type>

.

BETTER USER-FRIENDLINESS

8. Electric remote-controlled door mirrors

.

BETTER PRODUCT PACKAGE

9. Vehicle speed sensitive intermittent time variable

windshield wiper

10. Rain sensitive AUTO wiper <Optional:Vehicles

for USA with lighting control sensor (rain sen-
sor)>

11. Installation of exclusive front step plate to side sill

<MR>

.

SUPPORT RECYCLING OF RESOURCES

Uses PP (polypropylene) materials that are easy to
recycle and easy to recognise material symbols on
the plastic (resin) parts.

.

AC708418

2

8

5

4

AB

1

3

11

9,10

7

6

BUMPER AND RADIATOR GRILLE

TSB Revision

EXTERIOR

51-3

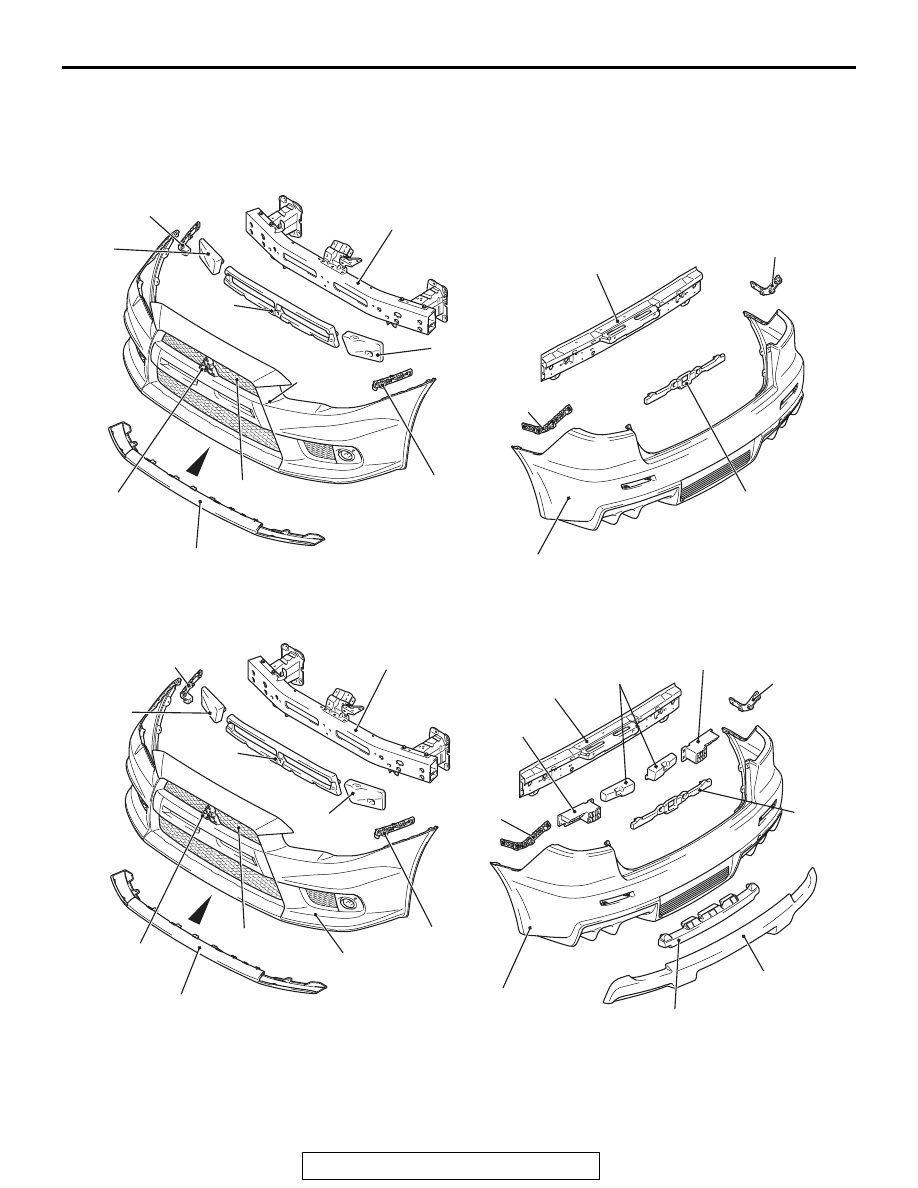

BUMPER AND RADIATOR GRILLE

M2510001300210

CONSTRUCTION DIAGRAM

• Mesh type radiator grille gives a sleek front mask

and sporty image.

• Front three-diamond mark is protruded from the

installation surface of the radiator grille to
improve the brand appeal.

• Air dam skirt panel with good aerodynamic char-

acteristics has been equipped to lower section of
front bumper.

AC708931AB

Front bumper
assembly

Front bumper
side bracket LH

Rear bumper face
support bracket LT

Radiator grille

Rear bumper
reinforcement

Front bumper
reinforcement

Front
bumper
core RH

<Front bumper assembly>

<Rear bumper assembly>

Rear bumper assembly

Air dam skirt panel

Front
three-diamond
mark

Front bumper
core LH

Rear bumper
core lower

<Vehicles for USA>

Front bumper
side bracket RH

Rear bumper face
support bracket RH

Air guide
center duct

AC708932 AB

Front bumper

assembly

Front bumper
side bracket LH

Rear bumper
face support
bracket LH

Radiator grille

Rear bumper
reinforcement

Front bumper
reinforcement

Front
bumper
core RH

<Front bumper assembly>

<Rear bumper assembly>

Rear bumper assembly

Air dam skirt panel

Front
three-diamond
 mark

Front bumper
core LH

<Vehicles for Canada>

Front bumper
side bracket RH

Rear
bumper
face
support
bracket RH

Rear bumper
core upper

Rear bumper
core side RH

Rear bumper
core side LH

Rear bumper
core center

Rear bumper
protector

Rear
bumper
core
lower

Air guide
center duct

AERO PARTS

TSB Revision

EXTERIOR

51-4

• Aluminum front bumper reinforcement has been

equipped to improve steering stability and riding
comfort, and reduce weight and vibration noise
(rear bumper reinforcement is made of steel).

• The front and rear bumpers incorporate highly

rigid bumper reinforcements and bumper cores
for excellent energy-absorption to reduce chassis
deformation upon impact.

• With the front and rear bumper reinforcements

remaining on the body, front and rear bumpers
can be removed as a unit.

• Resin-made front bumper side brackets and rear

bumper face support brackets have been
adopted to improve the alignment with the body.

• Rear bumper protector and rear bumper core

center have been added to the rear bumper
assembly. <Vehicles for Canada>

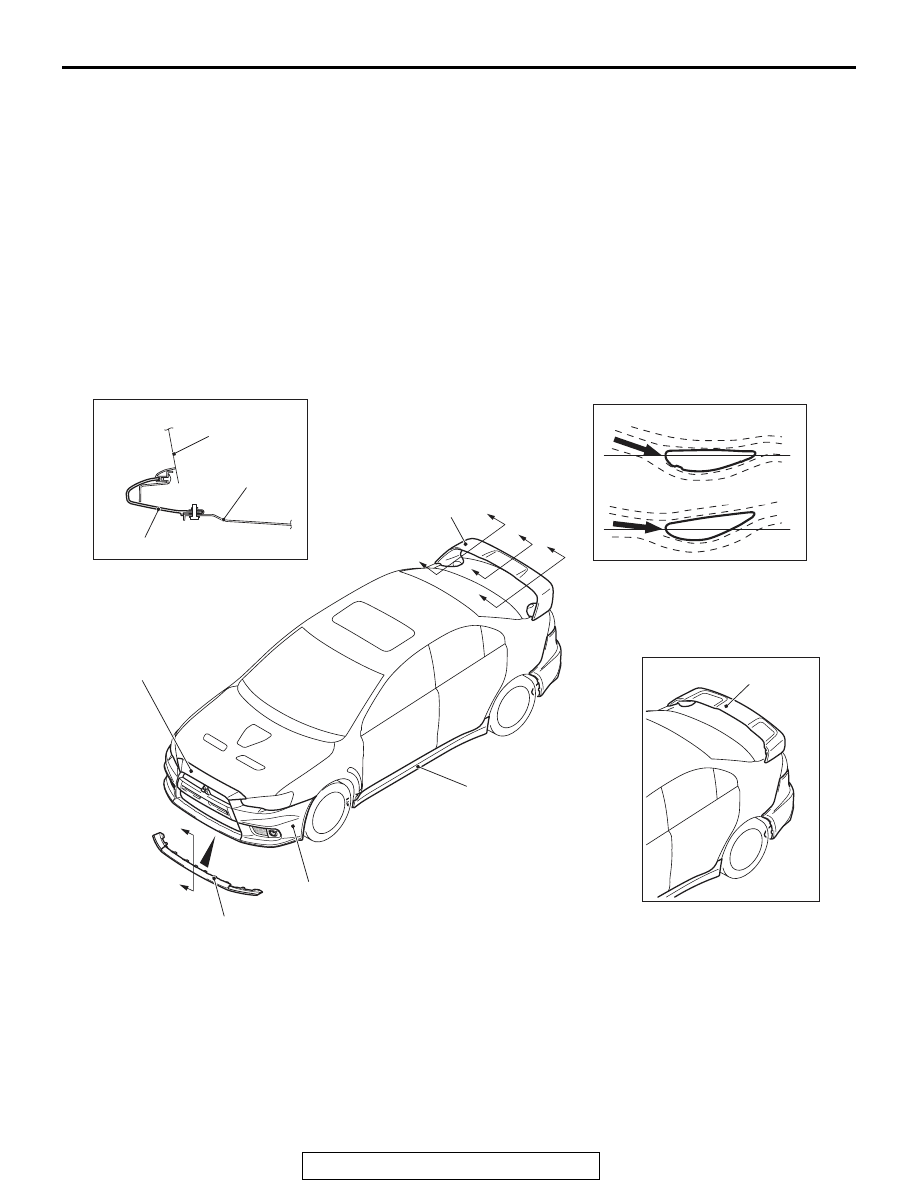

AERO PARTS

M2510003000903

CONSTRUCTION DIAGRAM

AC708958 AB

B

B

C

A

A

C

C

C

Front bumper

Air dam skirt panel

Rear spoiler
<Large type>

Side air dam

Engine room
under cover

Air dam skirt panel

Front bumper

Section A – A

Section B – B (center part)

Section C – C (both ends)

<MR>

Rear spoiler
<Standard type>

<GSR>

Hood end shape

AERO PARTS

TSB Revision

EXTERIOR

51-5

The following aero parts provide better aerodynamic
performance and an appealing look.

• Hood end shape:

Upper section of front bumper also serves as the
hood end, reducing the air resistance by shape
optimization.

• Front bumper and air dam skirt panel:

Lower end of front bumper has been lowered.
With the mounting of air dam skirt panel, an edge
shape is given to the lower end of bumper. This
shape alteration reduces the airflow entering
under the vehicle to decrease the air resistance
and lifting force exerted to the vehicle front. The
resulting improvement to the front tire traction
provides enhancements to driving stability during
high speed traveling.

• Air dam shape at front of front wheel arch:

The bumper corners at the front of front wheel
arch has been made to have a projecting air dam
shape to separate the airflow at side of the body.
The generated negative pressure lowers the air
pressure in the wheel housing, reducing the lifting
force at the vehicle front.

• Lip shape at rear of front wheel arch:

The lip section at the rear of front wheel arch has
been bent inward to facilitate venting of air from
the wheel housing, decreasing the lifting force
and air resistance at the vehicle front.

• Under floor:

The under cover mounted to the under floor has
been flattened and arranged at correct position to
smoothen the airflow entering under the floor for
a reduction of air resistance. At the same time,
the lifting force is reduced to suppress the lifting
of vehicle during high speed traveling.

• Side air dams:

Smoothens the airflow under the floor and around
the wheels to decrease the air resistance and lift-
ing force.

• Rear spoiler:

<Standard type>
Separates the air vortex induced at the rear of the
vehicle to smoothen the airflow. In addition,  the
enlarged horizontal wing and the helix angle have
been optimized to reduce the air resistance and
to generate the down force, thus, the road hold-
ing quality of rear tires has been increased to
improve the driving stability while driving at high
speed.
<Large type>
The base shape of wing has been optimized to
match the airflow. Furthermore, the wing's angle
of attack has been modified at the center and
both ends, adopting a twisting structure to gener-
ate down force to the airflow for a reduction of lift-
ing force at the vehicle rear. At the same time, the
rear tire traction is enhanced to improve the driv-
ing stability during high speed traveling.
