OIL PUMP
TSB Revision
ENGINE LUBRICATION
12-4
OIL PUMP
M2120002000141

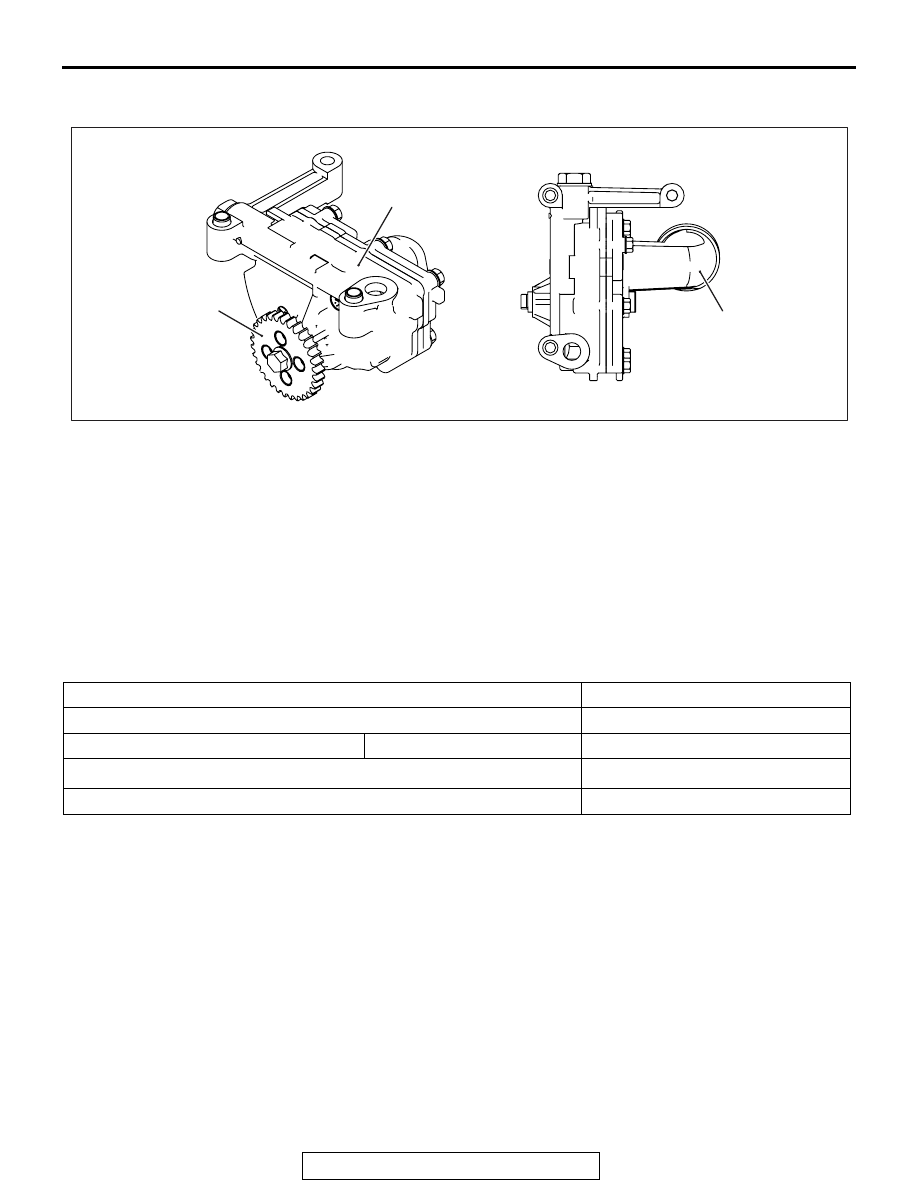

The oil screen is integrated into the oil pump case to
be compact and lightweight.
The oil pump case, which is installed to the bottom of
the ladder flame, is driven by the oil pump chain
through the oil pump sprocket installed to the front of
the oil pump case.
ENGINE OIL COOLER
M2120001000193

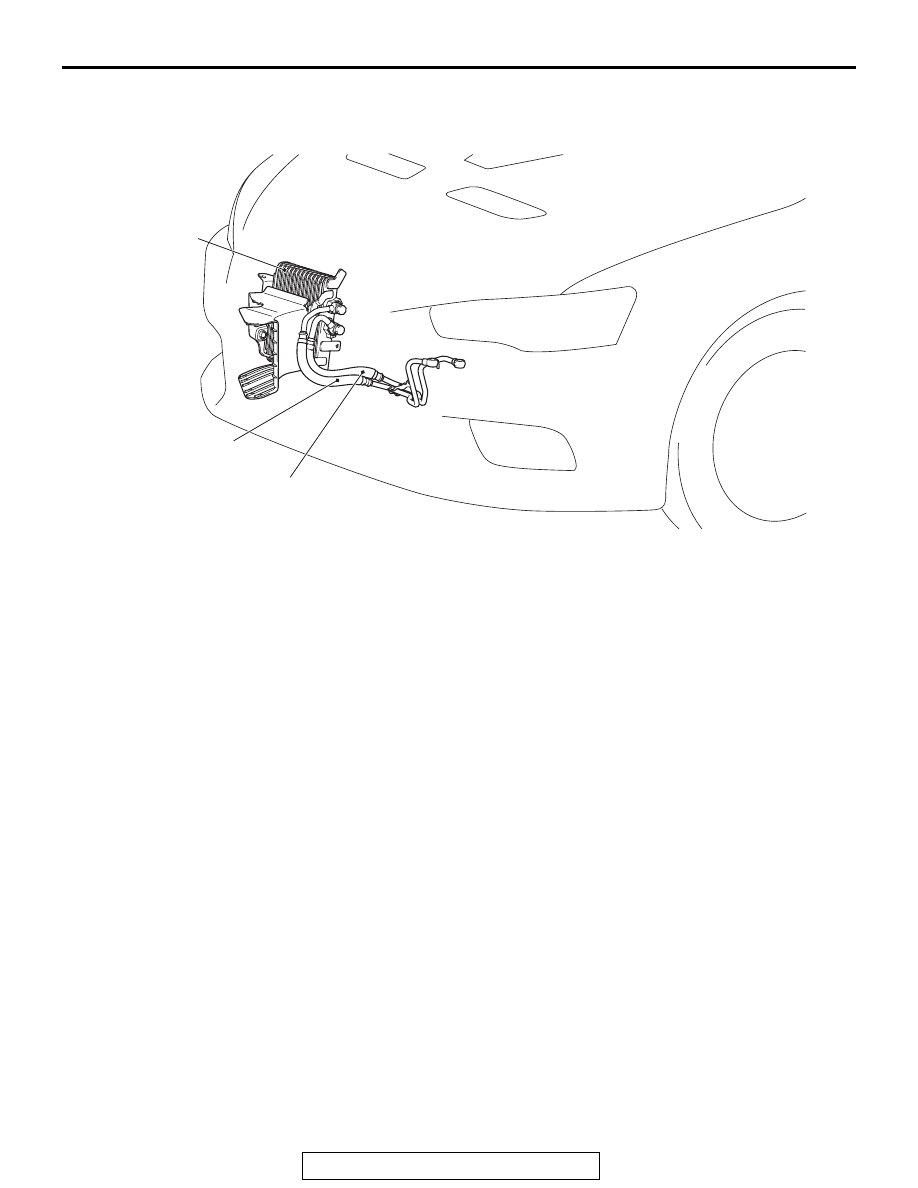

The air-cooled type engine oil cooler is installed to
the front right bottom of the radiator.
SPECIFICATIONS
AK703598AC
Oil pump case
Oil pump sprocket
Oil screen
Item
Specification
Type
Drawn cup type
Core size mm (in)
Width
× Height × Thickness 200 × 190 × 49 (7.9 × 7.5 × 1.93)
Engine oil cooler oil amount dm
3
(qt)
0.52 (0.54)
Performance kJ/h (kcal/h)
33,100 (7,900)
