WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-10

Rain sensitive AUTO wiper function <Optional: Vehicles for USA with lighting control
sensor (rain sensor)>

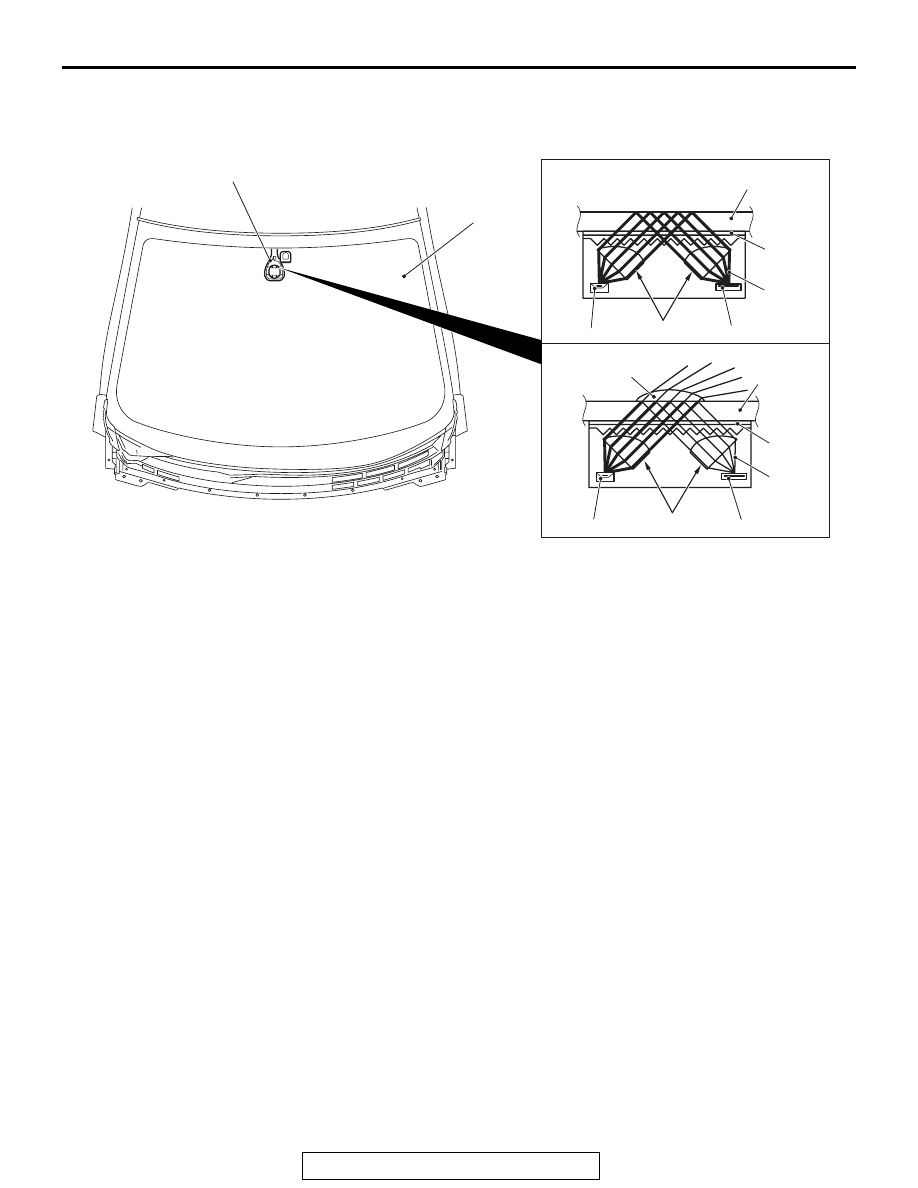

Lighting control sensor (rain sensor) has been
installed on the upper part of the windshield to sense
the raindrops and windshield wiper can be operated
automatically when the ignition switch is at ON and
wiper switch at AUTO position.

• The amount of rainfall on the windshield surface

are detected by using the infrared reflection, and
the windshield wiper is controlled by intermittent
operation or LO and HI operation automatically
depending on the amount of rainfall.

• Dry windshield: All infrared rays emitted from the

emitter diode are reflected by the windshield and
directed to the receiver diode as they are.

• Wet windshield: Part of the infrared rays emitted

from the emitter diode are transmitted to outside
of the windshield through the raindrops, and the
infrared rays with reduced intensity are directed
to the receiver diode.

NOTE: Using the configuration function, the rain sen-
sitive AUTO wiper function can be invalidated (Refer
to

P.51-12

).

AC708778AB

Windshield

Lighting control sensor (rain sensor)

Windshield

Receiver diode

Emitter diode

Raindrop

High
intensity

Receiver diode

Emitter diode

Reduced
intensity

Windshield

Optical
element

Optical
element

Dry windshield

Wet windshield

Infrared rays

Infrared rays

FRONT STEP PLATE <MR>

TSB Revision

EXTERIOR

51-11

FRONT STEP PLATE <MR>

M2510000600348

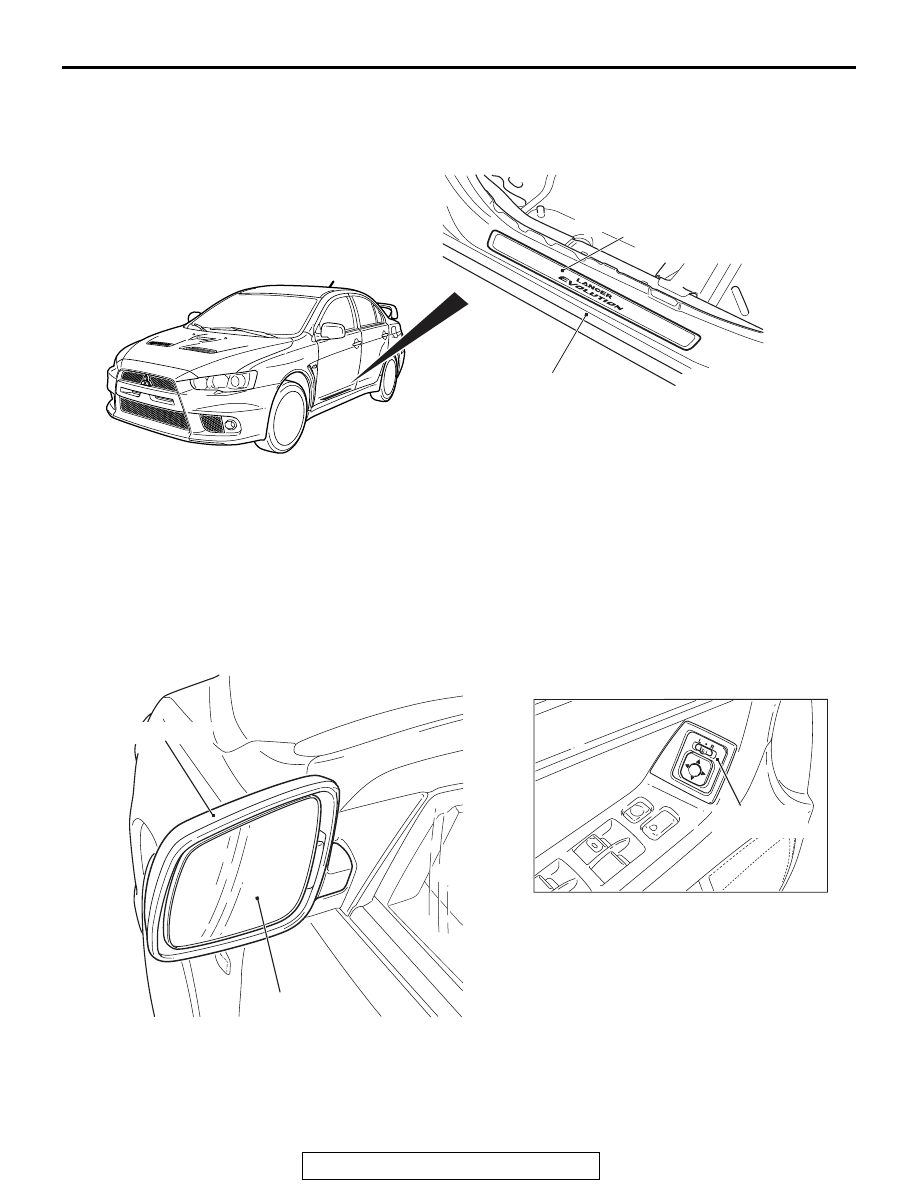

CONSTRUCTION DIAGRAM

Front step plates are attached to the both side sills
shown in the figure in order to enhance the brand
image.

DOOR MIRRORS

M2510008100552

CONSTRUCTION DIAGRAM

The outside mirror (door mirror) is a folded type and
has the following characteristics.

• Aerodynamic door mirror shape reduces wind

noises, and the door glasses and mirrors do not
easily get wet while driving in a rainy day.

• Electric remote-controlled door mirrors

AC708777AB

Front step plate

Side sill

AC607910AC

Door mirror assembly

Mirror glass

Remote control
mirror switch

CONFIGURATION FUNCTION

TSB Revision

EXTERIOR

51-12

CONFIGURATION FUNCTION

M2510001400284

Using the ETACS system of scan tool MB991958,
the following functions can be programmed. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting content
(scan tool MB991958
display)

Adjusting content

Front wiper
operation

Adjustment of the
intermittent
windshield wiper
operation <vehicles
without auto light>

Normal INT

Intermittent wiper interval is fixed to 4
seconds.

Variable INT

Intermittent wiper interval is calculated only
by the wiper volume control.

Speed Sensitive

Intermittent wiper interval is calculated
according to the intermittent wiper volume
control and vehicle speed (default).

Adjustment of the
intermittent
windshield wiper
operation <vehicles
with auto light>

Normal INT

Intermittent wiper interval is fixed to 4
seconds.

Variable INT

Intermittent wiper interval is calculated only
by the wiper volume control.

Speed Sensitive

Intermittent wiper interval is calculated
according to the intermittent wiper volume
control and vehicle speed.

Rain Sensitive

Intermittent wiper interval is calculated
according to the intermittent wiper volume
control and lighting control sensor
(default).

Front wiper
washer

Disabling or
enabling
washer-linked wiper
function

Only washer

No function

Washer&wiper

With function (default)
