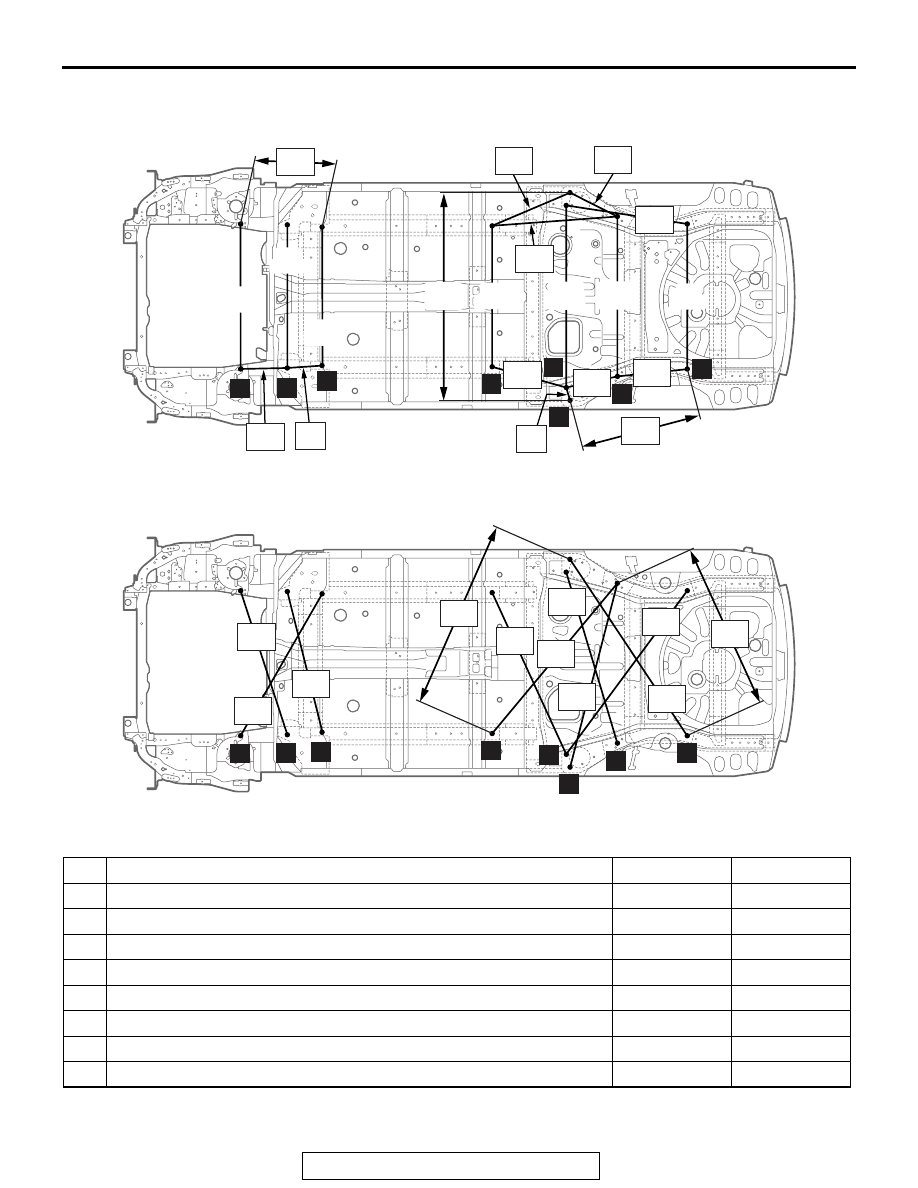

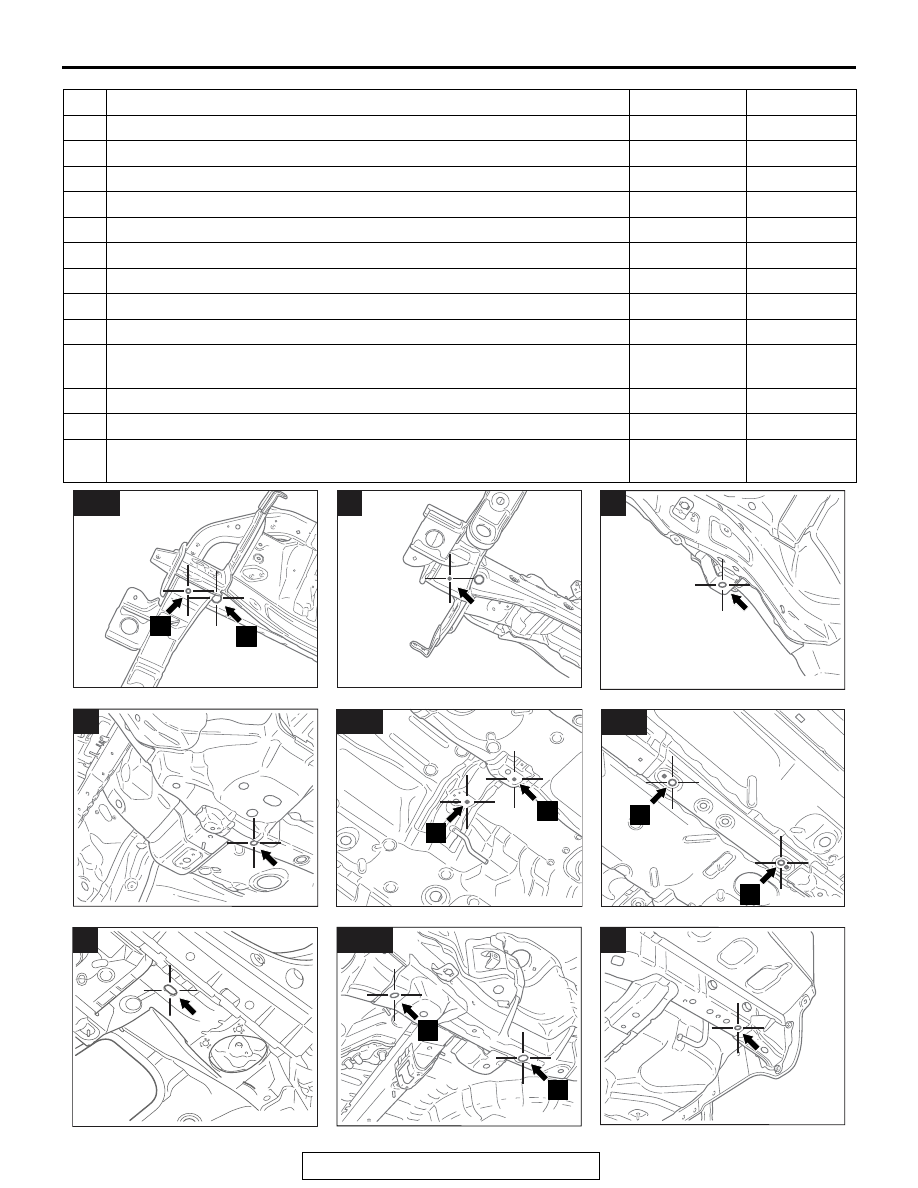

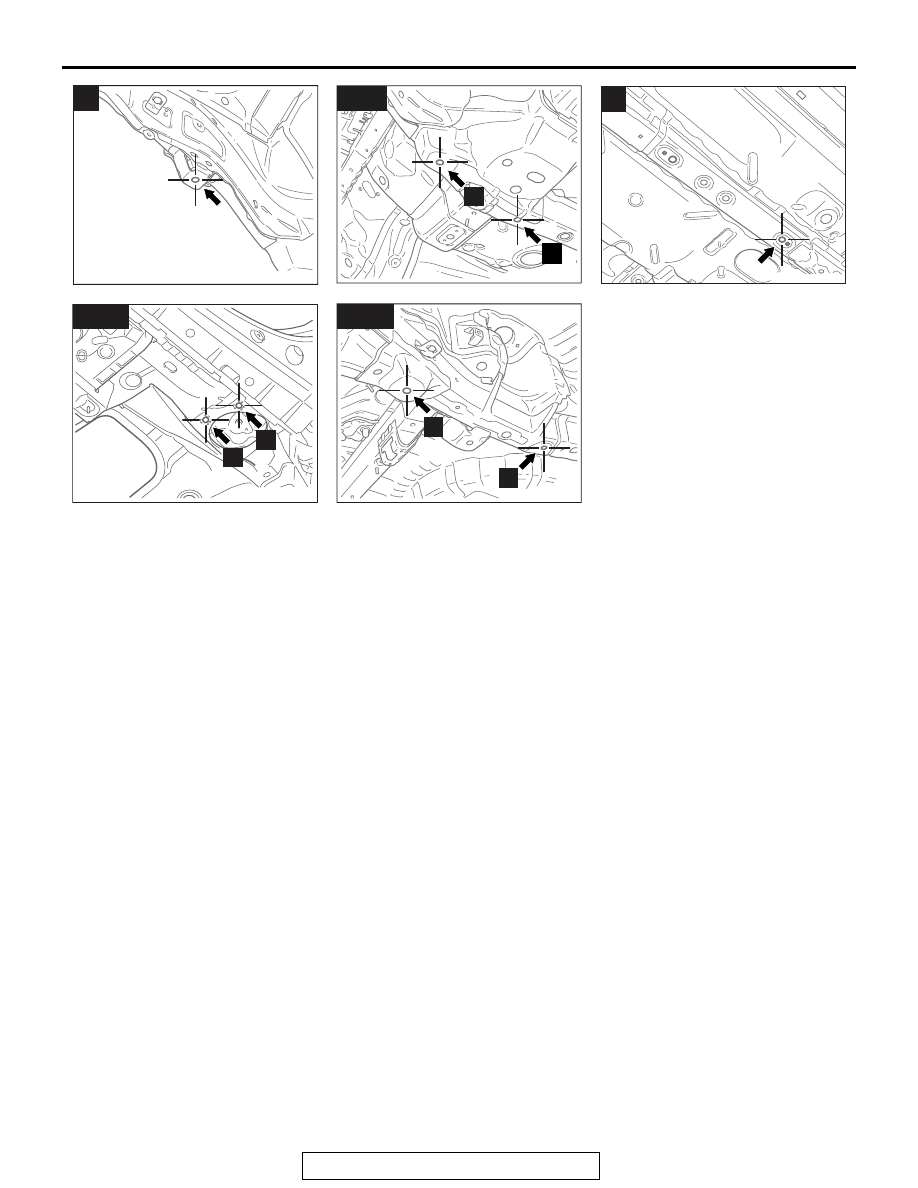

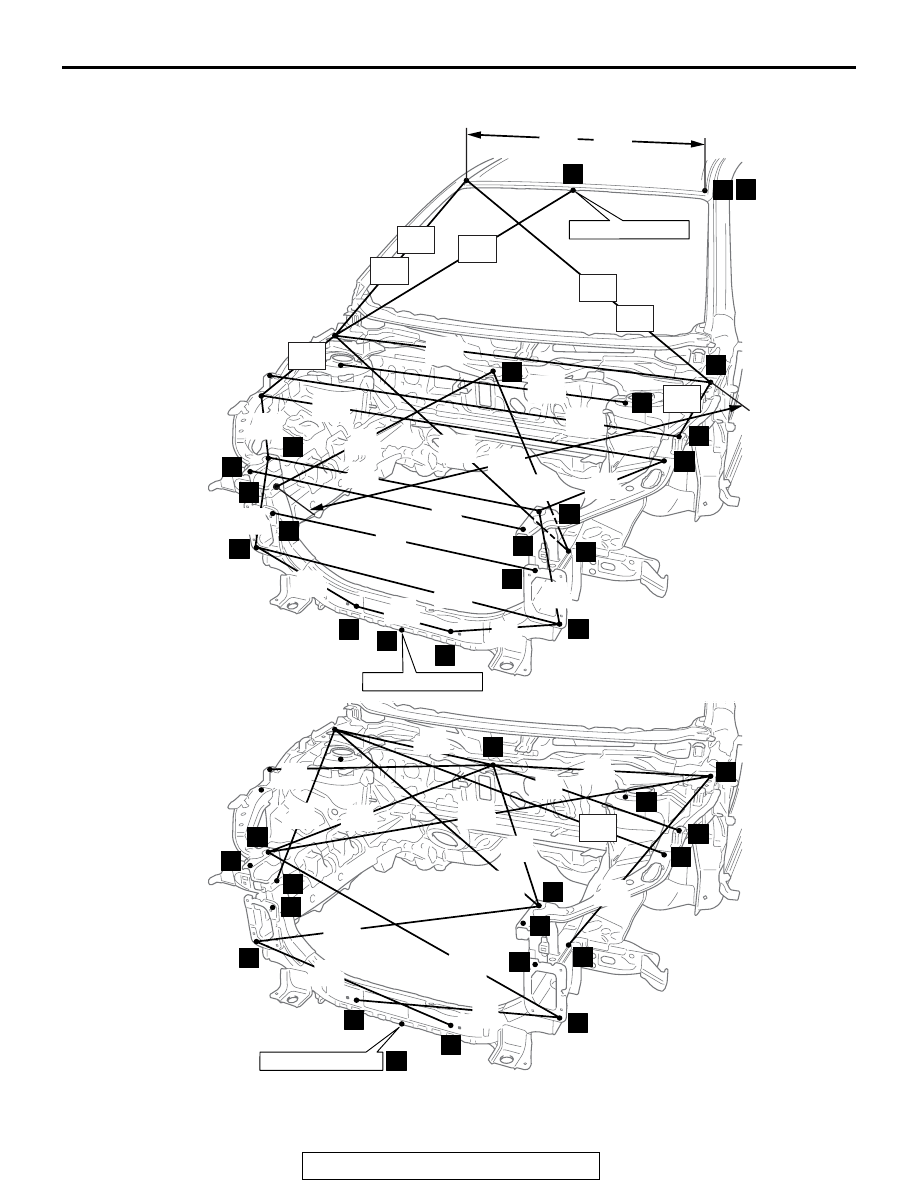

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)
TSB Revision
BODY DIMENSIONS
2-11
No. Standard measurement point
Hole shape
Size mm (in)
1
Center of front end crossmember lower water draining hole (left side)
Round
8 (0.31)
2
Center of front end crossmember lower water draining hole (right side) Round
8 (0.31)
3
Center of front sidemember inner positioning hole
Round
25 (0.98)
4
Center of front axle crossmember mounting hole (front)
Round
15.5 (0.61)
5
Center of front sidemember rear water draining hole
Round
16 (0.63)
6
Center of propeller shaft mounting hole (left side)
Round
11 (0.43)
7
Center of propeller shaft mounting hole (right side)
Round
11 (0.43)
8
Center of front floor sidemember positioning hole (front)
Round
16 (0.63)
9
Center of front floor sidemember positioning hole (rear)
Round
16 (0.63)
10
Center of rear floor sidemember lower positioning hole (front)
Oblong
33.9
×18
(1.335
×0.71)
11
Center of rear suspension bracket front water draining hole
Round
16 (0.63)
12
Center of rear floor sidemember lower positioning hole (rear)
Round
25 (0.98)
13
Center of rear floor sidemember extension water draining hole (left
side), Center of rear shipping bracket mounting hole (right side)
Round
14 (0.55)
AB700470
1, 3
1
3
AB
AB700471
2
AB
AB700472
4
AB
AB700473
5
AB
AB600999
6, 7
AB
6
7
AB601000
8, 9
AB
8
9
AB700474AB
10
AB700475AB
11, 12
12
11
AB700973AB
13
