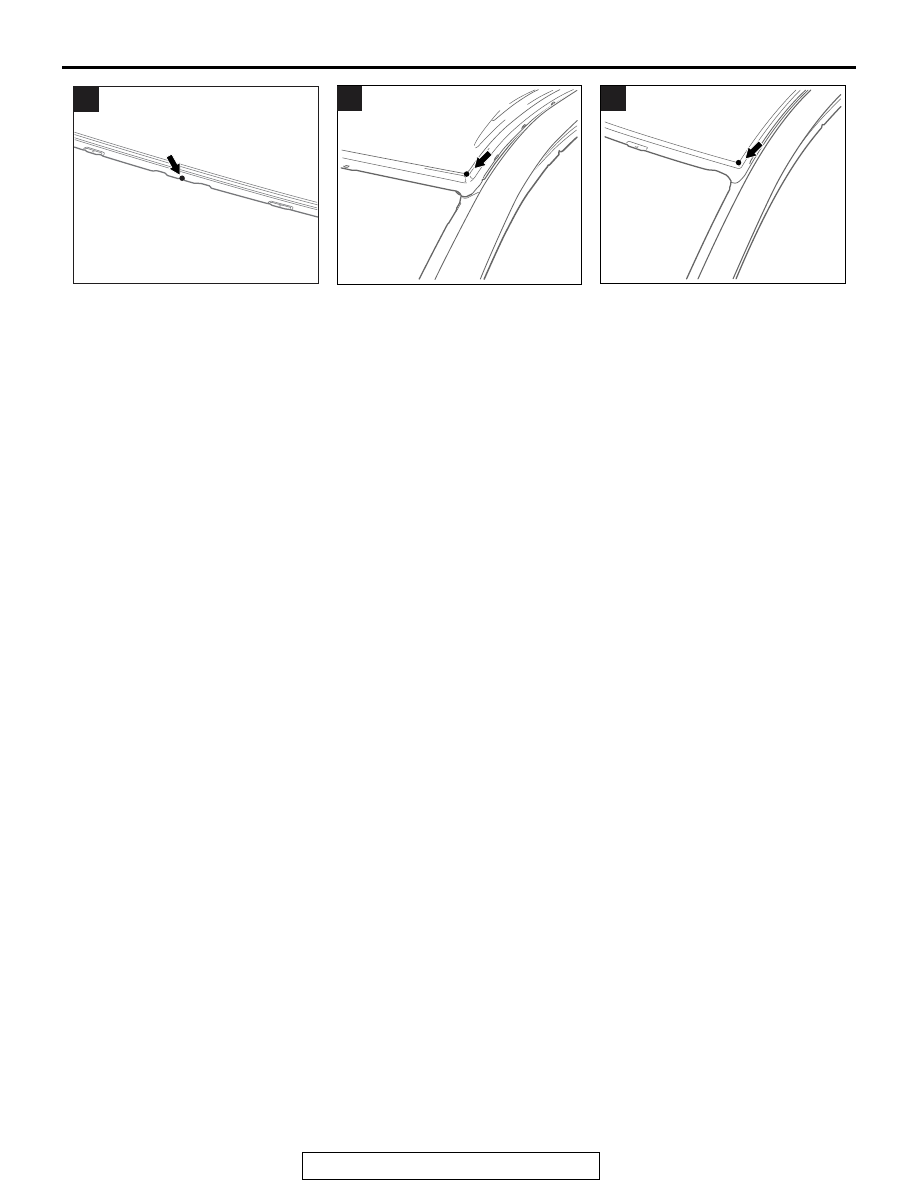

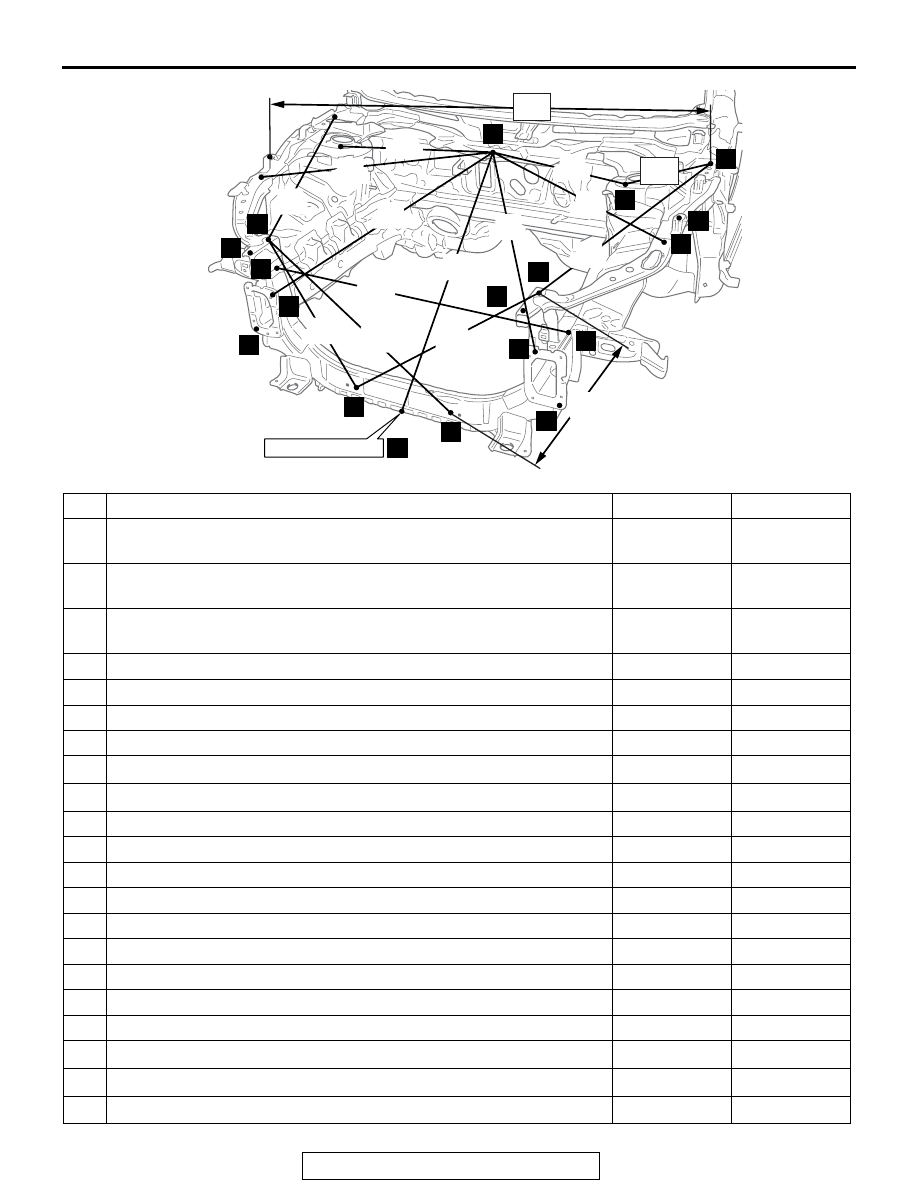

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

TSB Revision

BODY DIMENSIONS

2-15

AB700603AB

21

23

22

24

25

28

30

31

34

35

36

38

26

27

29

32

33

37

  857

(33.7)

  831

(32.7)

  873

(34.4)

  860

(33.9)

  774

(30.5)

  782

(30.8)

  601

(23.7)

  937

(36.9)

  953

(37.5)

1,026

(40.4)

Body center point

1,556

(61.3)

  555

(21.9)

  544

(21.4)

  549

(21.6)

mm (in)

  980

(38.6)

  341

(13.4)

No. Standard measurement point

Hole shape

Size mm (in)

21

Center of front end crossmember positioning notch (Body center
point)

−

−

22

Center of front end crossmember dynamic damper mounting hole
(left side)

Round

9 (0.35)

23

Center of front end crossmember dynamic damper mounting hole
(right side)

Round

9 (0.35)

24

Center of front bumper reinforcement mounting hole (left lower)

Round

9 (0.35)

25

Center of front bumper reinforcement mounting hole (left upper)

Round

9 (0.35)

26

Center of front bumper reinforcement mounting hole (right lower)

Round

9 (0.35)

27

Center of front bumper reinforcement mounting hole (right upper)

Round

9 (0.35)

28

Center of front sidemember inner positioning notch (left side)

−

−

29

Center of front sidemember inner positioning notch (right side)

−

−

30

Center of headlight support panel upper mounting hole (left front)

Round

6.6 (0.26)

31

Center of headlight support panel upper mounting hole (left rear)

Round

6.6 (0.26)

32

Center of headlight support panel upper mounting hole (right front)

Round

6.6 (0.26)

33

Center of headlight support panel upper mounting hole (right rear)

Round

6.6 (0.26)

34

Center of front end upper bar side positioning hole

Round

6 (0.24)

35

Center of front fender mounting hole

Round

6.6 (0.26)

36

Center of front strut mounting hole

Round

11.5 (0.45)

37

Center of cowl top panel mounting hole

Round

6.6 (0.26)

38

Center of hood hinge mounting hole

Round

9 (0.35)

39

Center of roof panel positioning notch (Body center point)

−

−

40

Corner of roof panel <Vehicles without sunroof (aluminum panel)>

−

−

41

Corner of roof panel <Vehicles with sunroof (steel panel)>

−

−

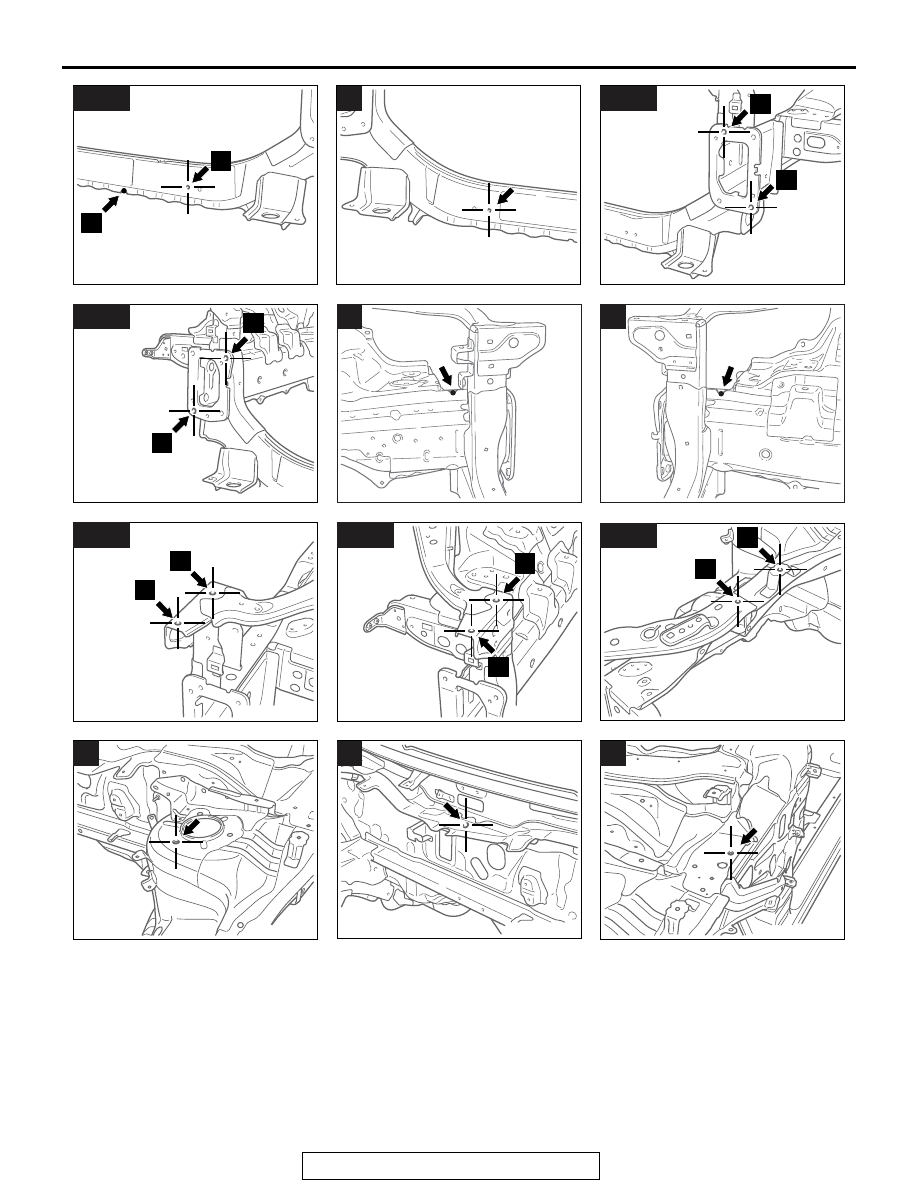

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

TSB Revision

BODY DIMENSIONS

2-16

AB700488

21, 22

21

22

AB

AB700489

23

AB

AB700434

24, 25

25

24

AB

AB700435

26, 27

27

26

AB

AB700436

28

AB

AB700437

29

AB

AB601016

30, 31

31

30

AB

AB700438

32, 33

33

32

AB

AB601020

34, 35

35

34

AB

AB700439

36

AB

AB601022

37

AB

AB700440

38

AB

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

TSB Revision

BODY DIMENSIONS

2-17

AB601235

39

AB

AB700849

40

AB

AB601024

41

AD

TYPE B (ACTUAL-MEASUREMENT DIMENSIONS)

TSB Revision

BODY DIMENSIONS

2-18

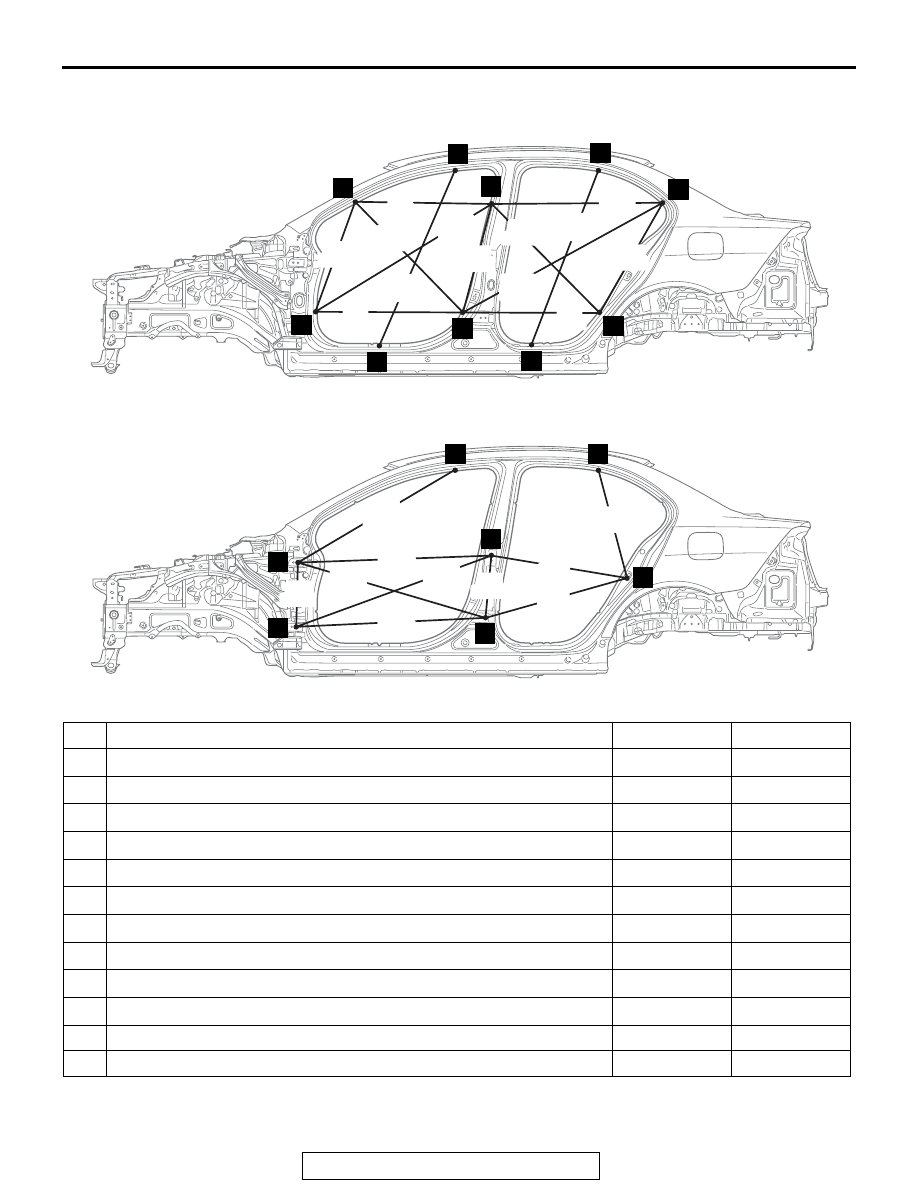

SIDE BODY

M4020007001018

AB700854

43

42

44

46

45

47

49

48

50

51

AB

1,159

(45.6)

  657

(25.9)

  635

(25.0)

  762

(30.0)

1,076

(42.4)

1,044

(41.1)

1,290

(50.8)

  713

(28.1)

  970

(38.2)

  867

(34.1)

  775

(30.5)

  822

(32.4)

mm (in)

  863

(34.0)

AB700855

44

48

52

56

53

55

54

AB

1,096

(43.1)

  364

(14.3)

1,072

(42.2)

  355

(14.0)

1,049

(41.3)

1,106

(43.5)

1,176

(46.3)

  781

(30.7)

  835

(32.9)

  640

(25.2)

No. Standard measurement point

Hole shape

Size mm (in)

42

Front pillar positioning notch (upper)

−

−

43

Front pillar positioning notch (lower)

−

−

44

Roof side rail positioning notch (front)

−

−

45

Side sill positioning notch (front)

−

−

46

Center pillar positioning notch (upper)

−

−

47

Center pillar positioning notch (lower)

−

−

48

Roof side rail positioning notch (rear)

−

−

49

Side sill positioning notch (rear)

−

−

50

Quarter panel positioning notch (upper)

−

−

51

Quarter panel positioning notch (lower)

−

−

52

Center of front door upper hinge mounting hole

Round

11 (0.43)

53

Center of front door lower hinge mounting hole

Round

11 (0.43)
