STIFFENER AND DAMP SHEET APPLICATION LOCATIONS

TSB Revision

BODY CONSTRUCTION

1-27

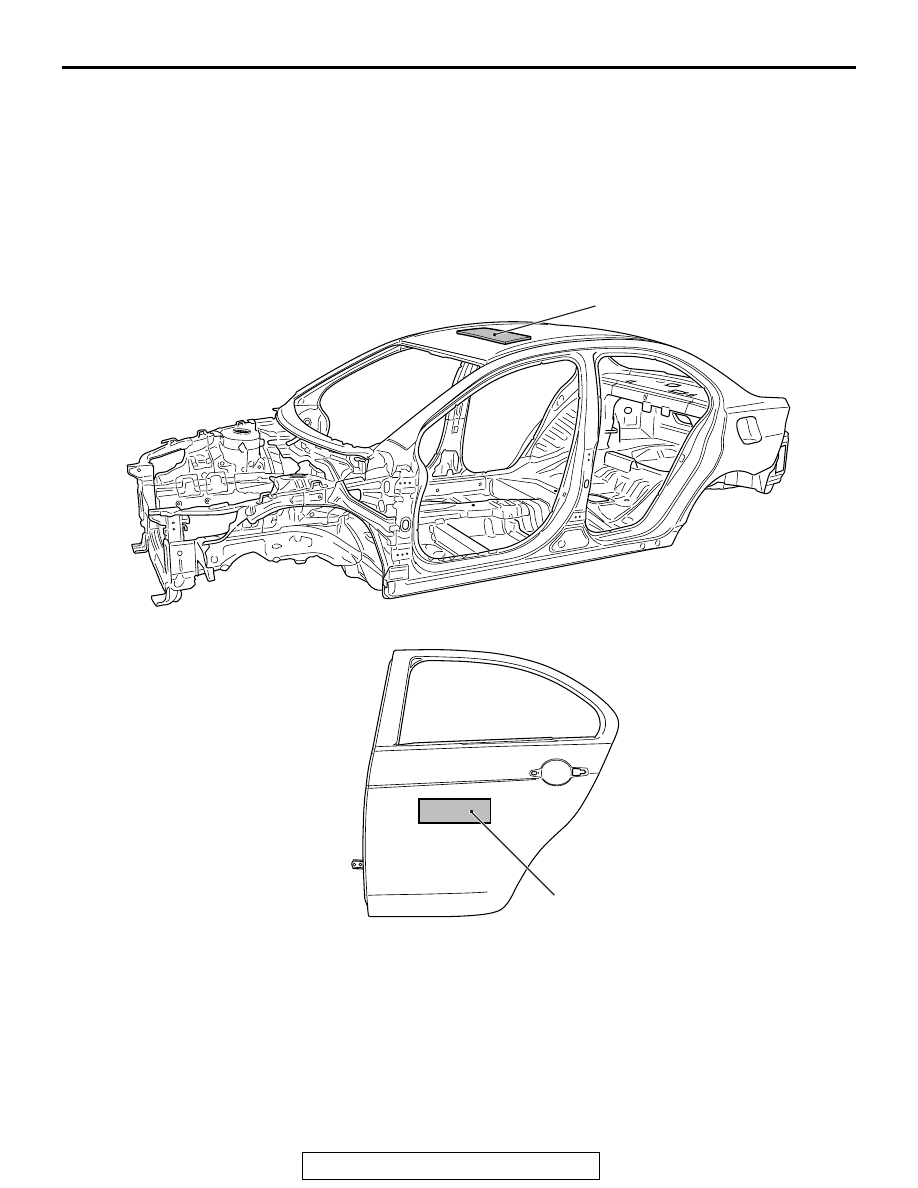

STIFFENER AND DAMP SHEET APPLICATION LOCATIONS

M4010001400263

A damp sheet (roof insulator) <Vehicles without sun-
roof (aluminum panel)> on the inner side of the roof
panel and a stiffener on the inner side of the rear
door panel outer have been adopted for higher sur-
face rigidity.

NOTE:

.

•

The main contents of a stiffener are epoxy resin.
It comes in a sheet form and contains a mixture
of glass fiber and filler, and cures (stiffens) when
heated.

•

No spare part of the stiffener for repair is avail-
able in the field. If the stiffener is damaged,
replace it together with the panel.

AB700461

AB700893AB

Damp sheet (roof insulator)

AB700892

AB

Stiffener

(Rear door)

THEFT PROTECTION

TSB Revision

BODY CONSTRUCTION

1-28

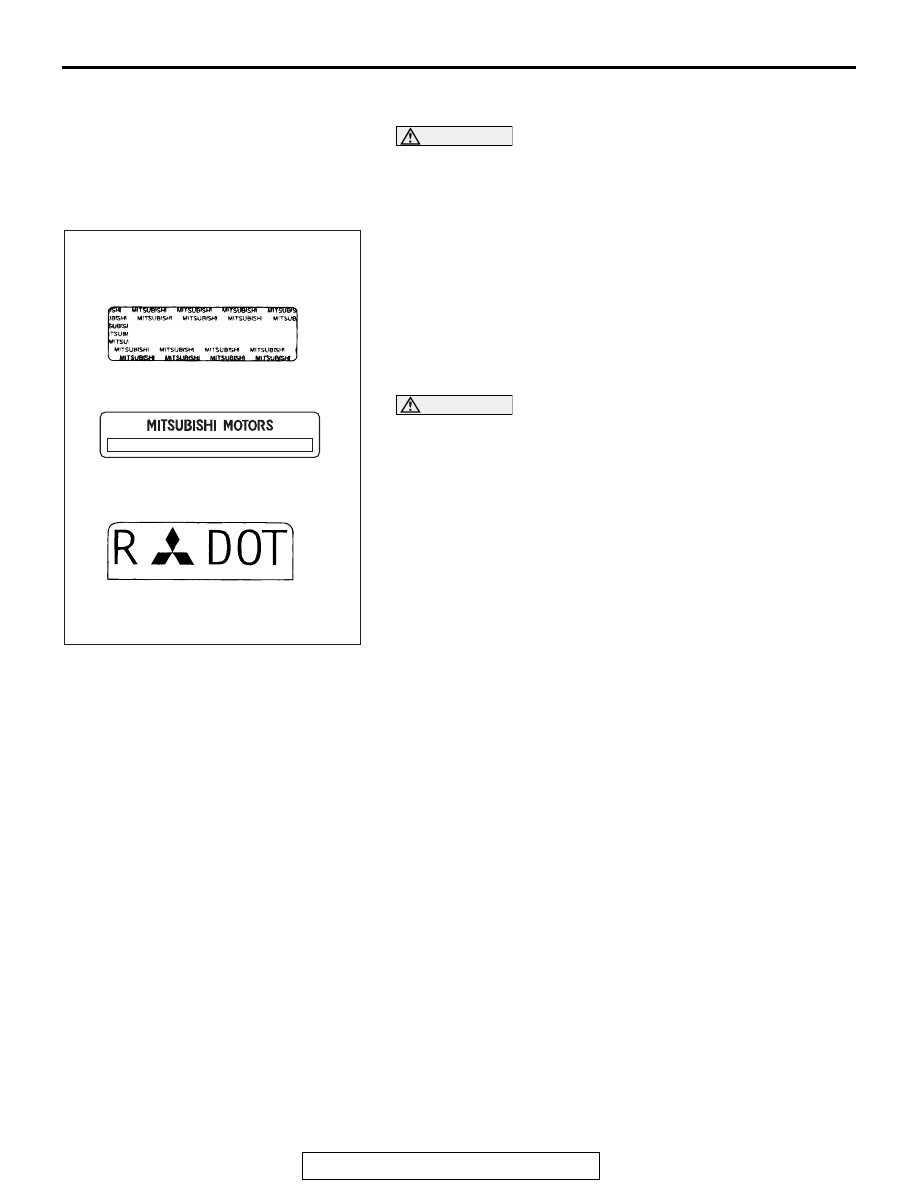

THEFT PROTECTION

M4010017000145

CAUTION

When replacing a part that has the theft protection plate,
label or stamp on it, be sure that the part has either A or B
shown in the figure. It is illegal if both A and B are
attached, or neither A nor B is attached.
In order to protect against theft, a Vehicle Identification Number
(VIN) is attached as a plate or label to the following major parts
of the engine, transaxle and main outer panels: Engine cylinder
block, Transaxle housing, Front fender, Hood, Trunk lid,
Bumpers, Side outer panel, Doors. In addition, a theft-protec-
tion label is attached to replacement parts for main outer pan-
els. The same data is stamped into replacement parts for the
engine and the transaxle.

CAUTION

Cautions regarding panel repairs:

• When repainting original parts, do so after first masking

the theft-protection label. After painting, be sure to peel
off the masking tape.

• The theft-protection label for replacement parts is cov-

ered by masking tape, so such parts can be painted as
is. The masking tape should be removed after painting
is finished.

• The theft-protection label should not be removed from

original parts or replacement parts.

.

AC704152

Theft protection plate and label

For original parts

For replacement parts

AB

THEFT PROTECTION

TSB Revision

BODY CONSTRUCTION

1-29

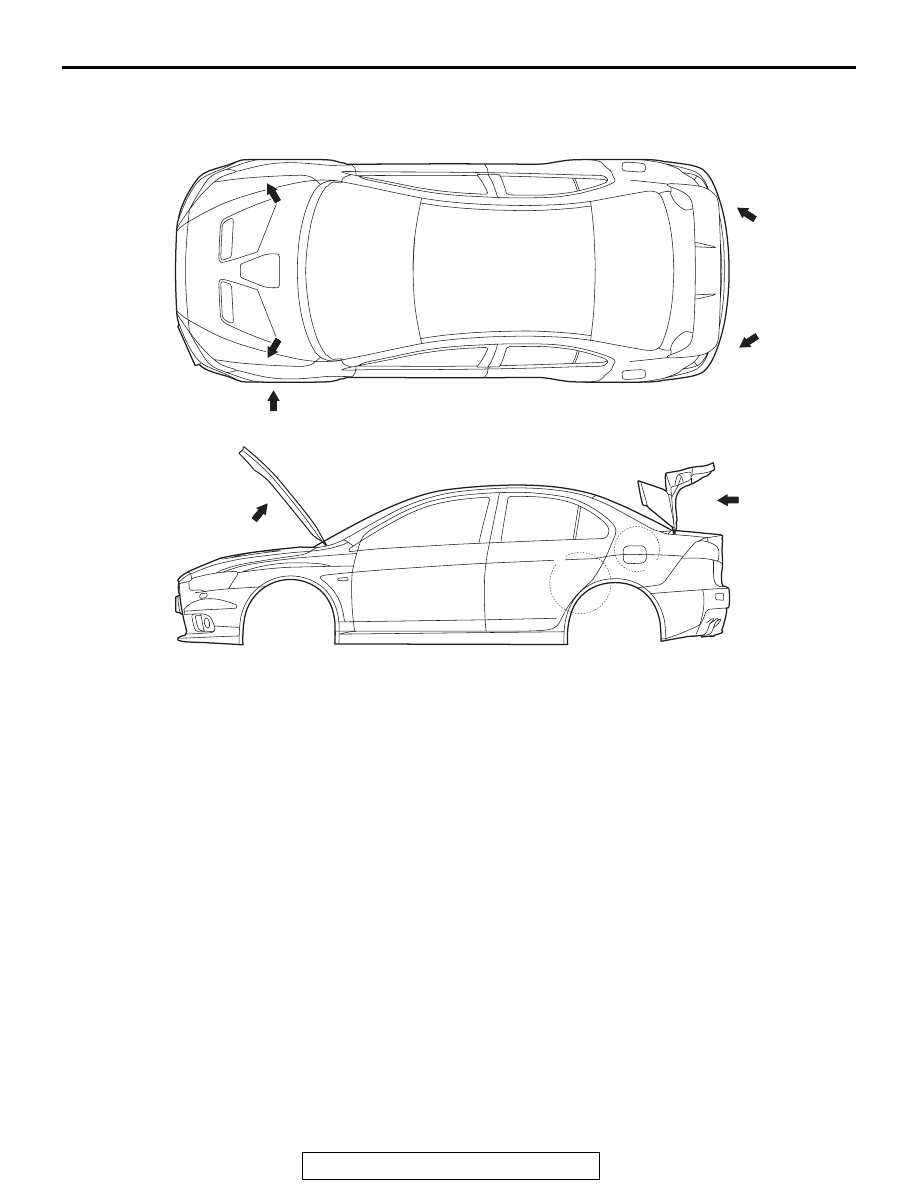

LOCATIONS

AC710510

D

A

B

F

E

D'

AC

E'

F'

C

THEFT PROTECTION

TSB Revision

BODY CONSTRUCTION

1-30

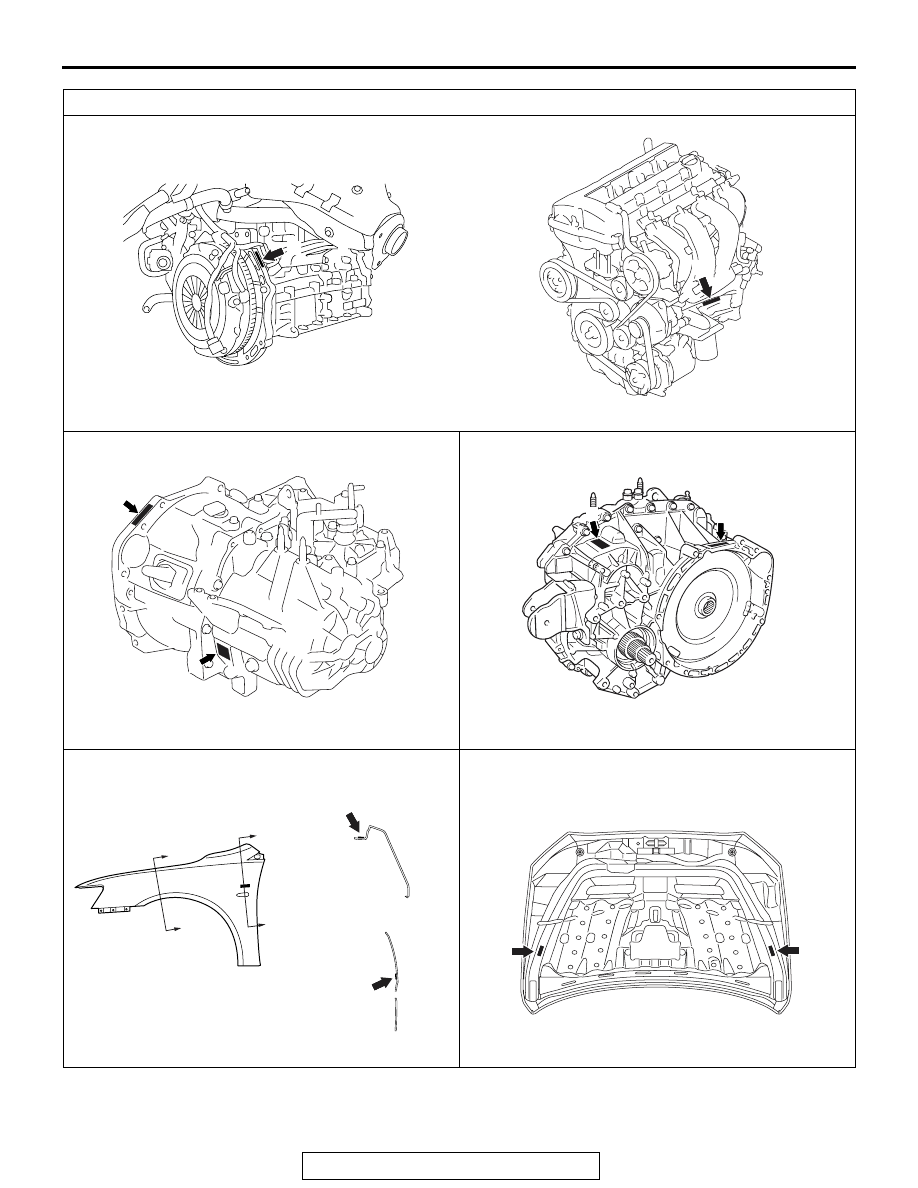

Label area (x: for original equipment parts, y: for replacement parts)

AC609841

Engine

AB

x

AC612304AB

y

AC708134

x

y

AB

Manual transaxle (M/T)

AC707965

x

AB

Twin clutch sportronic shift transmission (TC-SST)

y

b

b

a

a

x

y

AC608723

View A (Front fender)

The illustration indicates left outer side.
Right side is symmetrically opposite.

Section a - a

Section b - b

AB

AC708456

AC708344

View B (Hood)

x

y

AB
