Mitsubishi Evolution X. Manual - part 19

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-19

AB700936

3

4

5

2

AB

6

8*

9

1

1

7

*: Indicates 590MPa-high-tensile steel panels.

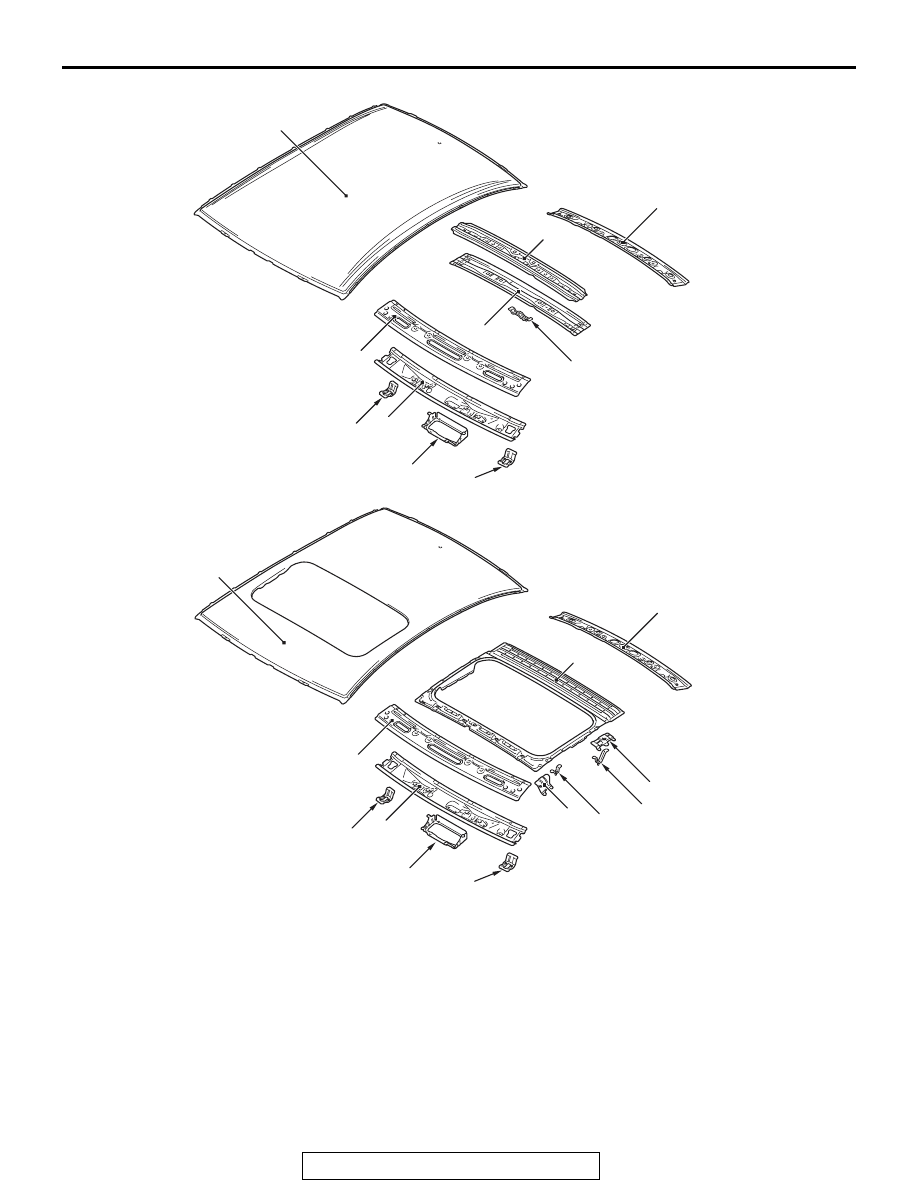

<Vehicles without sunroof (aluminum panel)>

AB700863AE

11

13

12

10

14

3

4

5

2

1

6

1

<Vehicles with sunroof (steel panel)>

1.

Sunvisor bracket

2.

Reading light bracket

3.

Roof rail front lower

4.

Roof rail front upper

5.

Roof panel

6.

Roof rail rear

7.

Roof bow center upper

8.

Roof bow center lower

9.

Dome light bracket

10. Roof panel reinforcement
11. Set rear bracket
12. Bracket A
13. Bracket B
14. Set front bracket

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-20

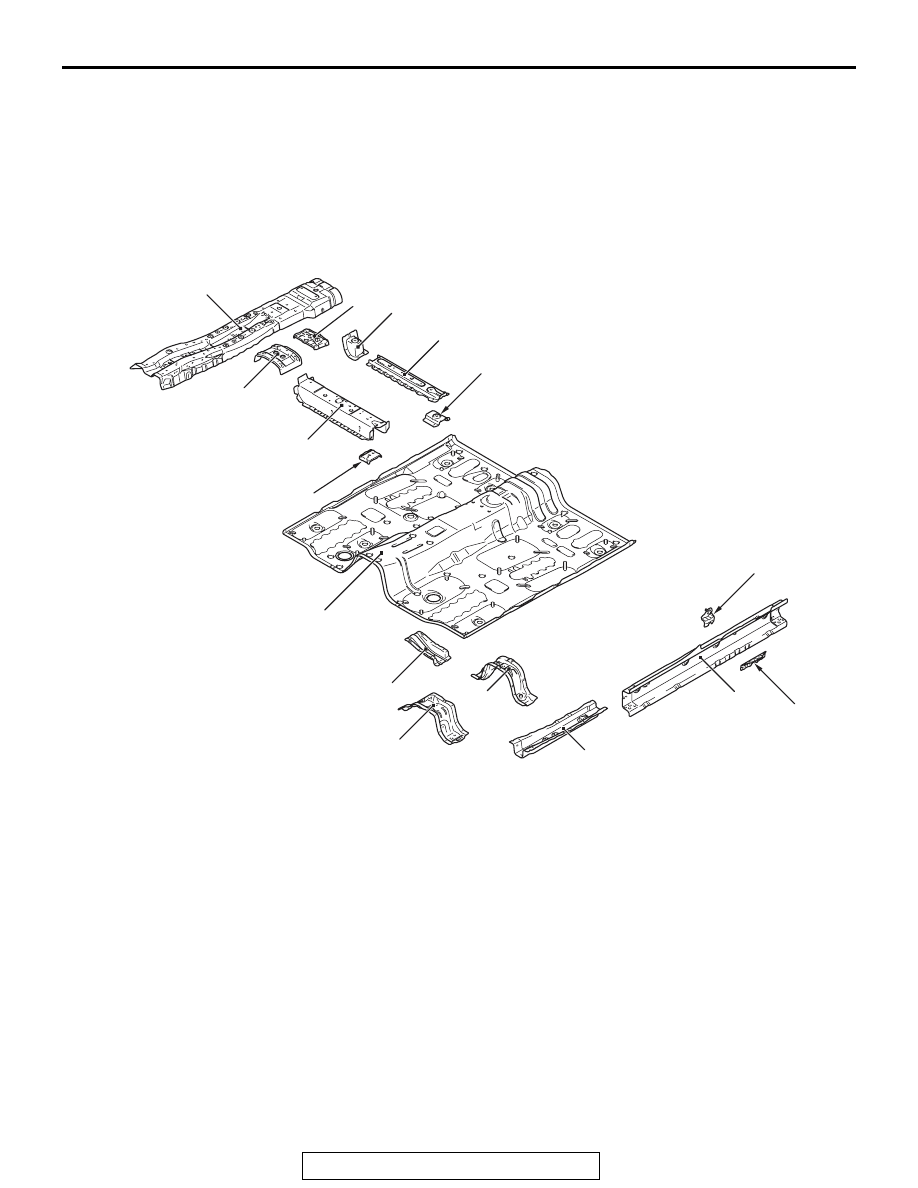

UNDER BODY

M4010014001202

FRONT FLOOR

The 590-MPa class high tensile strength steel panels
have been adopted for the front floor crossmember
front and front floor sidemember, and the 980-MPa
class ultra high tensile strength steel panels for the
front floor side sill inner, to improve the body rigidity.

AB700937AB

6

7

5

1

2

3*

8

12**

14

9

13*

10

4

15

11

16

*: Indicates 590MPa-high-tensile steel panels.

**: Indicates 980MPa-ultra-high-tensile steel panels.

1.

Front floor

2.

Front floor crossmember front reinforcement

3.

Front floor crossmember front

4.

Parking brake lever reinforcement

5.

Backbone reinforcement

6.

Parking brake cable reinforcement

7.

Seat center bracket rear

8.

Front floor crossmember rear

9.

Seat side bracket rear

10. Seat belt reinforcement
11. Front floor side sill inner center reinforcement
12. Front floor side sill inner
13. Front floor sidemember
14. Front floor crossmember rear center
15. Front floor crossmember front
16. Front floor reinforcement lower (Right side)

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-21

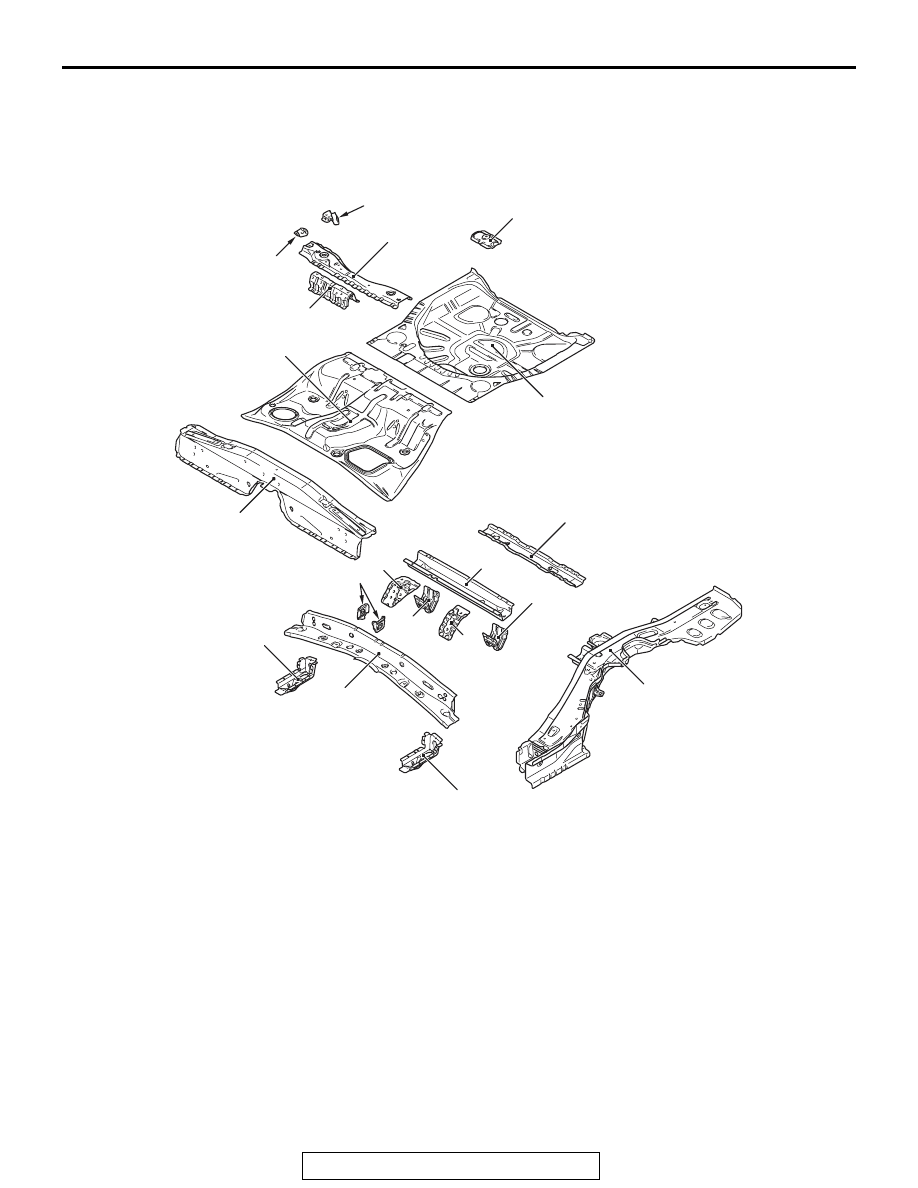

REAR FLOOR

• The 590-MPa class high tensile strength steel

panels have been adopted for the rear floor
extension and rear seat crossmember to improve
the body rigidity.

• The rear floor rear end crossmember has been

straightened to heighten body rigidity, improve
handling stability and riding comfort, and to
reduce vibration and noise.

AB700404

AB

1*

3

4

2

6

8

9

12

14

11

15*

13

5

10

16

7

11

16

17

*: Indicates 590MPa-high-tensile steel panels.

1.

Rear floor extension

2.

Rear seat under floor

3.

Rear floor pan rear

4.

Rear seatback bracket lower

5.

Rear floor crossmember upper

6.

Battery bracket rear floor front

7.

Battery bracket rear floor

8.

Spare tire bracket

9.

Rear floor rear end crossmember

10. Rear floor crossmember front
11. Fuel tank rear bracket
12. Rear seat belt reinforcement (Left side)
13. Rear seat belt reinforcement (Right side)
14. Rear seat crossmember bulkhead inner
15. Rear seat crossmember
16. Sidemember front floor extension
17. Rear floor sidemember

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-22

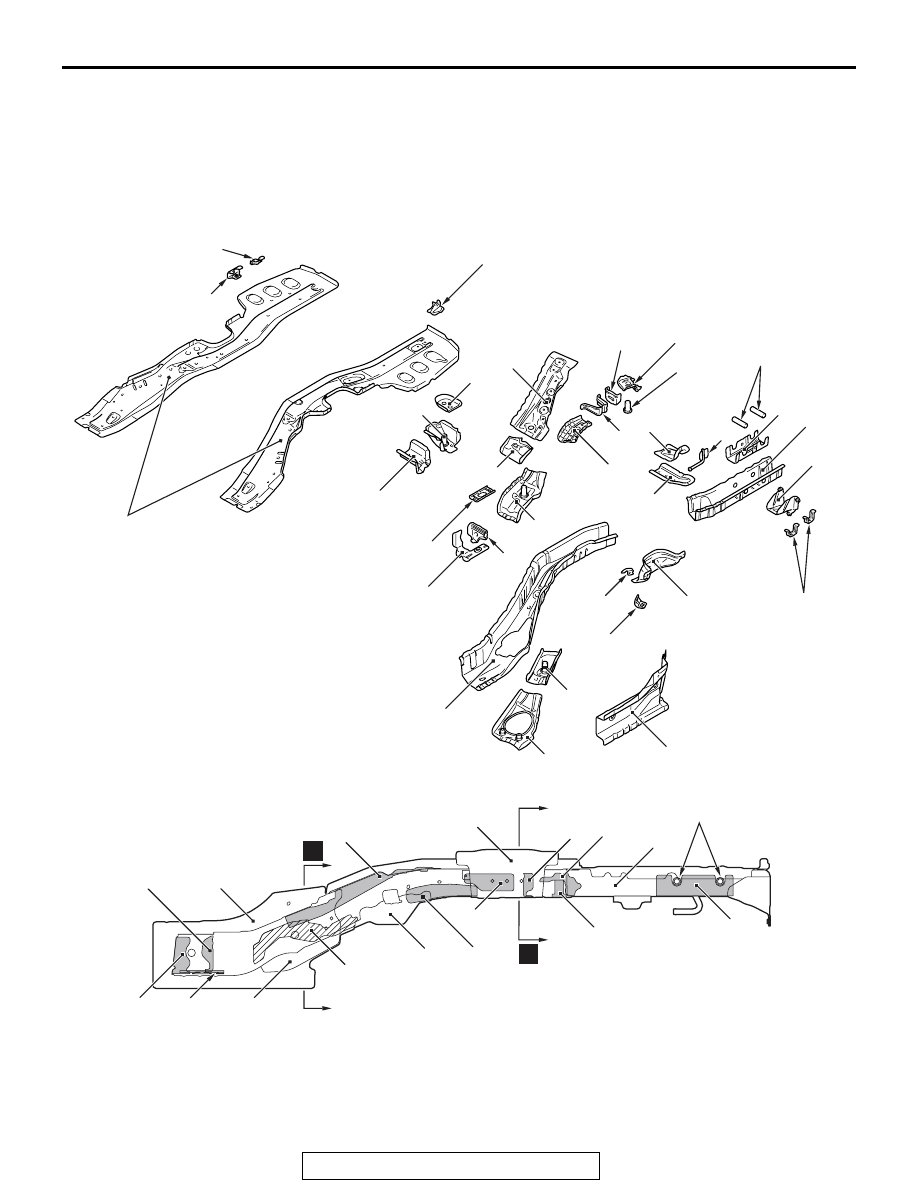

REAR FLOOR SIDEMEMBER
REINFORCEMENT

The 590-MPa class high tensile strength steel panels
have been adopted for the rear floor sidemember
reinforcement, rear floor sidemember extension, rear
floor side sill inner and rear floor sidemember bulk-
head to improve the body rigidity.

AB700942AB

3

4

18*

21

29

13

15

27

22

25

28

30

9

7

12*

6*

24*

1

8

31

32

33

23

10

5

26

16

17

20

19

11

2

14

*: Indicates 590MPa-high-tensile steel panels.

AB700587

AB700953AC

31

29

6

22

11

10

27

A

B

24

25

20

19

30

28

15

12

23

18
