Mitsubishi Evolution X. Manual - part 18

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-15

SIDE BODY

M4010011001087

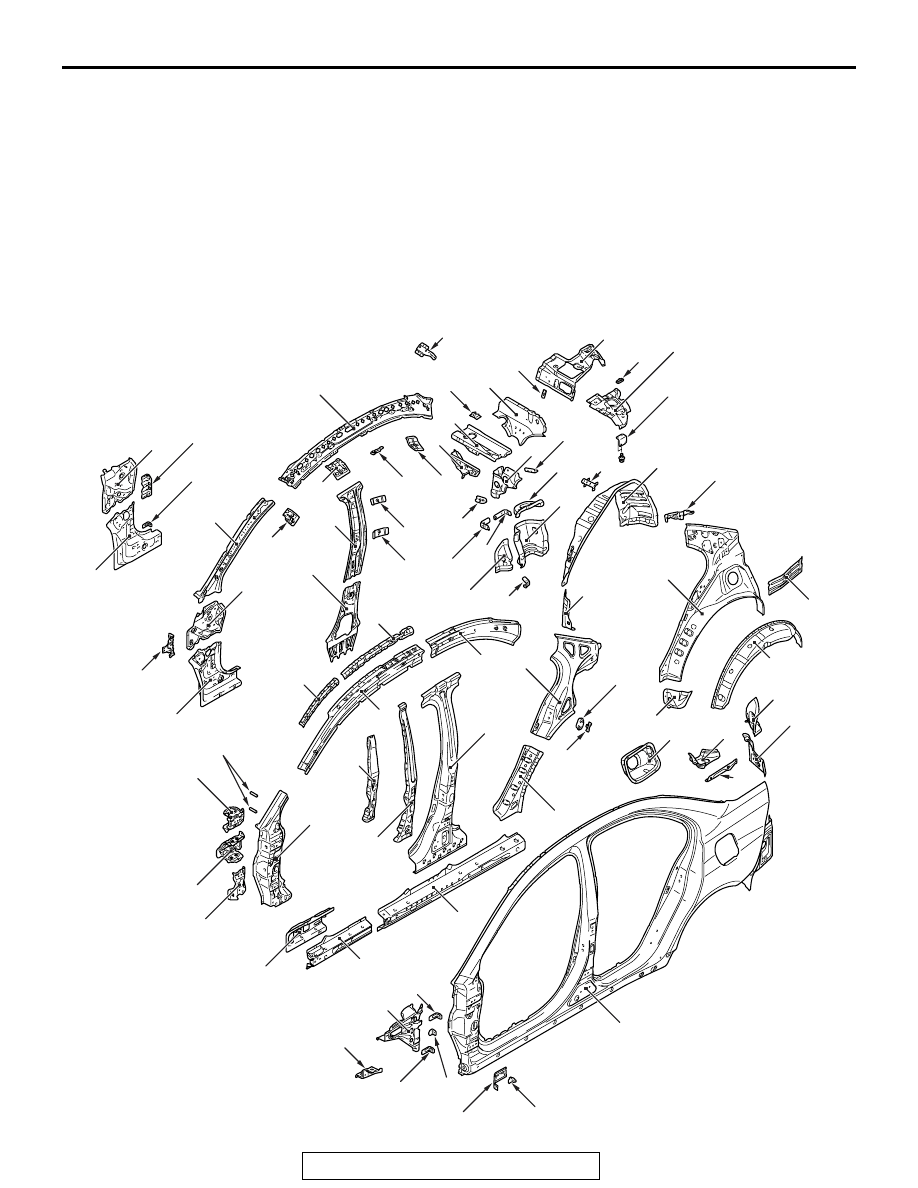

SIDE STRUCTURE

• The 590-MPa class high tensile strength steel

panels or 980-MPa class ultra high tensile
strength steel panels have been adopted for the
front pillar, center pillar, side sill, and roof side rail
to improve the body rigidity.

• Rigidity was heightened and driving stability was

improved by bonding the roof bow and roof rail
and the roof side rail inner by the roof rail exten-
sion.

• A rear shelf lower brace is used to connect the

spring house middle panel and rear shelf upper
brace, so that the body rigidity, handling stability,
and riding comfort are improved.

• The number of the spot welding points at the door

opening has been increased to heighten the body
rigidity and to improve handling stability.

AB700954

AB

1

2

3

5

6*

7

8*

9

10

4

13

14

15*

16

17

18

11

12

28

24

23

22

21

29

26

27

25

33

36

38

39

35

37

31

32

34

40

51

56**

52

55**

62

69

54

65*

19

20

70

41

30

42

43

44

46

45

47

48

50

49

52

53

57

58

59

60

61

68

71

72

73

1

2

63*

64*

67*

66

*: Indicates 590MPa-high-tensile steel panels.

**: Indicates 980MPa-ultra-high-tensile steel panels.

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-16

1.

Front pillar inner lower

2.

Front pillar inner center

3.

Hood opener bracket (Left side)

4.

Cowl side trim bracket (Right side)

5.

Deck crossmember bracket (Right side)

6.

Front upper inner pillar

7.

Center pillar inner lower

8.

Center pillar inner upper

9.

Center pillar seat belt reinforcement lower

10. Center pillar seat belt reinforcement upper
11. Roof rail front extension
12. Roof rail center extension <Vehicles without sunroof

(aluminum panel)>

13. Bracket C <Vehicles with sunroof (steel panel)>
14. Roof rail rear extension
15. Roof side rail inner
16. Harness bracket (Right side)
17. Rear shelf upper brace
18. Rear seat belt reinforcement
19. Nut plate <Vehicles with subwoofer>
20. Subwoofer upper bracket <Vehicles with subwoofer>
21. Rear seat hook A
22. Rear seatback brace rear
23. Rear seatback plate reinforcement
24. Rear seatback brace bulkhead
25. Rear seatback brace front
26. Rear spring house reinforcement upper front
27. Rear shelf lower brace
28. Rear spring house reinforcement upper rear
29. Rear spring house bracket
30. Trunk trim bracket
31. Washer tank center bracket (Left side)
32. Spring house middle front panel (Left side)
33. Filler pipe mounting bracket (Left side)
34. Spring house middle panel
35. Harness bracket (Left side)
36. Rear wheel house panel inner

37. Rear wheel house panel front lower outer
38. Curtain air bag bracket
39. Quarter panel lower inner (Left side)
40. Quarter inner panel
41. Quarter panel extension inner
42. Quarter panel extension lower outer
43. Rear combination light housing
44. Quarter corner panel
45. Quarter outer upper extension
46. Quarter outer upper side extension
47. Fuel filler neck bracket (Left side)
48. Side outer panel
49. Fender bracket
50. Fender bracket lower
51. Front fender bracket
52. Cowl side trim bracket
53. Front upper outer frame rear
54. Upper frame outer reinforcement
55. Side sill reinforcement outer rear
56. Side sill reinforcement outer front
57. Side sill inner support front
58. Front pillar reinforcement lower
59. Front door hinge reinforcement lower
60. Front pillar reinforcement center bulkhead
61. Front door hinge reinforcement upper
62. Deck support pipe (Left side)
63. Front pillar support
64. Roof side rail support
65. Roof side rail reinforcement front
66. Rear door hinge reinforcement support
67. Rear door hinge reinforcement
68. Center pillar reinforcement
69. Roof side rail reinforcement rear
70. Rear pillar reinforcement
71. Flap gate striker reinforcement
72. Nut plate
73. Rear pillar reinforcement lower

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-17

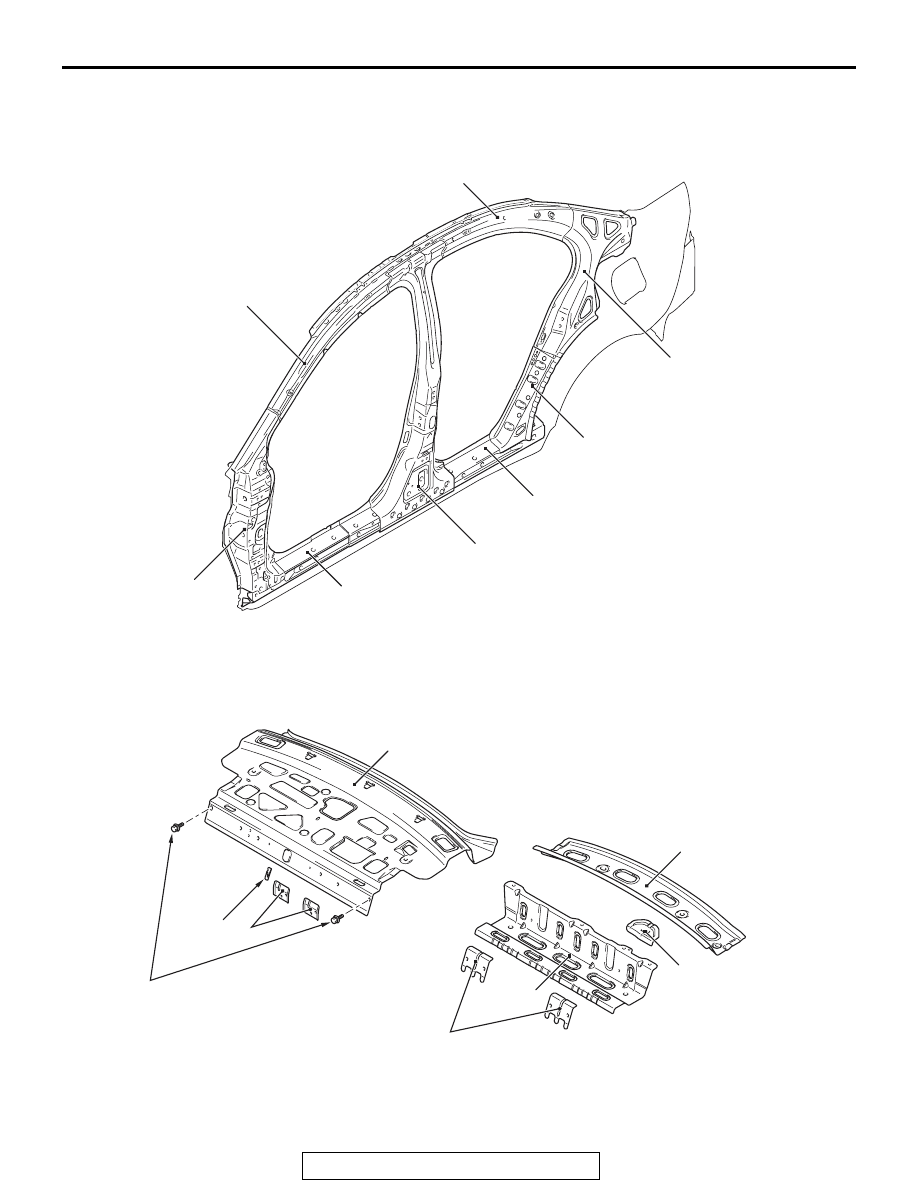

SIDE STRUCTURE REINFORCEMENT

The ring structure of the side structure reinforcement

has been adopted to improve the collision character-

istics and the rigidity of the whole vehicle.

REAR BODY

M4010012000764

REAR DECK

AB700608AB

Side sill reinforcement outer front

Side sill reinforcement outer rear

Rear pillar reinforcement lower

Roof side rail reinforcement front

Front pillar
reinforcement lower

Rear pillar reinforcement

Roof side rail reinforcement rear

Center pillar reinforcement

AB700406

1

2

3

4

5

AB

6

7

18 ± 7 N·m
13 ± 5 ft-lb

1.

Washer tank bracket upper

2.

Rear seat hook A

3.

Rear shelf panel

4.

Rear shelf reinforcement

5.

Seat belt reinforcement center

6.

Rear shelf extension

7.

Rear seatback reinforcement

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-18

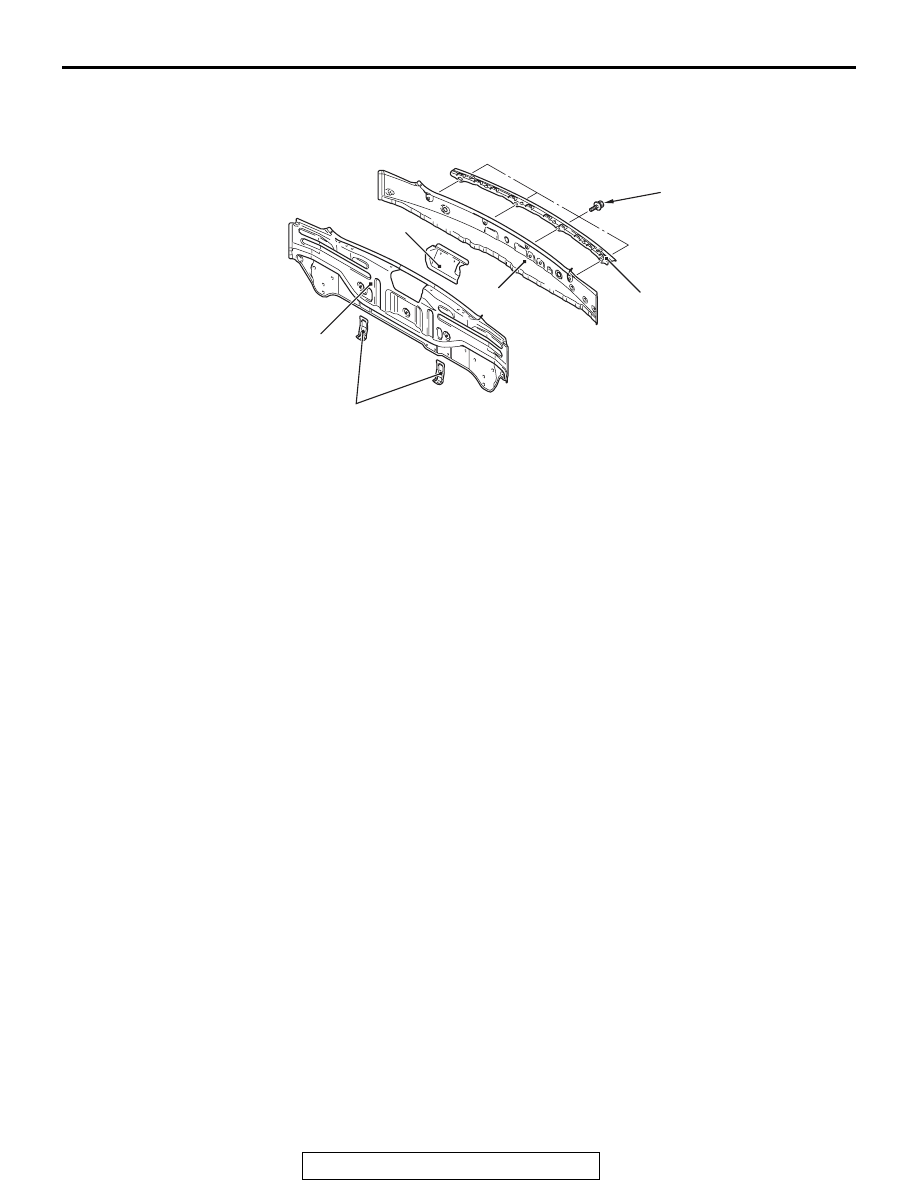

REAR END PANEL

ROOF

M4010013001306

• An aluminum roof panel has been adopted to

improve lightweightness for greater handling sta-
bility. <Vehicles without sunroof (aluminum
panel)>

• The closed section structure has been adopted

for the roof rail front and the roof bow center to
heighten body rigidity, improve handling stability
and riding comfort, and to reduce vibration and
noise.

• The 590-MPa class high tensile strength steel

panel has been adopted for the roof bow center
lower to improve the body rigidity. <Vehicles with-
out sunroof (aluminum panel)>

AB700570AB

1

2

3

4

5

5.0 ± 1.0 N·m
44 ± 9 in-lb

1.

Rear bumper side bracket

2.

Rear end panel inner

3.

Trunk lid striker reinforcement

4.

Rear end panel outer

5.

Rear bumper reinforcement
