CAMSHAFT

TSB Revision

ENGINE MECHANICAL

11A-29

2. With the timing chain tensioner unlocked, insert special tool

MB992103 inside the timing chain case assembly along the
tension side of the timing chain until the insertion guide line
aligns with the upper surface of the timing chain case
assembly (Figure A).
NOTE: With the timing chain tensioner unlocked, insert the
special tool MB992103 along the tension side of the timing
chain, according to the special tool MB992103 top shape.
The special tool MB992103 can be inserted smoothly to the
position where the special tool MB992103 insertion guide
line aligns with the timing chain case assembly top surface
(Figure B), and the spread timing chain tension side guide
can be held (Figure C).

3. With the special tool MB992103 inserted up to the insertion

guide line, press the special tool against the intake side
camshaft sprocket and spread and hold the timing chain
tension side guide.

4. Remove the flat-tipped precision screwdriver unlocking the

timing chain tensioner.

AC705456AC

Timing chain

MB992103

Insertion standard line

AC508123

AC509159AB

MB992103

MB992103

Timing chain tensioner

Timing chain tension
side guide

Timing chain
tension
side guide

Camshaft
sprocket
(intake side)

Valve timing chain
(tension side)

A

B

C

CAMSHAFT

TSB Revision

ENGINE MECHANICAL

11A-30

CAUTION

The timing chain may snag on by other parts. After sag-
ging the timing chain, never rotate the crankshaft.
5. With the timing chain tension side guide spread, hook the

special tool MB992103 over the hexagon part of the
camshaft on the exhaust side, and turn the camshaft
clockwise to apply slack to the timing chain between the
camshaft sprockets.

.

<<D>> FRONT CAMSHAFT BEARING CAP
ASSEMBLY REMOVAL

Loosen the mounting bolts of front camshaft bearing cap in the
order of number shown in the figure, and remove the front cam-
shaft bearing cap assembly.

.

AC705457AC

MB992103

Timing chain

Hexagon
part of
exhaust
camshaft

AC506745

AD

1

2

3

4

Engine front

Front camshaft
bearing cap
assembly

CAMSHAFT

TSB Revision

ENGINE MECHANICAL

11A-31

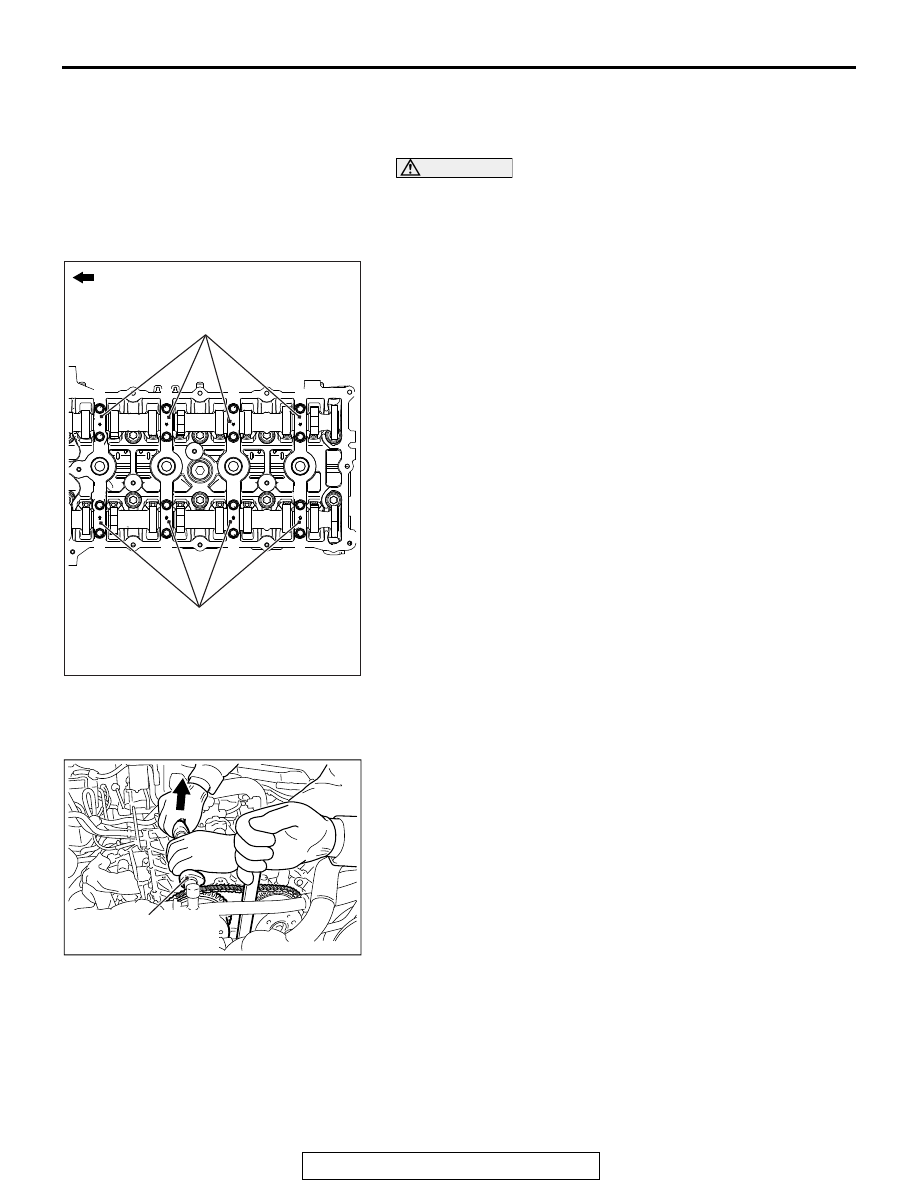

<<E>> OIL FEEDING CAMSHAFT BEARING
CAP/CAMSHAFT BEARING CAP/THRUST
CAMSHAFT BEARING CAP REMOVAL

CAUTION

When the camshaft bearing cap mounting bolts are loos-
ened at once, the mounting bolts jump out by the spring
force and the threads are damaged. Always loosen the
mounting bolts in four or five steps.
Loosen the mounting bolts of the camshaft bearing caps in the
order of number shown in the figure in four or five steps, and
remove the camshaft bearing caps.

.

<<F>> CAMSHAFT AND CAMSHAFT SPROCKET
ASSEMBLY (EXHAUST SIDE) REMOVAL

1. Raise slightly the transaxle side of the camshaft and

camshaft sprocket assembly (exhaust side) by using the
slack of the timing chain, and remove from the cam bearing.

AC506746

AC

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

Engine front

Camshaft bearing cap

Camshaft bearing cap

AC705455AC

Camshaft and camshaft
sprocket assembly

CAMSHAFT

TSB Revision

ENGINE MECHANICAL

11A-32

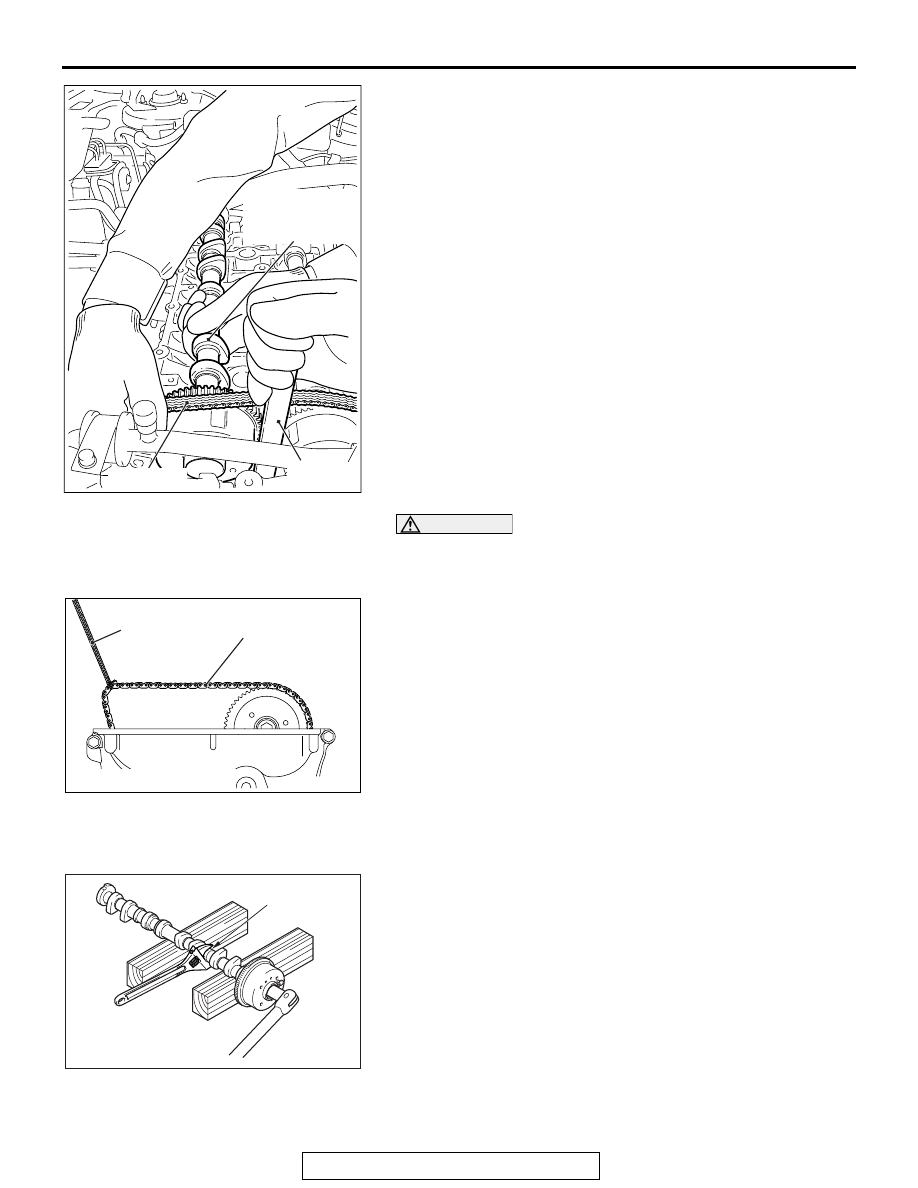

2. Remove the timing chain from the camshaft and camshaft

sprocket assembly (exhaust side) toward the timing chain
case assembly, and remove the camshaft and camshaft
sprocket assembly (exhaust side) toward the transaxle.

3. Remove special tool MB992103 inserted into the timing

chain case assembly.

CAUTION

The timing chain may snag on other parts. After removing
the camshaft and camshaft sprocket assembly, never
rotate the crankshaft.
4. After removing the camshaft and camshaft sprocket

assembly (exhaust side), hang up the timing chain with a
rope to prevent the timing chain from falling into the timing
chain case assembly.

.

<<G>> CAMSHAFT SPROCKET/CAMSHAFT
REMOVAL

Hold the hexagon of the camshaft with a monkey wrench.
Loosen the camshaft sprocket mounting bolts and remove the
camshaft sprocket from the camshaft.

.

AC705458AC

MB992103

Timing chain

Camshaft and
camshaft sprocket
assembly

AC509403

AD

Rope

Timing chain

AC700424AD

Hexagon part
of camshaft
