MANUAL TRANSMISSION  - TRANSMISSION CONTROL

22-11

Removal





A





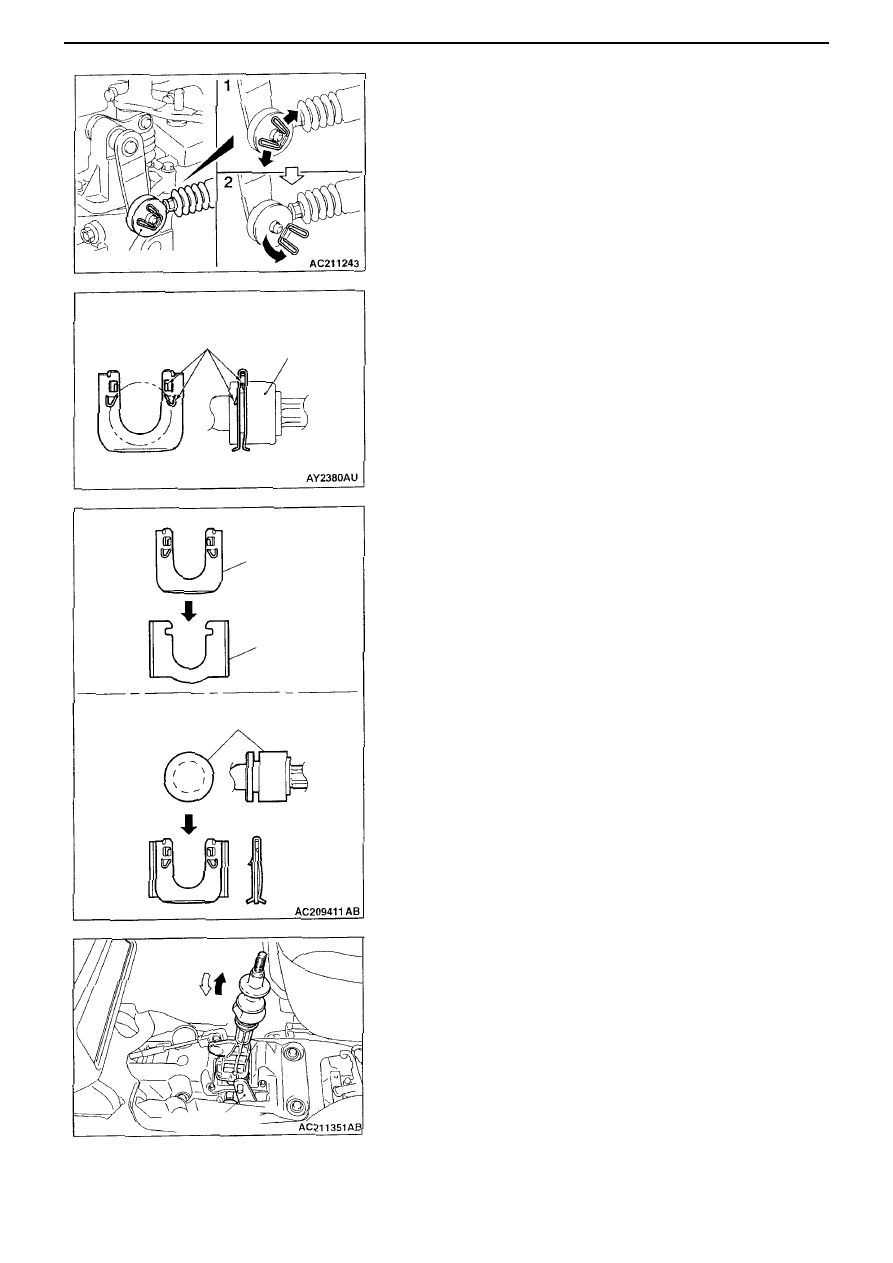

Removal of select cable connection (transmission side)

Set the select cable clip in the position indicated in the diagram, then
undo the select cable connection.





B





Clip removal (transmission side)

Use a screwdriver or similar device to undo the claws of the clip, then
remove the clip and each of the cables from the bracket.

Fitting





A





Fitting of select cable connection (transmission side), shift

cable connection (transmission side), clip (transmission side)

1. Set the gear stick on the transmission side to neutral position
2.  Fit the shift cable end (transmission side) and the select cable

(transmission side) facing the snap pin.

3.  After fitting the new clip to the transmission cable bracket, fit the shift

cable and select cable to the cable bracket.
NOTE
The clip can be fitted either way round.
CAUTION
When fitting the clip, select cable and shift cable, make sure you
hear them snap tight so that they are securely connected.

4.  Check that the gear stick (inside cabin) moves smoothly into all of the

gears.





B





Fitting of select cable connection (inside cabin)

1.  Move the gear stick towards 5th and 6th gears until it touches the

stopper, then check the cable connection is secure and the assembly
is running smoothly (run-in).

2.  Remove hand from the gear stick, then fit the select cable (inside

cabin) to the select lever in the neutral position (to which it returns
naturally).

3.  Check that the shift cable (inside cabin) and select cable (inside

cabin) are securely connected, then move the gear stick into each of
the gear positions.

4.  If the gear stick does not go into all of the gear positions, adjust the

select cable (ref. P.22-9)

Select cable

Claws

Select cable
and shift
cable

Clip

New clip

Cable bracket

Select cable and shift cable

5

th

, 6

th

gear

direction

Neutral
position

Select lever

MANUAL TRANSMISSION  - TRANSFER ASSY <6M/T>

22-12

Transfer ASSY <6M/T>

CAUTION
1.  Before removing steering wheel  and airbag module ASSY, without fail read Chapter 52-B Precautions for

Servicing and Airbag Module and Clock Spring.

2.  When Brembo brake calipers are used, there is concern over paint peeling off, so when doing servicing work,

make sure they are not scratched by other components and tools.

3. *Indicates parts which should be initially tightened, and then fully tightened when the engine weight is supported

by the vehicle body.

Removal and fitting

Pre-removal and Post-fitting operations
• Removal and fitting of steering wheel
• Removal and fitting of cover (ref. Chapter 51 – Front

Bumper)

• Removal and fitting of side cover (ref. Chapter 51 –

Front Bumper)

• Removal and fitting of steering shaft cover
• Removal and fitting of steering gear and joint

connection

• Removal and fitting of cross member bar
• Removal and fitting of front exhaust pipe

• Removal and fitting of front propeller shaft
• Removal and fitting of drive shaft, output shaft
• Draining and filling of transmission oil
• Draining and filling of transfer oil
• Bleeding and hydraulic pressure check <ACD> <only

after fitting>

• Bleeding <AYC> <only after fitting>
• Power steering fluid filling and bleeding <only after

fitting>

• Wheel alignment check, adjustment <only after fitting>

MANUAL TRANSMISSION  - TRANSFER ASSY <6M/T>

22-13

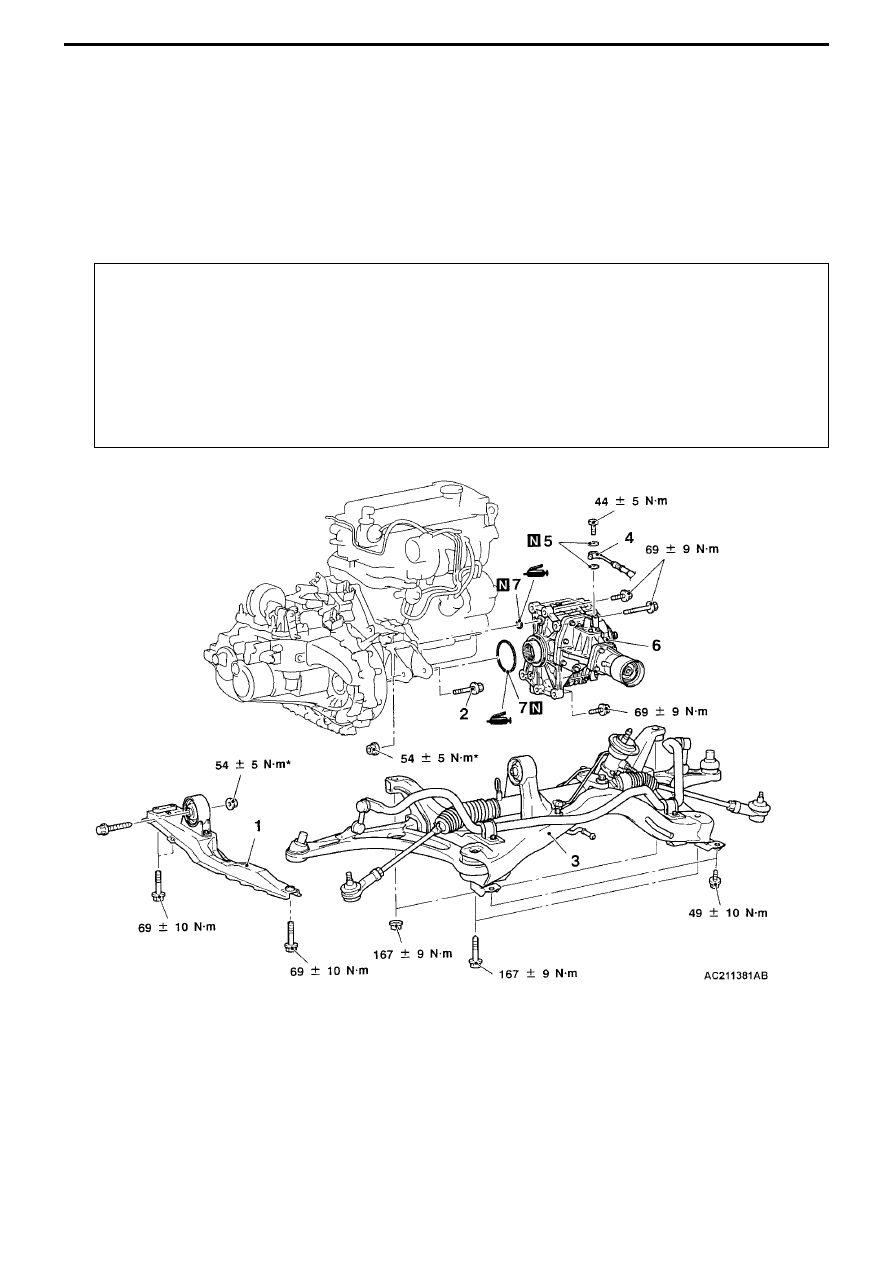

Removal procedure
1. Centre member

• Power steering return hose and steering
gear connection
• Power steering pressure hose  and steering
gear connection

2. Rear roll stopper connecting bolt

3. Cross member ASSY
4. Transfer pressure hose ASSY
5. Gasket
6. Transfer ASSY
7. O-ring

Removal





A





Removal of cross member ASSY

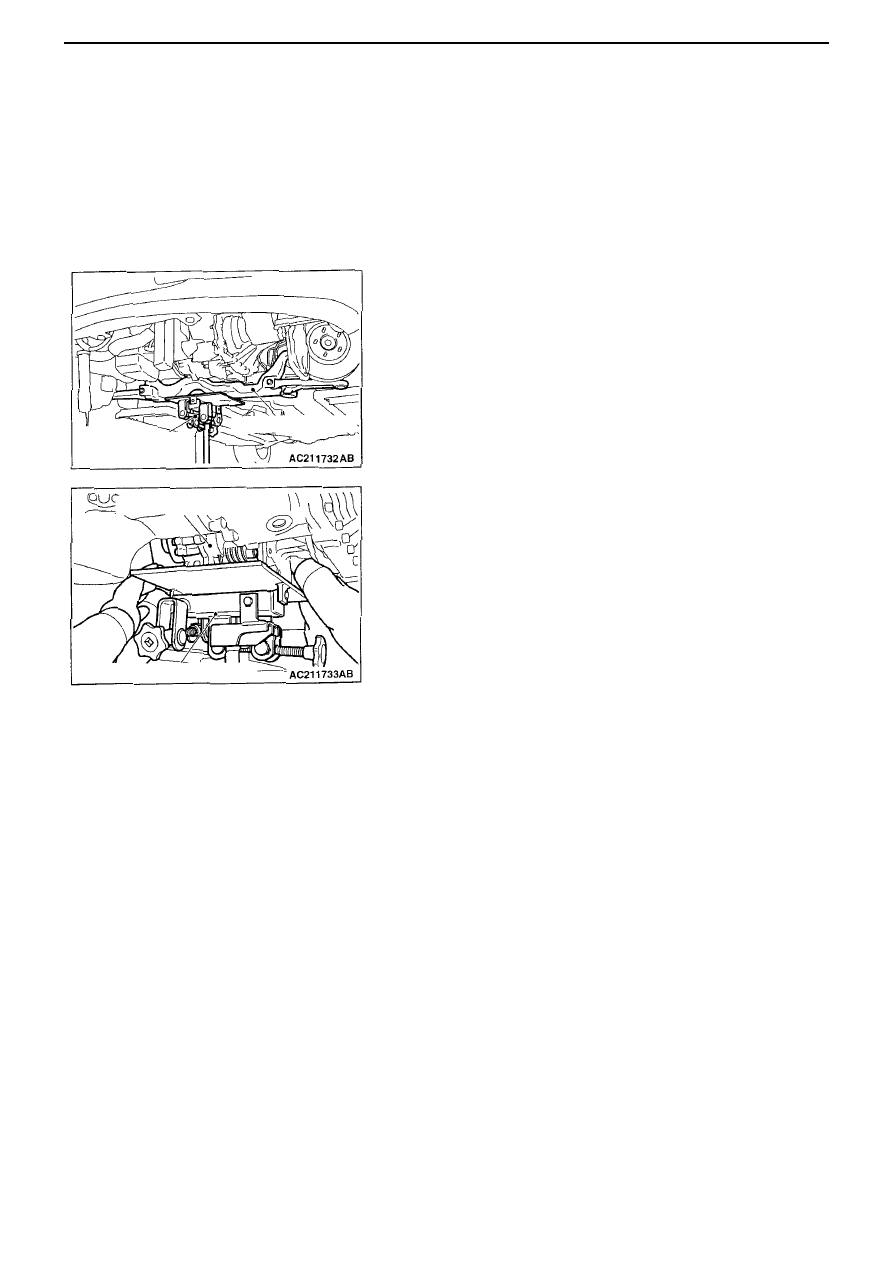

Support the cross member ASSY with the transmission jack, then
remove the cross member fixing bolt and cross member ASSY





B





Removal of transfer ASSY

Support the transfer ASSY with the transmission jack, then remove the

transfer fixing bolt and transfer ASSY.

Transmission
jack

Cross member ASSY

Transfer ASSY

Transmission jack





A









B





MANUAL TRANSMISSION  - TRANSFER ASSY <6M/T>

22-14

Transmission ASSY <6M/T>

CAUTION
1. Before removing steering wheel  and airbag module ASSY, be sure to read Chapter 52-B Precautions for Servicing,
Airbag Module and Clock Spring.
2. When Brembo brake calipers are used, there is concern over paint peeling off, so when doing servicing work, make
sure they are not scratched by other components and tools.
3. * Indicates parts which should be initially tightened, and then fully tightened when the engine weight is supported
by the vehicle body.

Removal and fitting

Pre-removal and Post-fitting operations
• Removal and fitting of transfer ASSY (ref. P.22-18)
• Removal and fitting of battery and battery tray
• Removal and fitting of strut and tower bar
• Temporary fitting of strut ASSY fixing bolt <only before

removal>

• Removal and fitting of air duct

• Removal and fitting of air pipe hose, air hose E, air

pipe C, air hose D (ref. Chapter 15 – Intercooler)

• Removal and fitting of air cleaner ASSY
• Removal and fitting of air intake hose
• Removal and fitting of canister
• Removal and fitting of starter ASSY (ref. Chapter 16 –

Starter)

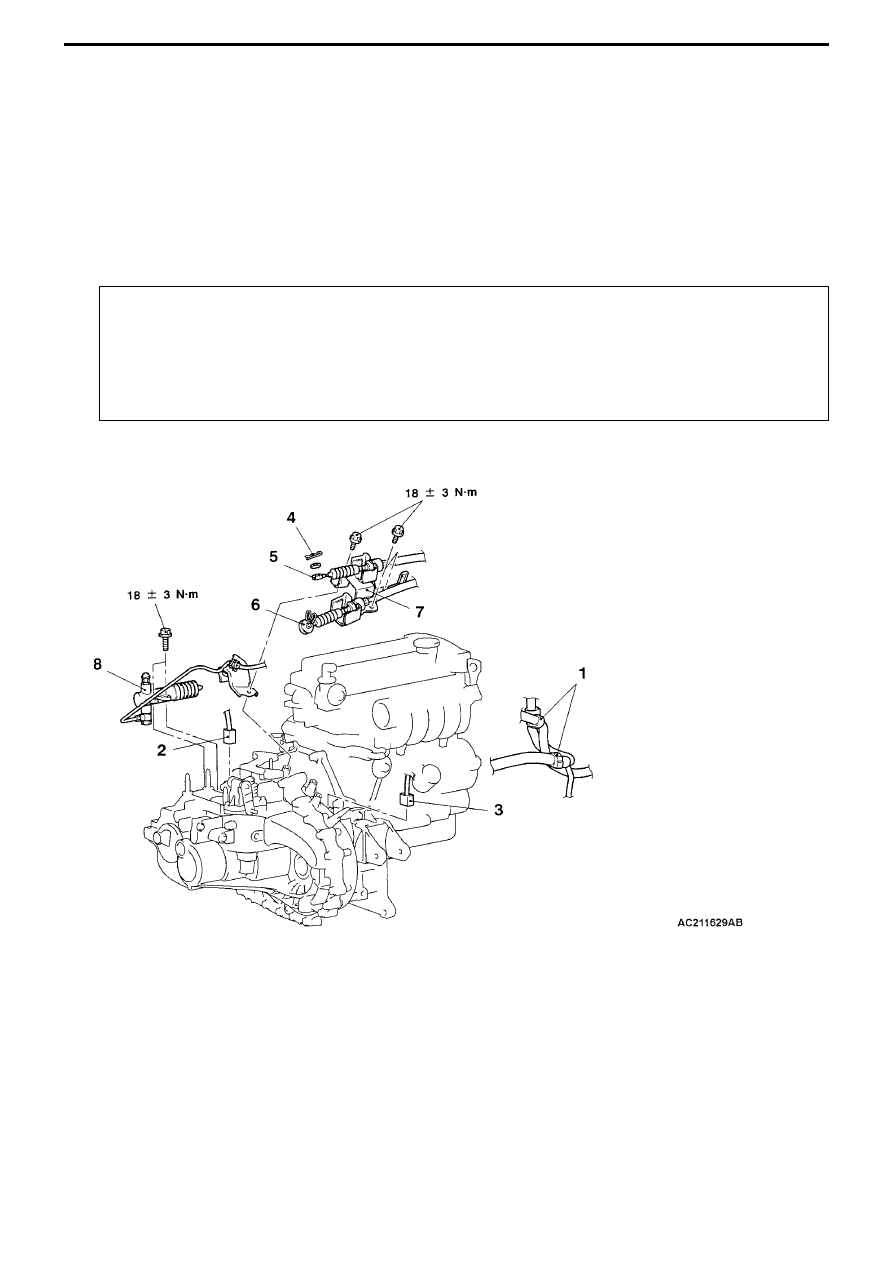

Removal procedure
1. Main harness clamp connection
2. Reversing light switch connector connection
3. Vehicle speed sensor connector connection
4. Snap pin
5. Shift cable connection

6. Select cable connection
7. Control cable ASSY & bracket (transmission

side)

8. Clutch release cylinder & clutch oil pipe





A
