Mitsubishi Lancer Evolution 8. Manual - part 154





MPI - GENERAL

13A-2

General

The following changes have been made to vehicles fitted with the 4G63-DOHC-T/C engine. Otherwise the system remains the
same.
• The engine ECU has been changed
• An immobiliser system has been fitted
• A plated metal delivery pipe has been adopted
• Fuel pump relay mounting position has been changed

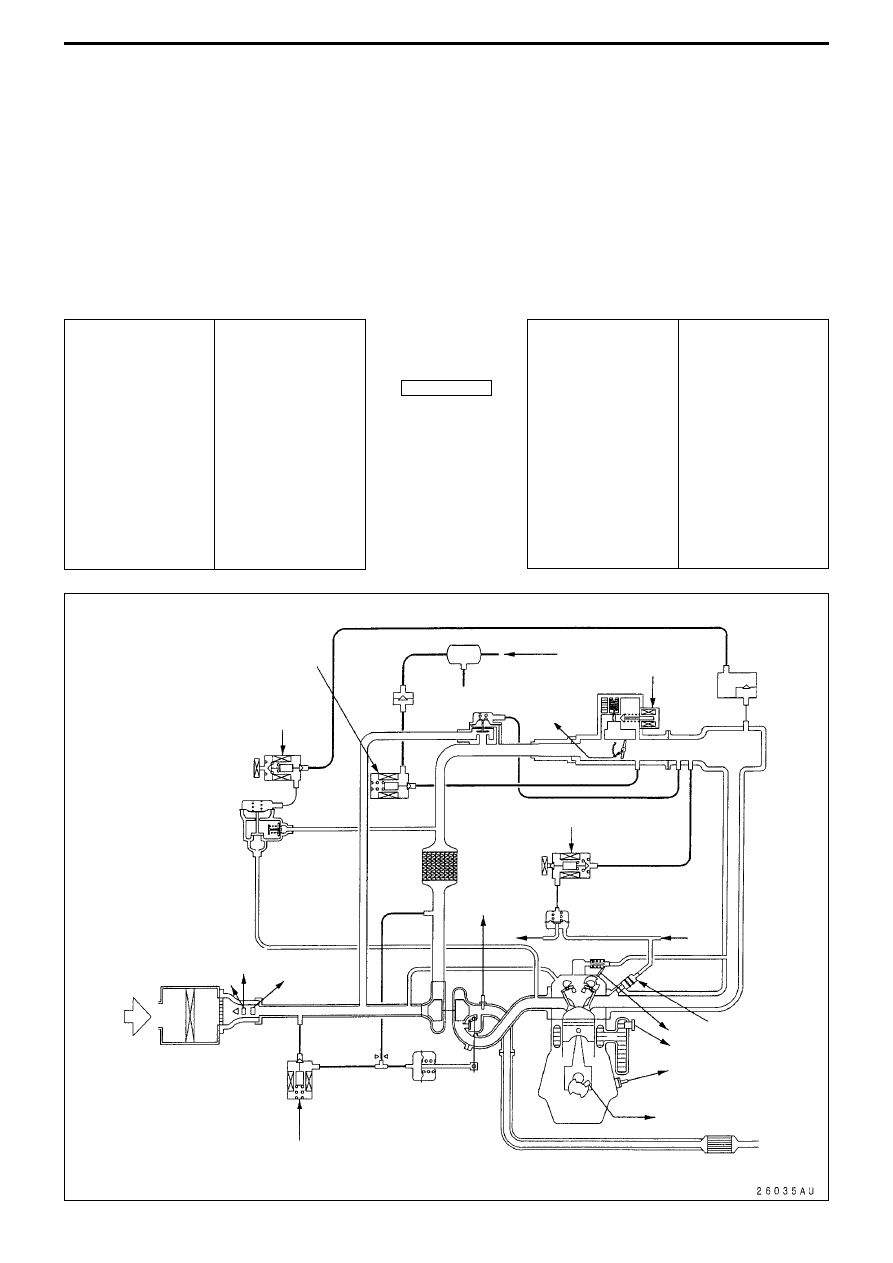

MPI SYSTEM DIAGRAM

Canister

✩

2. ISC servo

Vacuum
tank

By-pass
valve

Check
valve

✩

5. Purge control

solenoid valve

✩

6. Secondary air control

solenoid valve

Secondary air valve

✩

3. Fuel pressure control solenoid valve

★

1. O2

sensor

Fuel
pressure
regulator

From
fuel
pump

Intake

★

2. Air flow sensor

★

7. Barometric pressure sensor

★

3. Intake

air temp.
sensor

✩

4. Waste gate solenoid valve

Waste gate
actuator

Catalytic converter

★

6. Crank angle sensor

★

8. Water temp. sensor

1. Injector

From fuel tank

★

4. Throttle

position

sensor

Engine ECU

★

1. O2 sensor

★

2. Air flow sensor

★

3. Intake air temp.

sensor

★

4. Throttle position

sensor

★

5. Cam position

sensor

★

6. Crank angle

sensor

★

7. Barometric

pressure sensor

★

8. Water temp.

sensor

★

9. Knock sensor

• Power supply
• Ignition switch IG
• Ignition switch ST
• Vehicle speed

sensor

• A/C switch
• A/C load signal
• Power steering

fluid pressure switch

• Alternator FR signal
• Intercooler water

spray switch (auto)

• Intercooler water

spray switch (manual)

✩

1. Injector

✩

2. ISC servo

✩

3. Fuel pressure

control solenoid valve

✩

4. Waste gate

solenoid valve

✩

5. Purge control

solenoid valve

✩

6. Secondary air

control solenoid valve

• Engine control relay
• Fuel pump relay 2,3
• A/C relay
• Ignition coil
• Fan controller
• Condenser fan Relay

(HI)

• Condenser fan relay

(LO)

• Engine warning light
• Diagnosis output
• Alternator G terminal
• Intercooler water

spray relay

• Intercooler water

spray lamp

• Tachometer

★

5. Cam position sensor

★

9. Knock sensor

To fuel
tank

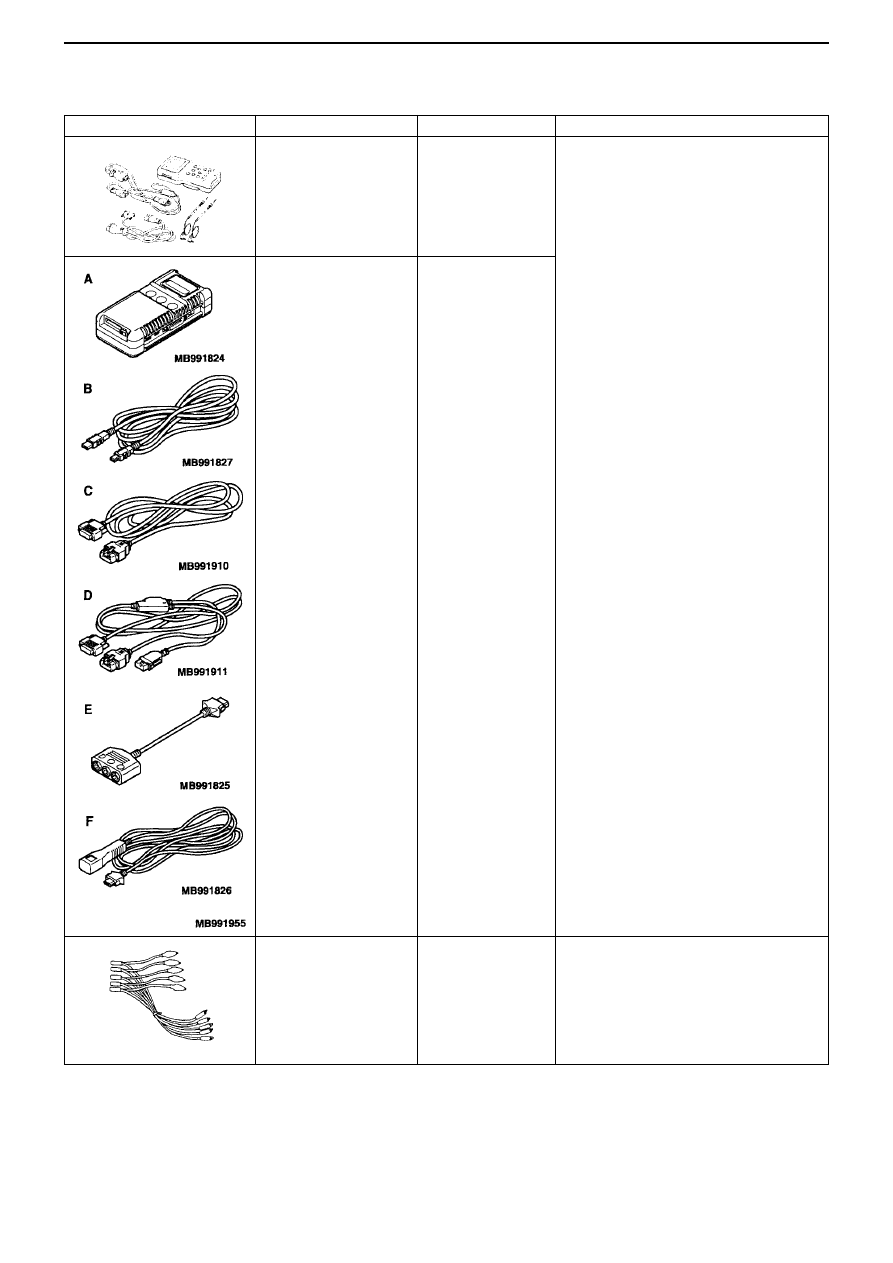

MPI – SPECIAL TOOLS

13A-3

Special Tools

Tool

Number

Name

Use

MB991502

MB991955
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

MUT-II sub-ASSY

MUT-III sub-ASSY
A:V.C.I. (Vehicle

Communication
Interface)

B:USB cable
C:MUT-III main

harness B (for use
on vehicles that
have not adopted
CAN
communication)

D:MUT-III main

harness B (for use
on vehicles that
have not adopted
CAN
communication)

E:Adapter for taking

measurements

F:Trigger harness

MPI system inspection

MB991348

Test harness set

Inspection using oscilloscope

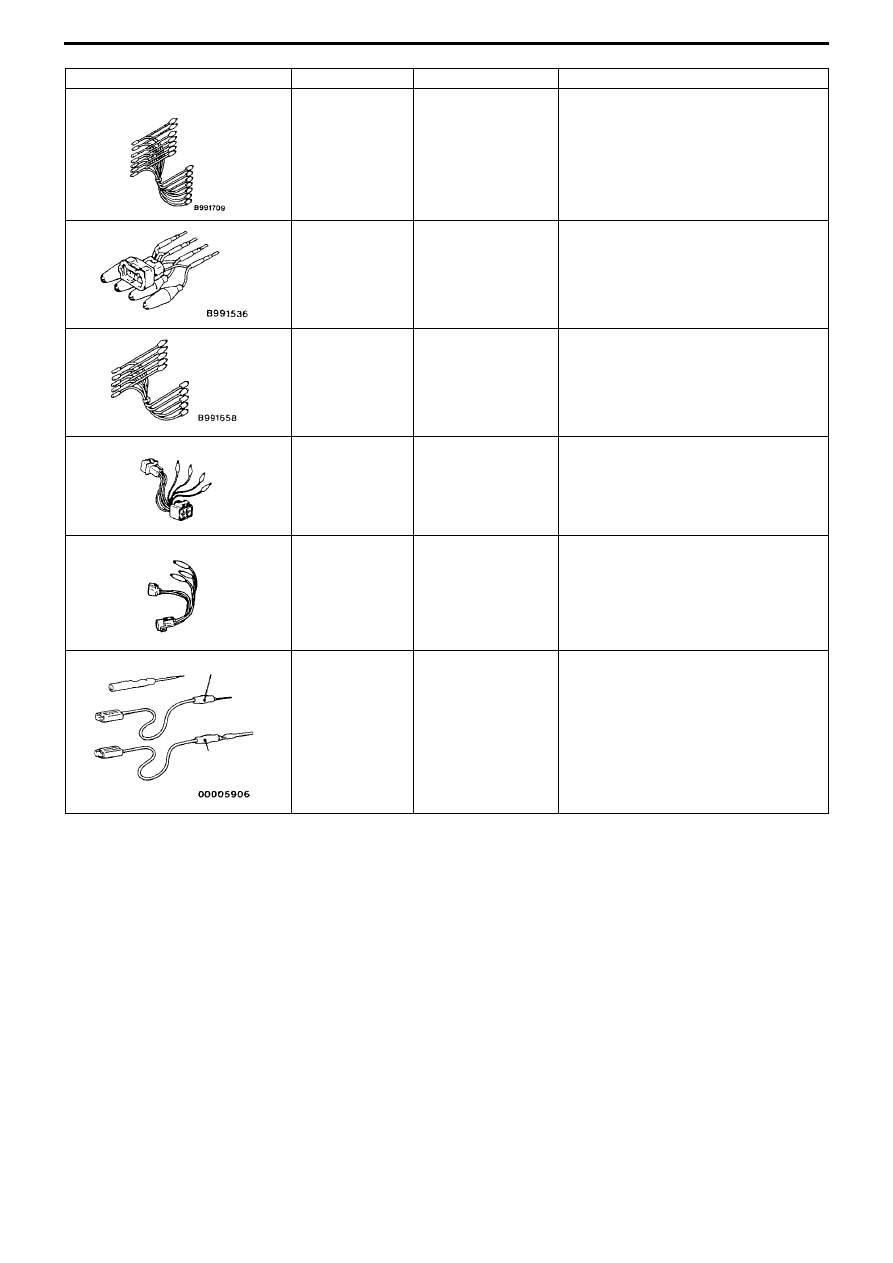

MPI – SPECIAL TOOLS

13A-4

Tool

Number

Name

Use

MB991709

Test harness

• Troubleshooting voltage measurement
• Inspection using an oscilloscope

MB991536

TPS adjustment check
harness

Troubleshooting voltage measurement

MB991658

Test harness

Inspection using an oscilloscope

MB998464

Test harness
(4P, square)

Troubleshooting voltage measurement

MD998478

Test harness
(3P, triangular)

• Troubleshooting voltage measurement
• Inspection using an oscilloscope

MB991223

Inspection harness set
connector
• Pin contact pressure

inspection harness

• Commercial tester

connection probe
(for general
connector)

Terminal voltage measurement

Red harness (for DLI)

White harness
(for LC)

MPI – TROUBLESHOOTING

13A-5

TROUBLESHOOTING

1. Diagnosis Function

1-1. Engine warning light (engine check lamp)

Engine warning light checks have been changed.

Items that are linked to the engine warning light are:

2. Table showing diagnosis codes

Engine ECU

Air flow sensor (AFS)

Intake air temperature sensor

Throttle position sensor (TPS)

Water temperature sensor

Crank angle sensor

Cam position sensor

Injector

Ignition coil (housing a power transistor)

Barometric pressure sensor

O2 sensor

O2 sensor heater

Fuel system abnormality

Immobiliser system

Knock sensor

Code No.

Diagnosis Items

Page

PO100

Air flow sensor (AFS)

13A-6

PO105

Barometric pressure sensor

13A-8

PO110

Intake air temperature sensor system

13A-10

PO115

Water temperature sensor system

13A-11

PO120

Throttle position sensor (TPS) system

13A-13

PO130

O2 sensor system

13A-16

PO135

O2 sensor heater

13A-18

PO170

Fuel system abnormality

13A-19

PO201

No.1 injector system

13A-20

PO202

No.2 injector system

13A-21

PO203

No.3 injector system

13A-22

PO204

No.4 injector system

13A-23

PO300

Ignition coil (housing a power transistor) system

13A-24

PO325

Knock sensor system

13A-25

PO335

Crank angle sensor system

13A-26

PO340

Cam position sensor system

13A-28

PO500

Vehicle speed sensor system

13A-30

PO513

Immobiliser system

13A-31

P1500

Alternator FR terminal system

13A-32

P1603

Battery back-up line system

13A-33
