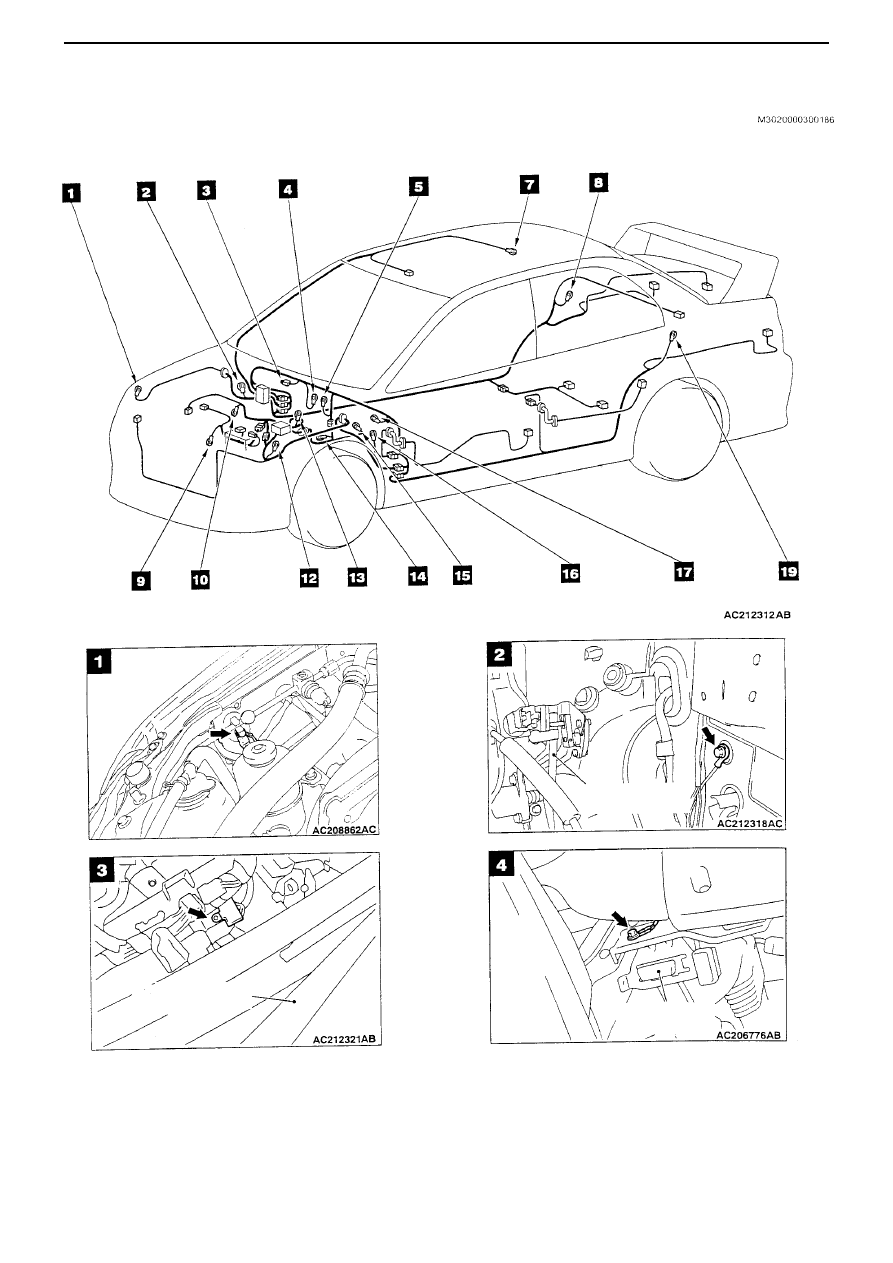

COMPONENT INSTALLATION POSITIONS - EARTH CABLES

2-14

Spare connector for
audio

General-
purpose spare
connector

Spare connector for fog
light switch

Diagnostic connector

EARTH CABLES

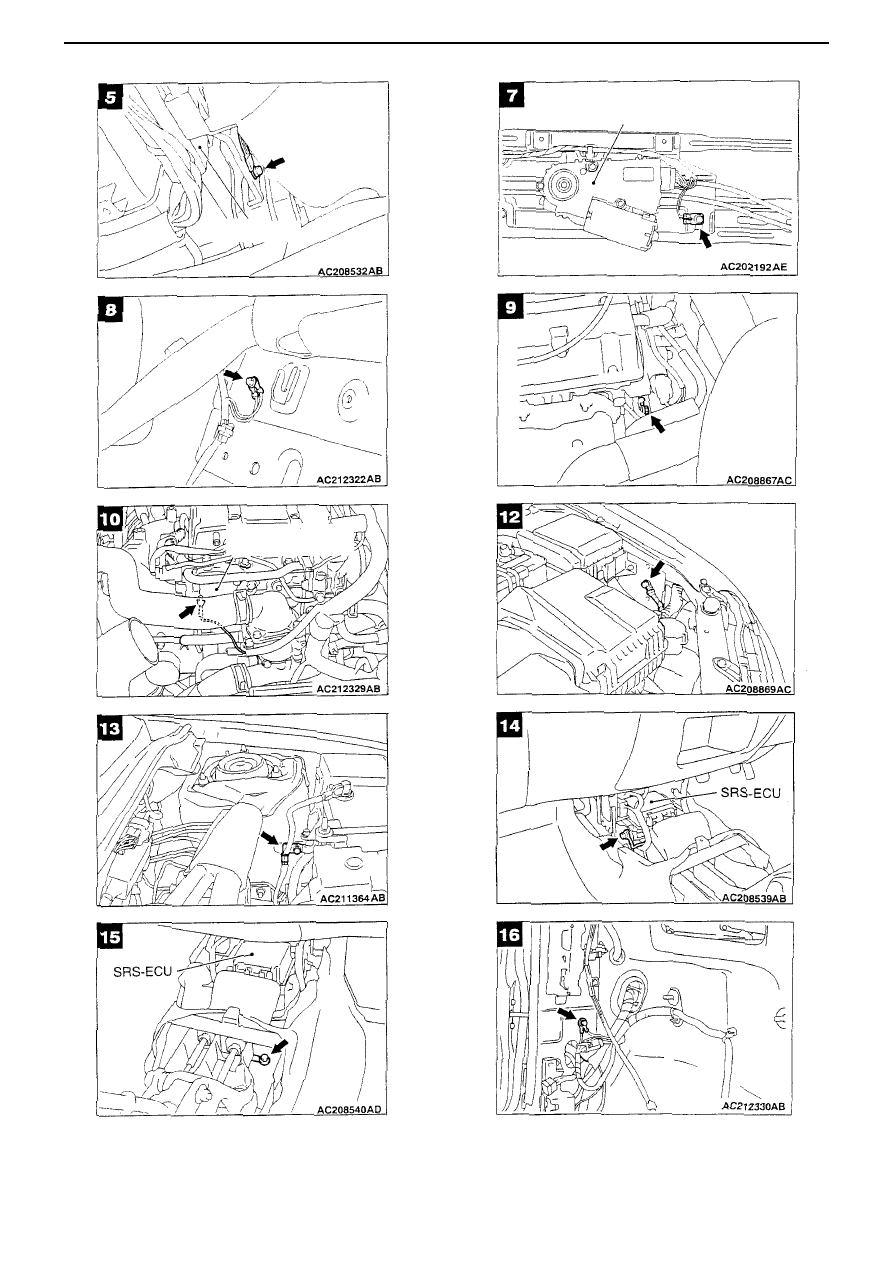

COMPONENT INSTALLATION POSITIONS - EARTHS

2-15

Accelerator arm

Wiper arm/blade
Assy.

Diagnostic
connector

EARTHS

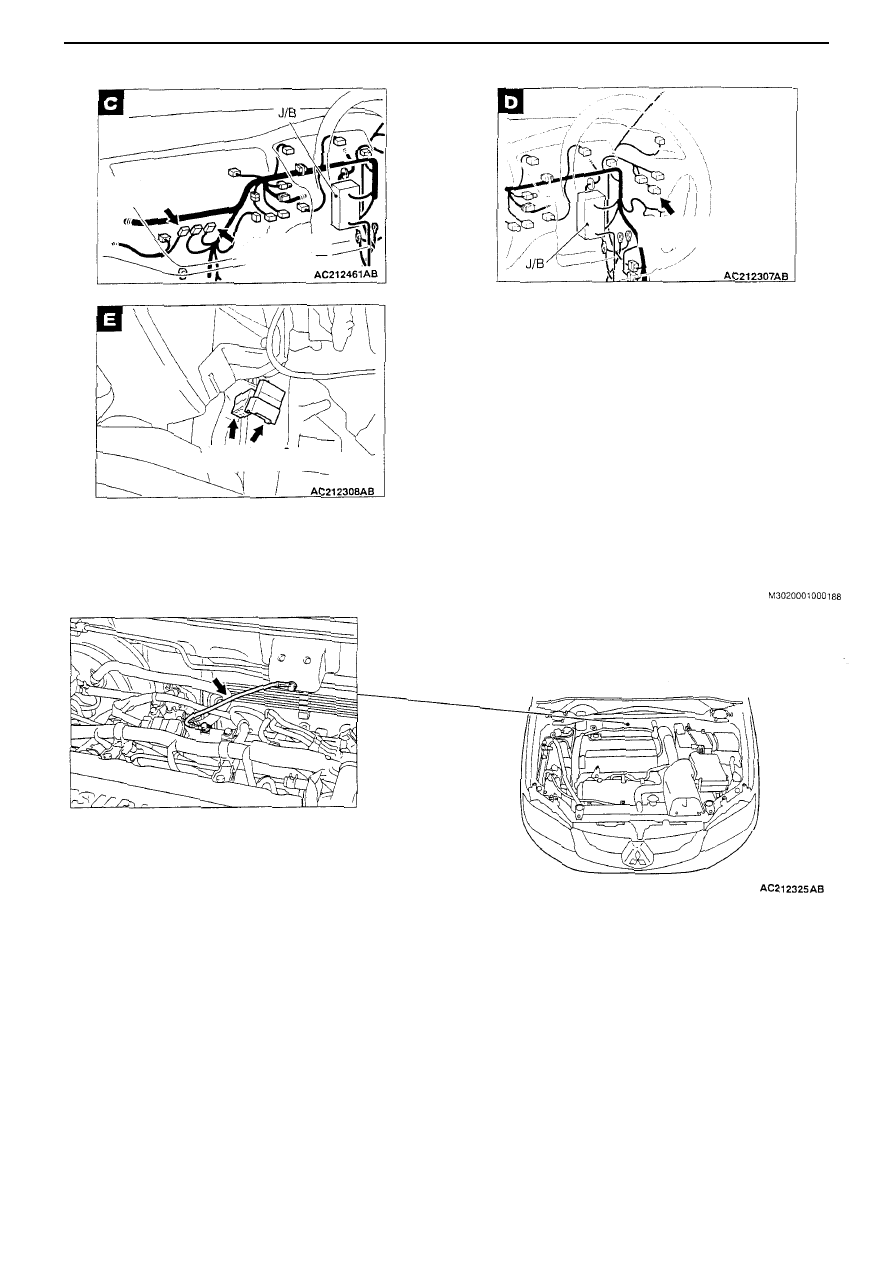

COMPONENT INSTALLATION POSITIONS - EARTHS

2-16

Engine ECU

Sunroof motor Assy.

Camshaft position
sensor

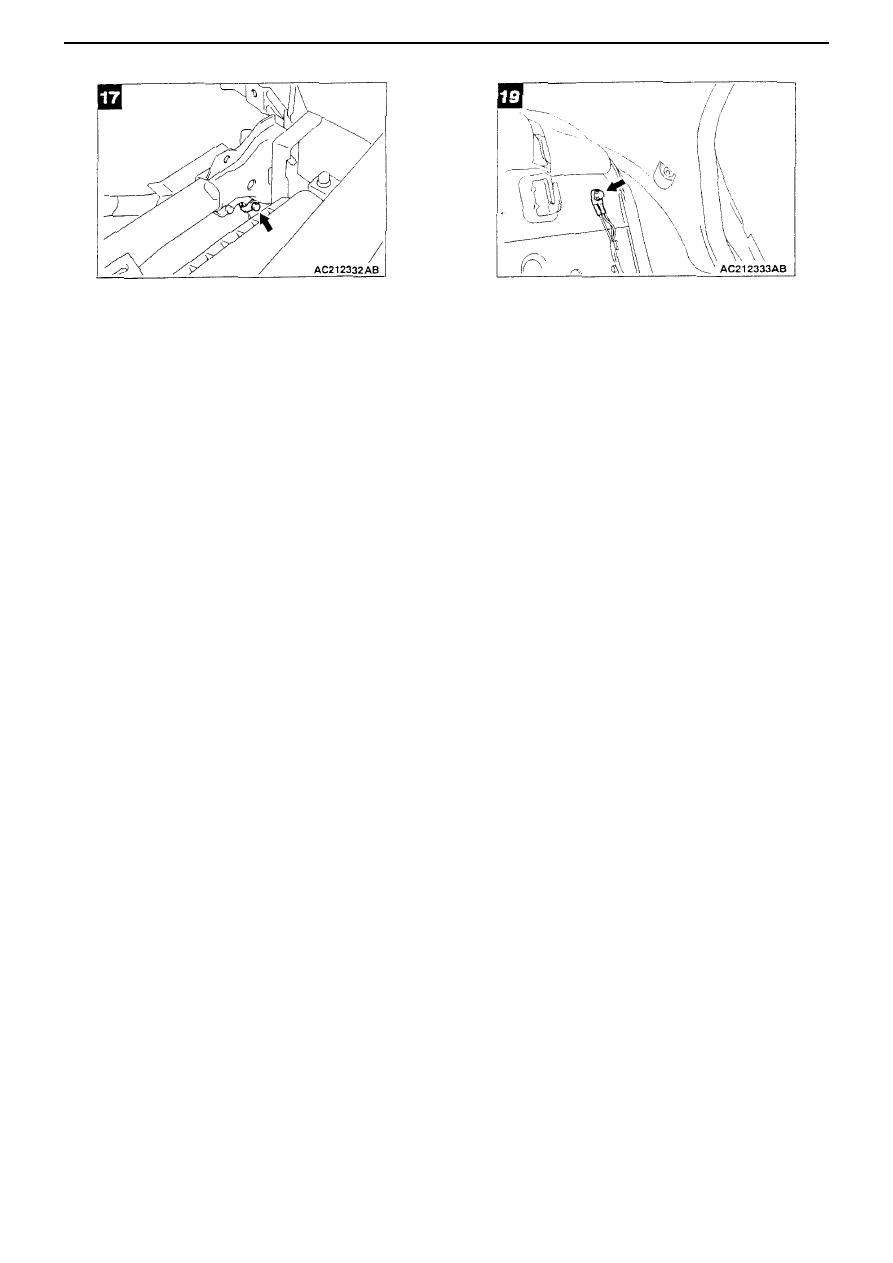

COMPONENT INSTALLATION POSITIONS - EARTHS

2-17
