COMPONENT INSTALLATION POSITIONS - SENSORS
2-6

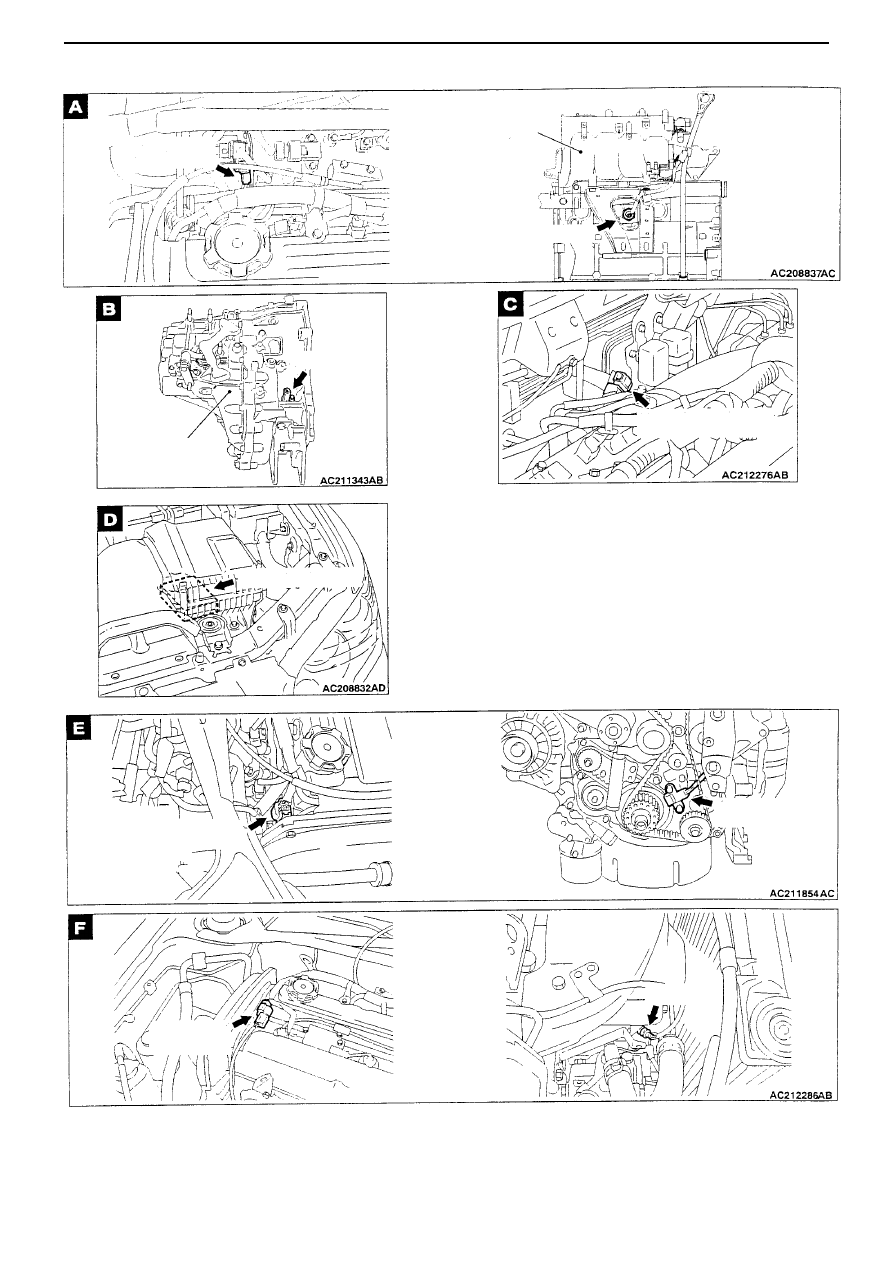

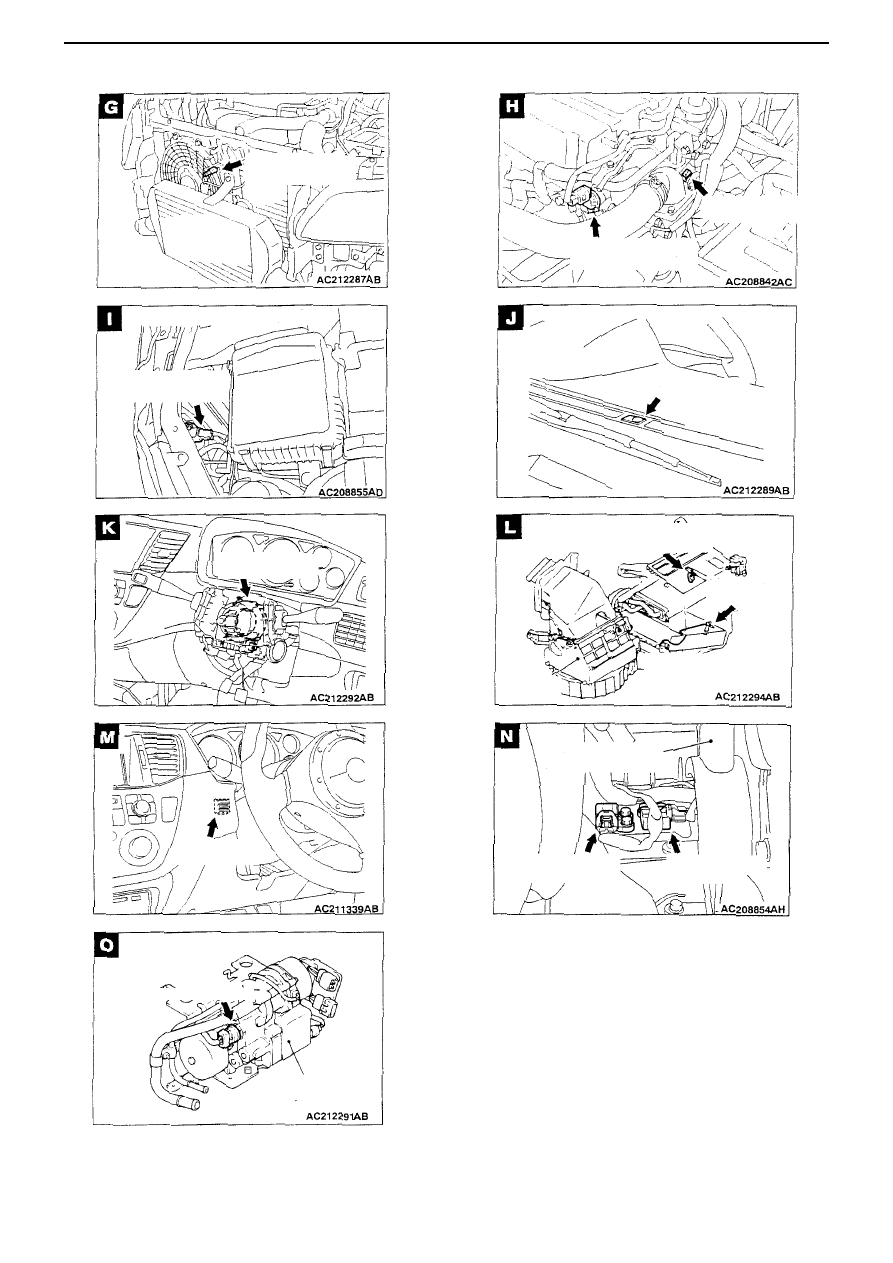

SENSORS
M3020000600217
Note:
The * symbol indicates RH fitting as well.
Name
Symbol Name
Symbol
Oxygen sensor
F
Steering wheel sensor
K
Pressure sensor
O
Throttle position sensor
C
Air thermosensor <A/C>
L
Front/back G sensor
N
Airflow sensor
D
Daylight sensor <vehicle fitted with fully automatic A/C> J
Ambient air temperature sensor
<vehicle fitted with fully automatic A/C>
G
Knock sensor
A
Camshaft position sensor
H
Heater water temperature sensor <vehicle fitted with
fully automatic A/C>
L
Crank angle sensor
E
Front impact sensor (RH) <vehicle not fitted with
passenger seat airbag>
I
Inside temperature sensor <vehicle
fitted with fully automatic A/C>
M

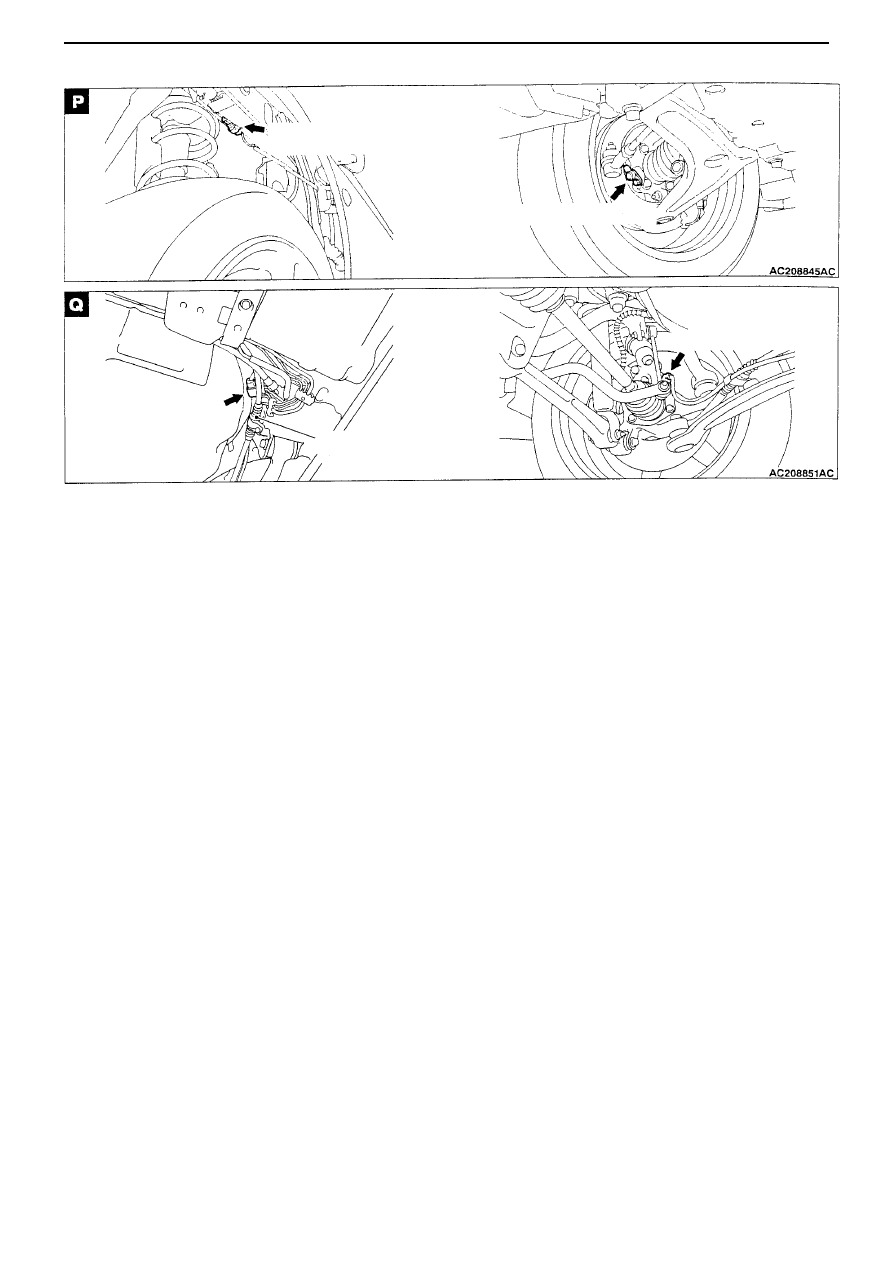

Front ABS sensor
P
Vehicle speed sensor
B
Transverse G sensor
N
Water temperature sensor
H
Rear ABS sensor
Q
