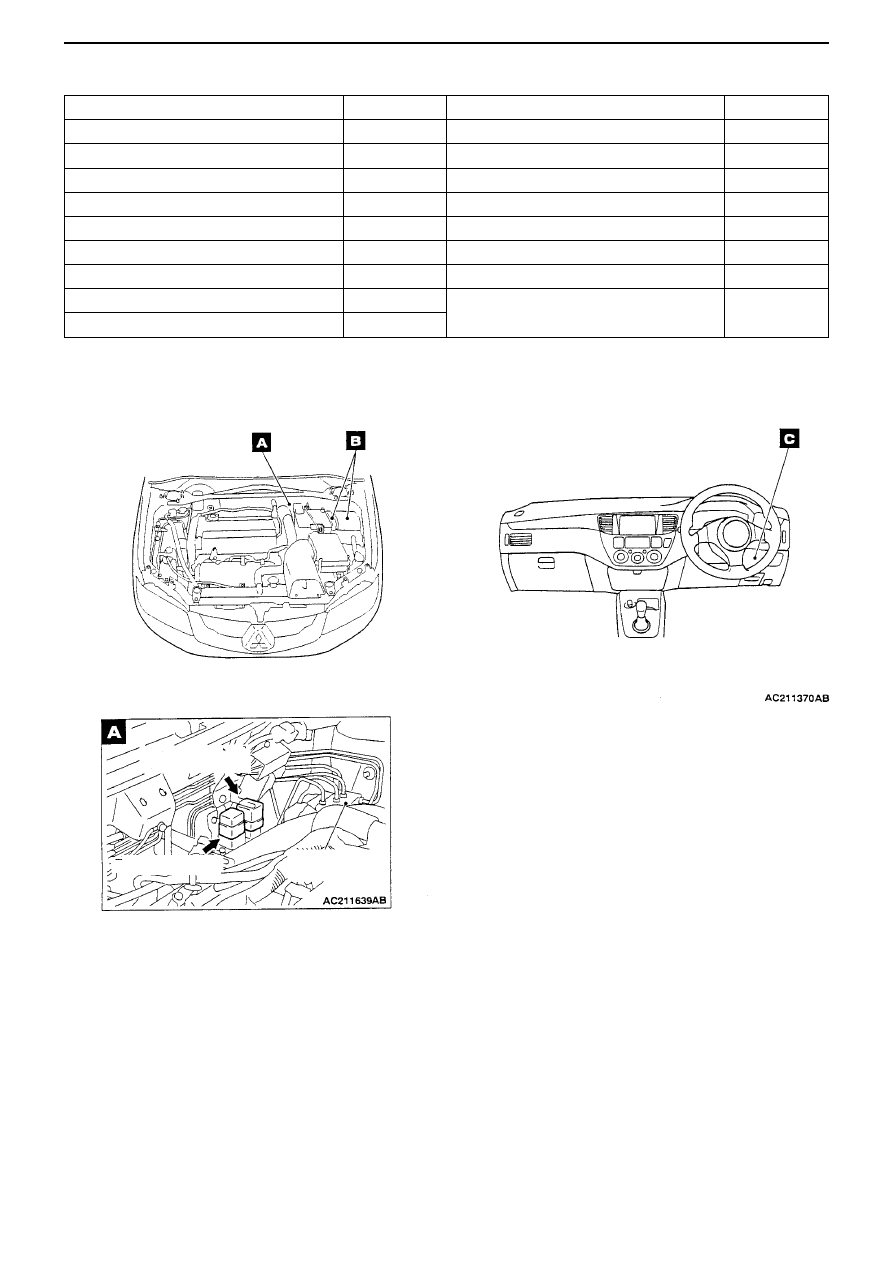

COMPONENT INSTALLATION POSITIONS - RELAYS

2-10

Fuel pump relay 3

Hydraulic unit

Electrically operated
pump relay

RELAYS

Name

Symbol

Name

Symbol

A/C compressor relay

B

Electric window relay

C

Ignition coil relay

B

Fog light relay

B

Intercooler water spray relay

C

Fuel pump relay 1

C

Engine control relay

B

Fuel pump relay 2

C

Condenser fan relay (HI)

B

Fuel pump relay 3

A

Condenser fan relay (LO)

B

Blower relay

C

Starter relay

B

Horn relay

B

Demister relay

C

Radiator fan control relay

B

Electrically operated pump relay

A

M3020000400183

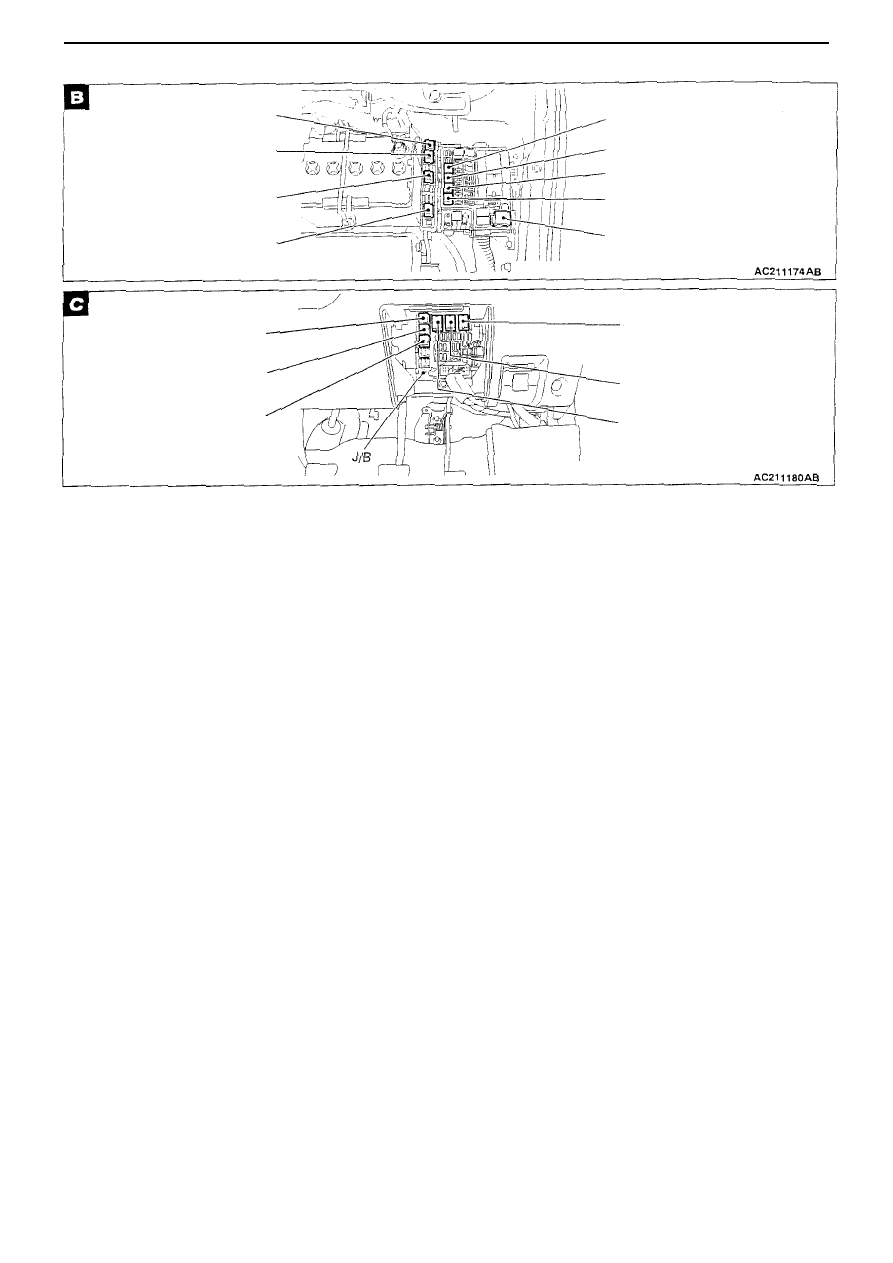

COMPONENT INSTALLATION POSITIONS - RELAYS

2-11

A/C compressor relay

Engine control relay

Ignition coil relay

Starter relay

Condenser fan relay (HI)

Condenser fan relay (LO)

Horn relay

Fog light relay

Radiator fan control relay

Fuel pump relay 1

Intercooler water spray relay

Fuel pump relay 2

Demister relay

Blower relay

Electric window relay

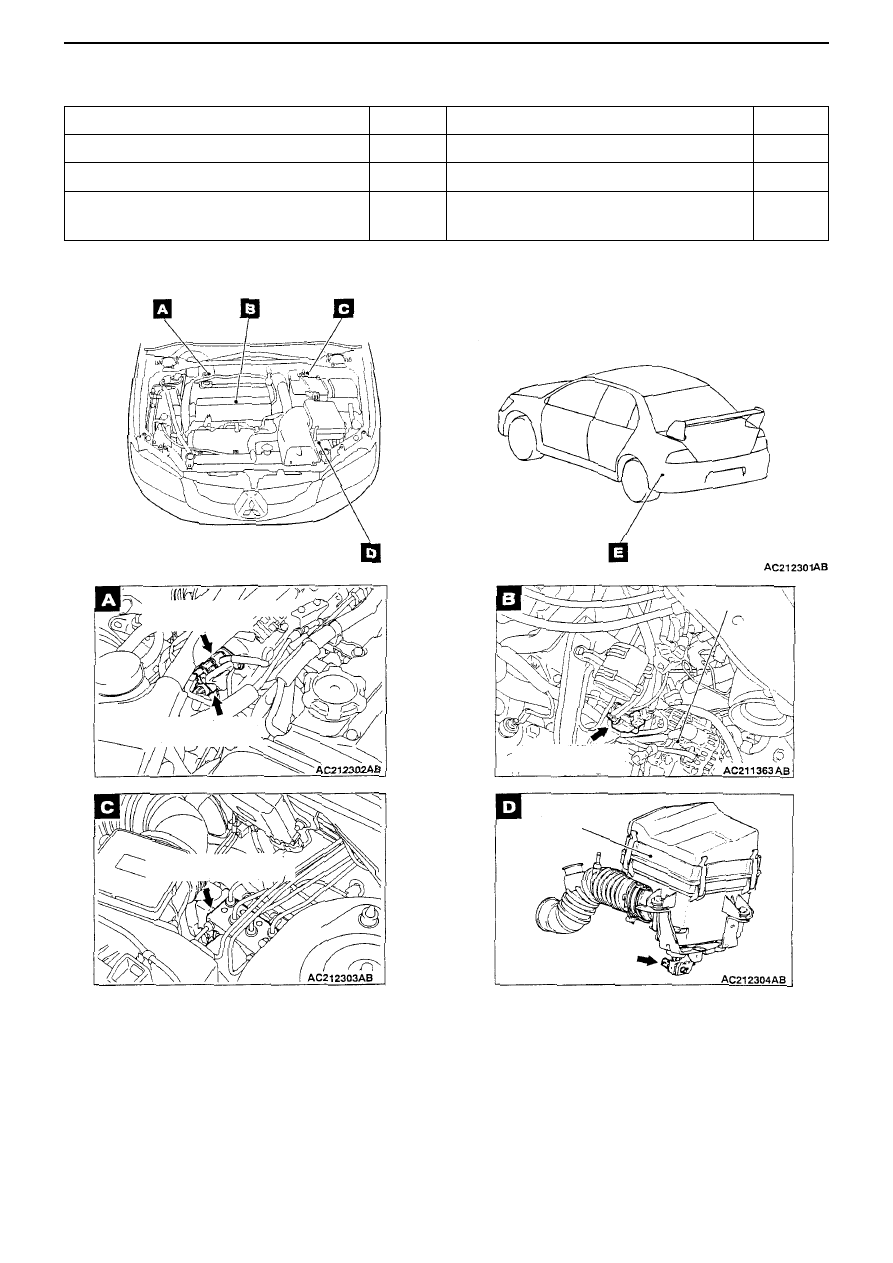

COMPONENT INSTALLATION POSITIONS - SOLENOID VALVES

2-12

Fuel pressure
solenoid valve

Purge control solenoid
valve

Alternator

Secondary air control
solenoid valve

Air cleaner
Assy.

Waste gate
solenoid valve

Hydraulic unit (built in
solenoid valve)

SOLENOID VALVES

Name

Symbol Name

Symbol

Secondary air control solenoid valve H

Purge control solenoid valve

A

Waste gate solenoid valve

D

Fuel pressure solenoid valve

A

Hydraulic unit (built in solenoid
valve) <vehicle fitted with ABS>

C

Hydraulic unit Assy.(built in
proportional valve, direction valve)

E

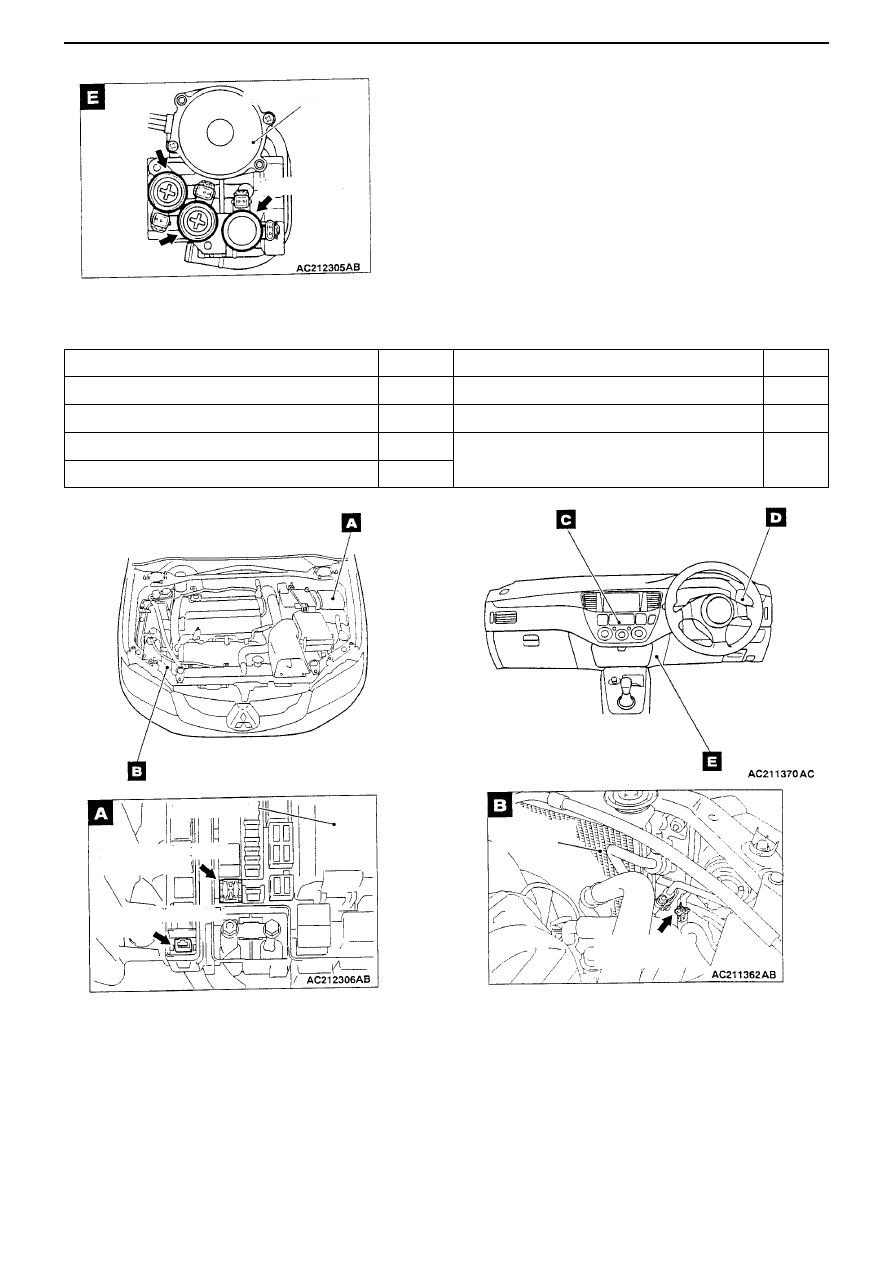

COMPONENT INSTALLATION LOCATIONS - INSPECTION CONNECTORS, SPARE CONNECTORS

2-13

Hydraulic unit Assy.

Direction valve (LH, RH)

Proportional
valve (for AYC)

Proportional
valve (for
ACD)

Front ECU

Spare connector for fog
light relay

Engine rpm detection
connector

Radiator
Assy.

Spare connector
for fog light

INSPECTION CONNECTORS, SPARE CONNECTORS

Name

Symbol

Name

Symbol

Engine rpm detection connector

A

Spare connector for fog light switch

D

Spare connector for audio

C

Spare connector for fog light

B

Diagnostic connector

E

Spare connector for fog light relay

A

General-purpose spare connector

C

M3020000200190
