3-1

SECTION 3

CIRCUIT DIAGRAMS

CONTENTS

J/B ............................................................3-4

J/C ............................................................3-6

Centralised Junctions ..........................3-11

Power Distribution................................3-18

Starting System ....................................3-23

Ignition System .....................................3-24

Charging System ..................................3-26

Engine Control System ........................3-28

Cooling System.....................................3-36

Lighting

Headlight <excluding discharge type>.............3-38
Headlight <discharge type> .............................3-42
Tail light, front side light, licence plate light, lighting
monitor buzzer .................................................3-46
Interior light, luggage compartment light, licence
plate light, lighting monitor buzzer,
Door open warning light...................................3-50
Fog light ...........................................................3-54
Headlight levelling system ...............................3-58

Signals

Indicator light, hazard warning light .................3-60
Reversing light .................................................3-64
Stop light ..........................................................3-65
Horn .................................................................3-66

Meters

Gauge ..............................................................3-68
Fuel warning light, oil pressure warning light,
Brake warning light, seat belt warning light .....3-70

Door opening/closing control

Electric window ................................................3-72
Central door locking <vehicle not fitted with
keyless entry> ..................................................3-78
Central door locking <vehicle fitted with keyless
entry> ...............................................................3-80

Air conditioning

Heater ..............................................................3-86
Fully automatic air conditioning .......................3-90

Field of Vision

Windscreen wiper/washer................................3-98
Rear wiper/washer .........................................3-102
Demister <vehicle fitted with heater> ............3-104
Demister, door mirror heater <vehicle fitted with
fully automatic Air conditioning> ....................3-106
Remote control door mirror............................3-108

Accessories

Spare connector for audio <vehicle not fitted with
DVD-MMCS> .................................................3-112
DVD-MMCS....................................................3-114
Clock <vehicle not fitted with DVD-MMCS> ..3-120
Cigarette lighter, ashtray illumination light .....3-121

3-2

Equipment

ABS ................................................................3-122
ACD <vehicle not fitted with AYC> ................3-130
ACD, AYC ......................................................3-138
SRS airbag, pretensioners
<vehicle not fitted with passenger
seat airbag> ...................................................3-148
SRS airbag, pretensioners
<vehicle fitted with passenger seat airbag> ..3-152

Sunroof ..........................................................3-154
Ignition key reminder warning buzzer ............3-157
Intercooler water spray ..................................3-158
Engine immobiliser system ............................3-160
Security alarm ................................................3-162
Spare connector for fog light .........................3-167
General-purpose spare connectors ...............3-168

CIRCUIT DIAGRAMS

3-3

<Memo>

CIRCUIT DIAGRAMS - J/B

3-4

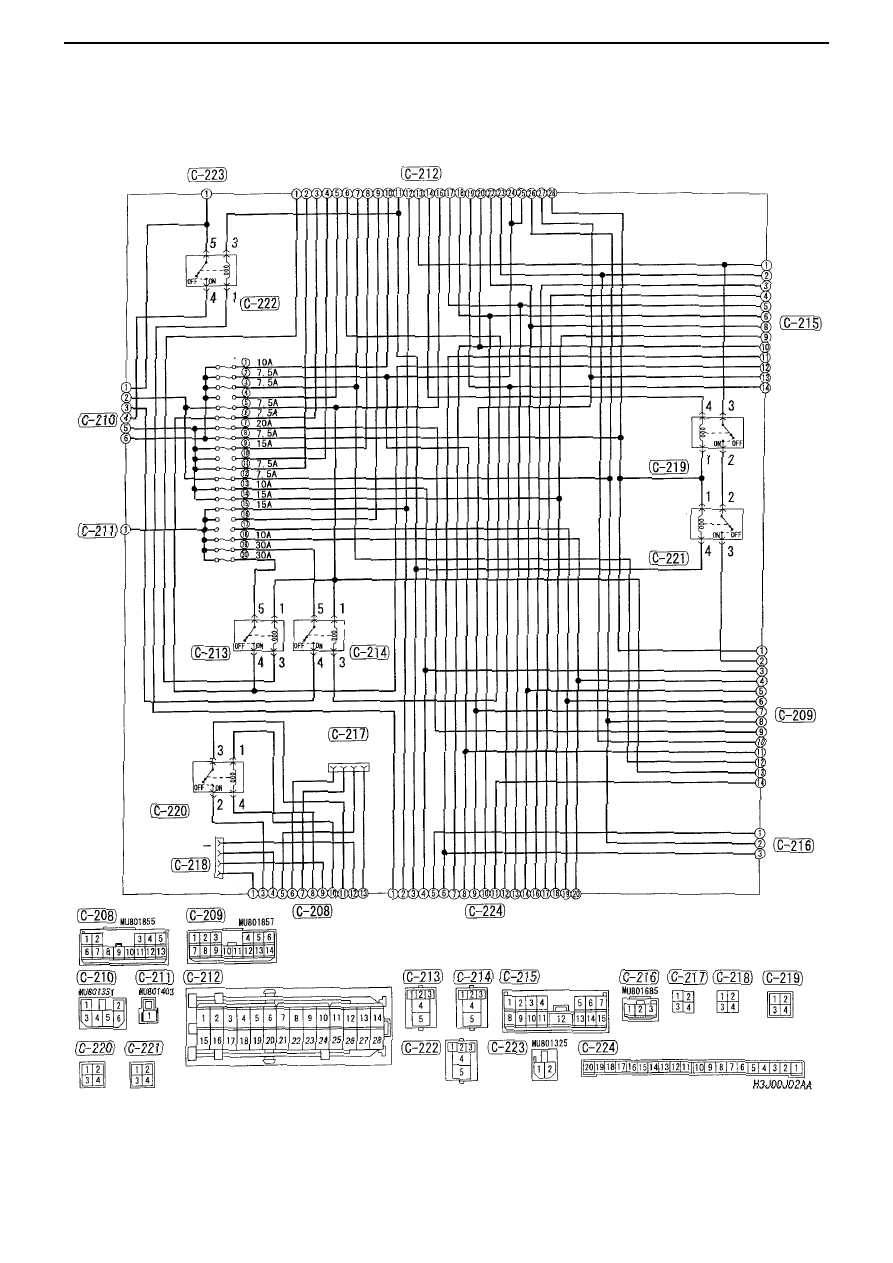

J/B

M3030000200209

Electric
window
relay

General-purpose fuses

Fuel
pump
relay 2

Demister
relay

Blower
relay

Vacant connector

Water
spray
relay

Vacant
connector

Note:
The connector numbers correspond to the harness
arrangement diagrams – instrument panel – and to
the circuit diagrams.

J/B side connectors

Fuel
pump
relay 1
