Mitsubishi Lancer Evolution 7. Manual - part 386





CHASSIS ELECTRICAL

-

Rear Combination Lamp

ILL

ILL

54A-33

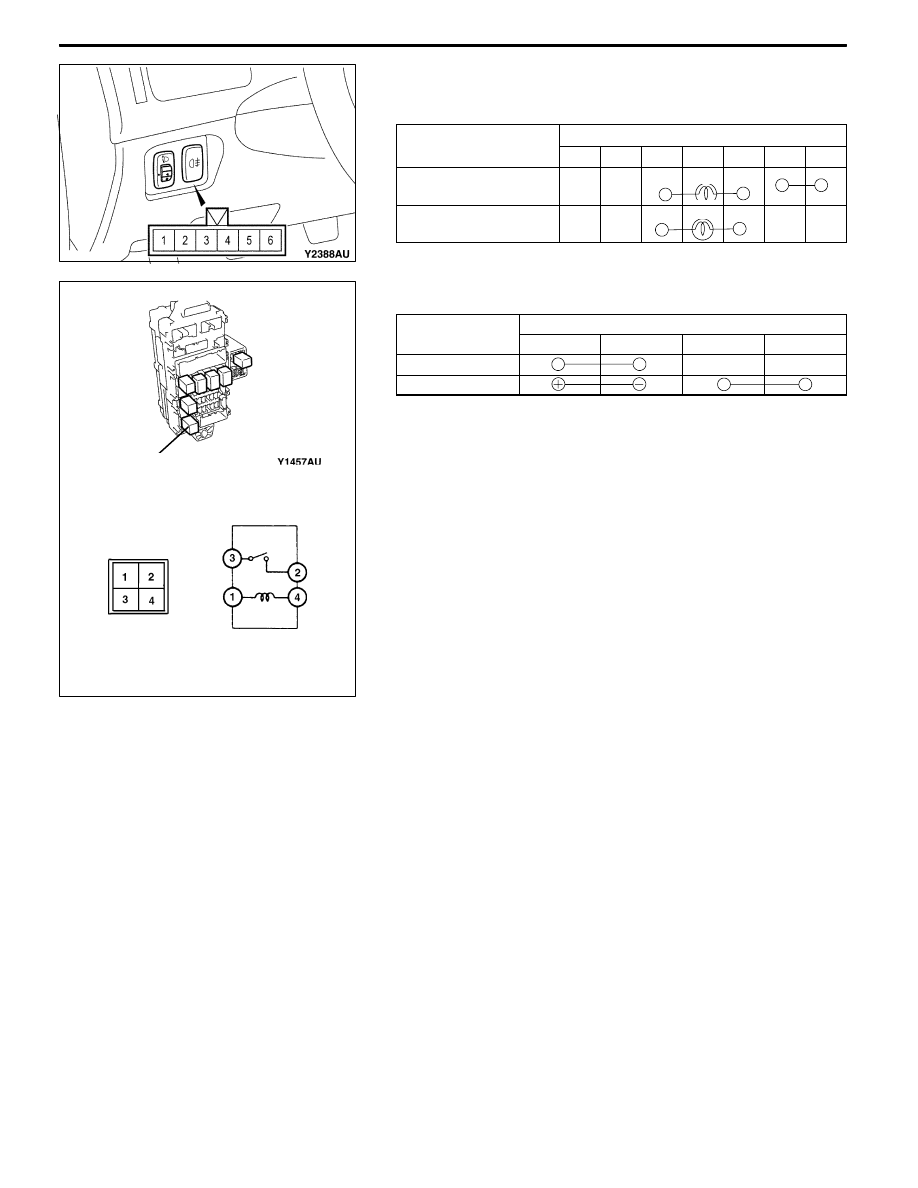

INSPECTION

REAR FOG LAMP SWITCH CONTINUITY CHECK

Switch position

Terminal No.

p

1

2

3

4

5

6

ON

OFF

REAR FOG LAMP RELAY CONTINUITY CHECK

Battery Voltage

Terminal No.

y

g

1

4

2

3

De-energized
Energized

Rear fog lamp relay

CHASSIS ELECTRICAL

-

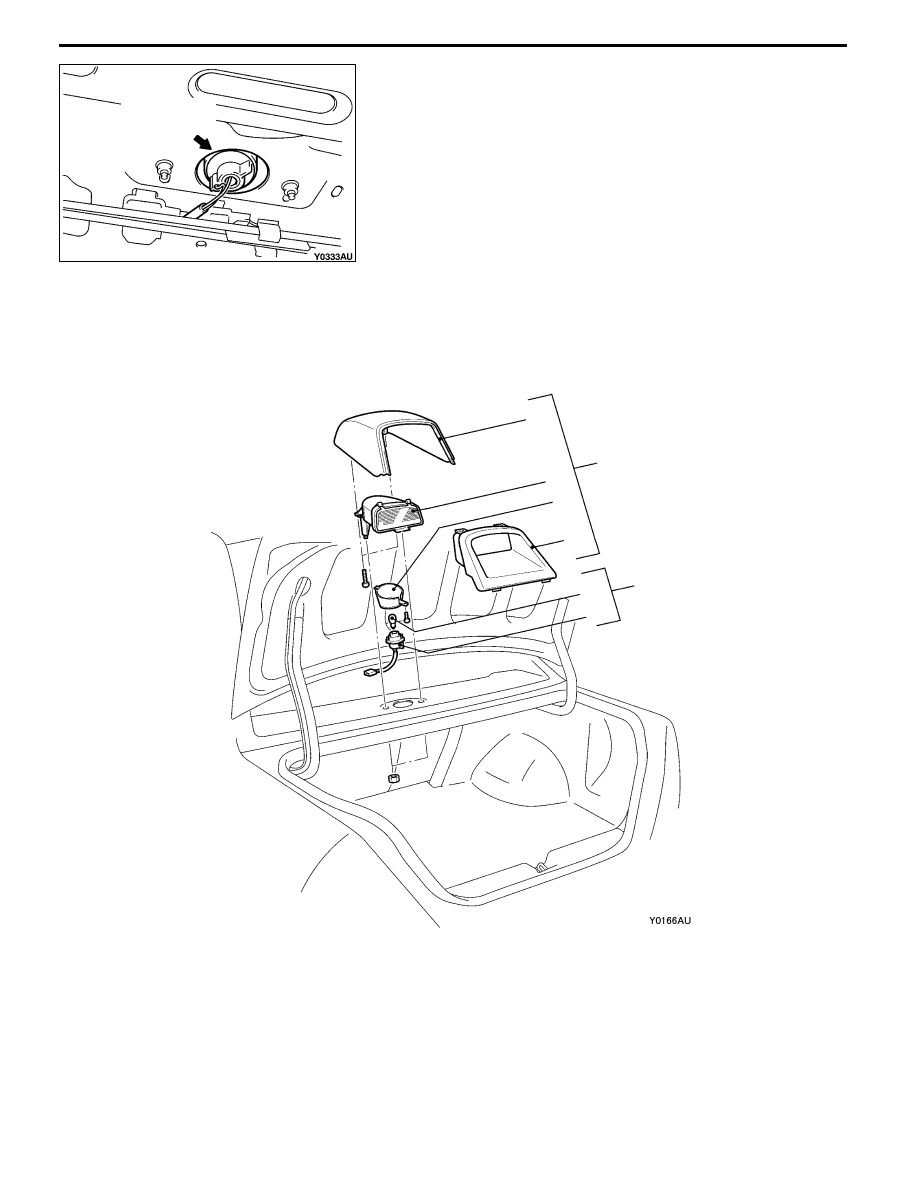

High-Mounted Stop Lamp

54A-34

HIGH-MOUNTED STOP LAMP

ON-VEHICLE SERVICE

HIGH-MOUNTED STOP LAMP BULB

REPLACEMENT

Remove socket from trunk compartment, and replace bulb.
Caution

Do not touch bulb surface bare-handed or with dirty

gloves. If dirt is attached on glass surface of the bulb,

immediately use alcohol or thinner to remove dirt, and

install the bulb after well dried.

HIGH-MOUNTED STOP LAMP

REMOVAL AND INSTALLATION

1

5

2

4

3

6

7

8

Removal steps

1. Socket assembly

2. Socket

3. Bulb

4. High-mounted stop lamp assembly

5. Socket holder

6. High-mounted stop lamp cover (front)

7. High-mounted stop lamp cover (rear)

8. High-mounted stop lamp body

High-mounted

stop lamp

CHASSIS ELECTRICAL

-

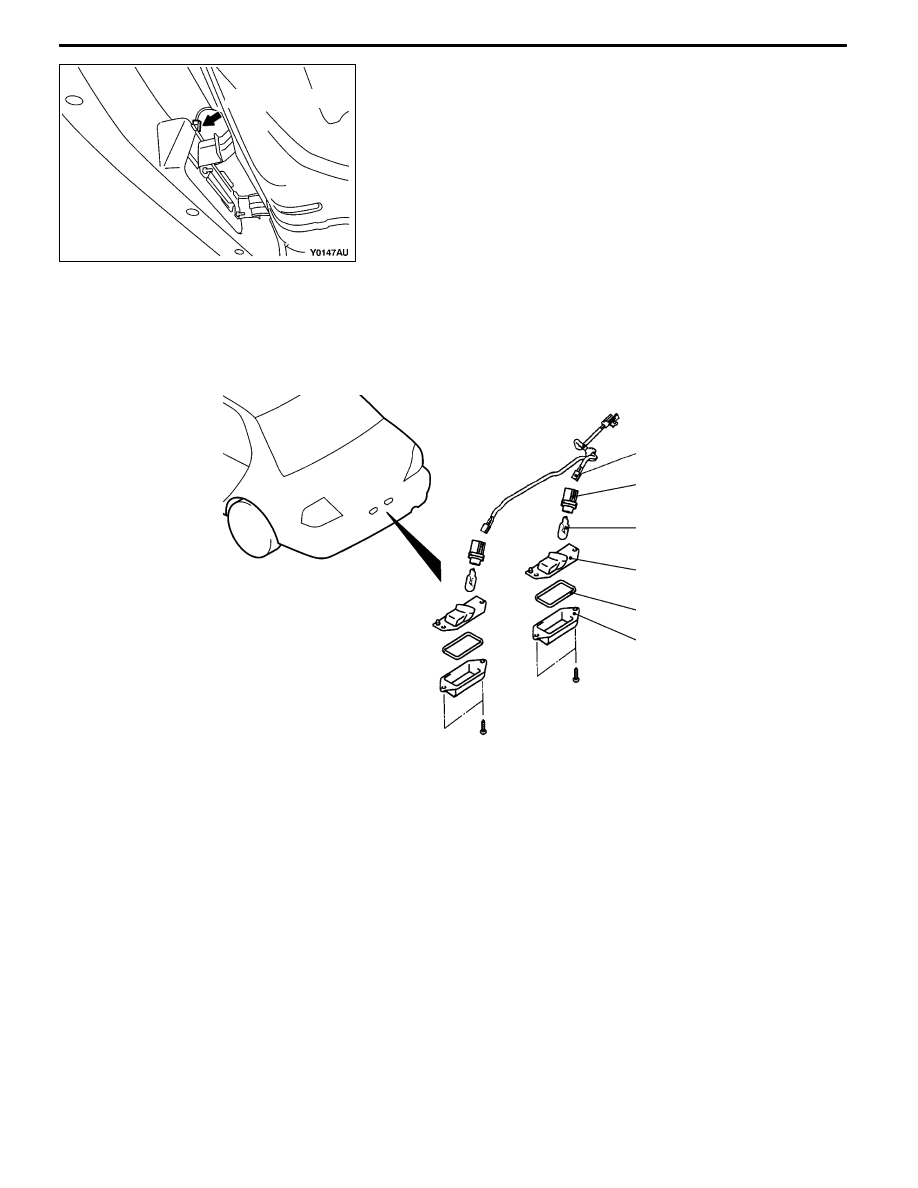

License Plate Lamp

54A-35

LICENSE PLATE LAMP

ON-VEHICLE SERVICE

LICENSE PLATE LAMP REPLACEMENT

Remove socket between rear bumper and body, and remove

bulb.
Caution

Do not touch bulb surface bare-handed or with dirty

gloves. If dirt is attached on glass surface of the bulb,

immediately use alcohol or thinner to remove dirt, and

install the bulb after well dried.

LICENSE PLATE LAMP

REMOVAL AND INSTALLATION

1

2

3

X0261AU

4

5

6

Removal steps

1. License plate lamp lens

2. Packing

3. License plate lamp body

4. Bulb

5. Socket

6. Harness

License plate lamp

CHASSIS ELECTRICAL

-

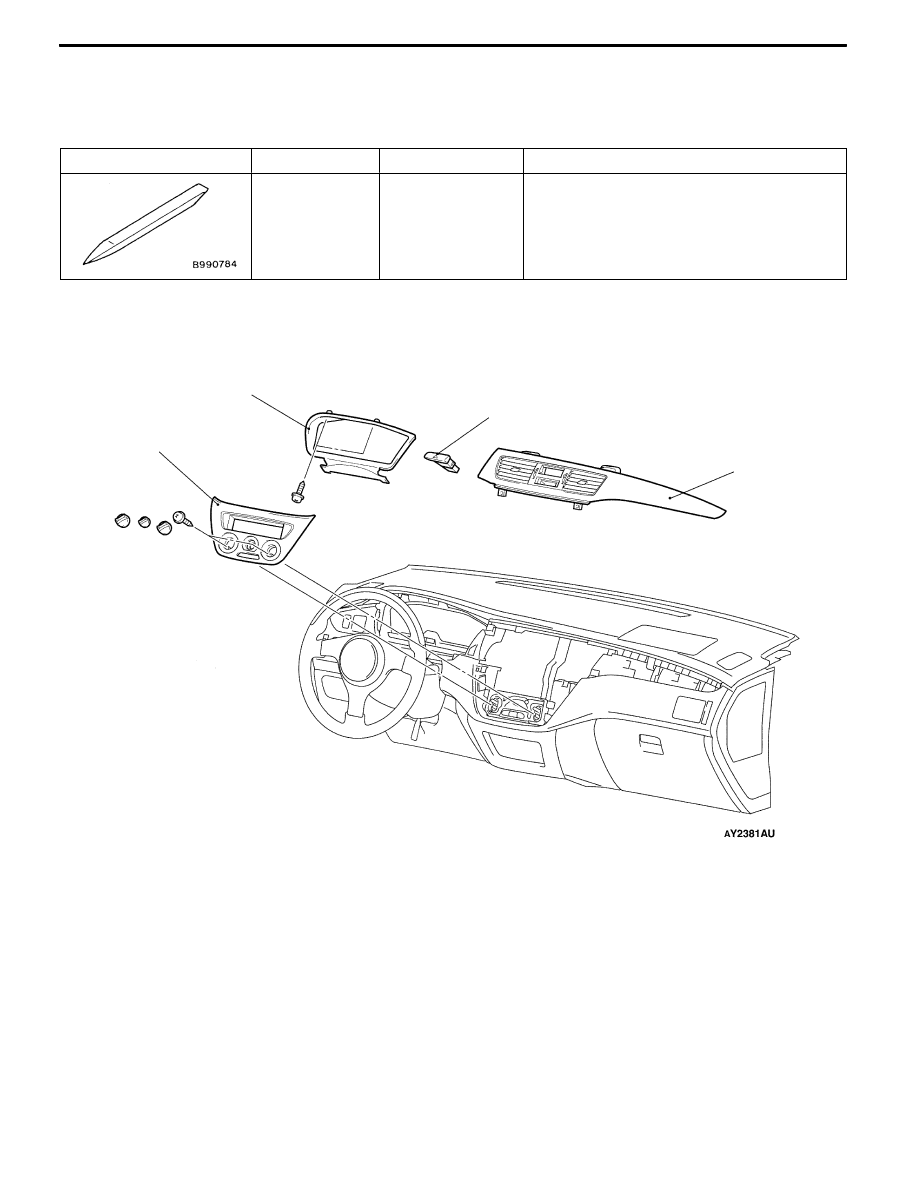

Hazard Warning Lamp Switch

54A-36

HAZARD WARNING LAMP SWITCH

SPECIAL TOOL

Tool

Number

Name

Use

MB990784

Ornament remover

Center panel assembly removal

HAZARD WARNING LAMP SWITCH

REMOVAL AND INSTALLATION

3

4

2

1

Removal steps

1. Center panel assembly (Refer to

GROUP 52A - Instrument Panel.)

2. Meter bezel (Refer to P.54A-22

.)

3. Center air outlet panel (Refer to

GROUP 52A - Instrument Panel.)

4. Hazard warning lamp switch
