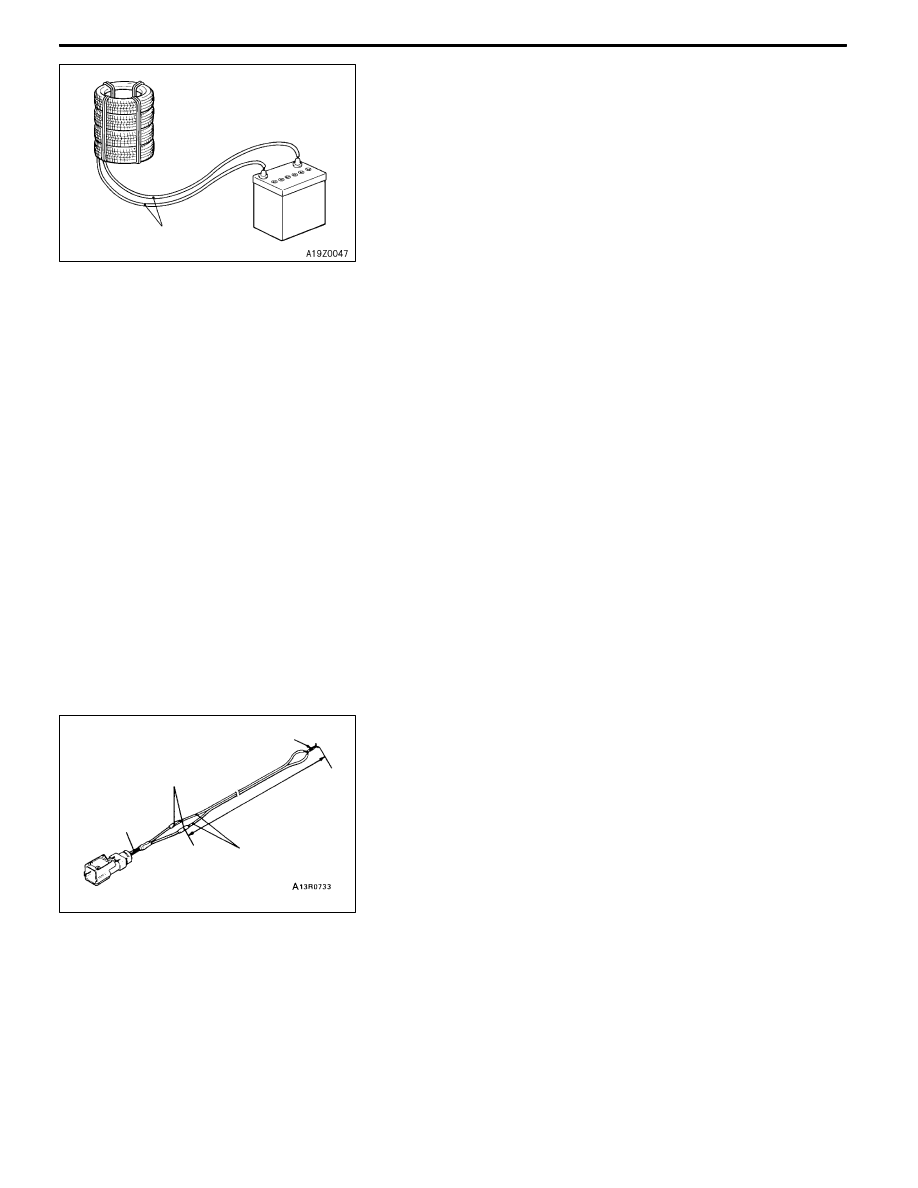

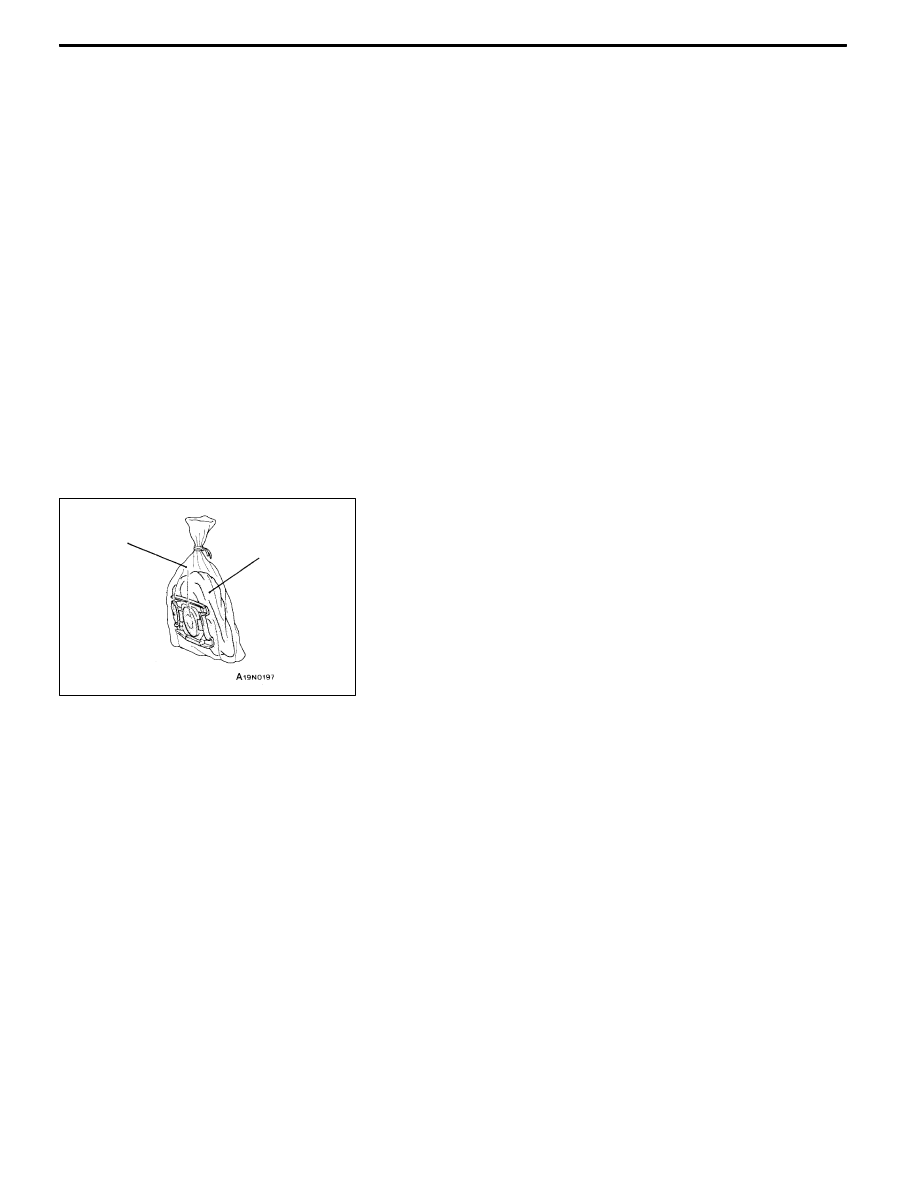

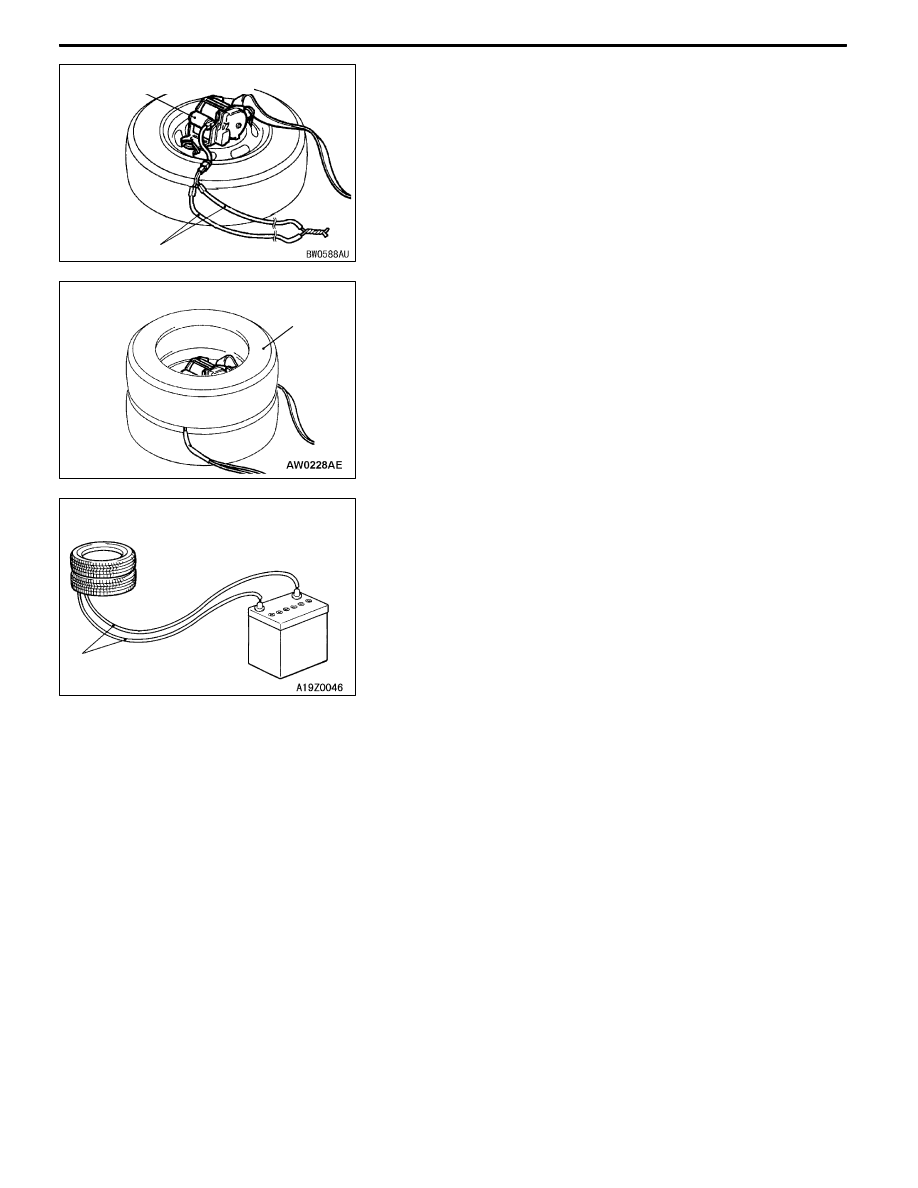

SRS - Air Bag Module and Seat Belt Pre-tensioner Disposal Procedures 52B-73 (6) Disconnect the deployment harnesses as far from the front passenger’s air bag module as possible and connect the harnesses to the battery removed from the vehicle. 1) Before the deployment, see that no one is near the front passenger’s air bag module. 2) The deployment makes the inflator of the front passenger’s air bag very hot. Before handling the inflator, wait more than 30 minutes for cooling. 3) If the front passenger’s air bag module fails to deploy although the procedure is respected, do not go near the module. Contact your local distributor. (7) Discard the deployed air bag module as specified in Deployed Air Bag Module Disposal Procedures. (Refer to P.52B-75.) Seat belt pre-tensioner vehicle. (Refer to P.52B-61.) Once disconnected, both electrodes of the seat belt pre-tensioner are short-circuited automatically to prevent accidental deployment caused by static etc. Still, in consideration of the accidental deployment, store the air bag module on flat place with deployment surface facing up. Also, do not put anything on it. (2) Connect deployment harness 6 m or longer with the SRS air bag adapter harness respectively. Insulate the connection with tape. Moreover, the ends of the operation harness should be connected (short-circuited) to each other. Thus, it prevents the seat belt pre-tensioner from accidental deployment caused by static and etc. Deployment harnesses SRS air bag adapter harness MR686560 Shorted 6 m long or more Insulation tape Deployment harnesses |
