STEERING -

On-vehicle Service

37A-11

POWER STEERING OIL PRESSURE SWITCH

CHECK

1. Disconnect the pressure hose from the oil pump, and

then connect the special tools.

2. Bleed the air, and then turn the steering wheel several

times while the vehicle is not moving so that the

temperature of the fluid rises to approximately 50 - 60_C.

3. The engine should be idling.

4. Disconnect the connection of the connector for the oil

pressure switch, and set an ohmmeter in position.

5. Gradually close the shut-off valve of the pressure gauge

and increase the hydraulic pressure, then check whether

or not the hydraulic pressure that activates the switch

is the standard value.
Standard value: 1.8 - 2.4 MPa

6. Gradually open the shut-off valve and reduce the hydraulic

pressure; then check whether or not the hydraulic pressure

that deactivates the switch is the standard value.
Standard value: 1.0 - 2.4 MPa

7. Remove the special tools, and then tighten the pressure

hose to the specified torque.
Tightening torque: 18 ± 3 N·m

8. Bleed the system.

BALL JOINT DUST COVER CHECK

1. Check the dust cover for cracks or damage by pushing

it with finger.

2. If the dust cover is cracked or damaged, replace the

tie rod end.
NOTE

Cracks or damage of the dust cover may cause damage

of the ball joint.

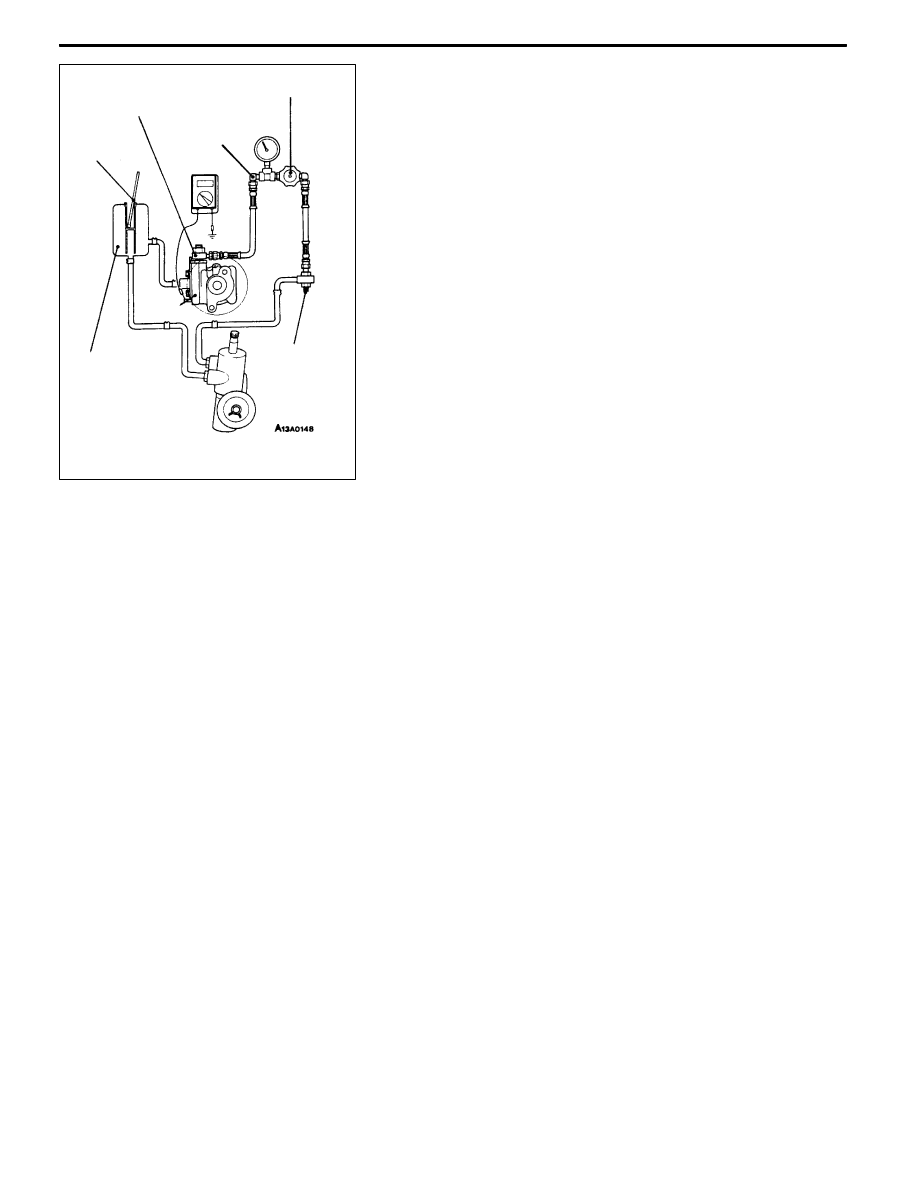

Temperature

gauge

Shut-offvalve

Oil

pump

Reservoir

Adapter
(MB990993) Pressure

gauge
(MB990662)

Adapter
(MB990994)

STEERING -

Steering Wheel

37A-12

STEERING WHEEL

REMOVAL AND INSTALLATION

Caution:
Before removing the steering wheel and air bag module assembly, refer to GROUP 52B – Service

Precautions and Air Bag Module and Clock Spring.

Post-installation Operation

Checking Steering Wheel Position with Wheels Straight

Ahead

<RS (standard)>

1

2

41 ± 8 N·m

± 2 N·m

± 2 N·m

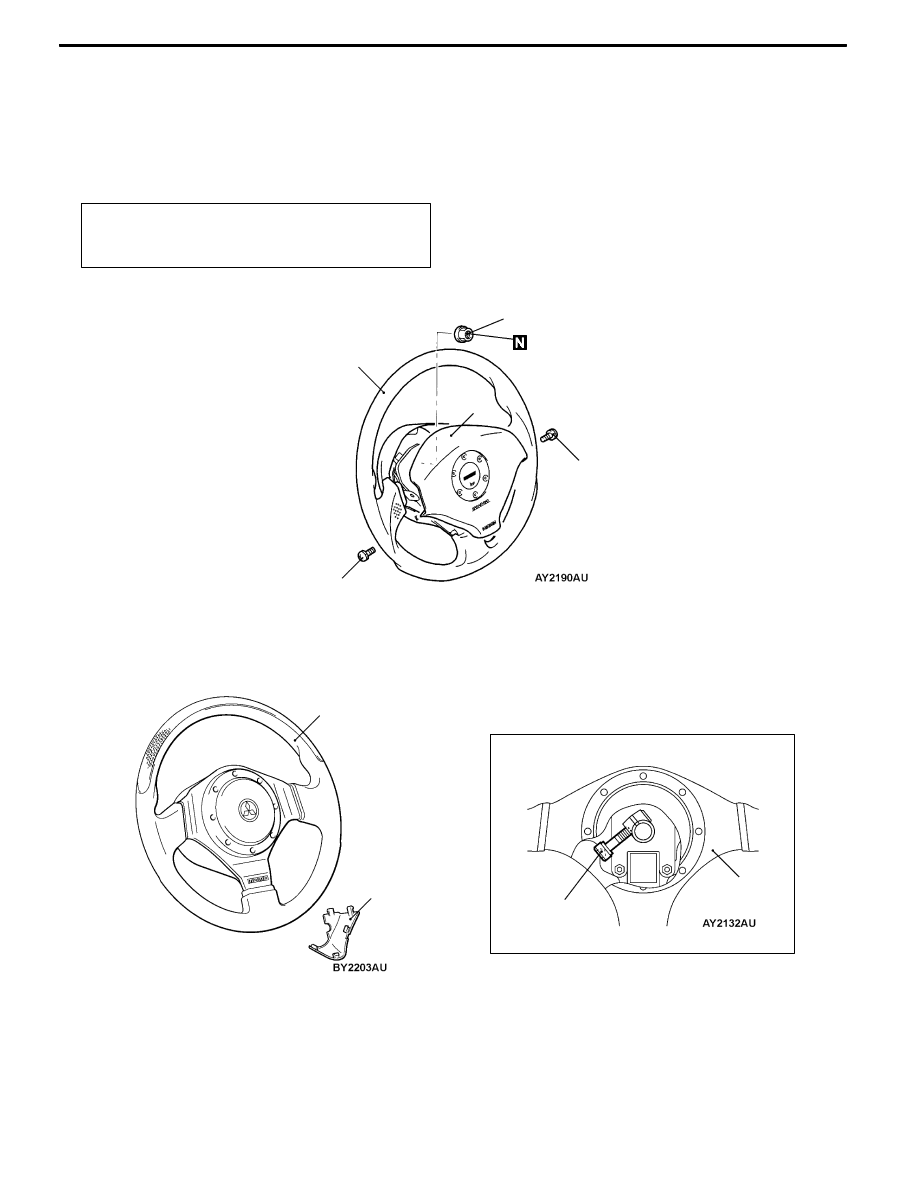

Removal steps

1. Air bag module assembly

A

A"

2. Steering wheel

<RS (option), RS-II>

1

2

50 ± 5 N·m

2

Removal steps

A

B"

1. Cover

A

C"

2. Steering wheel and air bag module

assembly

STEERING -

Steering Wheel

37A-13

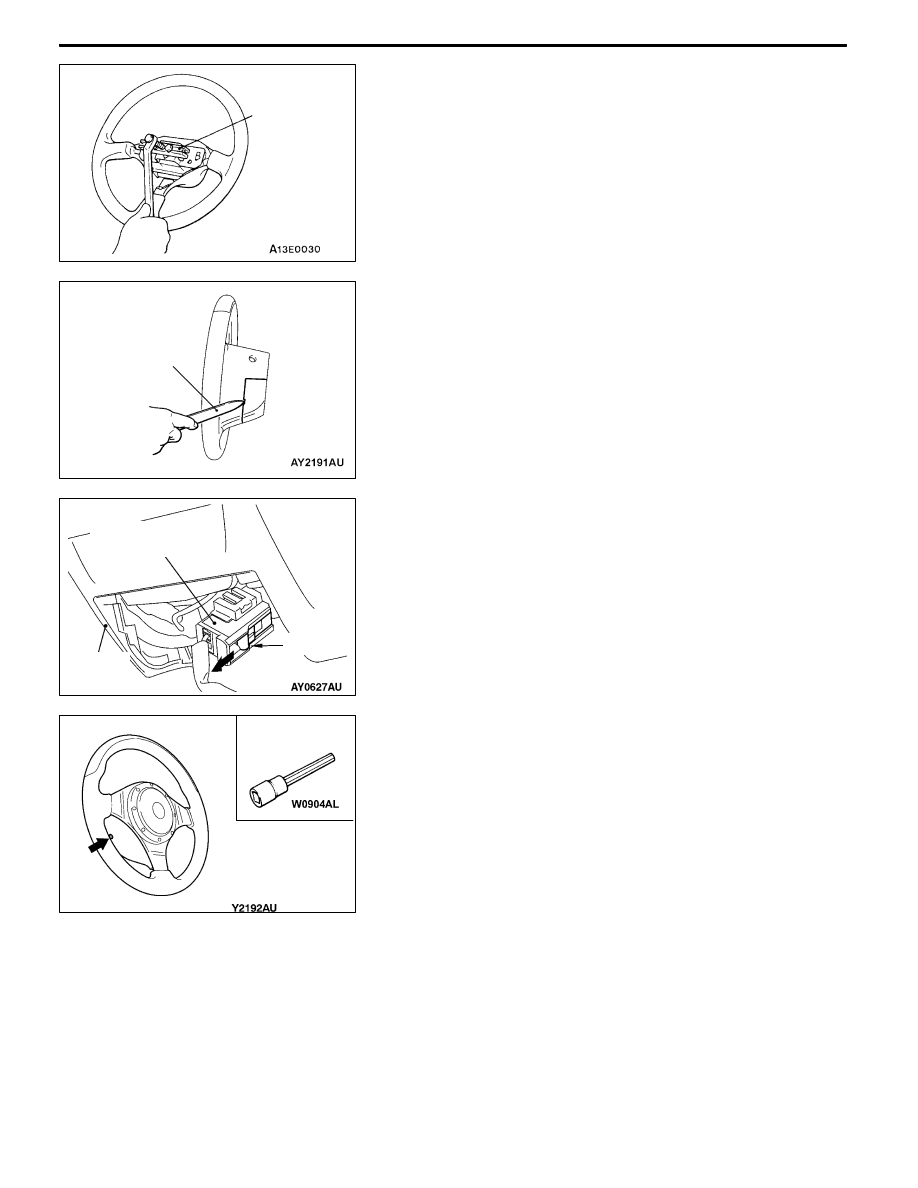

REMOVAL SERVICE POINTS

A

ASTEERING WHEEL REMOVAL <RS (standard)>

A

BCOVER REMOVAL <RS (option), RS-II>

Insert the special tool from the indicated position to remove

the cover.
NOTE

The special tool can be inserted through the notch behind

the position shown.

A

CSTEERING WHEEL AND AIRBAG MODULE

ASSEMBLY REMOVAL <RS (option), RS-II>

1. By sliding section A of the clock spring connector shown

in the illutration in the arrow direction, disconnect the

connector.

2. Loosen the bolt completely. Then, remove the steering

wheel and airbag module assembly.
NOTE

Use a hexagonal bit socket or a hexagonal wrench having

an effective length of 75 mm or more in the hexagonal

section and the diameter of 8 mm or more.

MB990784

MB990784

Clock spring
connector

Steering
wheel

A

Hexagonal

bit socket

STEERING -

Steering Shaft

37A-14

STEERING SHAFT

REMOVAL AND INSTALLATION

Caution:
Before removing clock spring, refer to GROUP 52B – Service Precautions and Air Bag Module

and Clock Spring.

Pre-removal Operation
D

Steering Wheel Removal (Refer to P.37A-12.)

D

Instrument Under Cover Removal

(Refer to GROUP 52A.)

Post-installation Operation
D

Instrument Under Cover Installation

(Refer to GROUP 52A.)

D

Steering Wheel Installation (Refer to P.37A-12.)

D

Checking Steering Wheel Position with Wheels

Straight Ahead

Tab

Column

cover

2

Section A – A

1

3

4

5

6

7

A

A

18 ± 2 N·m

12 ± 2 N·m

5.0 ± 1.0 N·m

8

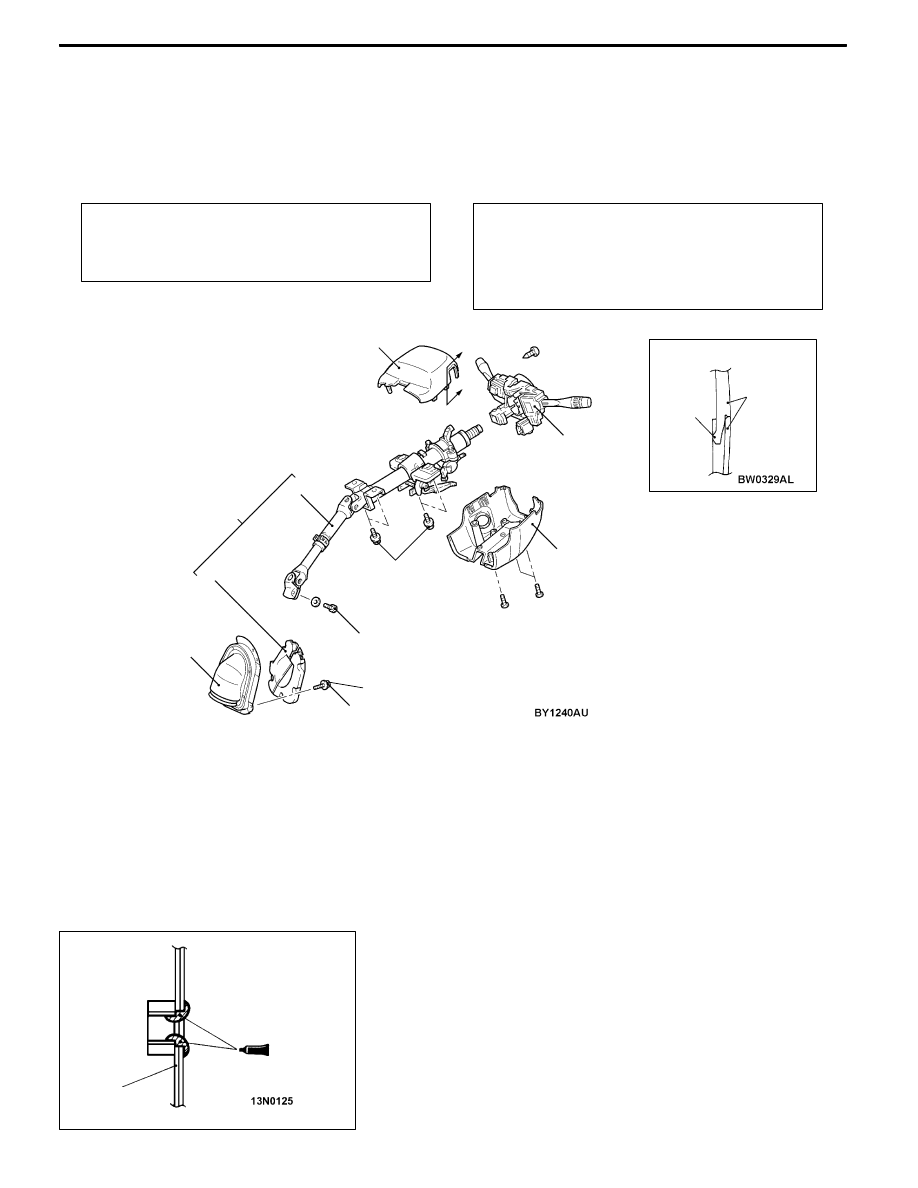

Removal steps

1. Lower column cover

2. Upper column cover

3. Clock spring and column switch

assembly (Refer to GROUP 52B.)

"

AA 4. Bolt

5. Steering column shaft assembly

and Shaft cover

6. Shaft cover

7. Steering column shaft assembly

8. Cover assembly

INSTALLATION SERVICE POINT

"

ABOLT INSTALLATION

Before installing the bolt, coat the mounting hole on the toe
board with the specified sealant.
Specified sealant: 3M ATD Part No.8513 or equivalent

Toe board
