BASIC BRAKE SYSTEM -

Proportioning Valve, Master Cylinder

and Brake Booster

BASIC BRAKE SYSTEM -

Proportioning Valve, Master Cylinder

and Brake Booster

35A-19

2. If the protrusion amount is not within the standard value

range, adjust the push rod length by turning the push

rod. Use the special tool to turn the push rod while holding

the rod spline with angle-nose pliers.

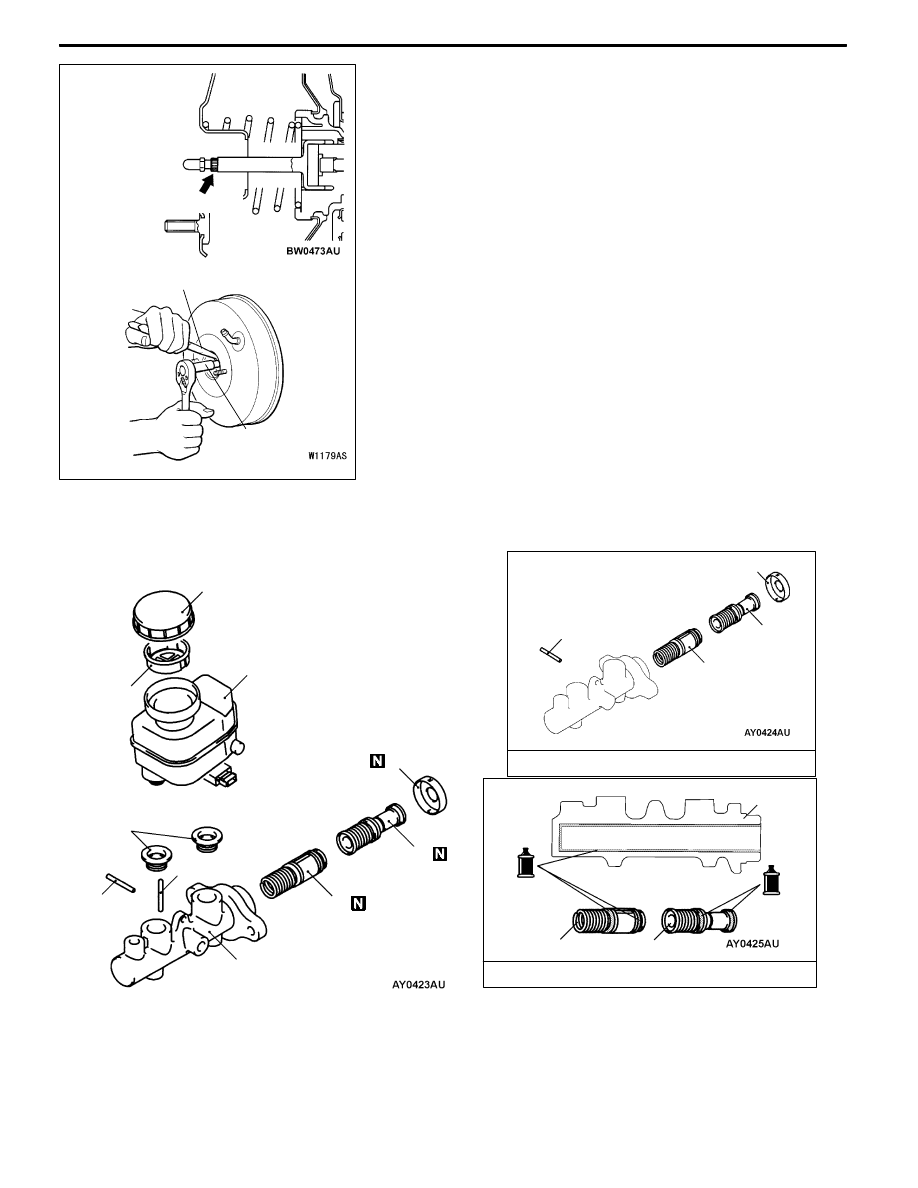

MASTER CYLINDER
DISASSEMBLY AND REASSEMBLY

1

2

3

8

3

8

Brake fluid: DOT3 or DOT4

7

7

5

Master cylinder kit

4

9

6

10

9

8

9

10

Disassembly steps

1. Reservoir cap

2. Filter <Vehicles with ABS>

3. Spring pin

4. Reservoir tank

5. Reservoir seal

6. Pin <Vehicles with ABS>

7. Piston retainer

8. Primary piston assembly

9. Secondary piston assembly

10. Master cylinder body

Angle-nose pliers

MB991568

Rod spline

BASIC BRAKE SYSTEM -

Disc Brake

35A-20

DISC BRAKE

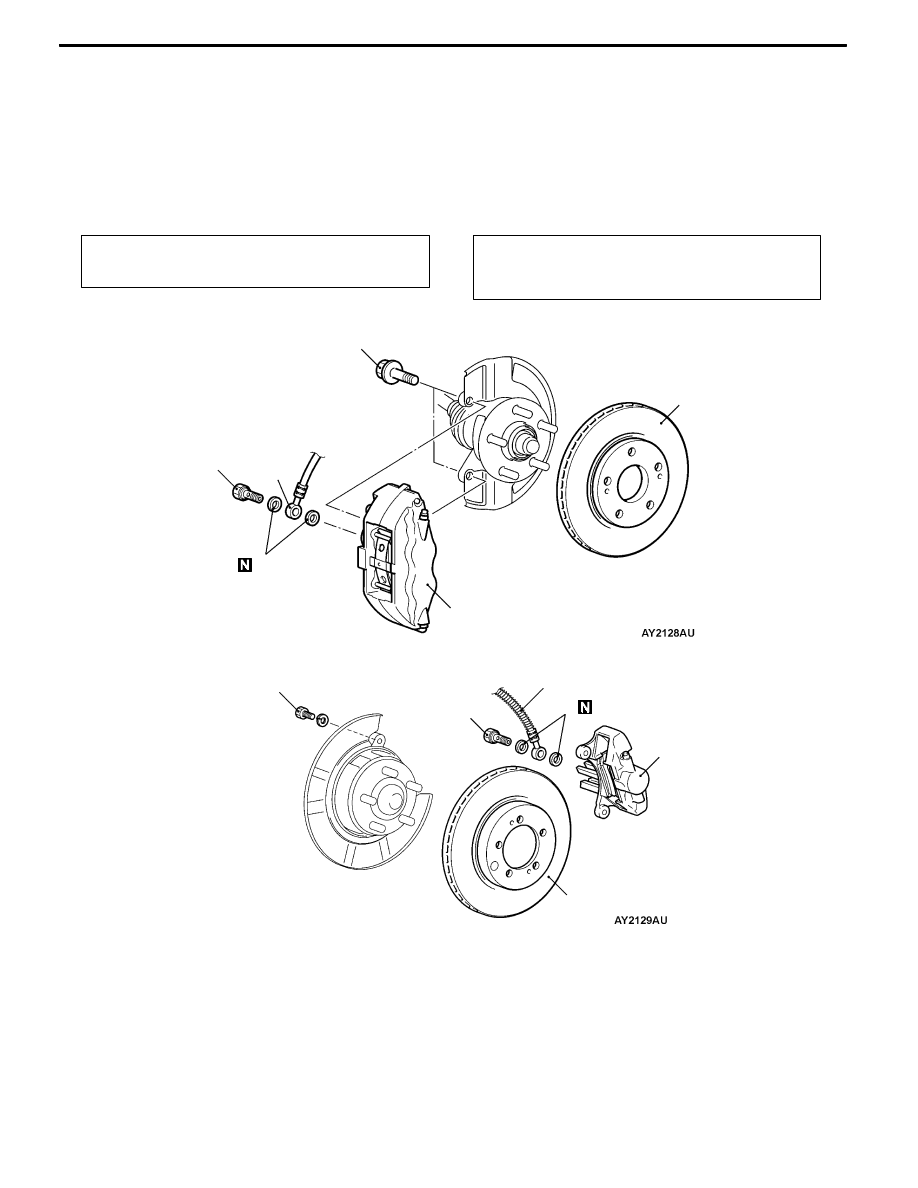

REMOVAL AND INSTALLATION

Caution
If the vehicle is equipped with the Brembo disc brake, during maintenance, take care not to contact
the parts or tools to the caliper because the paint of caliper will be scratched. And if there is
brake fluid on the caliper, wipe out quickly.

Pre-removal Operation

Brake Fluid Draining

Post-installation Operation

Brake Fluid Supplying and Air Bleeding

(Refer to P.35A-10.)

3

4

2

1

100 ± 10 N·m <Except for Brembo disc brake>

108 ± 10 N·m <Brembo disc brake>

30 ± 5 N·m

3

2

1

54 ± 5 N·m

15 ± 2 N·m

<Front>

<Rear>

4

Removal steps

1. Brake hose connection

2. Gasket

"

AA 3. Disc brake assembly

4. Brake disc

BASIC BRAKE SYSTEM -

Disc Brake

35A-21

INSTALLATION SERVICE POINT

"

ADISC BRAKE ASSEMBLY INSTALLATION

<Except for Brembo disc brake>

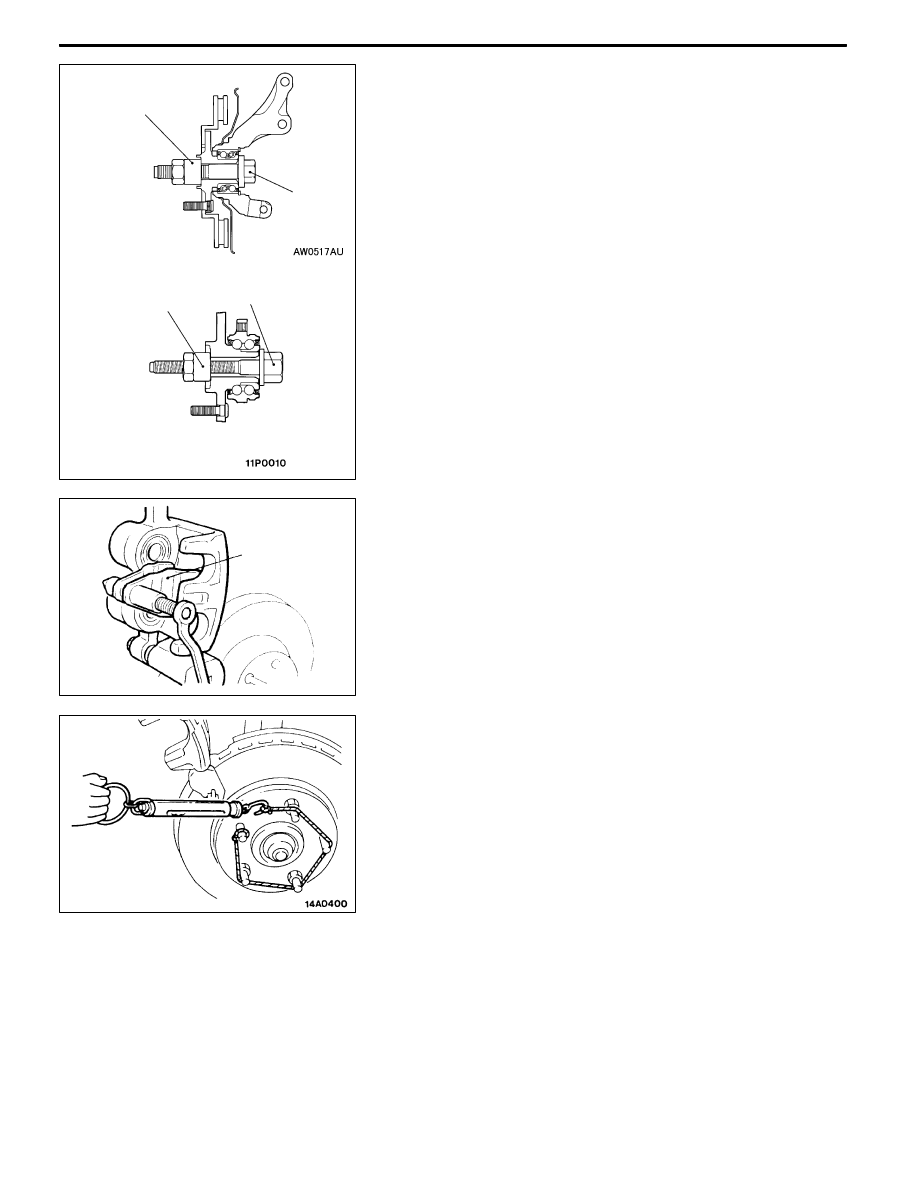

1. In order to measure the brake drag force after pad

installation, measure the rotary-sliding resistance of the

hub by the following procedure with the pads removed.

(1) Withdraw the drive shaft. (Refer to GROUP 26, 27.)

(2) Attach the special tool to the front hub assembly as

shown in the illustration, and tighten it to the specified

torque.
Tightening torque:

245 ± 29 N·m <Front>, 225 ± 25 N·m <Rear>

(3) Use a spring balance to measure the rotary-sliding

resistance of the hub in the forward direction.

2. Install the caliper support to the knuckle, and then

assemble the pad and the clip to the caliper support.
Caution

Do not contaminate the friction surfaces of the pads

and brake discs by any oil or grease.

3. Clean the piston and insert it into the cylinder with the

special tool.

4. Be careful that the piston boot does not become caught,

when lowering the caliper assembly and install the guide

pin to the caliper.

5. Start the engine, and then depress the brake pedal two

or three times strongly. Then stop the engine.

6. Turn the brake disc forward 10 times.

7. Use a spring balance to measure the rotary-sliding

resistance of the hub in the forward direction.

8. Calculate the drag force of the disc brake [difference

between the values measured at steps 1 and 7].
Standard value:

51 N or less <Front>, 69 N or less <Rear>

9. If that drag force exceeds the standard value, disassemble

the piston assembly. Then check the piston for

contamination or rust, and confirm if the piston or the

piston seal is deteriorated, and if the slide pins slide

smoothly.

<Brembo disc brake>
1. Find the drag force of the disc brake. (Refer to P.35A-13.)

Standard value: 69 N or less

2. If that drag force exceeds the standard value, disassemble

the piston assembly. Then check the piston for

contamination or rust, and confirm if the piston or the

piston seal is deteriorated.

MB990998

Bolt

<Front>

<Rear>

MB990998

Bolt

MB990520

BASIC BRAKE SYSTEM -

Disc Brake

35A-22

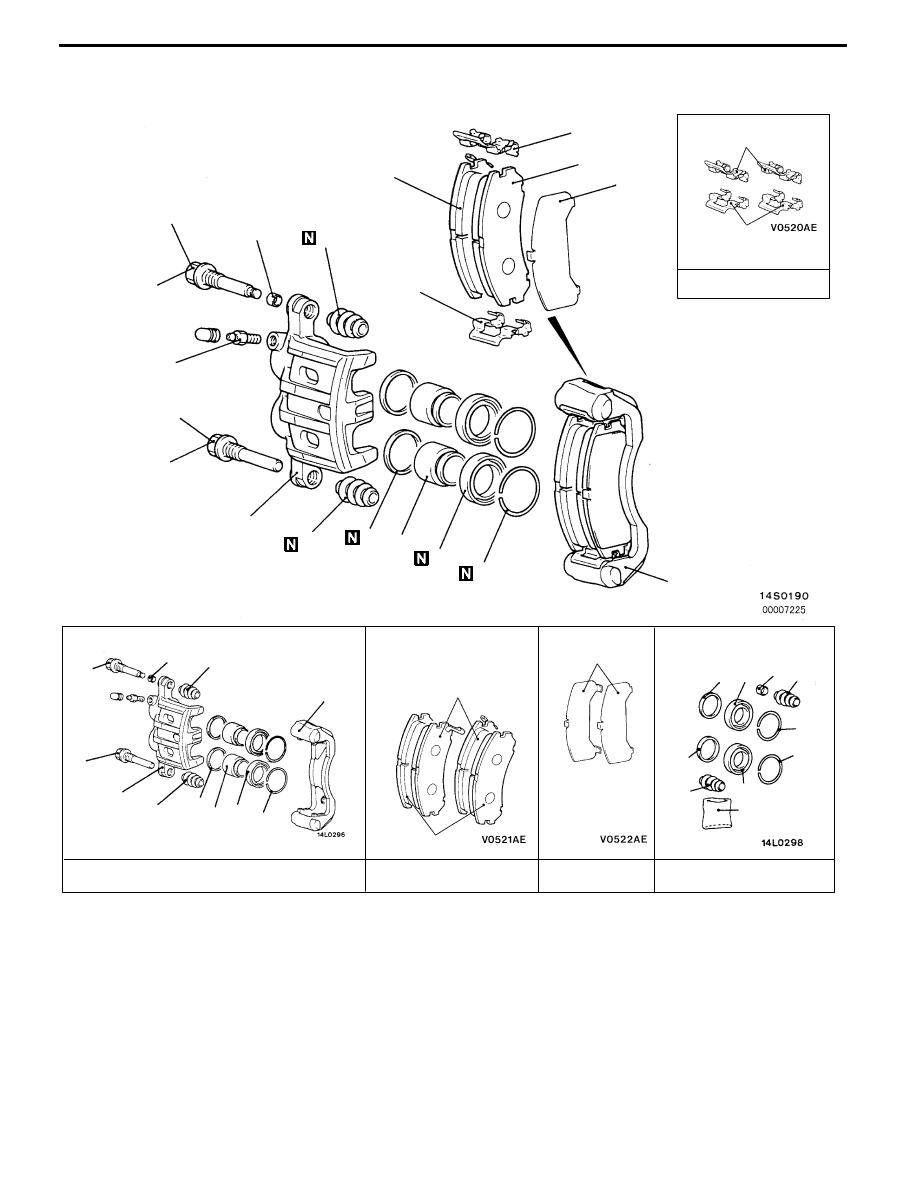

DISASSEMBLY AND REASSEMBLY

Front <Except for Brembo disc brake>

9

11

12

13

4

1

2

4

5

6

8

9

Brake caliper kit

Pad set

Seal and boot kit

5

5

2

3

5

1

10

8

7

6

3

9

12

9

7

Clip set

14

Shim set

11

6

10

6

3

14

14

14

13

7

74 ± 10 N·m

74 ± 10 N·m

7.9 ± 0.9 N·m

5

5

7

Grease

Disassembly steps

"

AA 1. Guide pin

"

AA 2. Lock pin

3. Bushing

4. Caliper support (including pad, clip,

and shim)

5. Pin boot

6. Boot ring

A

A"

7. Piston boot

A

A"

8. Piston

A

B"

9. Piston seal

10. Caliper body

11. Pad and wear indicator assembly

12. Pad assembly

13. Outer shim

14. Clip
