FRONT SUSPENSION -

On-vehicle Service

33A-5

Tightening torque: 52 ± 2 N·m

3. Confirm that the toe-in is at the standard value.

4. Use a turning radius gauge to check that the steering

angle is at the standard value.
Standard value:

Inner wheels

31_45’ ± 1_30’

Outer wheels (for reference)

27_15’

TOE-OUT ANGLE ON TURNS
To check the steering linkage, especially after the vehicle

has been involved in an accident or if an accident is presumed,

it is advisable to check the toe-out angle on turns in addition

to the wheel alignment.

Conduct this test on the left turn as well as on the right turn.
Standard value:

Items

Specifications

Toe-out angle on turns

(inner wheel when outer wheel at 20_)

22_00’ ± 1_30’

CAMBER, CASTER AND KINGPIN INCLINATION

Standard value:

Items

Specifications

Camber

(Selectable from 2 options)

-1_00’ ± 30’* or -2_00’ ± 30’*

Caster

3_55’ ± 30’*

Kingpin inclination

13_45’ ± 1_30’

NOTE

1. *: difference between right and left wheels must be less

than 30’

2. Caster and kingpin inclination are preset at the factory

and cannot be adjusted.

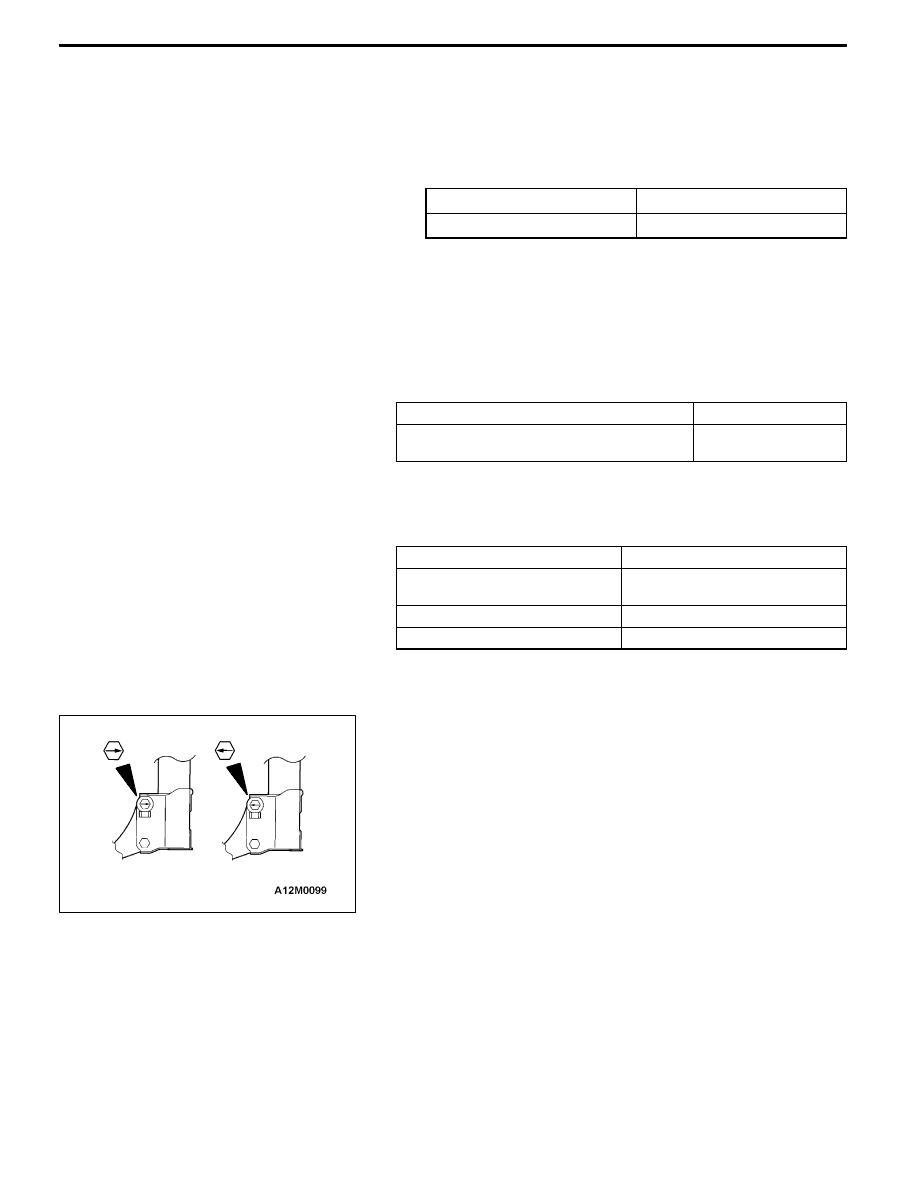

SELECTION THE CAMBER
Select the camber by the installation direction of the allow

of the connecting bolt of the strut assembly and the knuckle.
D

-1

_

00’

±

30’: Install the bolt turning the allow to the direction

of vehicle inside.

D

-2

_

00’

±

30’: Install the bolt turning the allow to the direction

of vehicle outside.

BALL JOINT DUST COVER CHECK

1. Check the dust cover for cracks or damage by pushing

it with finger.

2. If the dust cover is cracked or damaged, replace the

lower arm assembly.
NOTE

Cracks or damage of the dust cover may cause damage

of the ball joint.

<Camber: - 1_00’>

<Camber: - 2_00’>

FRONT SUSPENSION -

Strut Assembly

33A-6

STRUT ASSEMBLY

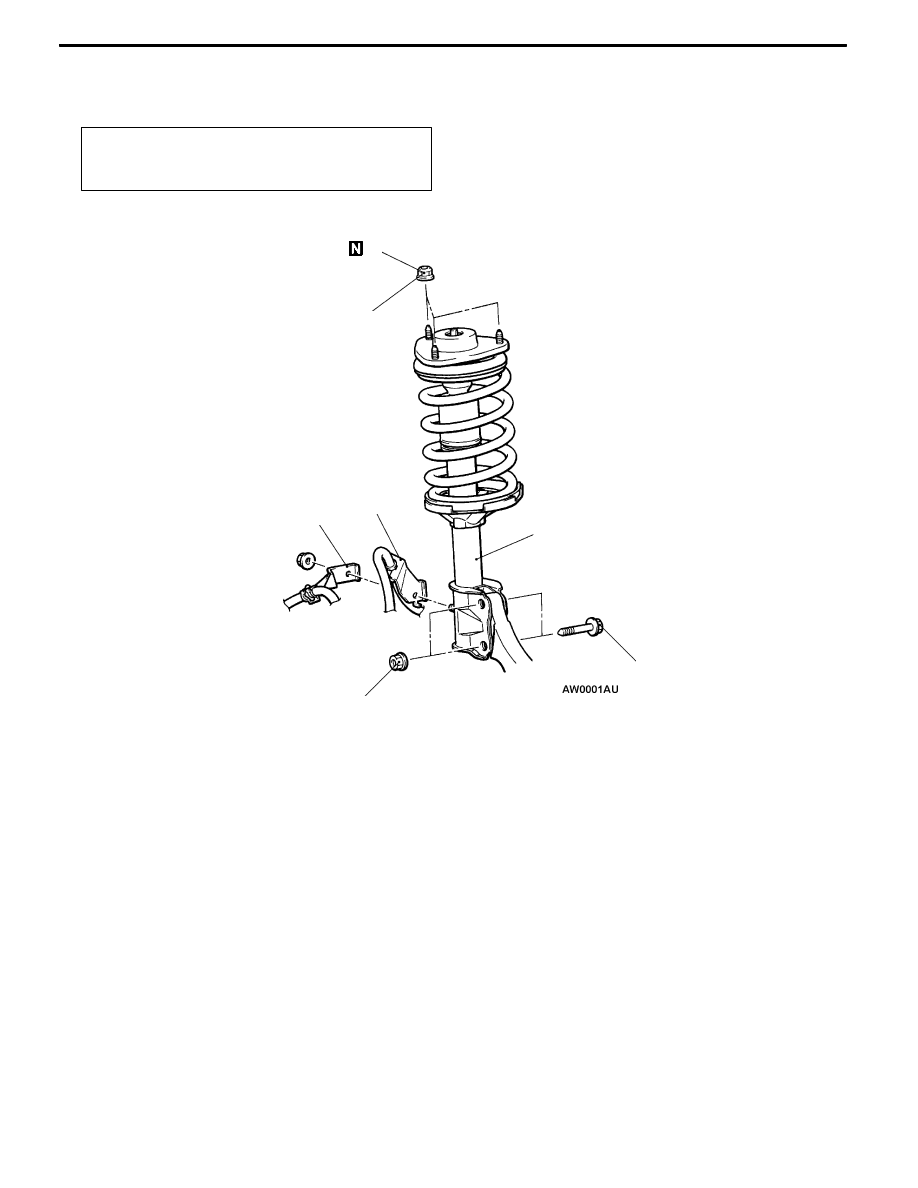

REMOVAL AND INSTALLATION

Post-installation Operation

Wheel alignment check and adjustment (Refer to

P.33A-4.)

44 ± 5 N·m

3

2

1

167 ± 9 N·m

4

5

Removal steps

1. Front wheel speed sensor harness

bracket <Vehicles with ABS or ACD>

2. Brake hose bracket

3. Knuckle connection

4. Strut mounting nut

5. Strut assembly

FRONT SUSPENSION -

Strut Assembly

33A-7

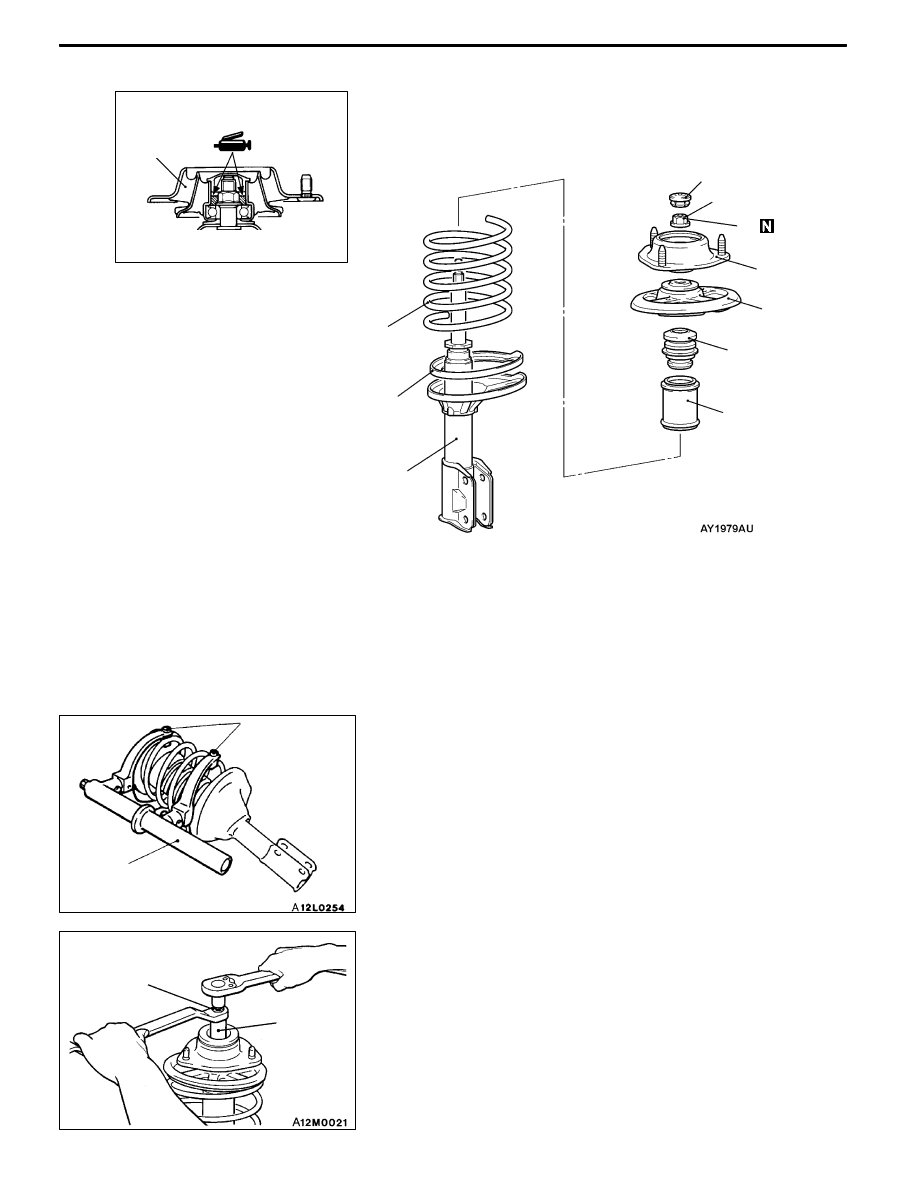

DISASSEMBLY AND REASSEMBLY

60 ± 10 N·m

3

2

1

5

6

7

8

9

4

3

Disassembly steps

1. Dust cover

A

A" "AA 2. Self-locking nut

3. Strut insulator assembly

4. Upper spring seat assembly

5. Bump rubber

6. Dust cover

7. Coil spring

8. Lower spring pad

A

B"

9. Strut assembly

DISASSEMBLY SERVICE POINTS

A

ASELF-LOCKING NUT REMOVAL

1. Use the special tools to compress the coil spring.

Caution

(1) Do not tighten the special tool bolt too tight. The

special tool will be broken if the allowable

tightening torque of 74 N·m is exceed.

(2) Install the special tools evenly, and so that the

maximum length will be attained within the

installation range.

(3) Do not use an impact wrench as it will cause the

bolt of the special tool to be seized.

2. Using the special tools, loosen the self-locking nut.

Caution

To prevent the piston rod lock nut inside the strut

from loosening, do not use an impact wrench when

the self-locking nut is loosened.

MB991237

MB991238

MB991681

MB991682

FRONT SUSPENSION -

Strut Assembly

33A-8

A

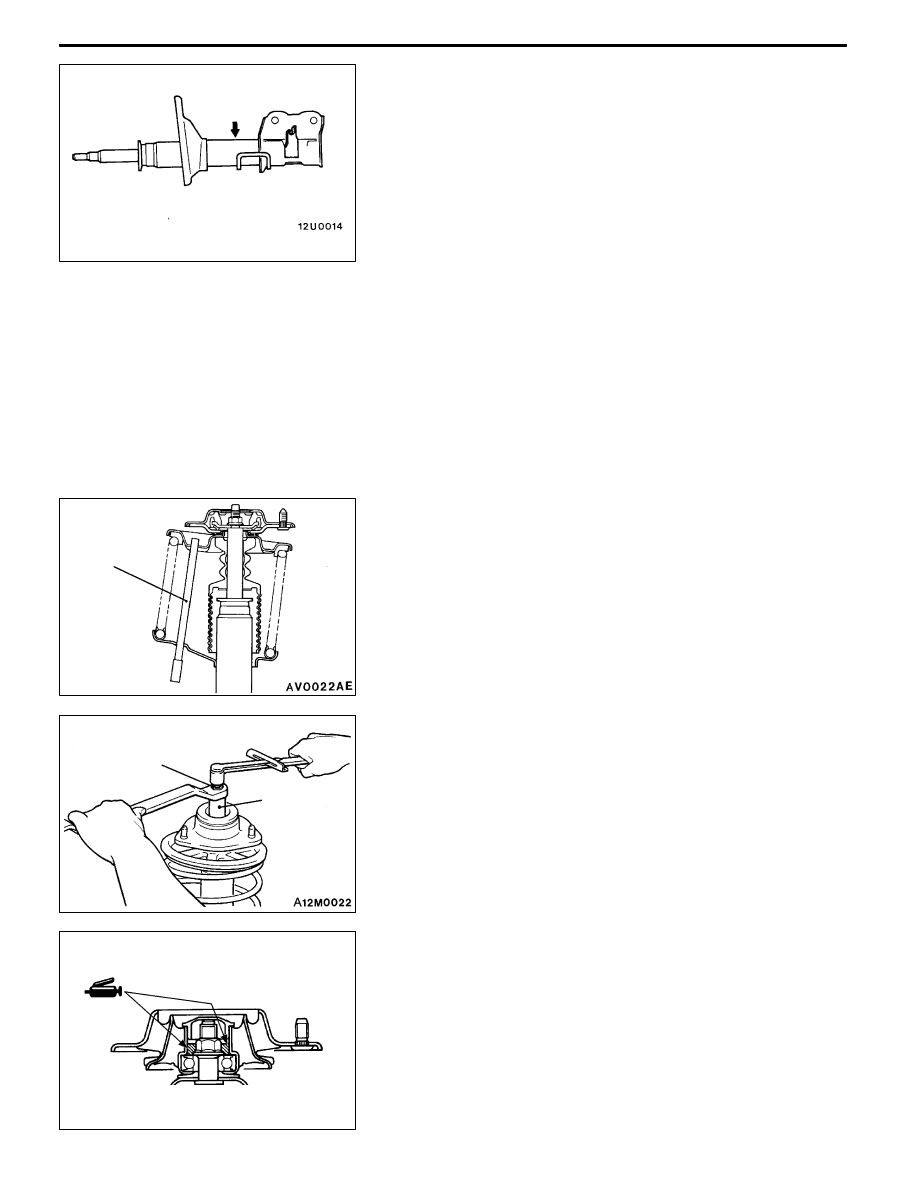

BSTRUT ASSEMBLY REMOVAL

To discard the strut assembly, place the assembly horizontally

with its piston rod extended. Then drill a hole approx. 3 mm

in diameter at the location shown in the illustration and

discharge the gas.
Caution

The gas itself is harmless but it may issue out of the

hole together with chips generated by the drill. Therefore,

be sure to wear goggles.

REASSEMBLY SERVICE POINT

"

ASELF-LOCKING NUT INSTALLATION

1. Ensure that the bearing is seated correctly.

2. Install the special tool to the strut assembly same as

its removal.

3. While the coil spring is being compressed by the special

tools, provisionally tighten the self-locking nut.
Caution

Do not use an impact wrench as it will cause the

bolt of the special tool to be seized.

4. Align the hole in the strut assembly lower spring seat

with the hole in the upper spring seat.
NOTE

Using a pipe as shown facilitates the alignment.

5. Correctly align both ends of the coil spring with the grooves

in the spring seat, and then loosen the special tools.

6. Using the special tools, tighten the self-locking nut to the

specified torque.
Specified torque: 60 ± 10 N·m
Caution

To prevent the piston rod lock nut inside the strut

from loosening, do not use an impact wrench when

the self-locking nut is tightened.

7. After tightening self-locking nut, fill the multi purpose

greese to the bearing part of strut insulator.

Pipe

MB991681

MB991682
