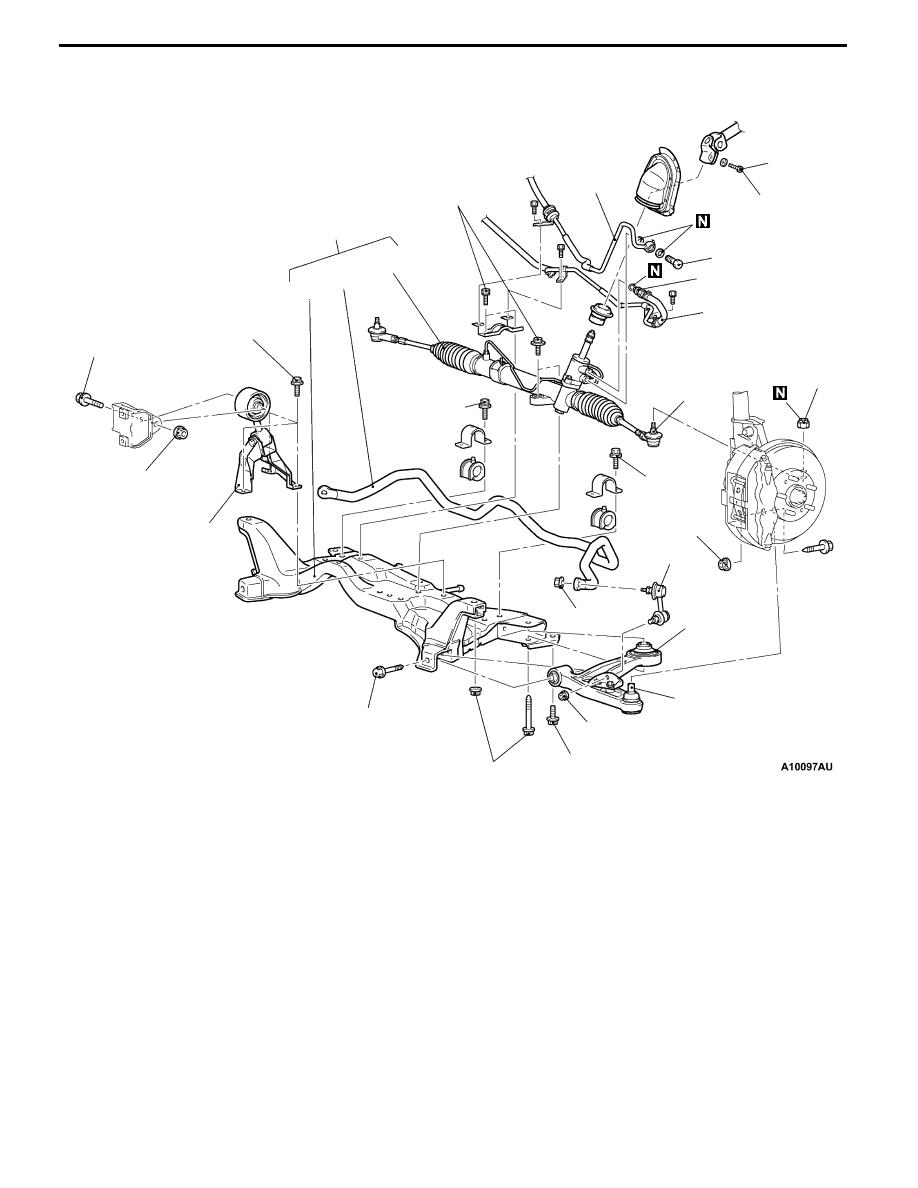

POWER PLANT MOUNT - Crossmember

32-9

<L.H. drive vehicles>

35

±

5 N·m

*

1

108

±

10 N·m

52

±

7 N·m

*

1

18

±

2 N·m

70

±

10 N·m

25

±

4 N·m

21

±

4 N·m

49

±

10 N·m

167

±

9 N·m

1

4

5

8

6

7

186

±

10 N·m

*

2

57

±

7 N·m

9

11

12

13

21

±

4 N·m

15

±

3 N·m

10

39

±

5 N·m

39

±

5 N·m

2

3

Removal steps

1. Lower arm and knuckle connection

2. Stabilizer link

A

A"

3. Lower arm assembly

4. Steering shaft assembly and gear

box connecting bolt

5. Rear roll stopper connection bolt

6. Rear roll rod assembly and rear

roll rod bracket

7. Return hose and return pipe

8. Pressure hose connection

A

B"

9. Tie rod end and knuckle connec-

tion

A

C"

10. Crossmember assembly

"

AA 11. Stabilizer bar

12. Steering gear and linkage

13. Crossmember

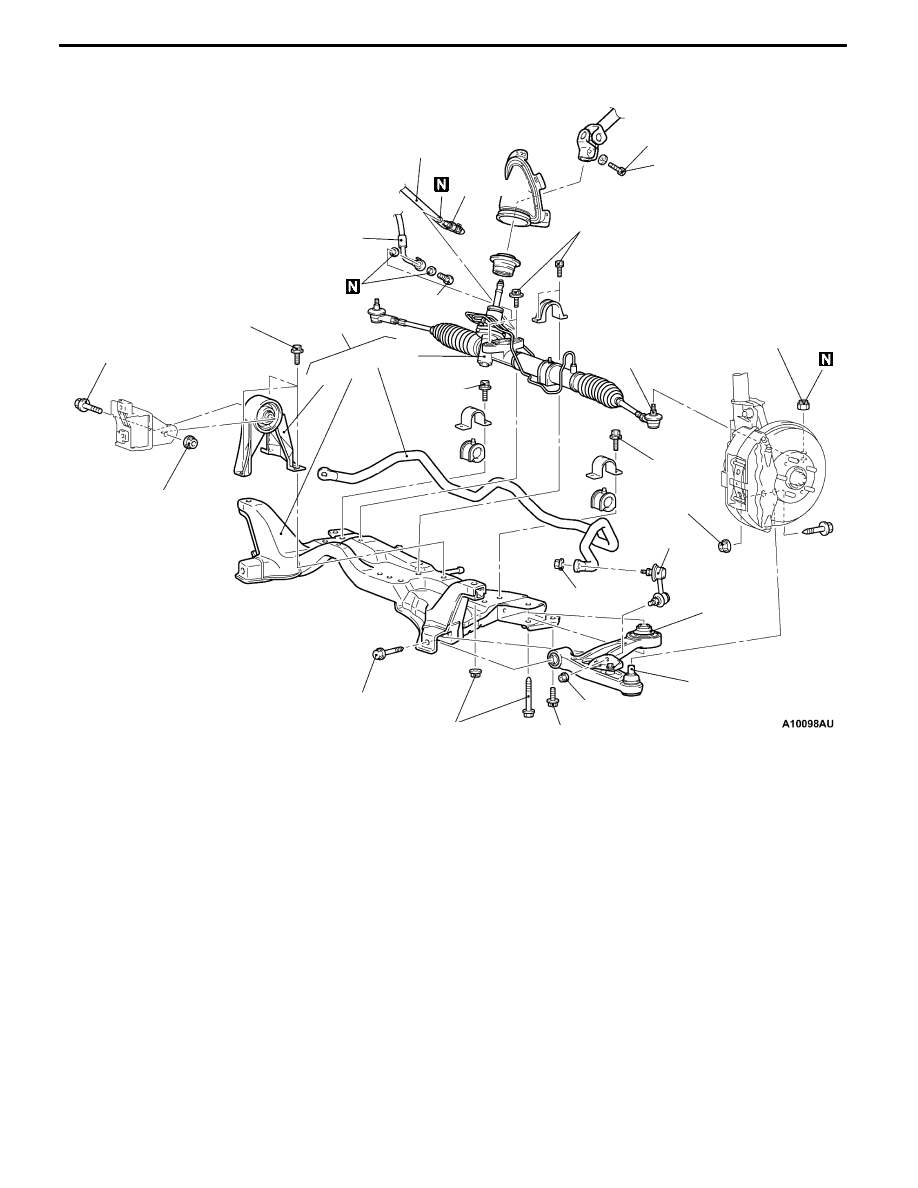

POWER PLANT MOUNT - Crossmember

32-10

<R.H. drive vehicles>

35

±

5 N·m

*

1

108

±

10 N·m

52

±

7 N·m

*

1

18

±

2 N·m

69

±

9 N·m

25

±

4 N·m

21

±

4 N·m

49

±

10 N·m

167

±

9 N·m

1

3

4

5

8

9

10

11 12

6

7

186

±

10 N·m

*

2

15

±

3 N·m

13

2

39

±

5 N·m

39

±

5 N·m

57

±

7 N·m

21

±

4 N·m

Removal steps

1. Lower arm and knuckle connection

2. Stabilizer link

A

A"

3. Lower arm assembly

4. Pressure hose connection

5. Return hose connection

6. Steering shaft assembly and gear

box connecting bolt

A

B"

7. Tie rod end and knuckle connec-

tion

8. Rear roll stopper connection bolt

A

C"

9. Crossmember assembly

10. Rear roll stopper

"

AA 11. Stabilizer bar

12. Steering gear and linkage

13. Crossmember

POWER PLANT MOUNT - Crossmember

32-11

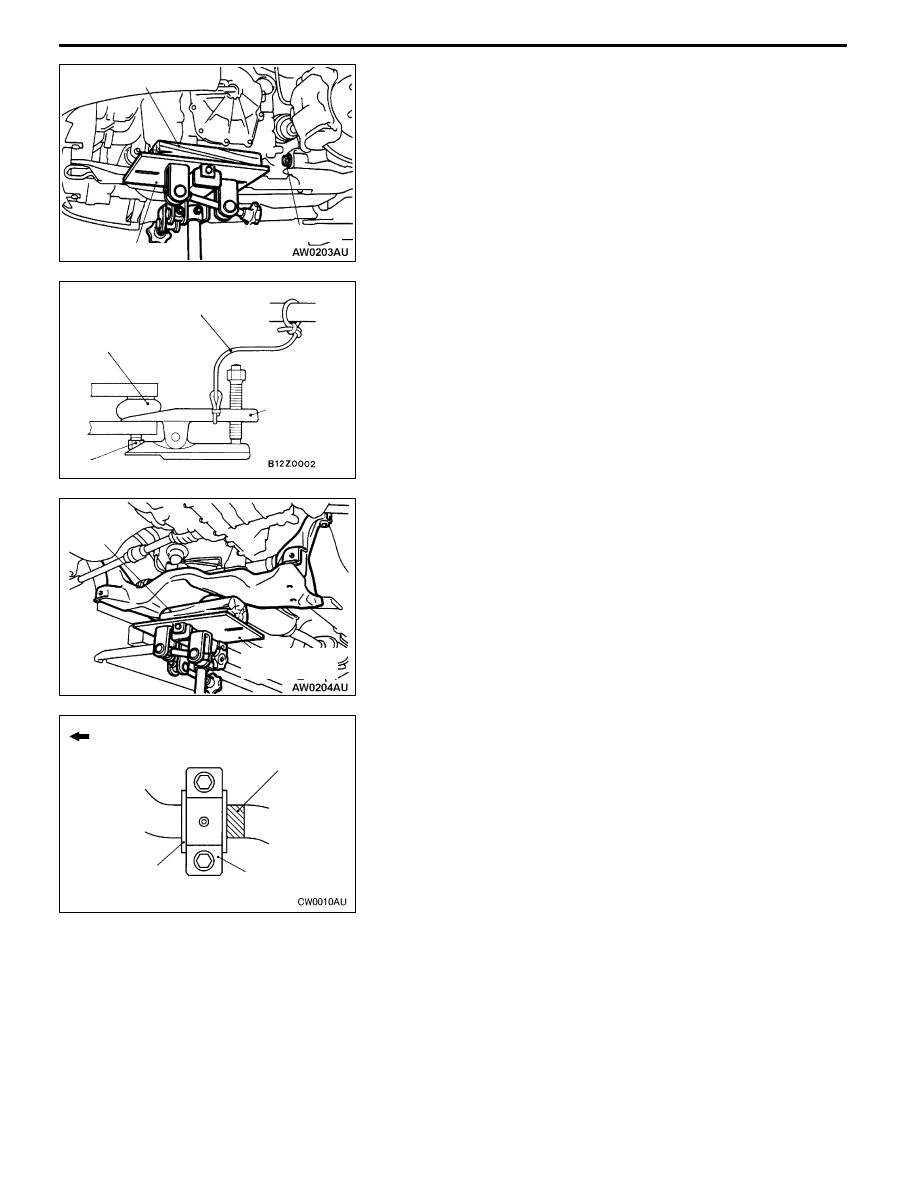

REMOVAL SERVICE POINTS

A

ALOWER ARM ASSEMBLY REMOVAL

Lift the transmission with a transmission jack, and then

withdraw the front mounting bolt on the left lower arm

assembly.

A

B"TIE ROD END AND KNUCKLE DISCONNECTION

Caution

1. The thread on the ball joint may be damaged. Do

not remove the tie rod end mounting nut from the

ball jo

int. Just loosen the nut. For this operation, use

the special tool.

2. Suspend the special tool with a cord to prevent it

from dropping.

A

CCROSSMEMBER ASSEMBLY REMOVAL

Retain the crossmember with a transmission jack, and then

remove the crossmember mounting bolt.

INSTALLATION SERVICE POINT

"

AASTABILIZER BAR INSTALLATION

Align the identification colour on the left side of the stabilizer

bar with the right end of the bushing.

INSPECTION

D

Check the crossmember for cracks and damage.

Wooden block

Transmission jack

Mounting bolt

Cord

Ball joint

MB990635
MB991113 or
MB991406

Nut

Wooden

block

Transmission

jack

Identification

colour

Outside of

vehicle

Bushing

Fixture
