REAR AXLE
- Hydraulic Unit <Vehicles with ACD+AYC>
27B-61
HYDRAULIC UNIT <VEHICLES WITH ACD+AYC>
REMOVAL AND INSTALLATION
Caution
(1) When connecting the return hose and suction hose, do not apply lubricant.
(2) No foreign matter should be allowed in the hydraulic piping and joints.
Pre-removal Operation
D
Trunk Side Trim Removal (Refer to GROUP 52A.)
D
Hydraulic Piping Fluid Draining
Post-installation Operation
D
Hydraulic Piping Fluid Filling and Bleeding
(Refer to P.27B-17 and P.27B-19.)
D
Trunk Side Trim Installation (Refer to GROUP 52A.)

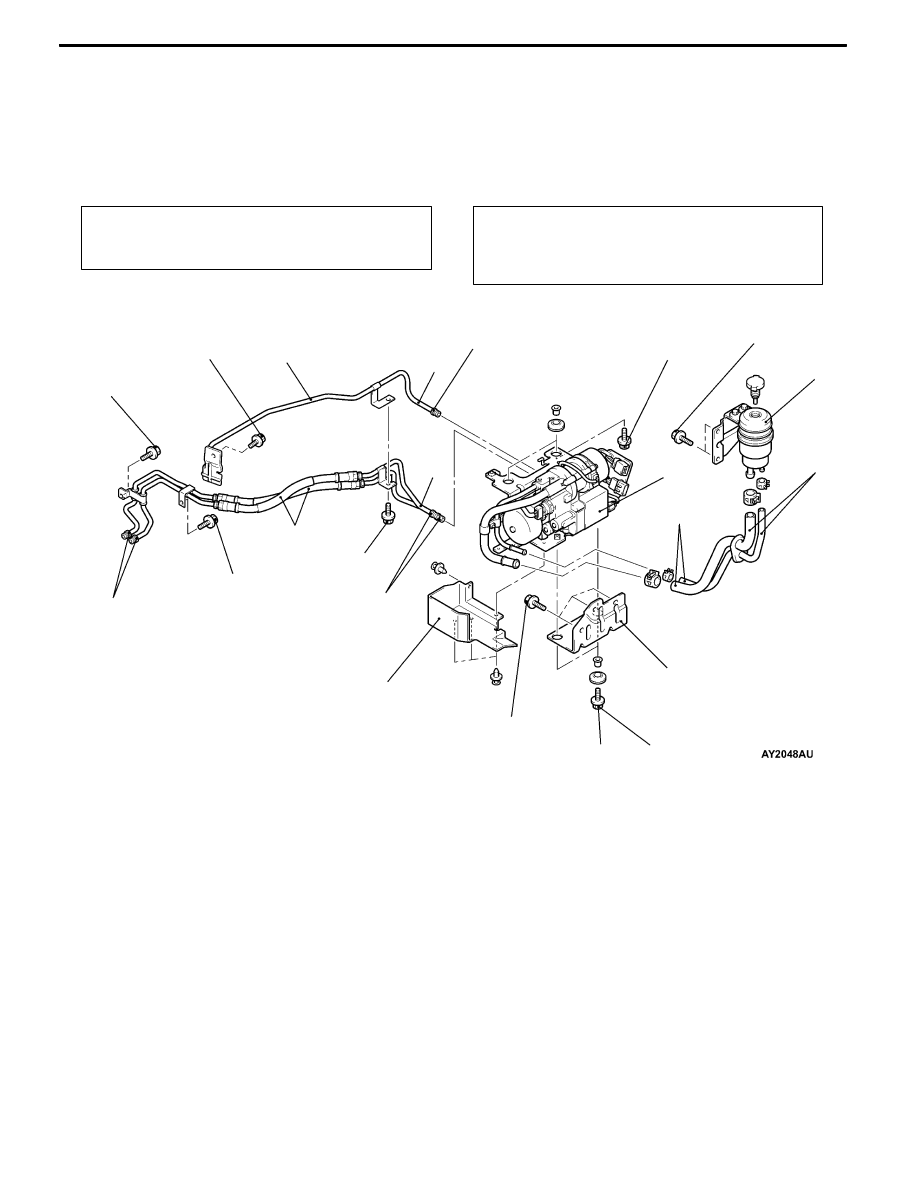

1
2
7
6
4
8
9
10
3
11
34 ± 5 N m*
1
24 ± 4 N m
12 ± 2 N m
26 ± 4 N m*
2
5
12 ± 2 N m
12 ± 2 N m
18 ± 2 N m
34 ± 5 N m*
1
26 ± 4 N m*
2
18 ± 2 N m
12 ± 2 N m
34 ± 5 N m*
1
26 ± 4 N m*
2
12 ± 2 N m
NOTE:
*
1:
Thread is not lubricated
*
2:
Thread is lubricated

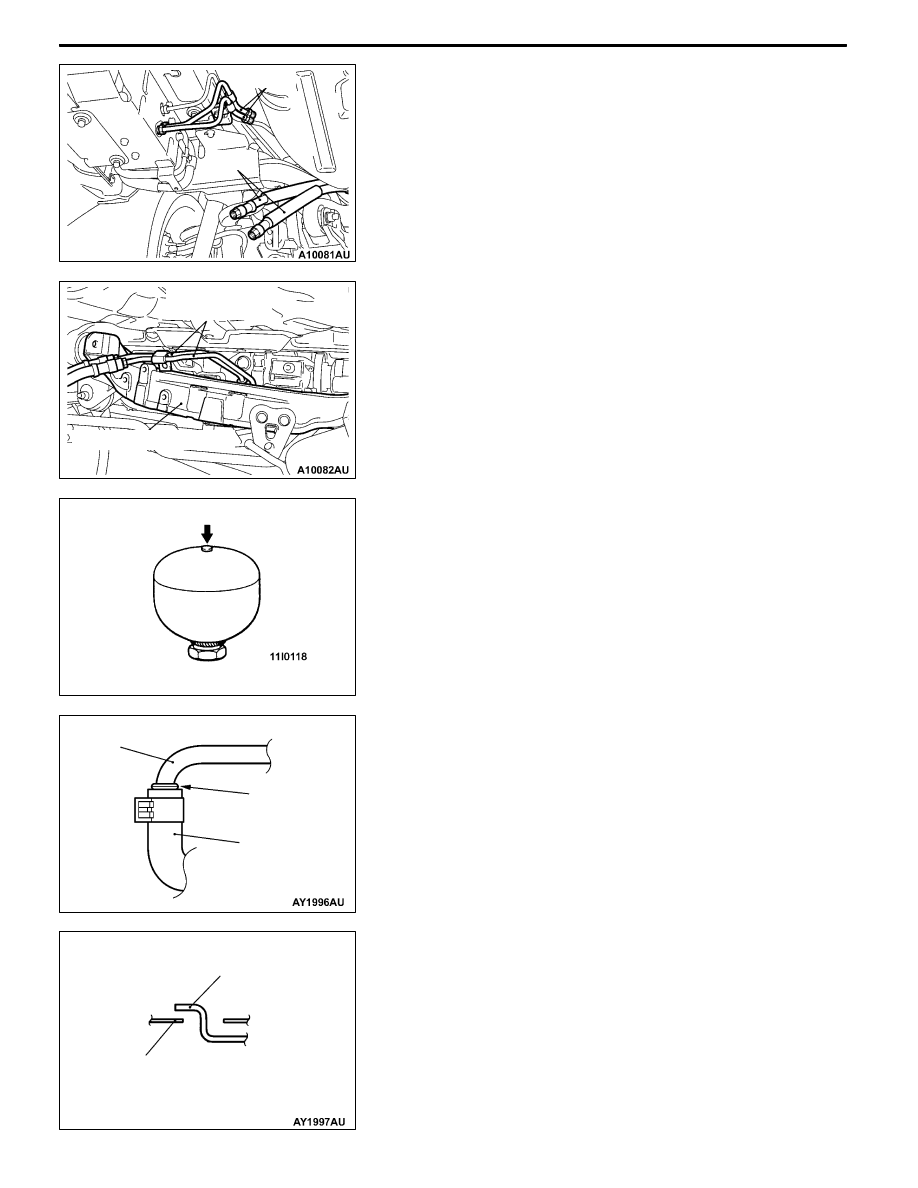

Removal steps
1. Dust guard
2. Reservoir hose assembly and hy-
draulic unit connection
3. Hydraulic unit hose assembly and
hydraulic unit connection
4. Transfer connector assembly and
hydraulic unit connection
5. Hydraulic unit bracket assembly
mounting bolt
"
BA 6. Hydraulic unit assembly
7. Hydraulic unit bracket
D
Stabilizer bar to differential support
arm connection (Refer to GROUP 34.)
D
Differential support arm (Refer to P.
27B-55.)
A
A"
8. Hydraulic unit hose assembly <ve-
hicles with ACD+AYC>
9. Transfer connector assembly
"
AA 10. Reservoir hose assembly
11. Oil reserve
