REAR AXLE -

Differential Carrier <Vehicles with mechanical LSD>

27B-53

INSPECTION

DIFFERENTIAL CASE INTERNAL PARTS CONTACT/

SLIDING SURFACE CHECK
1. Clean the disassembled parts with cleaning oil and dry

them with compressed air.

2. Check each plate, disc, and pressure ring for the following:

A. Friction and sliding surfaces of friction discs, friction

plates, and spring plates.

Replace a defective part with heat discoloration and

excessive wear with a new one, as it degrades locking

performance.
NOTE

If the inner periphery of the friction face shows traces

of harsh contact, it is because of the spring tension

of each plate, disc and other part. Do not confuse

this with abnormal wear.

B. Inner periphery and outer periphery protrusions of

friction discs, friction plates, and spring plates.

Replace a cracked or damaged part with a new one.

C. Friction and sliding surfaces between pressure rings

and friction discs.

Grind a dented or scratched part with oil stone and

then lap and correct with a compound on a surface

plate.
NOTE

If the inner periphery of the friction face shows traces

of harsh contact, it is because of the spring tension

of each plate, disc and other part. Do not confuse

this with abnormal wear.

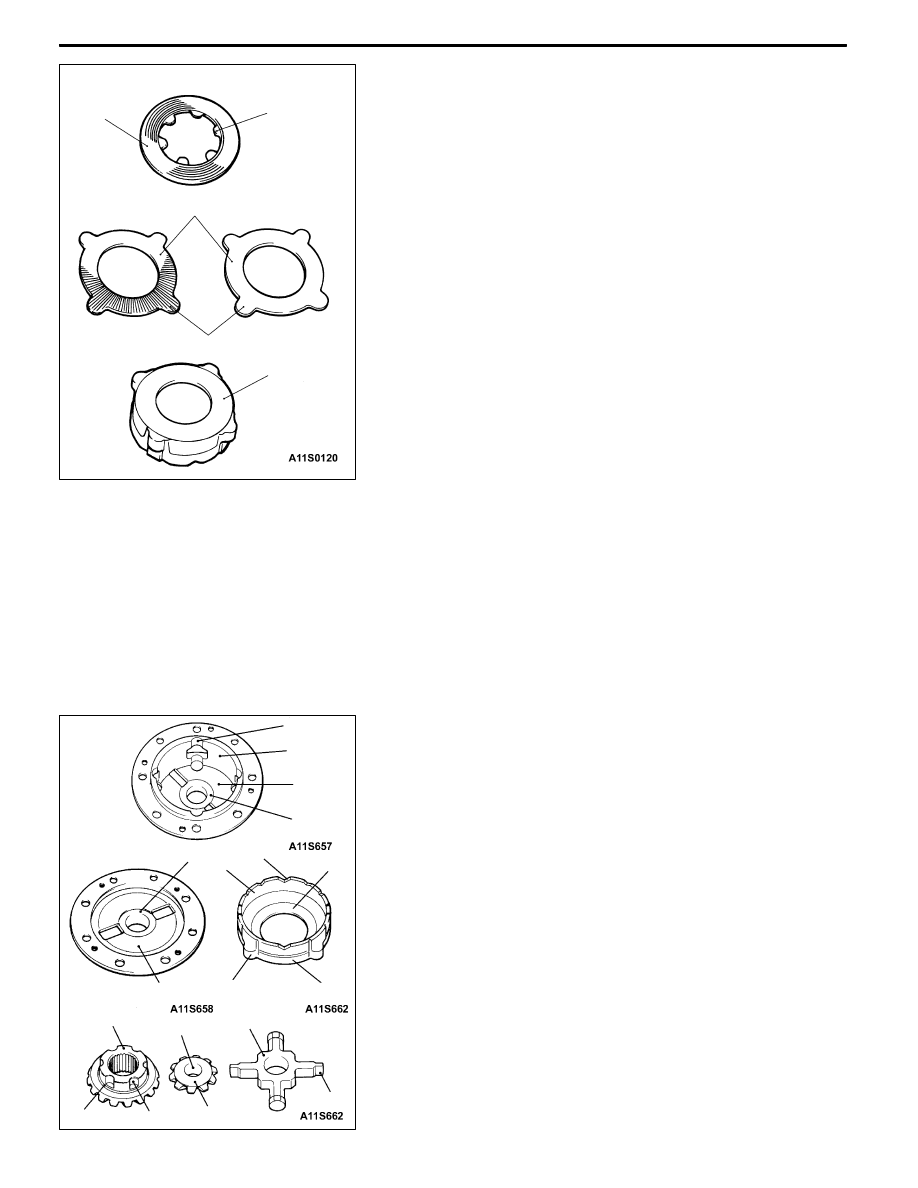

3. Check the following parts for contact and siding surfaces

(D to M) and correct burrs and dents with oil stone.

D: Sliding surfaces of side gear and case

E: Contacting surfaces of differential case and spring

plate

F: Contacting surfaces of pressure ring and differential

case inner face

G: Sliding surfaces of pressure ring hole and side gear

H: Protrusions on outer periphery of pressure ring

I:

Pressure ring inner surface and differential pinion

gear spherical surface

J: Pressure ring V-groove and pinion shaft V

K: Sliding surfaces of pinion shaft and differential pinion

gear hole

L: Side gear grooves on outer periphery

M: Slits in inner periphery of differential

Friction disc

A

A

B

C

B

Friction plate

Friction plate

Pressure ring

E

D

M

F

J

I

H

D

G

F

D

K

K

I

G

L

J

E

REAR AXLE -

Differential Carrier <Vehicles with mechanical LSD>

27B-54

FRICTION PLATE AND FRICTION DISC DISTORTION

CHECK

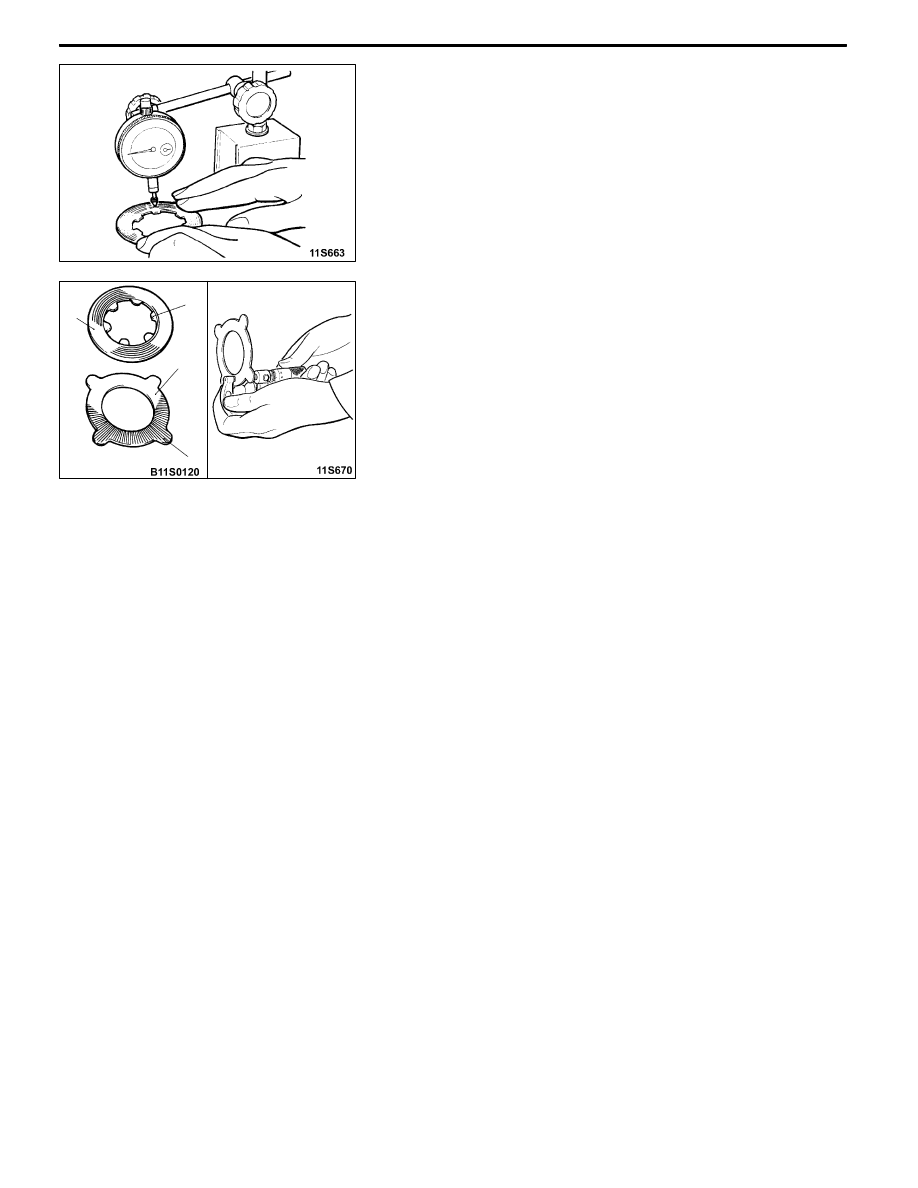

Apply a dial indicator to the friction plate or disc on a surface

plate and, turning the friction plate or disc, measure the

distortion (flatness).
Limit: 0.08 mm (total runout)

FRICTION PLATE, FRICTION DISC, AND SPRING

PLATE WEAR CHECK
1. For the purpose of determining wear, measure thickness

(A, B) of the friction surface and protrusion at several

places and find the difference between the two.
Limit: 0.1 mm

2. If the wear exceeds the limit, replace the part with a

new one.

A

B

A

B

REAR AXLE -

Differential Carrier <Vehicles with AYC>

27B-55

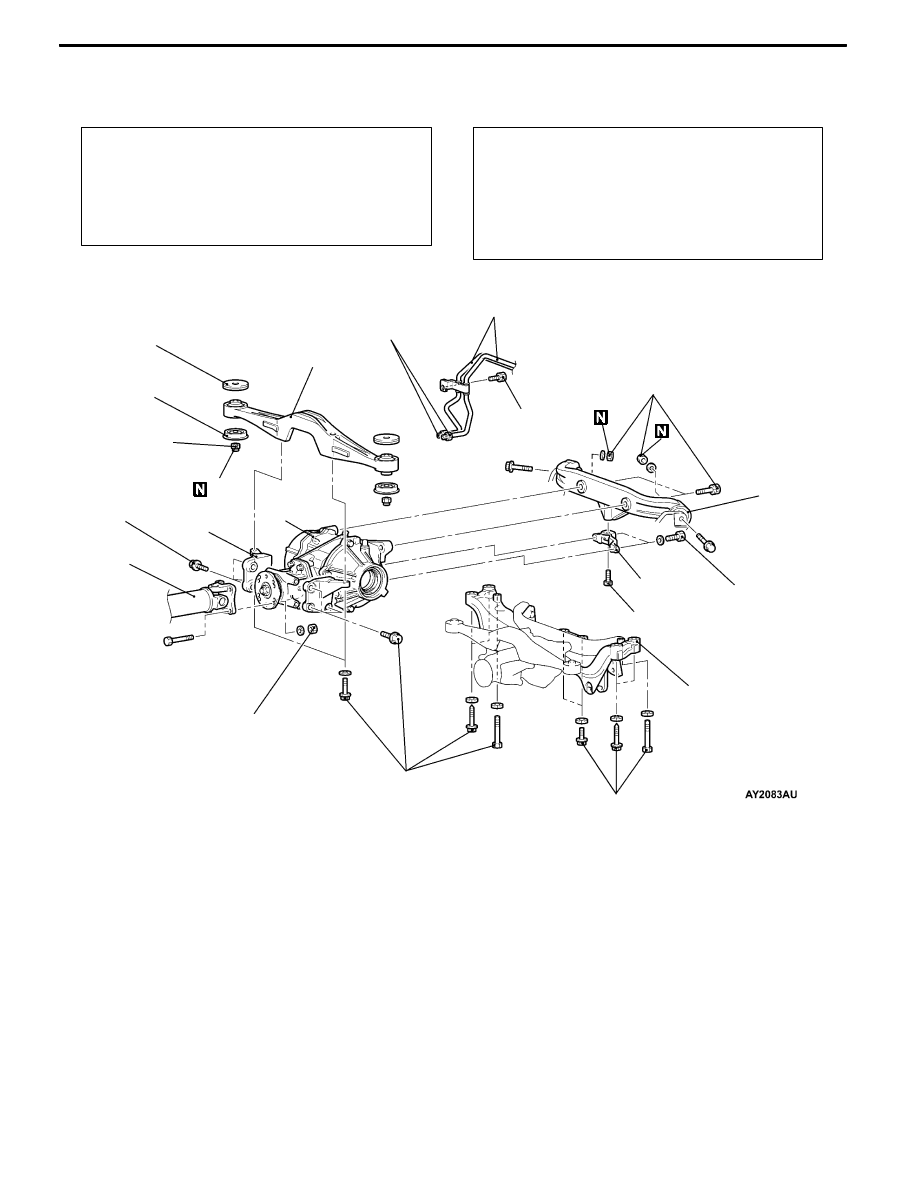

DIFFERENTIAL CARRIER <VEHICLES WITH AYC>

REMOVAL AND INSTALLATION

Pre-removal Operation
D

Hydraulic Piping Fluid Draining

D

Differential Gear Oil Draining (Refer to P. 27B-17.)

D

Lower Arm Assembly Removal (Refer to GROUP

34.)

D

Rear Stabilizer Removal (Refer to GROUP 34.)

D

Drive Shaft Removal (Refer to P. 27B-29.)

Post-installation Operation
D

Drive Shaft Installation (Refer to P. 27B-29.)

D

Rear Stabilizer Installation (Refer to GROUP 34.)

D

Lower Arm Assembly Installation (Refer to GROUP

34.)

D

Differential Gear Oil Filling (Refer to P. 27B-17.)

D

Hydraulic Piping Fluid Filling and Bleeding (Refer

to P.27B-17 and P.27B-19.)

1

2

88 ± 10 N m

7

6

5

4

8

9

10

3

11

44 ± 10 N m

120 ± 10 N m

34 ± 5 N m*

1

32 ± 2 N m

12 ± 2 N m

26 ± 4 N m*

2

88 ± 10 N m

88 ± 10 N m

88 ± 10 N m

88 ± 10 N m

NOTE:

*

1:

Thread is not lubricated

*

2:

Thread is lubricated

Removal steps

1. Hydraulic unit hose assembly con-

nection

A

A"

2. Propeller shaft connection (Refer to

GROUP 25.)

3. Differential support member mount-

ing nuts

4. Rear crossmember and differential

carrier assembly

(Refer to P. 27B-35.)

5. Differential support member

"

AA 6. Upper stopper

"

AA 7. Lower stopper

8. Differential support arm

9. Differential mount bracket

10. Differential mount bracket

11. Differential carrier assembly

REAR AXLE -

Differential Carrier <Vehicles with AYC>

27B-56

REMOVAL SERVICE POINT

A

APROPELLER SHAFT DISCONNECTION

Suspend the removed propeller shaft from the body with a

wire to prevent bending.

INSTALLATION SERVICE POINTS

"

ALOWER STOPPER/UPPER STOPPER

INSTALLATION

Install the lower and upper stopper as shown in the illustration.

Upper stopper

Lower stopper
