Mitsubishi Lancer Evolution 7. Manual - part 270





MANUAL TRANSMISSION OVERHAUL -

Clutch Housing

22B-45

"

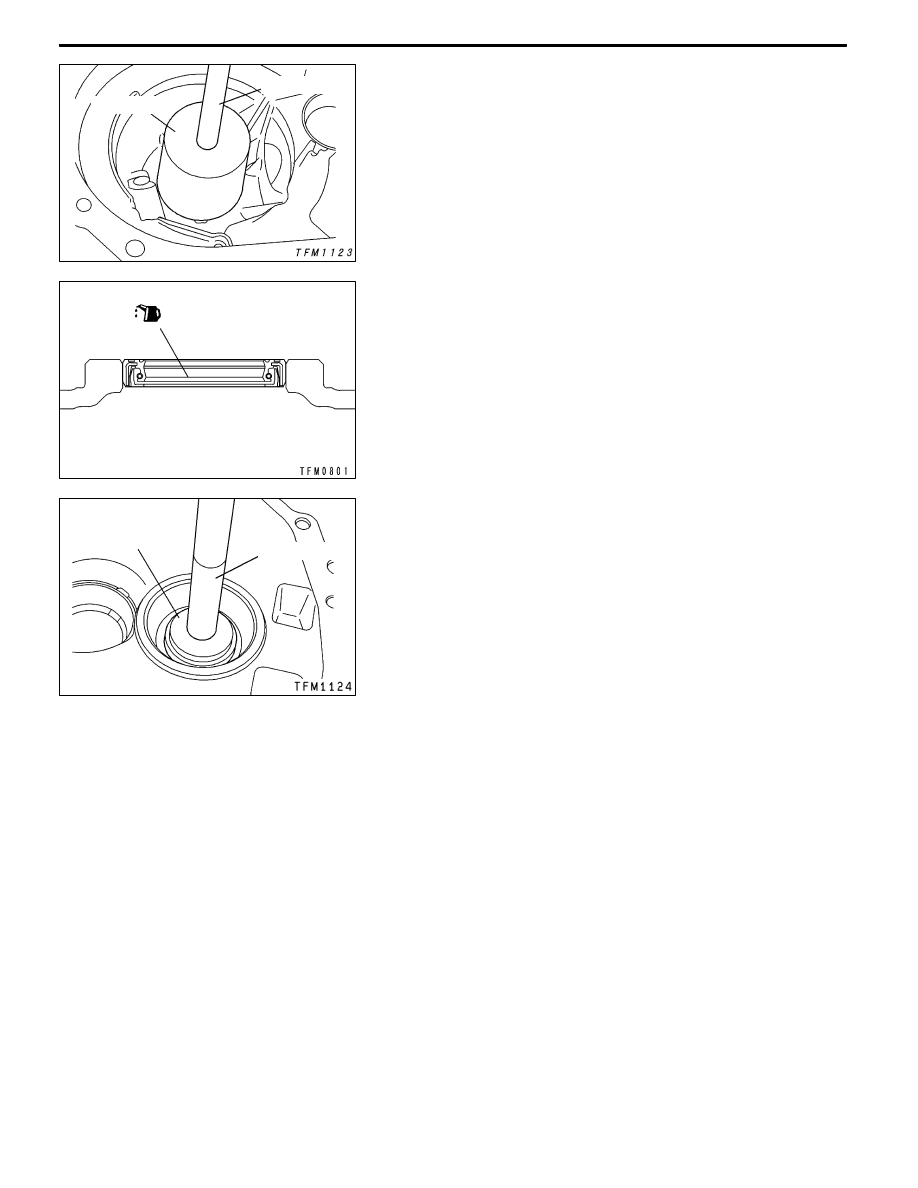

DOUTER RACE INSTALLATION

Using the special tool, install the outer race onto the clutch

housing.

"

EOIL SEAL INSTALLATION

(1) Apply transmission oil on the oil seal lip section.

Transmission oil

Specified oil:

MITSUBISHI genuine “DIA-QUEEN” multi gear

oil <75W/85W> or equivalent

(2) Using the special tool, install the oil seal onto the clutch

housing.

MB991445

MB990938

MB990938

MB990928

MANUAL TRANSMISSION OVERHAUL -

Transmission Case

22B-46

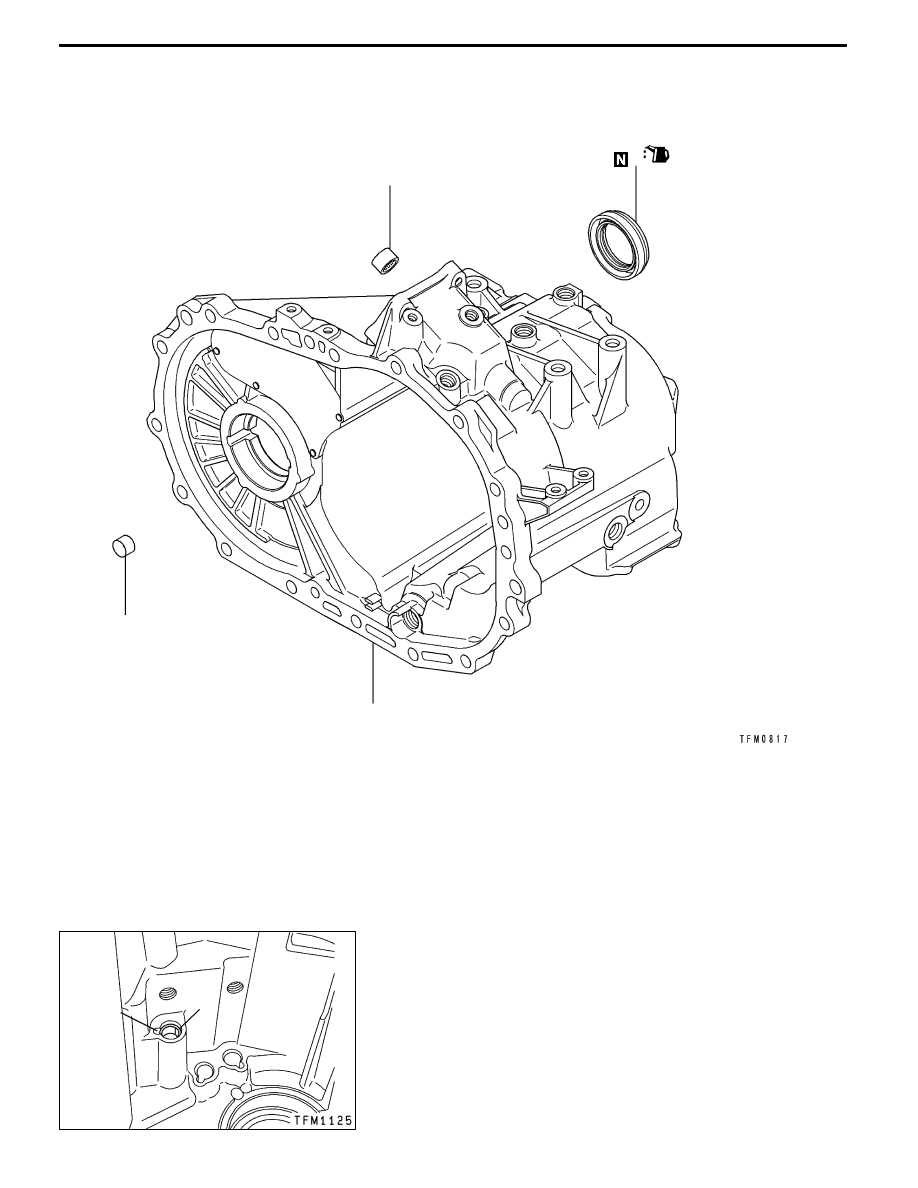

TRANSMISSION CASE

DISASSEMBLY AND REASSEMBLY

2*

3*

4

1

Disassembly steps

"

CA 1. Oil seal

"

BA 2. Needle bearing*

"

AA 3. Bush*

4. Transmission case

NOTE

*: Refer to the installation procedures only when replacing the transmission case.

REASSEMBLY SERVICE POINTS

"

ABUSH INSTALLATION

Press in the bush to the position shown in the illustration

so that the split face of the bush does not cover the air bleeding

groove on the case.

Bush

Air

bleeding

hole

MANUAL TRANSMISSION OVERHAUL -

Transmission Case

22B-47

"

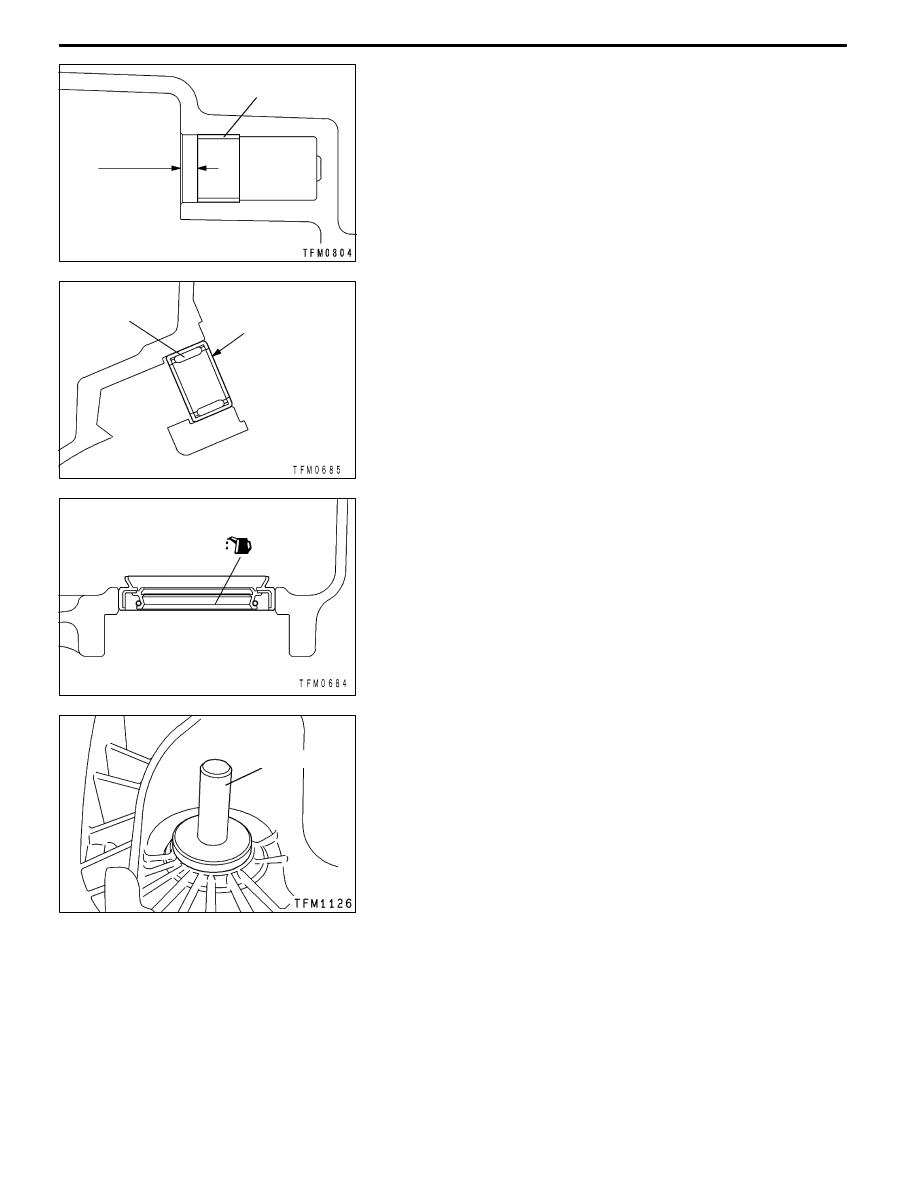

BNEEDLE BEARING INSTALLATION

Press in to the flush with the type stamp side facing the

direction shown in the illustration.

"

COIL SEAL INSTALLATION

(1) Apply transmission oil on the oil seal lip section.

Transmission oil

Specified oil:

MITSUBISHI genuine “DIA-QUEEN” multi gear

oil <75W/85W> or equivalent

(2) Using the special tool, install the oil seal onto the

transmission case.

Bush

3 mm

Needle bearing

Type stamp side

MD998800

MANUAL TRANSMISSION OVERHAUL -

Center Differential

22B-48

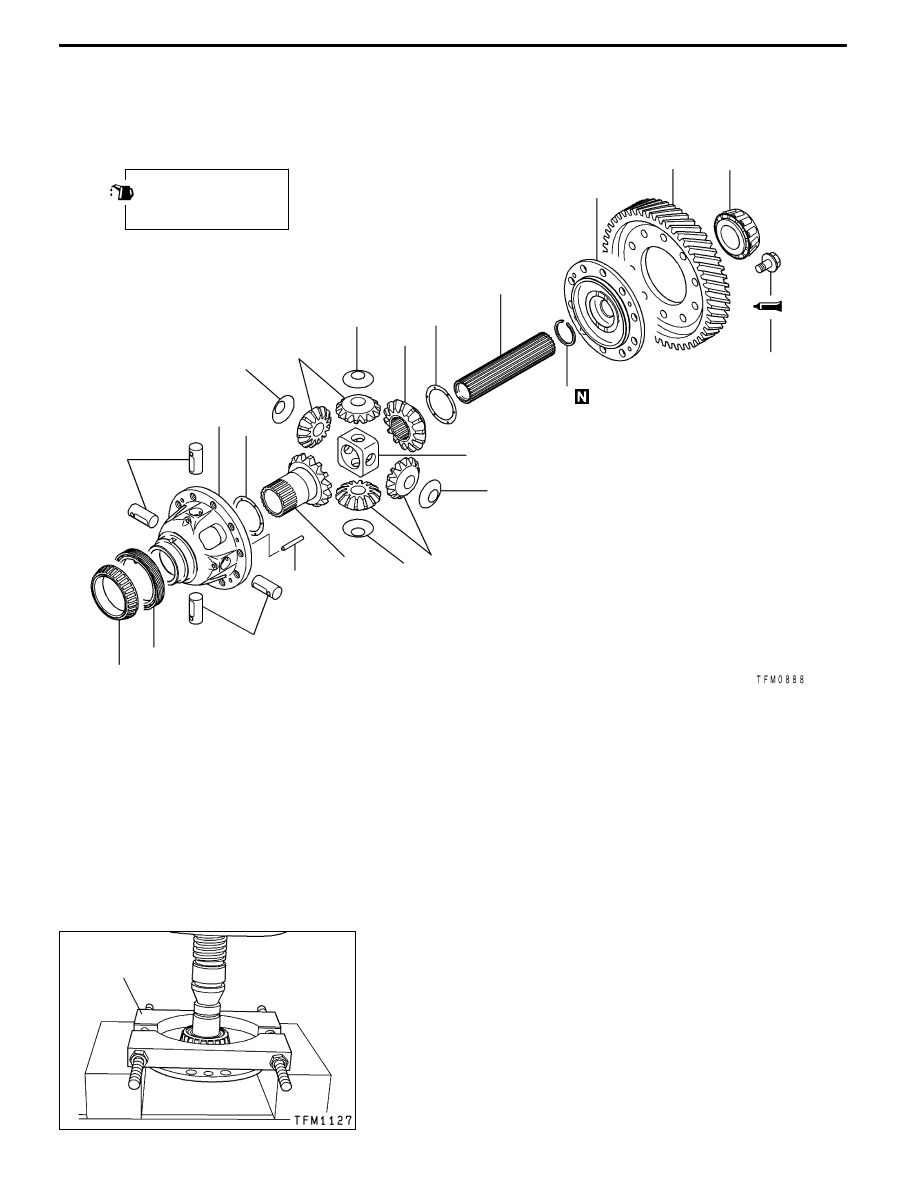

CENTER DIFFERENTIAL

DISASSEMBLY AND REASSEMBLY

Apply gear oil on

all sliding sections

before installing.

16

13

10

7

11

8

9

6

5

3

4

1

2

17

12

15

14

9

12

12

11

12

132 ± 5 Nm

Disassembly steps

"

DA 1. Center differential drive gear

"

CA 2. Center differential flange

A

A" "BA 3. Taper roller bearing

"

CA 4. Snap ring

"

CA 5. Front output shaft

"

CA 6. Spacer

"

CA 7. Side gear

"

CA 8. Lock pin

"

CA 9. Pinion shaft

"

CA 10. Pinion shaft holder

"

CA 11. Pinion

"

CA 12. Washer

"

CA 13. Side gear

"

CA 14. Spacer

A

B" "AA 15. Taper roller bearing

16. Speedometer drive gear

17. Differential case

DISASSEMBLY SERVICE POINTS

A

ATAPER ROLLER BEARING REMOVAL

Using the special tool, remove the taper roller bearing from

the center differential flange.

MD998917
