ENGINE COOLING -

Thermostat

ENGINE COOLING -

Thermostat

14-11

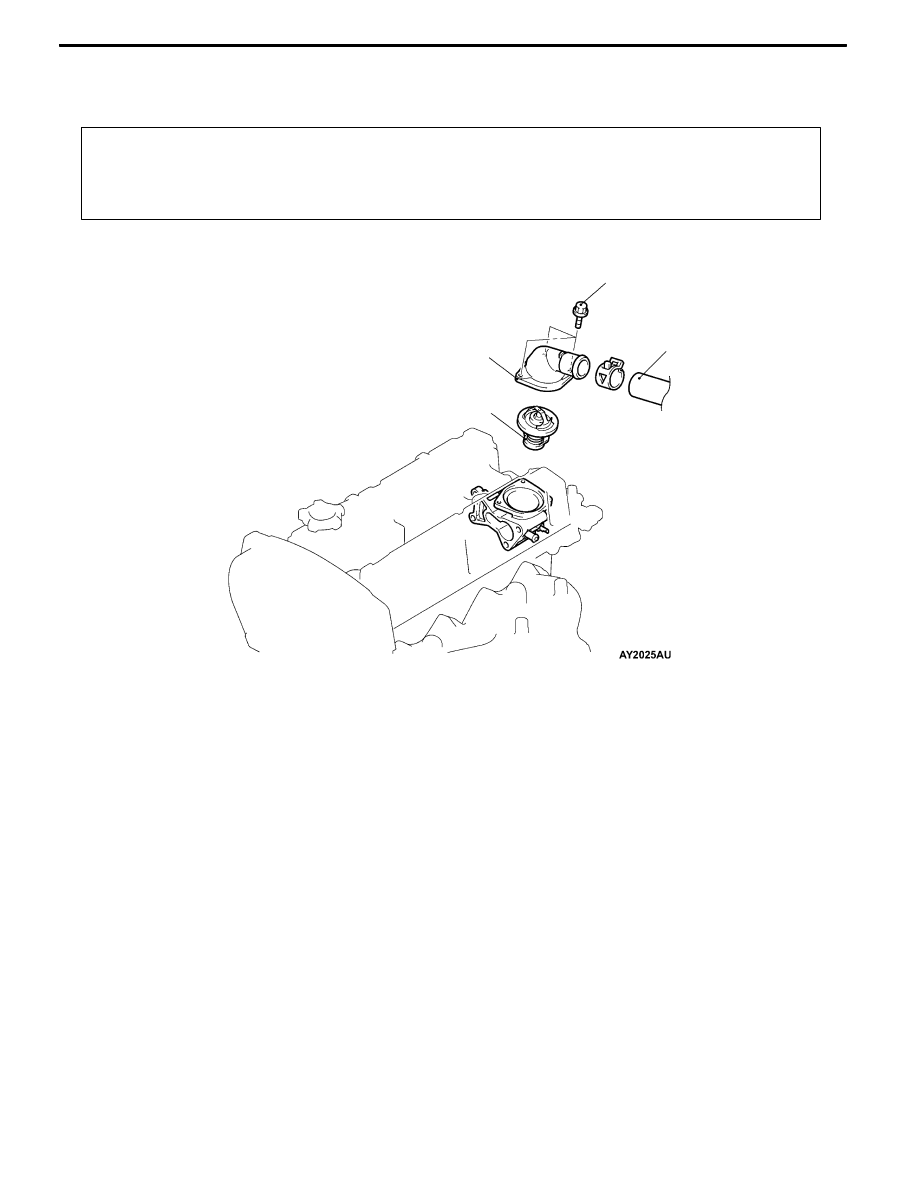

THERMOSTAT

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation
D

Engine Coolant Draining and Supplying (Refer to P.14-6.)

D

Air Duct Assembly Removal and Installation (Refer to GROUP 15 - Air Cleaner.)

D

Vacuum Pipe, Secondary Air Pipe Assembly Removal and Installation

(Refer to GROUP 15 - Secondary Air Supply System.)

1

2

3

10 ± 1 N·m

Removal steps

A

A" "BA 1. Radiator upper hose connection

2. Water outlet fitting

"

AA 3. Thermostat

REMOVAL SERVICE POINT

A

ARADIATOR UPPER HOSE DISCONNECTION

After making mating marks on the radiator hose and the hose

clamp,disconnect the radiator hose.

ENGINE COOLING -

Thermostat

14-12

INSTALLATION SERVICE POINTS

"

ATHERMOSTAT INSTALLATION

Install the thermostat being careful not to fold over or scratch

the rubber ring.
Caution

Make absolutely sure that no oil is adhering to the rubber

ring of the thermostat. In addition, be careful not to fold

over or scratch the rubber ring when inserting. If the

rubber ring is damage, replace the thermostat.

"

BRADIATOR UPPER HOSE CONNECTION

1. Insert each hose as far as the projection of the water

outlet fitting.

2. Align the mating marks on the radiator hose and hose

clamp, and then connect the radiator hose.

INSPECTION

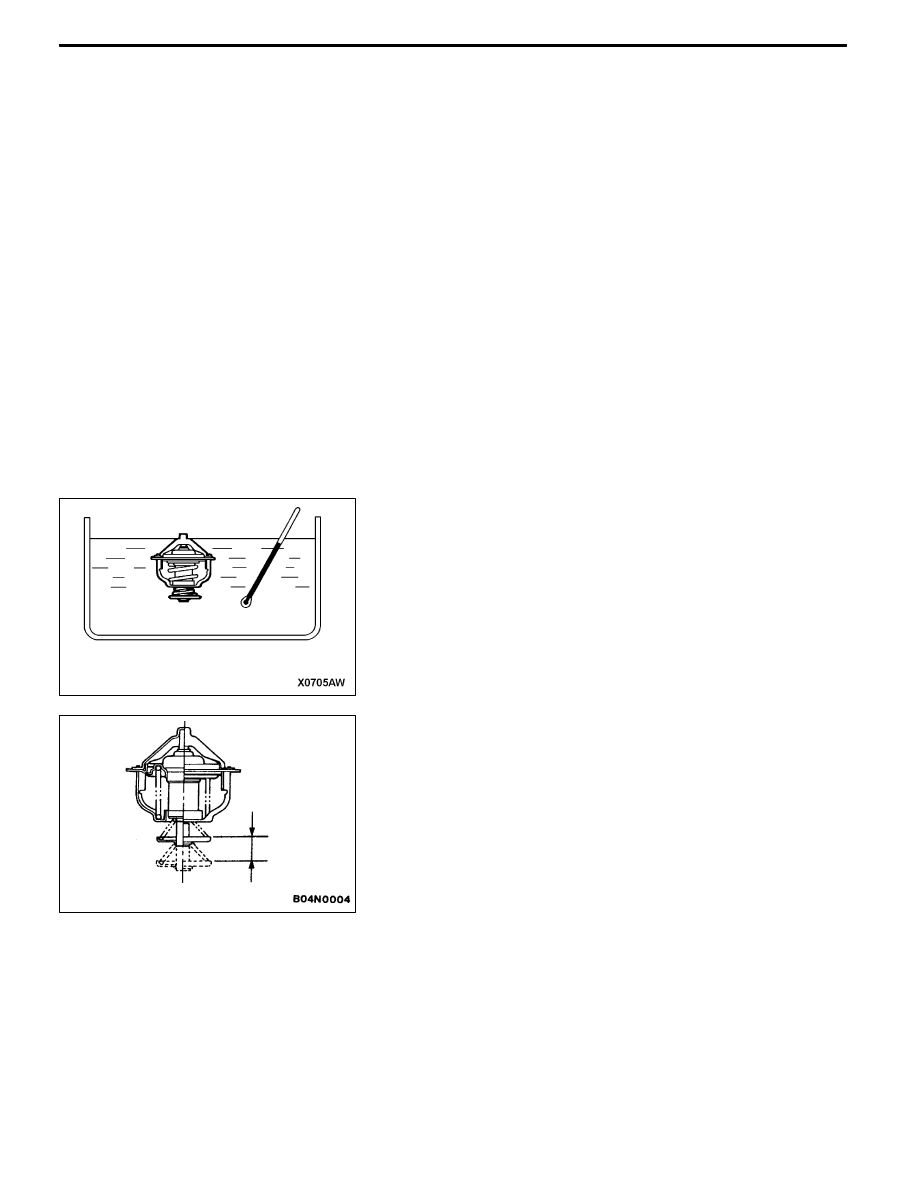

THERMOSTAT CHECK
1. Immerse the thermostat in water, and heat the water while

stirring. Check the thermostat valve opening temperature.
Standard value:

Valve opening temperature: 80 ± 1.5_C

2. Check that the amount of valve lift is at the standard value

when the water is at the full-opening temperature.
Standard value:

Full-opening temperature: 93_C
Amount of valve lift: 9.5 mm or more

NOTE

Measure the valve height when the thermostat is fully

closed, and use this measurement to calculate the valve

height when the thermostat is fully open.

Valve lift

ENGINE COOLING -

Water Pump

14-13

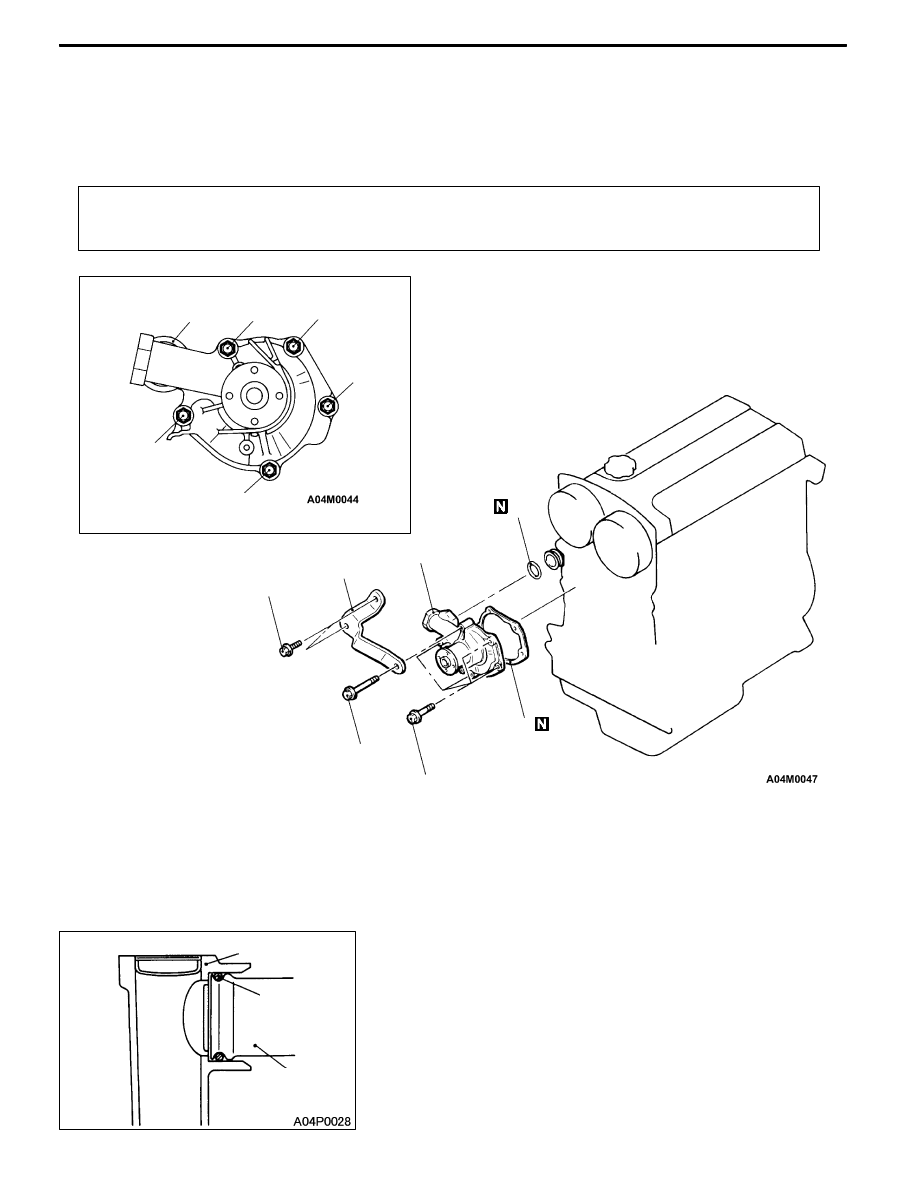

WATER PUMP

Caution
If the vehicle is equipped with the Brembo disc brake, during maintenance, take care not to contact
the parts or tools to the caliper because the paint of caliper will be scratched.

REMOVAL AND INSTALLATION

Pre-remobal and Post-installation Operation
D

Engine Coolant Draining and Supplying (Refer to P.14-6.)

D

Timing Belt Removal and installation (Refer to GROUP 11A.)

1

Bolt specifications

2

8 × 22

2

23 ± 3 N·m

14 ± 1 N·m

Nominal diameter

×

Nominal length mm

8× 70

8 ×14

8 × 22

8× 25

3

4

22 ± 4 N·m

Removal steps

1. Alternator brace

2. Water pump

3. Water pump Gasket

"

AA 4. O-ring

INSTALLATION SERVICE POINT

"

AO-RING INSTALLATION

Fit an O-ring into the O-ring groove located at the end of

the water inlet pipe and apply water to the O-ring or the

inside of the mounting surface of the water pump for insertion.
CAUTION

Do not let the O-ring get contaminated with grease, such

as engine oil.

Water pump

O-ring

Water inlet pipe

ENGINE COOLING -

Water Hose and Water Pipe

14-14

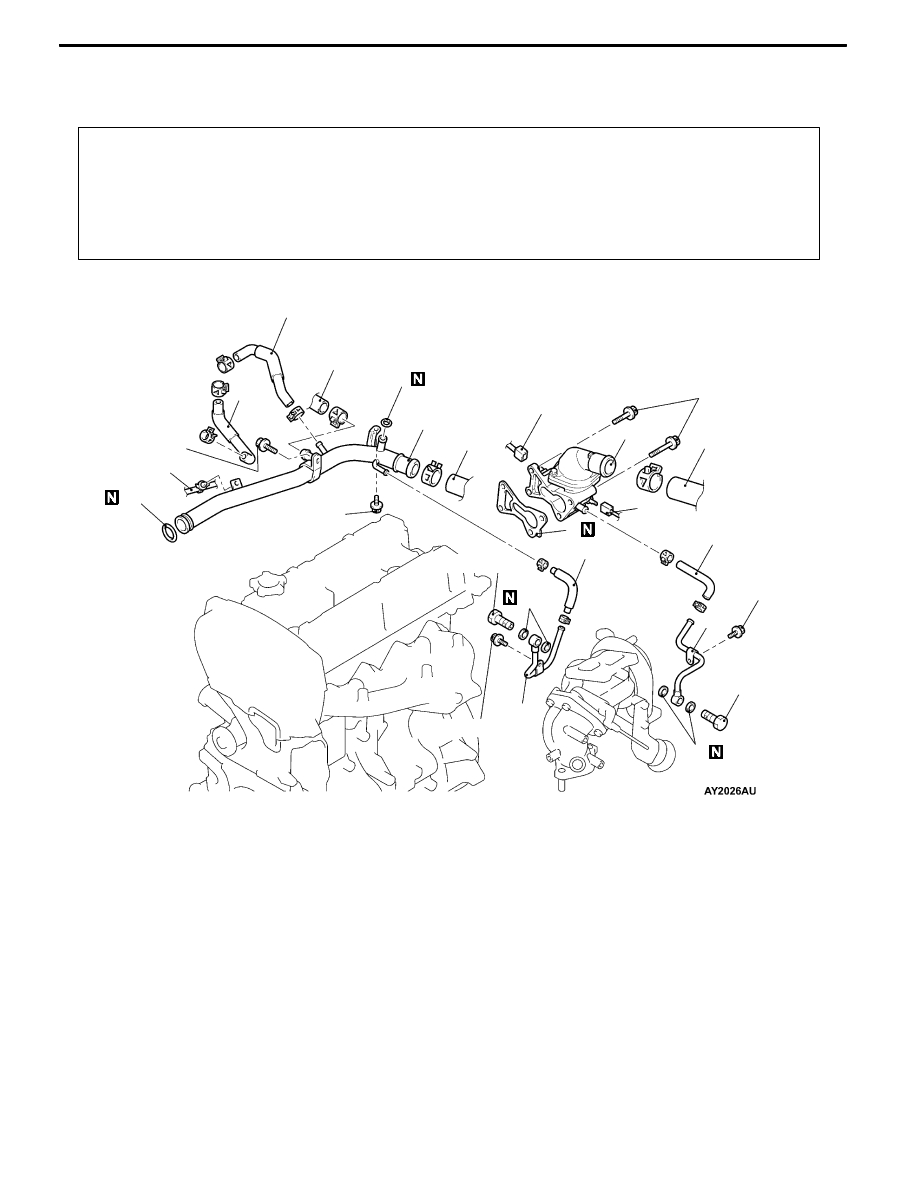

WATER HOSE AND WATER PIPE

REMOVAL AND INSTALLATION

Pre-remobal and Post-installation Operation
D

Engine Coolant Draining and Supplying (Refer to P.14-6.)

D

Air Cleaner Assembly Removal and Installation (Refer to GROUP 15 - Air Cleaner.)

D

Air Bypass Valve Assembly, Air Bypass Hose, Air Hose E and Air Pipe C, Air Hose D Removal and

Installation (Refer to GROUP 15 - Intercooler.)

D

Secondary Air Control Valve Bracket Removal and Installation

(Refer to GROUP 15 - Secondary Air Supply System.)

D

Battery, Battery Tray Removal and Installation

3

4

5

6

7

8

9

10

12

10 ± 1 N·m

42 ± 7 N·m

13 ± 2 N·m

11

1

2

23 ± 4 N·m

18

17

16

15

14

13

19

10 ± 1 N·m

42 ± 7 N·m

10 ± 1 N·m

Removal steps

A

A" "CA 1. Radiator upper hose connection

A

A" "CA 2. Radiator lower hose connection

3. Engine coolant temperature gauge

unit connector

4. Engine coolant temperature sensor

connector

5. Water hose

6. Water outlet fitting and thermostat

case assembly

7. Thermostat case gasket

"

AA 8. O-ring

9. Detonation sensor connection

10. Water hose

11. Water hose

12. Heater hose connection

13. Water hose

"

BA 14. Water inlet pipe

"

AA 15. O-ring

16. Turbocharger water

feed pipe

17. Gasket

D

Turbocharger assembly

(Refer to GROUP 15.)

18. Turbocharger water

return pipe

19. Gasket
