ENGINE OVERHAUL -

Oil Pump and Oil Pan

11B-53

"

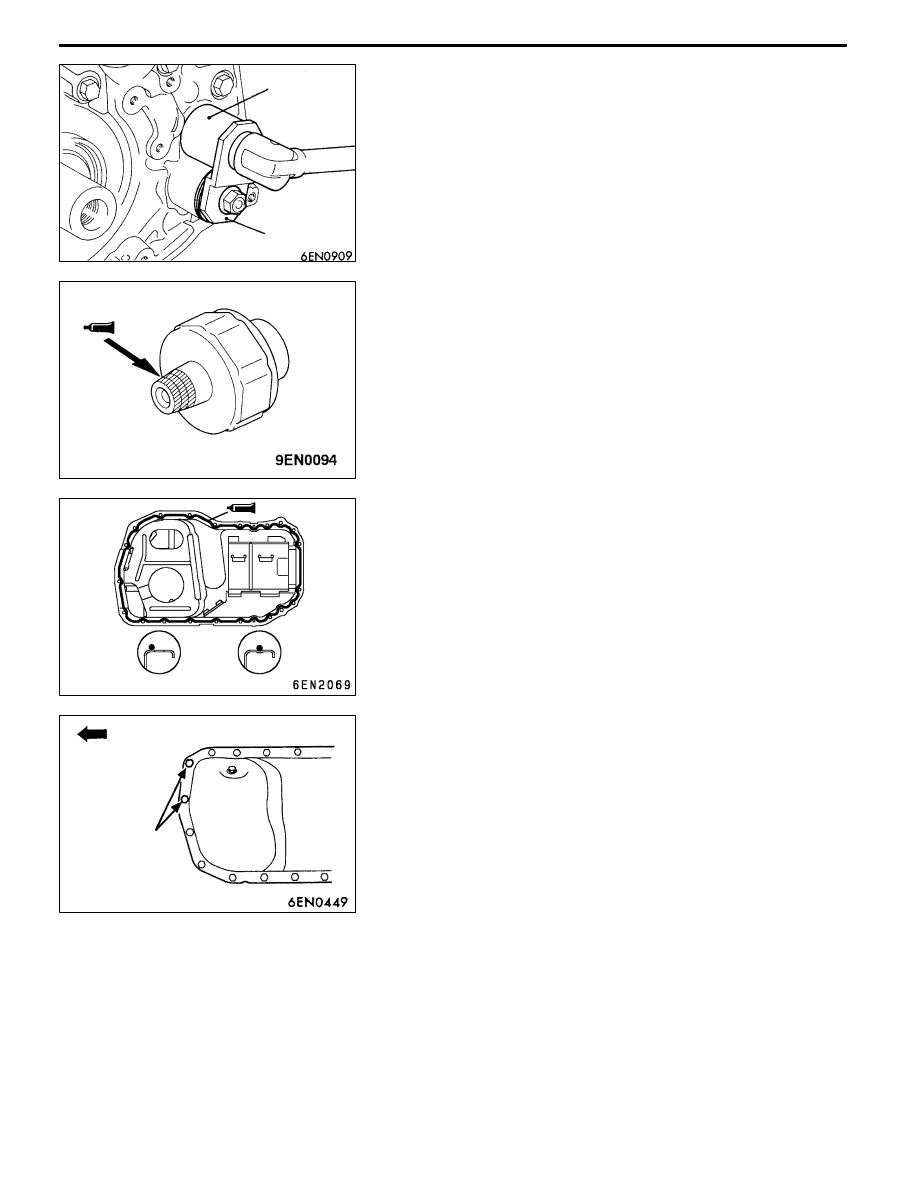

JPLUG CAP INSTALLATION

1. Install a new O-ring onto the oil pump case.

2. Lightly tighten the plug cap by hand.

3. As shown in the illustration, fit the special tool (MD998162)

into the notch on the plug cap, and while supporting with

the special tool (MD998783), tighten the plug cap at the

specified torque 23 ± 3 N•m.

"

KOIL PRESSURE SWITCH INSTALLATION

Sealant

Specified sealant:

3M

TM

AAD Part No. 8672 or equivalent

Caution

(1) Make sure that the sealant does not protrude to the

end of the threads.

(2) Do not tighten too far.

"

LOIL PAN INSTALLATION

1. Clean the surface of the cylinder block and oil pan onto

which gasket is to be applied.

2. Squeeze out form-in-place gasket at a 4 mm width, and

apply onto the entire periphery of the oil pan flange.
Form-in-place gasket

Specified gasket:

Mitsubishi Genuine Part No. MD970389 or

equivalent

3. Note that the lengths of the bolts shown in the illustration

differ, so take care when installing.

MD998162

MD998783

Bolt hole section

Groove

Timing belt side

M6 × 8

ENGINE OVERHAUL -

Oil Pump and Oil Pan

11B-54

"

MADRAIN PLUG GASKET INSTALLATION

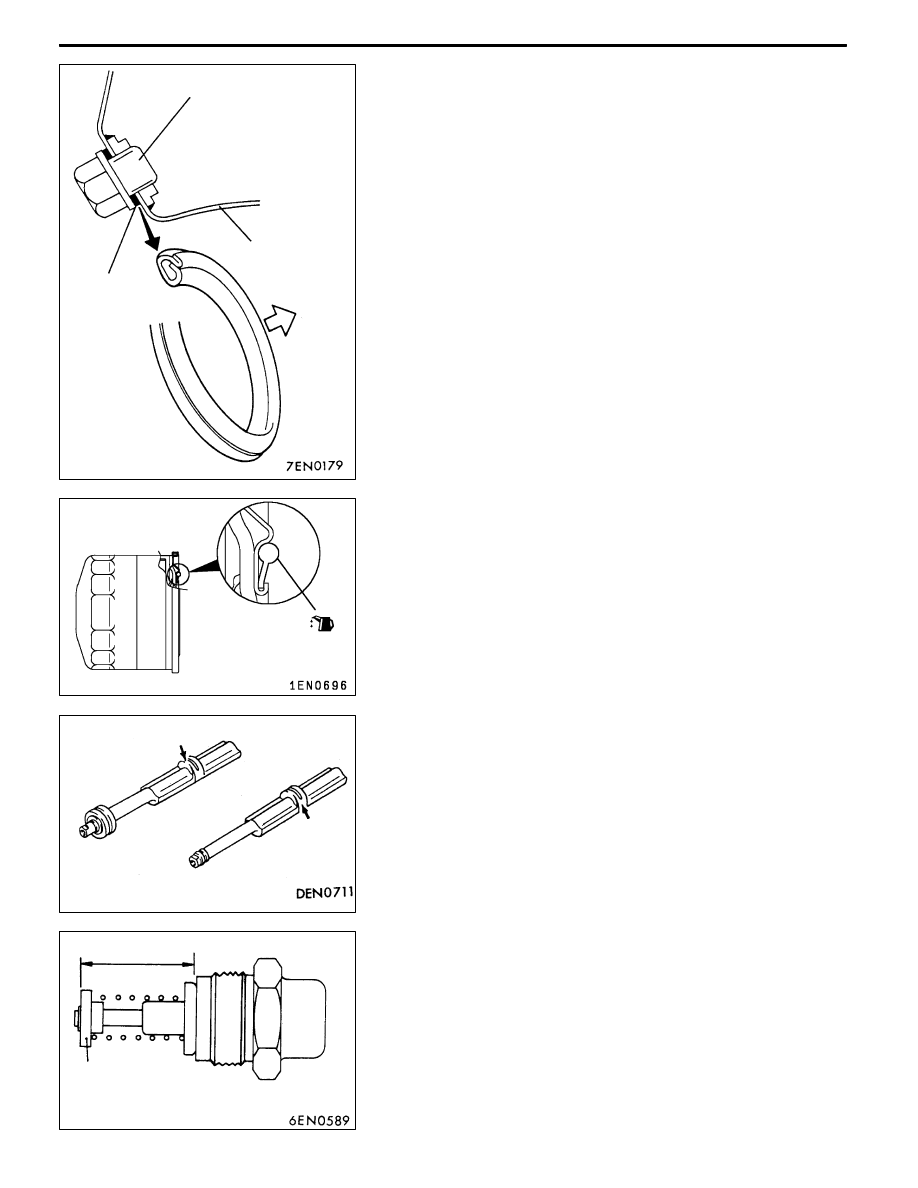

Replace the gasket with a new part, and install at the direction

shown in the illustration.
Caution

Incorrect installation direction will lead to oil leaks.

"

NOIL FILTER INSTALLATION

1. Clean the installation surface on the cylinder block side.

2. Apply engine oil on the O-ring for the oil filter.

3. Screw in the oil filter, and tighten approx. 3/4 of a rotation

(approx. 14 ± 2 N•m) from where the O-ring contacts

the installation surface.

INSPECTION

1. COUNTER BALANCE SHAFT

(1) Make sure that the oil hole is not clogged.

(2) Check the journal (bearing section) for seizure or

damage, and check the state of contact with the

bearings. If any faults are found, replace the counter

balance shaft, bearing or oil pump case assembly.

2. OIL COOLER BYPASS VALVE

(1) The valve must move smoothly.

(2) The L dimension must be at the standard value at

a constant temperature, constant humidity state.
Standard value: 34.5 mm

(3) The protruded dimensions must be at the standard

value after submerging into 100_C oil.
Standard value: 40 mm

Drain plug

Oil pan

Oil pan side

Gasket

Bracket side

L

Valve

ENGINE OVERHAUL -

Oil Pump and Oil Pan

11B-55

3. OIL PUMP

(1) Assemble the drive gear and driven gear into the

oil pump case.

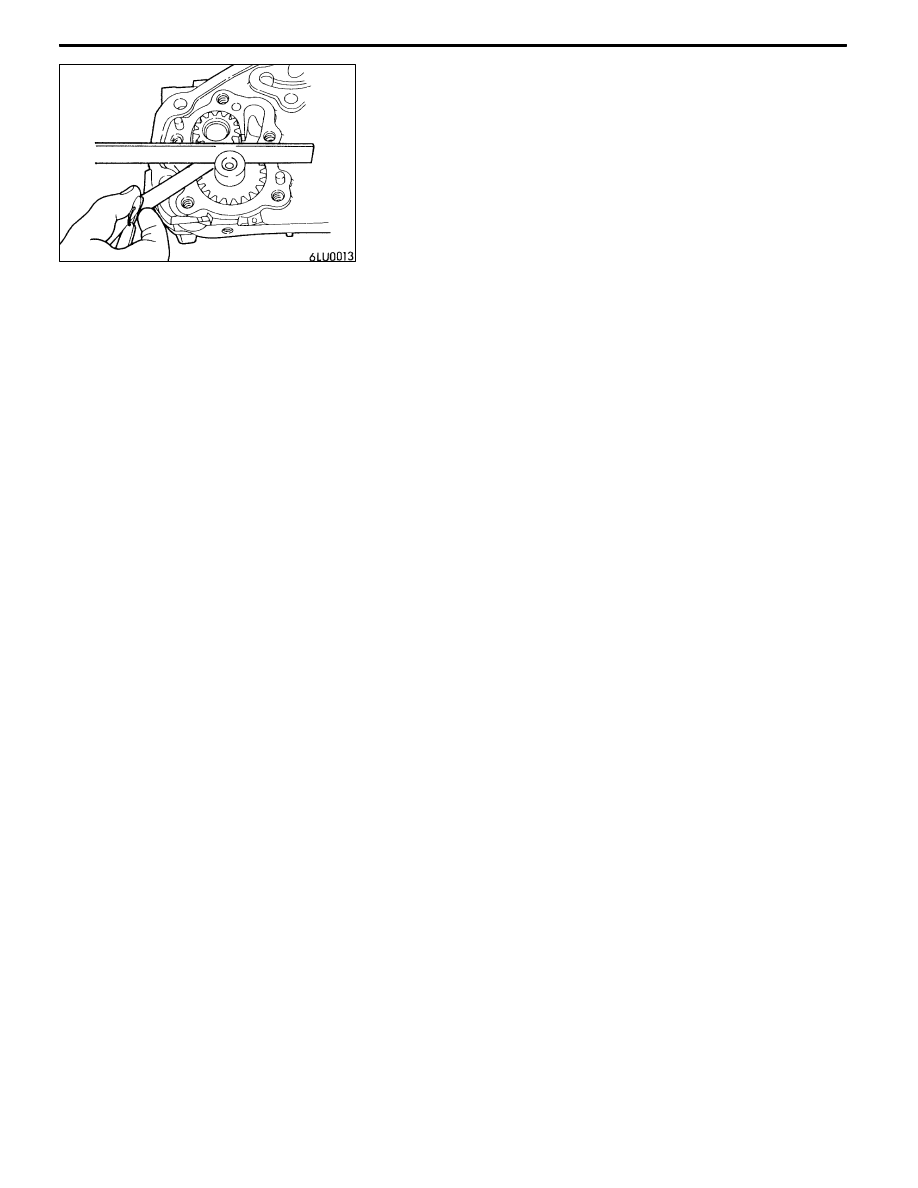

(2) Inspect the side clearance with a thickness gauge.

Standard value:

Drive gear 0.08 - 0.14 mm

Driven gear 0.06 - 0.12 mm

ENGINE OVERHAUL -

Piston and Connecting Rod

11B-56

PISTON AND CONNECTING ROD

REMOVAL AND INSTALLATION

20 ± 2 Nm + 90- 94_

2

1

Apply engine oil on

all sliding sections

before installing.

4

5

6

12

7

3

8

9

10

11

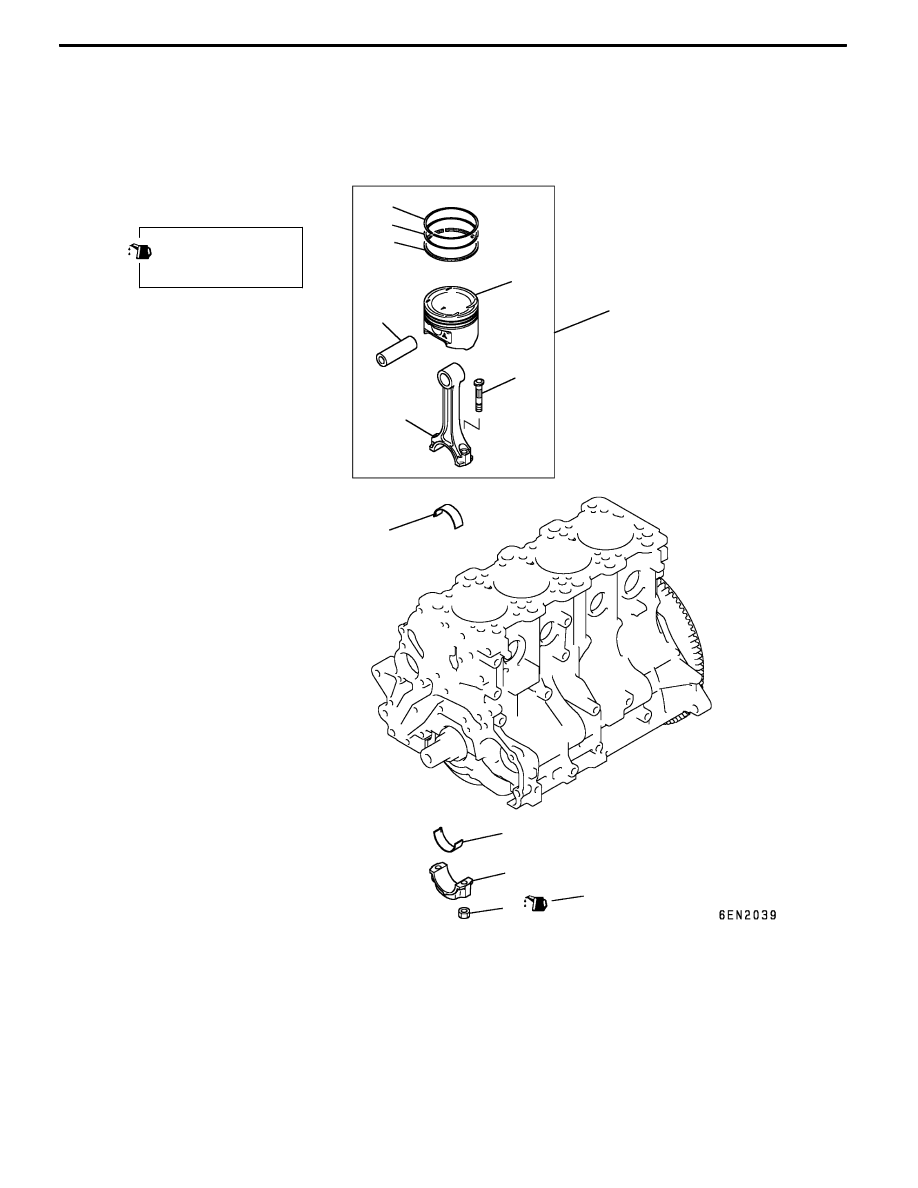

Removal steps

"

GA 1. Connecting rod cap nut

A

A" "FA 2. Connecting rod cap

"

EA 3. Connecting rod bearing

"

DA 4. Piston connecting rod

5. Connecting rod bearing

"

CA 6. Piston ring No. 1

"

CA 7. Piston ring No. 2

"

BA 8. Oil ring

A

B" "AA 9. Piston pin

10. Piston

11. Connecting rod

12. Bolt
