Mitsubishi Lancer Evolution 7. Manual - part 151





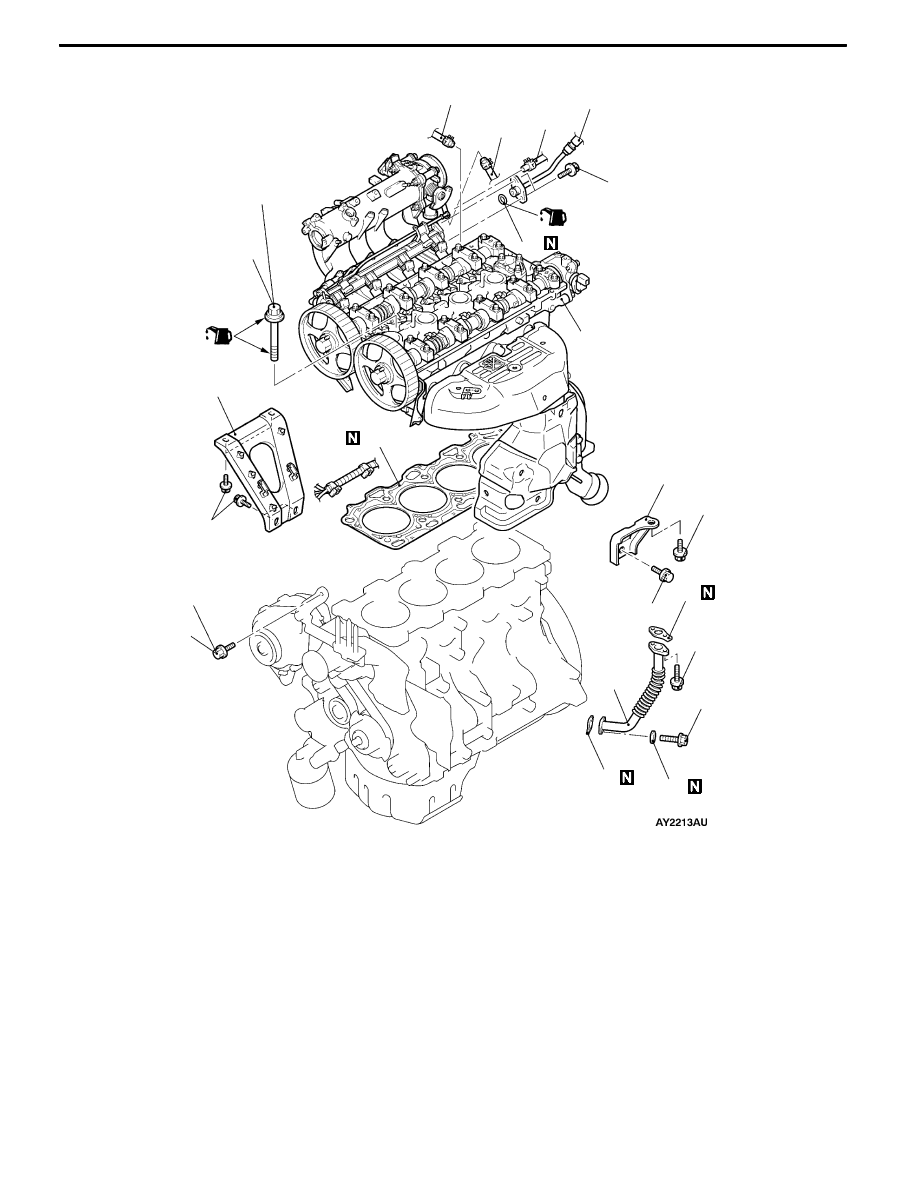

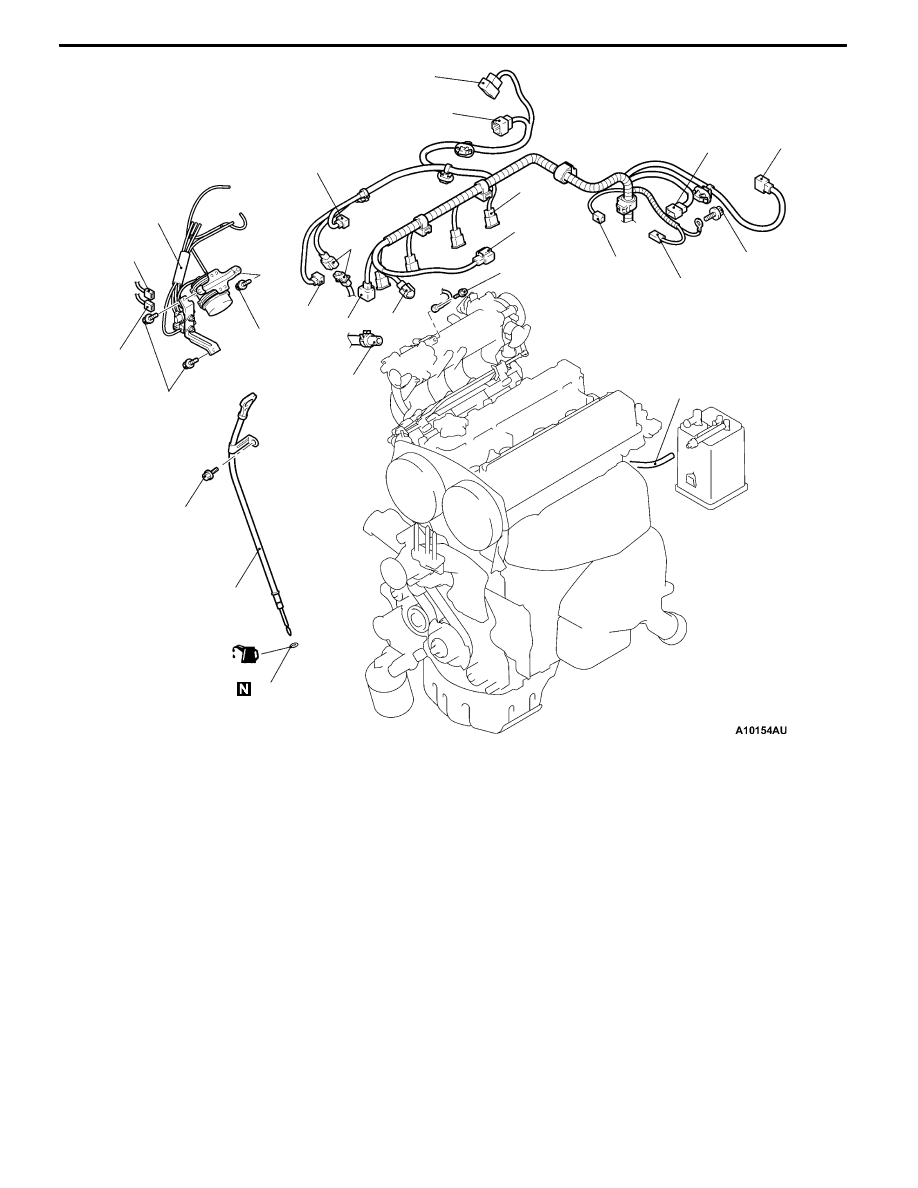

ENGINE -

Cylinder Head Gasket

11A-29

5.0 ± 1.0 N·m

6

1

2

3

4

5

7

8

9

10

11

12

13

14

13 ± 1 N·m

15

16

17

5.0 ± 1.0 N·m

18

19

9.0 ± 1.0 N·m

9.0 ± 1.0 N·m

(Engine oil)

1

Removal steps

1. Ignition coil connector

2. Crank angle sensor connector

3. Oxygen sensor connector

4. Fuel pressure solenoid valve

connector

5. Detonation sensor connector

6. Purge control solenoid valve

connector

7. Throttle position sensor connector

8. Idle speed control servo connector

9. Injector connector

10. Camshaft position sensor connector

11. Engine coolant temperature gauge

unit connector

12. Engine coolant temperature sensor

connector

D

Rocker cover (Refer to P.11A-17.)

13. EGR solenoid valve connector

14. Secondary air control solenoid valve

connector

15. Vacuum tank, solenoid valve, vacuum

pipe and hose assembly

16. Brake booster vacuum hose

connection

17. Oil level gauge and guide assembly

18. O-ring

19. Purge hose connection

ENGINE -

Cylinder Head Gasket

11A-30

23

31

24

26

27

28

29

30

22

22 ± 4 N·m

5.0 ± 1.0 N·m

31 ± 3 N·m

(Engine oil)

20

21

25

9.0 ± 1.0 N·m

14 ± 1 N·m

33

32

(Engine oil)

78 ± 2 N·m to 0 N·m to 20 ± 2 N·m

to +90to +90(cold start)

35 ± 6 N·m

44 ± 5 N·m

34

20. Alternator brace connection

21. Intake manifold stay

22. Oil return pipe gasket

23. Oil return pipe

24. Oil return pipe gasket

"

DA 25. Oil return pipe gasket

26. Exhaust fitting bracket

D

Water outlet fitting and thermostat

case assembly (Refer to Group 15

- Water Hose and Pipe.)

27. Water hose connection

28. Heater hose connection

29. Fuel return hose connection

"

CA 30. Fuel high pressure hose connection

"

CA 31. O-ring

A

A" "BA 32. Cylinder head bolt

33. Cylinder head assembly

"

AA 34. Cylinder head gasket

ENGINE -

Cylinder Head Gasket

11A-31

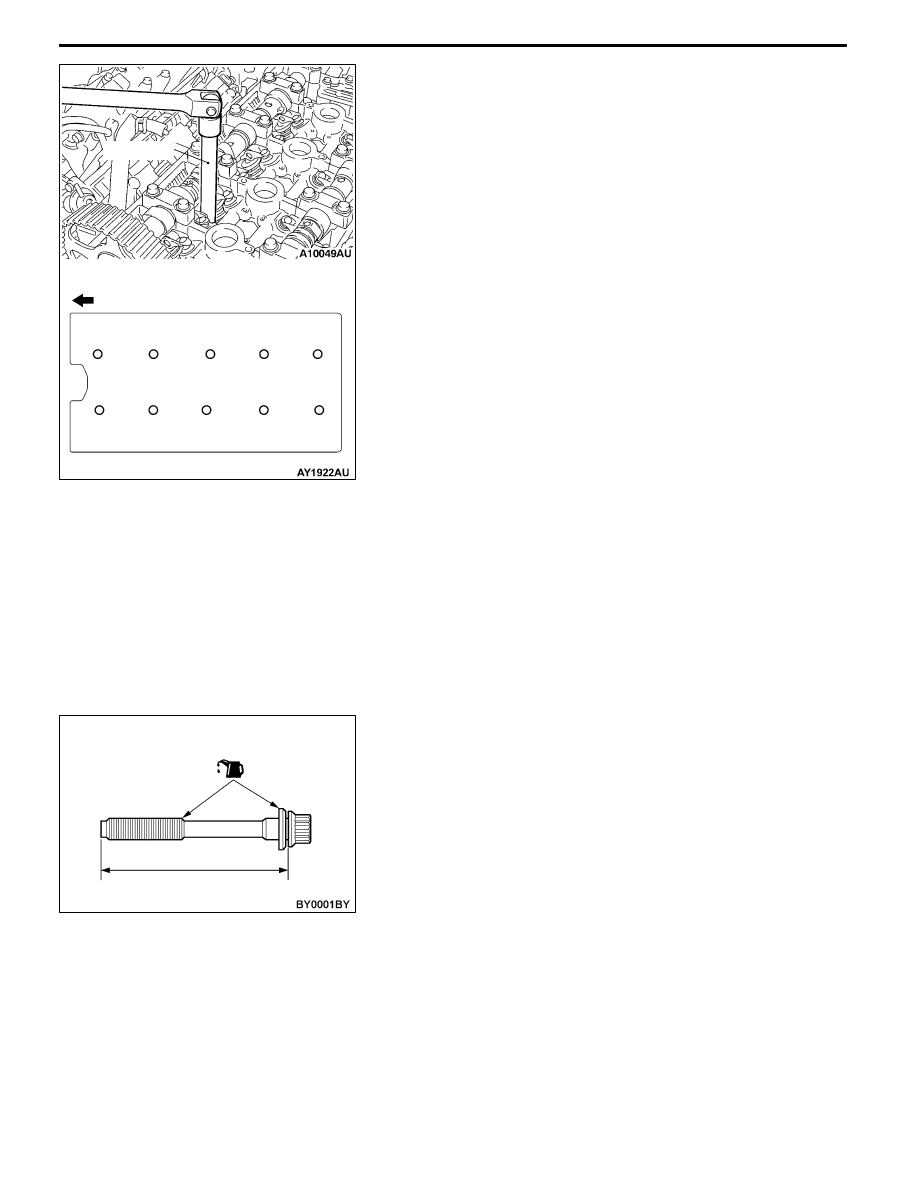

REMOVAL SERVICE POINT

A

ACYLINDER HEAD BOLTS REMOVAL

Use the special tool to loosen the bolt in 2 to 3 times in

the order of the numbers shown in the illustration for removal.

INSTALLATION SERVICE POINTS

"

ACYLINDER HEAD GASKET INSTALLATION

1. Remove residual gasket attached on the mounting surface

of the gasket.
Caution

Do not let contaminants get into engine coolant, oil

passage or cylinder.

2. With individual holes of cylinder head aligned on individual

holes of cylinder head gasket, install cylinder head gasket

on cylinder head.

"

BCYLINDER HEAD BOLTS INSTALLATION

1. Ensure that the length under head of cylinder head bolts

is under the limit value. When the measured value exceeds

the limit value, replace the bolt with new one.
Limit (A): 99.4 mm

2. Apply small quantity of engine oil at the threads of cylinder

head bolts and the washers.

1

5

4

2

7

3

8

6

9

10

Engine Front

MB991654

A

(Engine oil)

ENGINE -

Cylinder Head Gasket

11A-32

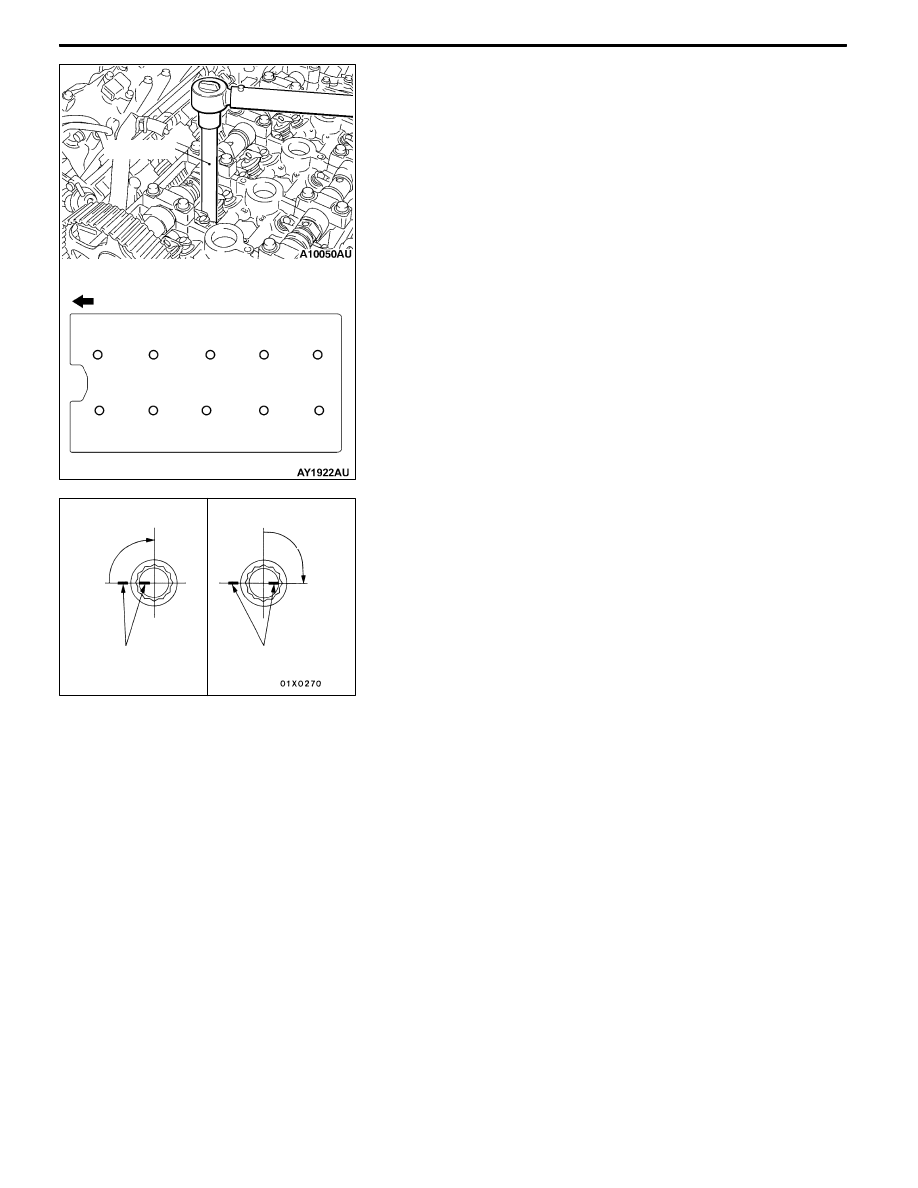

3. Use special tool to tighten bolts according to the following

procedure (tightening for plastic zone)

(1) According to the sequence specified in the figure,

tighten the bolt to the specified torque 78 ± 2 N·m.

(2) In the reverse sequence of the figure, fully loosen

bolts.

(3) According to the sequence specified in the figure,

tighten bolts to the specified torque 20 ± 2 N·m.

(4) Indicate paint markings on the heads of cylinder head

bolts and cylinder head, and tighten bolts at the angle

of 90 degree in the sequence specified in the figure.

(5) When bolts are tightened at the angle of 90 degree

according to the figure, ensure that the paint markings

on the heads of cylinder head bolts and cylinder head

are standing in line.
Caution

1) When the tightening angle is under 90 degree,

the bolt is not sufficiently tightened.

2) When the tightening angle exceeds the

specified value, remove the bolt and repeat

the same procedure beginning with Step 1.

"

CO-RING/FUEL HIGH PRESSURE HOSE

INSTALLATION

1. Apply small quantity of new engine oil on O-ring.

Caution

Do not let engine oil get into the delivery pipe.

2. Install the fuel high pressure pipe to the delivery pipe

rotating in both directions without damaging the O-ring

and check that it rotates smoothly.

1

5

4

2

7

3

8

6

9

10

Engine Front

MB991654

Step (4)

Step (5)

Paint Marking

90_

Paint Marking

90_
