Mitsubishi Lancer Evolution 7. Manual - part 150





ENGINE -

Oil Pan

11A-25

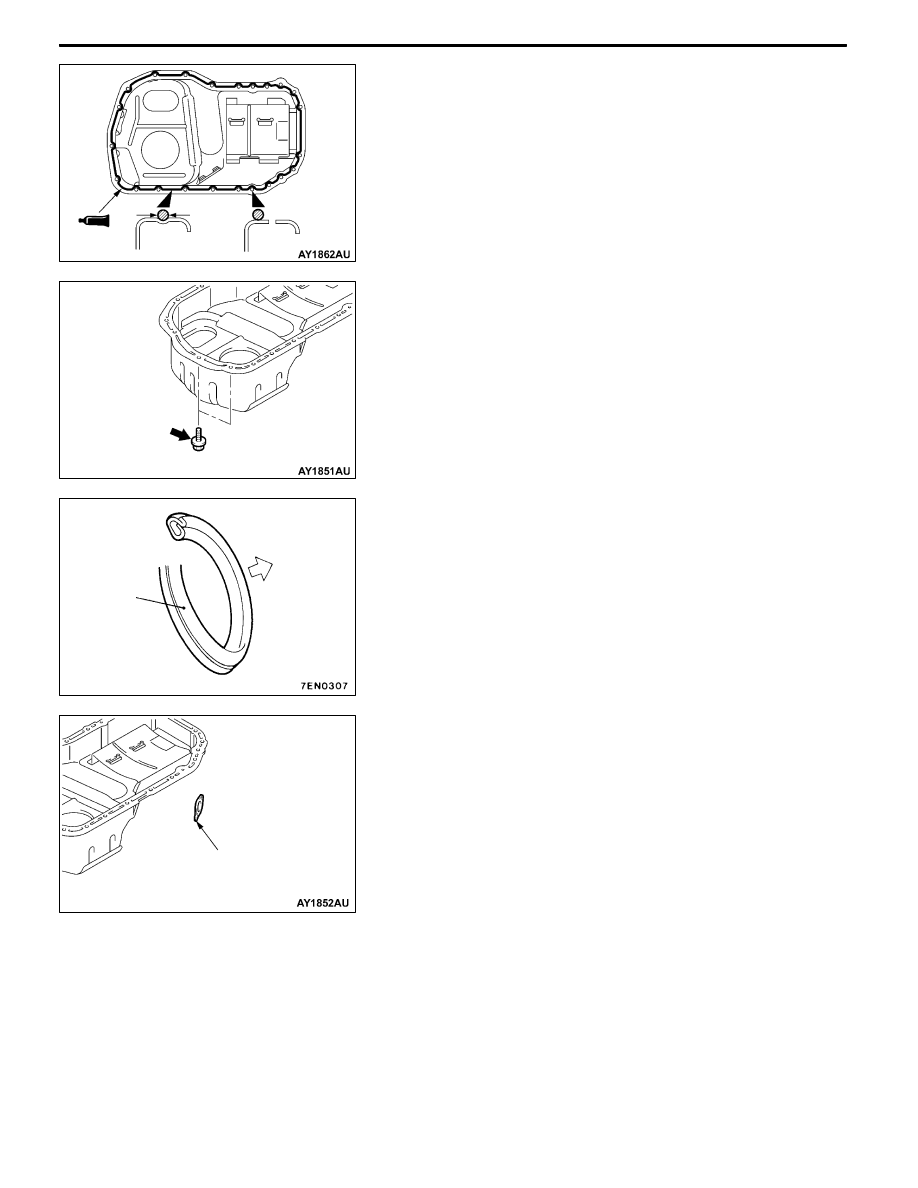

INSTALLATION SERVICE POINTS

"

AOIL PAN INSTALLATION

1. Remove sealant remained on the oil pan and the cylinder

block.

2. Apply sealant on the mounting surface of oil pan without

any gap as indicated in the figure, and install oil pan

on cylinder block.
Specified sealant:

MITSUBISHI GENUINE PART MD970389 or

equivalent

3. Tighten the mounting bolt of oil pan to the specified torque.

Be careful not to use a wrong bolt when tightening the

bolt as shown in the illustration.
Tightening Torque: 9.0 ± 3.0 N·m

"

BDRAIN PLUG GASKET INSTALLATION

Gasket should be replaced with a new one, and install it

in the direction specified in the figure.

"

COIL RETURN PIPE GASKET INSTALLATION

Gasket should be replaced with a new one, and set the convex

part to the position as shown in the illustration for installation.
NOTE

There is no specific direction indicated for installing the

turbocharger side of the oil return pipe gasket.

INSPECTION

D

Check oil pan for cracks.

D

Check oil pan sealant-coated surface for damage and

deformation.

D

Check oil screen for cracked, clogged or damaged wire

net and pipe.

ø4 mm

at the groove

at the bolt hole

M6 × 8 mm

Gasket

Oil Pan Side

Convex part

ENGINE -

Crankshaft Oil Seal

11A-26

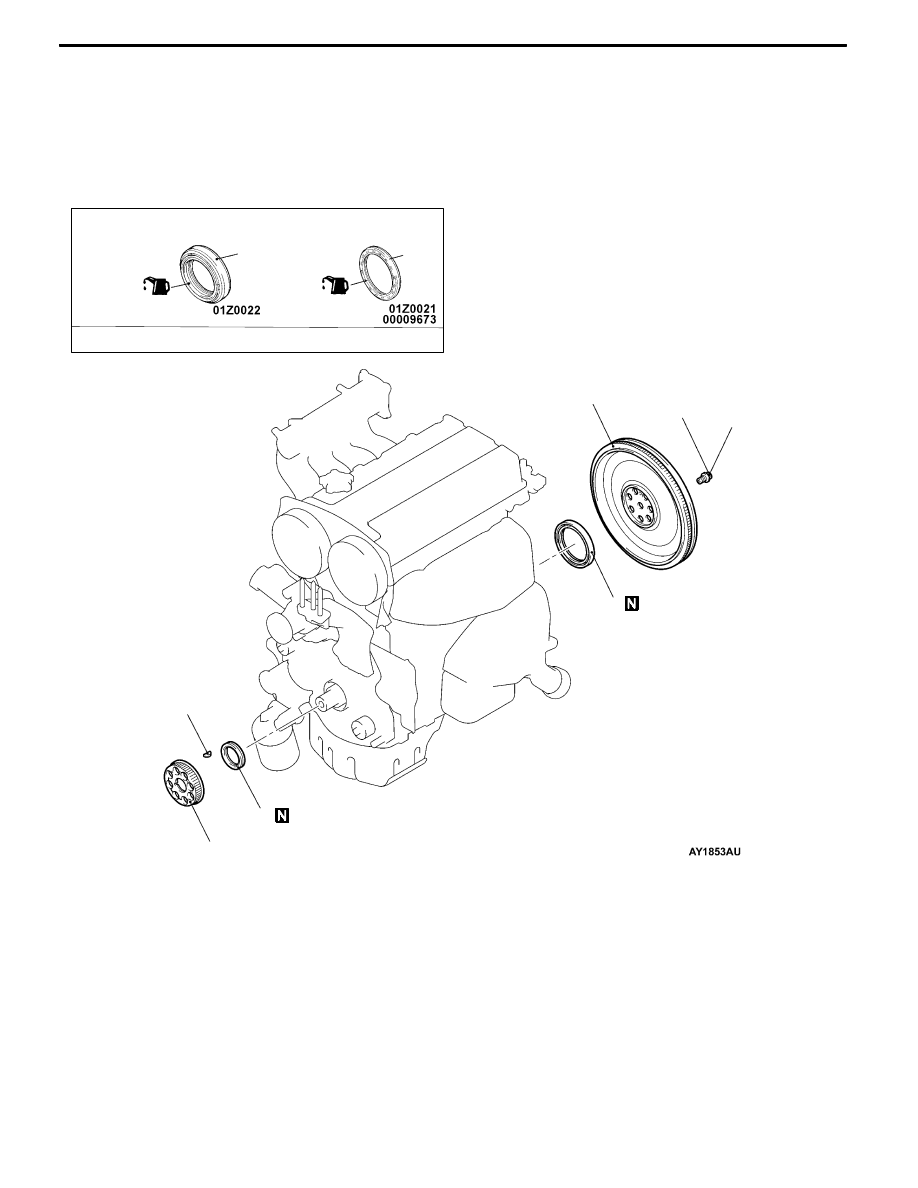

CRANKSHAFT OIL SEAL

REMOVAL AND INSTALLATION

Caution
If the vehicle is equipped with the Brembo disc brake, during maintenance, take care not to contact
the parts or tools to the caliper because the paint of caliper will be scratched.

1

2

3

4

5

6

Engine oil

(at the lip)

(at the lip)

3

6

132 ± 5 N·m

Crankshaft Front Oil Seal Removal

Steps

D

Timing belt and timing belt B

(Refer to P.11A-34.)

"

DA 1. Crankshaft sprocket B

2. Key

"

CA 3. Crankshaft front oil seal

Crankshaft Rear Oil Seal Removal

Steps

D

Transfer assembly

(Refer to GROUP 22A.)

D

Transmission assembly

(Refer to GROUP 22A.)

D

Clutch cover, disc

A

A" "BA 4. Flywheel bolt

5. Flywheel

"

AA 6. Crankshaft rear oil seal

ENGINE -

Crankshaft Oil Seal

11A-27

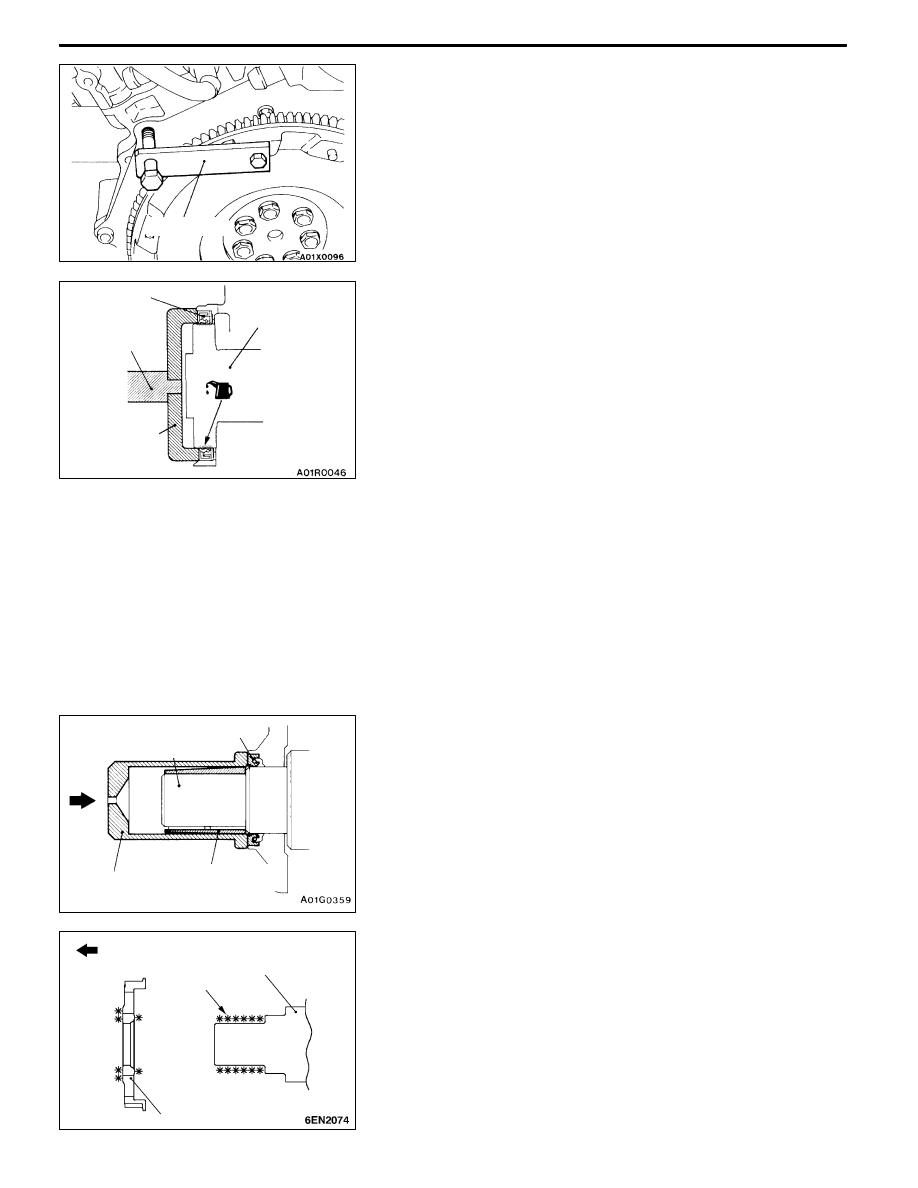

REMOVAL SERVICE POINT

A

AFLYWHEEL BOLT REMOVAL

INSTALLATION SERVICE POINTS

"

ACRANKSHAFT REAR OIL SEAL INSTALLATION

1. Apply small quantity of engine oil on the circumference

of oil seal lip.

2. Use special tool to press in oil seal up to the chamfered

surface of oil seal case.

"

BFLYWHEEL BOLT INSTALLATION

Use the special tool to fix the flywheel and tighten the bolt

to the specified torque in the same way as that for removal.
Tightening Torque: 132 ± 5 N·m

"

CCRANKSHAFT FRONT OIL SEAL INSTALLATION

1. Apply small quantity of engine oil on the circumference

of oil seal lip.

2. Use special tool to press in oil seal up to the chamfered

surface of oil seal case.

"

DCRANKSHAFT SPROCKET B INSTALLATION

1. Clean and degrease crankshaft sprocket B and crankshaft

sprocket B mounting surface of crankshaft.
NOTE

Degrease to prevent the friction coefficient of pressed

surface from dropping by stuck oil.

2. Position crankshaft sprocket B to the direction as shown

in the illustration.

MD998781

Crankshaft

Oil Seal

MB990938

MD998776

MD998382

Oil Seal

Crankshaft

MD998285

(oil applied to the

circumference)

Crankshaft

sprocket B

Degrease

Engine Front

Crankshaft

ENGINE -

Cylinder Head Gasket

11A-28

CYLINDER HEAD GASKET

REMOVAL AND INSTALLATION

Caution
If the vehicle is equipped with the Brembo disc brake, during maintenance, take care not to contact
the parts or tools to the caliper because the paint of caliper will be scratched.

Pre-removal and Post-installation Operation
D

Fuel Outflow Preventive Operation (Refer to GROUP 13A - On-vehicle Service.) <Before removal only>

D

Fuel Leak Check <After installation only>

D

Strut Tower Bar Removal and Installation (Refer to GROUP 42.)

D

Under Cover Removal and Installation (Refer to GROUP 51 - Front Bumper.)

D

Drive Belt Tension Check (Refer to P.11A-7.) <After installation only>

D

Accelerator Cable Adjustment (Refer to GROUP 17 - On-vehicle Service.) <After installation only>

D

Drainage and Refilling Engine Oil (Refer to GROUP 12 - On-vehicle Service.)

D

Drainage and Refilling of Engine Coolant (Refer to GROUP 14 - On-vehicle Service.)

D

Air Cleaner Assembly Removal and Installation (Refer to GROUP 15.)

D

Air Hose E, Air Pipe C, Air hose D Removal and Installation (Refer to GROUP 15 - Intercooler.)

D

Battery Removal and Installation

D

Center Cover Removal and Installation (Refer to P.11A-17.)

D

Accelerator Cable Removal and Installation (Refer to GROUP 17.)

D

Radiator Removal and Installation (Refer to GROUP 14.)

D

Secondary Air Control Valve Bracket Removal and Installation (Refer to GROUP 15 - Secondary Air Supply System.)

D

Crossmember Bar Removal and Installation (Refer to GROUP32 - Engine Roll Stopper, Centermember.)

D

Front Exhaust Pipe Removal and Installation (Refer to GROUP 15.)

D

Starter Removal and Installation (Refer to GROUP 16.)

D

Timing Belt Removal and Installation (Refer to P.11A-34.)
