ENGINE -

Camshaft and Camshaft Oil Seal

11A-21

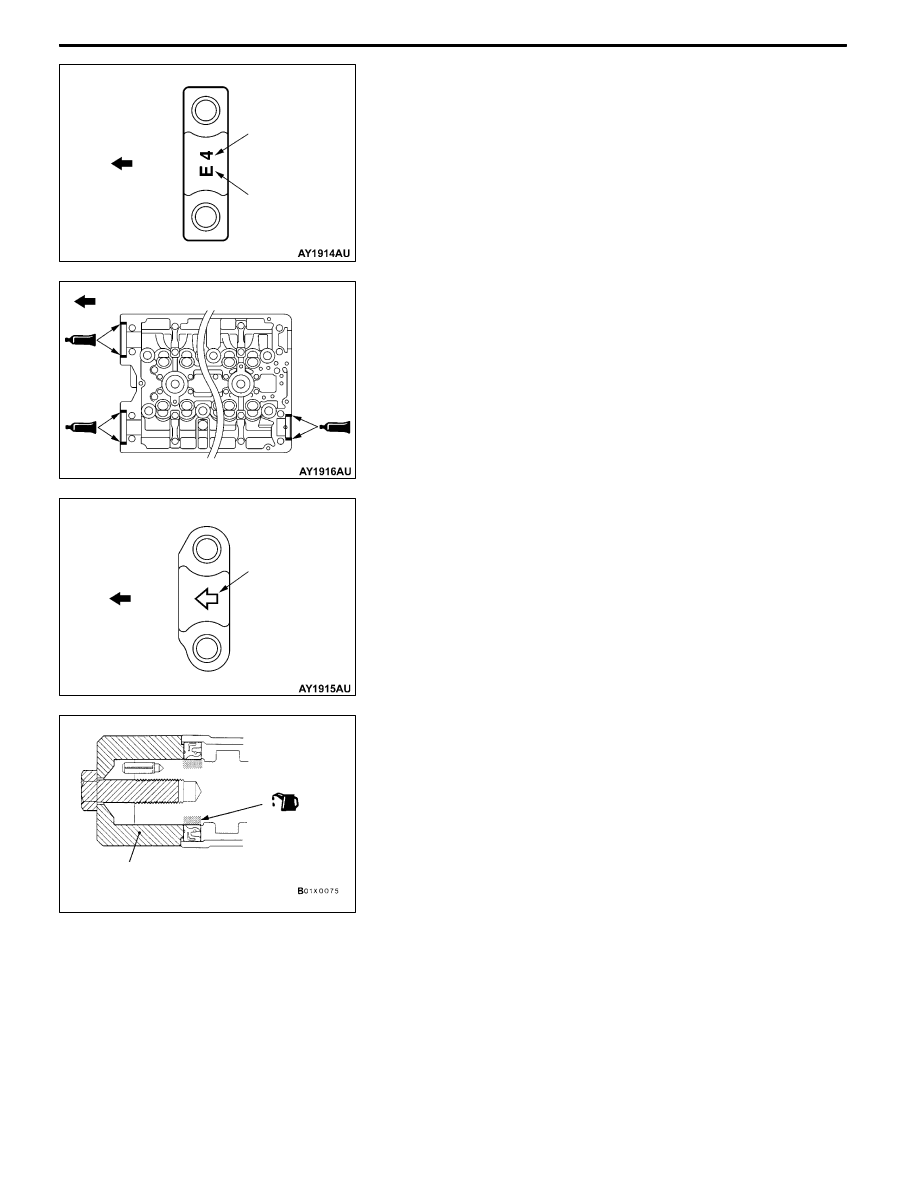

2. Since the shape of camshaft bearing caps No.2 - 5 is

identical, check the identification marks so that the bearing

cap No., intake side, or exhaust side cannot be mistaken

to install to the direction as shown in the illustration.
Identification mark (engraved on the front and bearing

caps No.2 - 5)

I:

Intake side

E: Exhaust side

3. Apply sealant to the positions (6 areas) of the upper side

of the cylinder head as shown in the illustration.
Specified sealant:

MITSUBISHI GENUINE PART MD970389 or

equivalent

4. Position the camshaft bearing cap rear in the direction as

shown in the illustration for installation.

5. Check the identification marks on the camshaft bearing

cap front so that intake side and exhaust side cannot

be mistaken in the same way as that of bearing caps

No.2 - 5.

6. Tighten the bearing cap mounting bolt increasing the

pressure in 2 to 3 times and finally tighten to the specified

torque.
Tightening Torque: 20 ± 1 N·m

7. Ensure that the rocker arm is installed properly.

NOTE

Remove an excess of sealant completely.

"

DCAMSHAFT OIL SEAL INSTALLATION

1. Apply engine oil on the circumference of oil seal lip.

2. Use the special tool as shown in the illustration to pressfit

the oil seal.

"

ECAMSHAFT SPROCKET INSTALLATION

Hold the hexagon part of the camshaft with a wrench and

tighten the mounting bolt to the specified torque in the same

way as that for removal.
Tightening Torque: 89 ± 9 N·m

Engine Front

Bearing cap No.

Identification of

intake side and

exhaust side

Engine Front

Front marking

Engine Front

MD998713

ENGINE -

Camshaft and Camshaft Oil Seal

11A-22

"

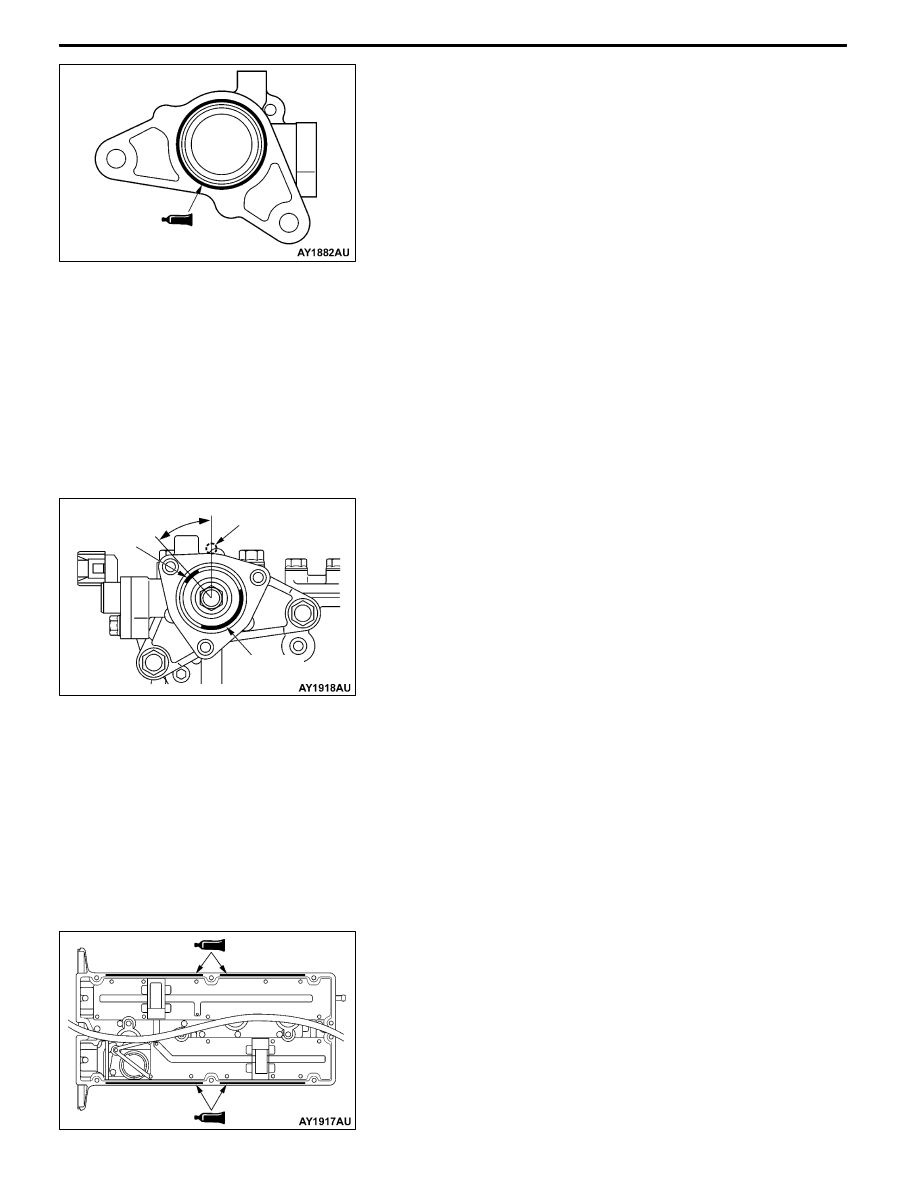

FCAMSHAFT POSITION SENSOR SUPPORT

INSTALLATION

1. Remove sealant remained on the camshaft position

sensor support.

2. Apply sealant to the flange of the camshaft position sensor

support and install to the cylinder head.
Specified sealant:

MITSUBISHI GENUINE PART MD970389 or

equivalent

3. Tighten the camshaft position sensor support mounting

bolt to the specified torque.
Tightening Torque: 14 ± 1 N·m

"

GACAMSHAFT POSITION SENSING CYLINDER

INSTALLATION

1. Set the dowel pin of the exhaust camshaft to the position

(No.1cylinder at compression TDC) as shown in the

illustration.

NOTE

Use the force of the exhaust valve spring to rotate

counterclockwise.

2. Install the vane (small) of the camshaft position sensing

cylinder at an angle of approximately 45 degrees to the

position of the dowel pin of the exhaust camshaft.

3. Tighten the camshaft position sensing cylinder mounting

bolt to the specified torque.
Tightening Torque: 22 ± 4 N·m

"

HRADIATOR UPPER HOSE CONNECTION

1. Insert the radiator upper hose to the convex part of the

water outlet fitting.

2. Make the mating marks on the upper hose and the hose

clamp for installation.

"

IROCKER COVER GASKET INSTALLATION

1. Remove sealant remained on the rocker cover.

2. Apply sealant to the positions (4 areas) of the lower side of

the rocker cover as shown in the illustration.
Specified sealant:

MITSUBISHI GENUINE PART MD970389 or

equivalent

3. Install the rocker cover gasket to the rocker cover.

ø3 mm

Dowel Pin

Vane (small)

Approximately 45_

Vane (large)

ENGINE -

Camshaft and Camshaft Oil Seal/Oil Pan

11A-23

"

JCAMSHAFT END SEAL INSTALLATION

Apply sealant to the positions of the camshaft end seal as

shown in the illustration and install to the cylinder head.
Specified sealant: 3M ATD Part No.8660 or equivalent

"

KROCKER COVER INSTALLATION

1. Apply sealant to the positions of the rocker cover gasket

(6 areas) as shown in the illustration.
Specified sealant:

MITSUBISHI GENUINE PART MD970389 or

equivalent

2. Install the rocker cover to the cylinder head.

OIL PAN

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation
D

Under Cover Removal and Installation (Refer to GROUP 51 - Front Bumper.)

D

Drainage and Refilling of Engine Oil (Refer to GROUP 12 - On-vehicle Service.)

D

Crossmember Bar Removal and Installation (Refer to GROUP 32 - Engine Roll Stopper, Centermember.)

D

Front Exhaust Pipe Removal and Installation (Refer to GROUP 15.)

D

Starter Removal and Installation (Refer to GROUP 16.)

10 mm

10 mm

Cylinder Head

Engine Front

ENGINE -

Oil Pan

11A-24

1

2

3

4

5

39 ± 5 N·m

42 ± 2 N·m

9.0 ± 3.0 N·m

22 ± 4 N·m

6

7

8

9

10

11

9.0 ± 3.0 N·m

26 ± 5 N·m

14 ± 1 N·m

9.0 ± 1.0 N·m

<Bolt with washer>

9.0 ± 1.0 N·m

<Flange bolt>

10 ± 2 N·m

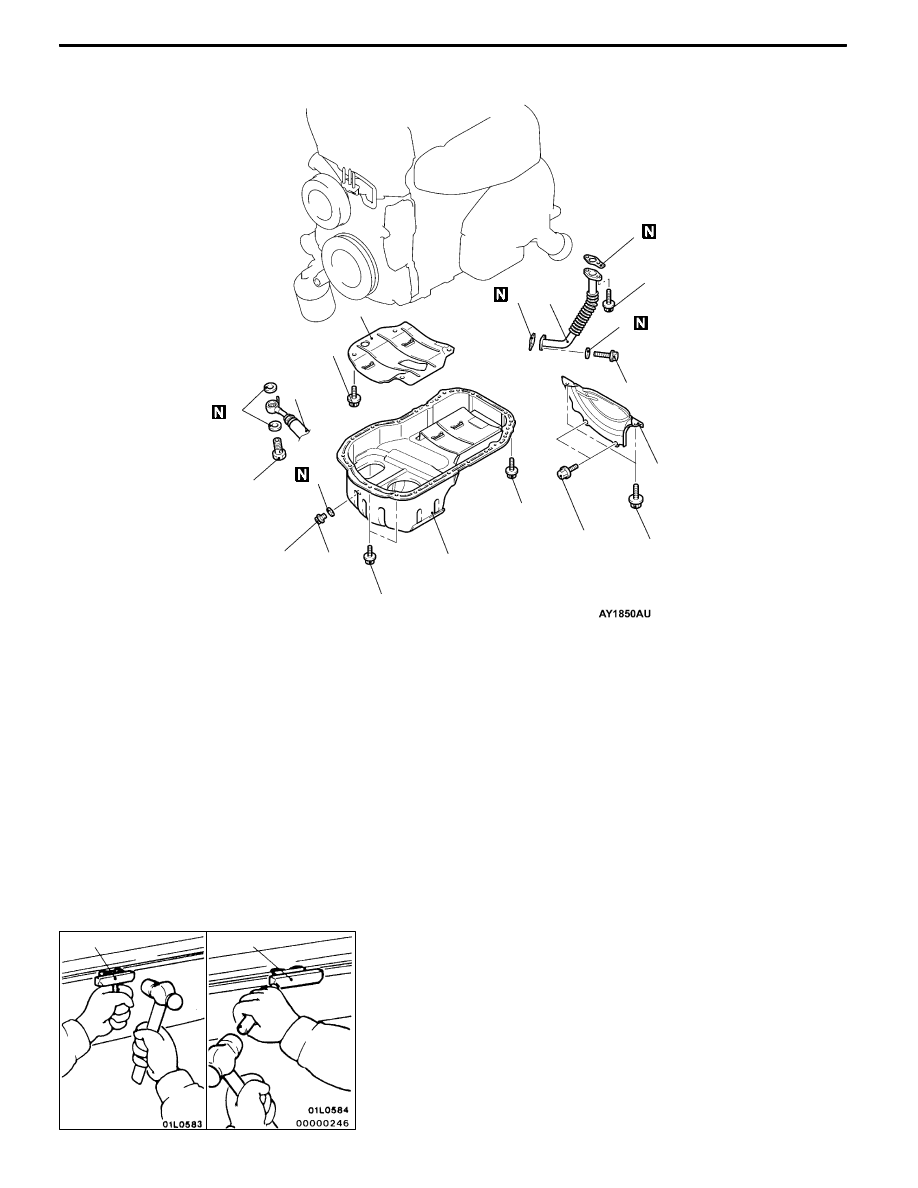

Removal steps

1. Bell housing cover

2. Oil return pipe gasket

3. Oil return pipe

4. Oil return pipe gasket

"

CA 5. Oil return pipe gasket

6. Engine oil cooler return hose

7. Engine oil cooler tube gasket

8. Drain plug

"

BA 9. Drain plug gasket

A

A" "AA 10. Oil pan

11. Baffle plate

REMOVAL SERVICE POINT

A

AOIL PAN REMOVAL

MD998727

MD998727
