Mitsubishi Lancer Evolution 7. Manual - part 31





EXTERIOR

- Summary of Exterior Parts

5-2

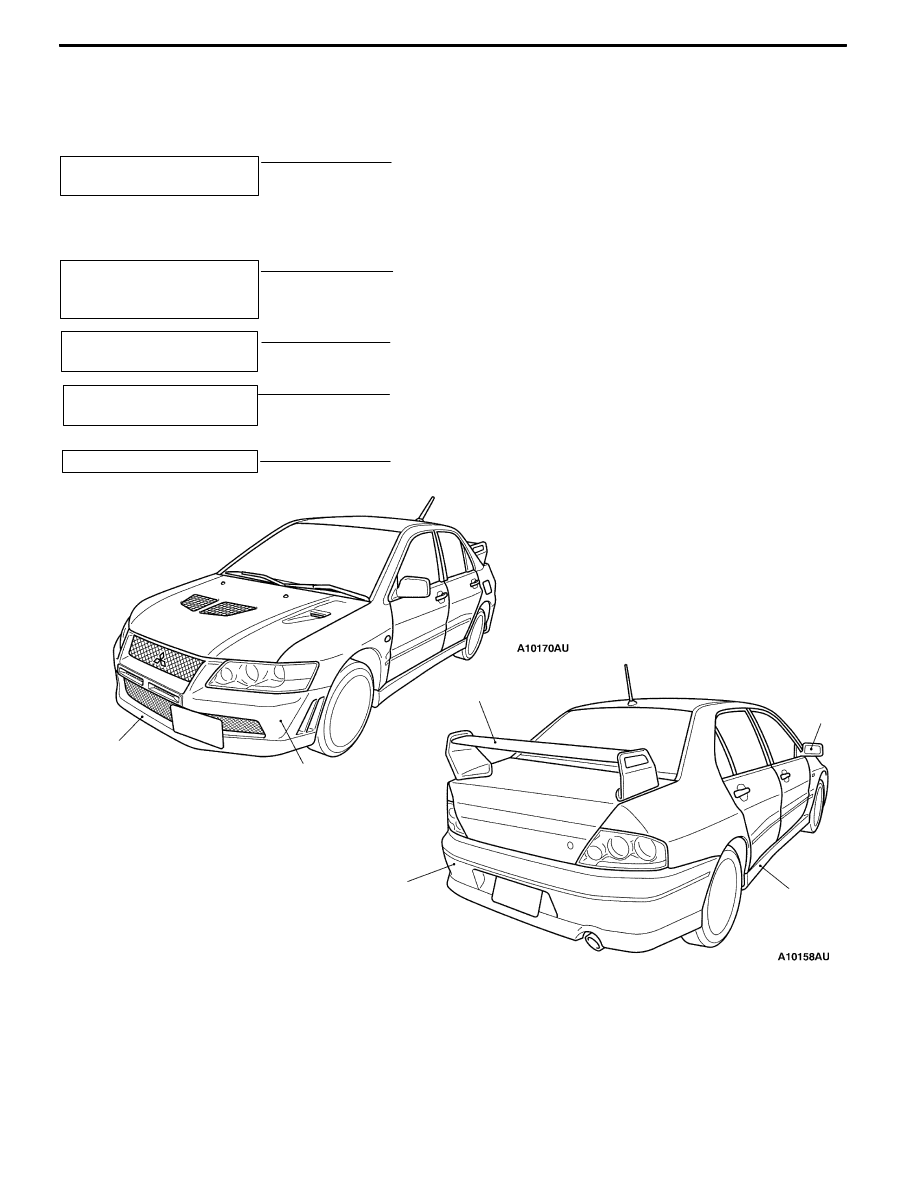

SUMMARY OF EXTERIOR PARTS

Sophisticated and bold exterior designs have been given to every detail.

FEATURE

Improvements in

appearance

1. A radiator grill integrated front bumper has been

equipped.

2. An air dam integrated rear bumper has been equipped.

3. Air dams have been installed to the front, and side areas.

4. An elevation-adjustable large rear spoiler has been

adopted.

Measures for

resource recycle

8. Material identification mark engraving to resin parts and

materials (PP) for easy recycling have been actively

used.

Weight reduction

9. PP has been used for bumper faces.

5. Air dams have been installed to the front, and side areas.

6. An elevation-adjustable large rear spoiler has been

adopted.

Improvements in

aerodynamic

characteristics

Improvements in

usability

7. A power remote control type <RS-II>, or manual type

<RS> outside mirror has been installed.

1, 9

3, 5

4, 6

3, 5

7

2, 9

EXTERIOR

- Aero Parts

5-3

AERO PARTS

Installation of airdams and elevation

-

adjustable large rear spoilers have improved aerodynamic characteris-

tics and appearance.

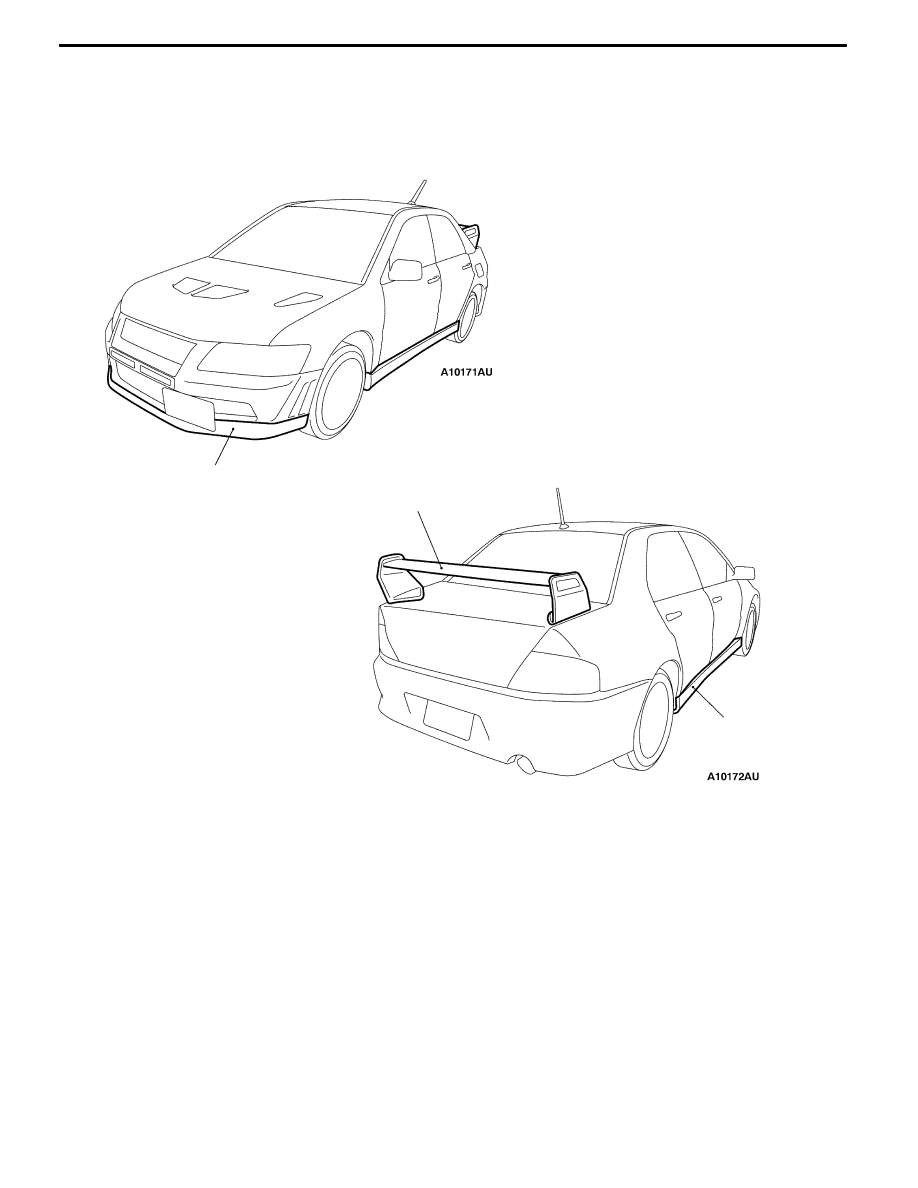

CONSTRUCTION DIAGRAM

Rear spoiler

Front air dam

Side air dam

EXTERIOR

- Aero Parts

5-4

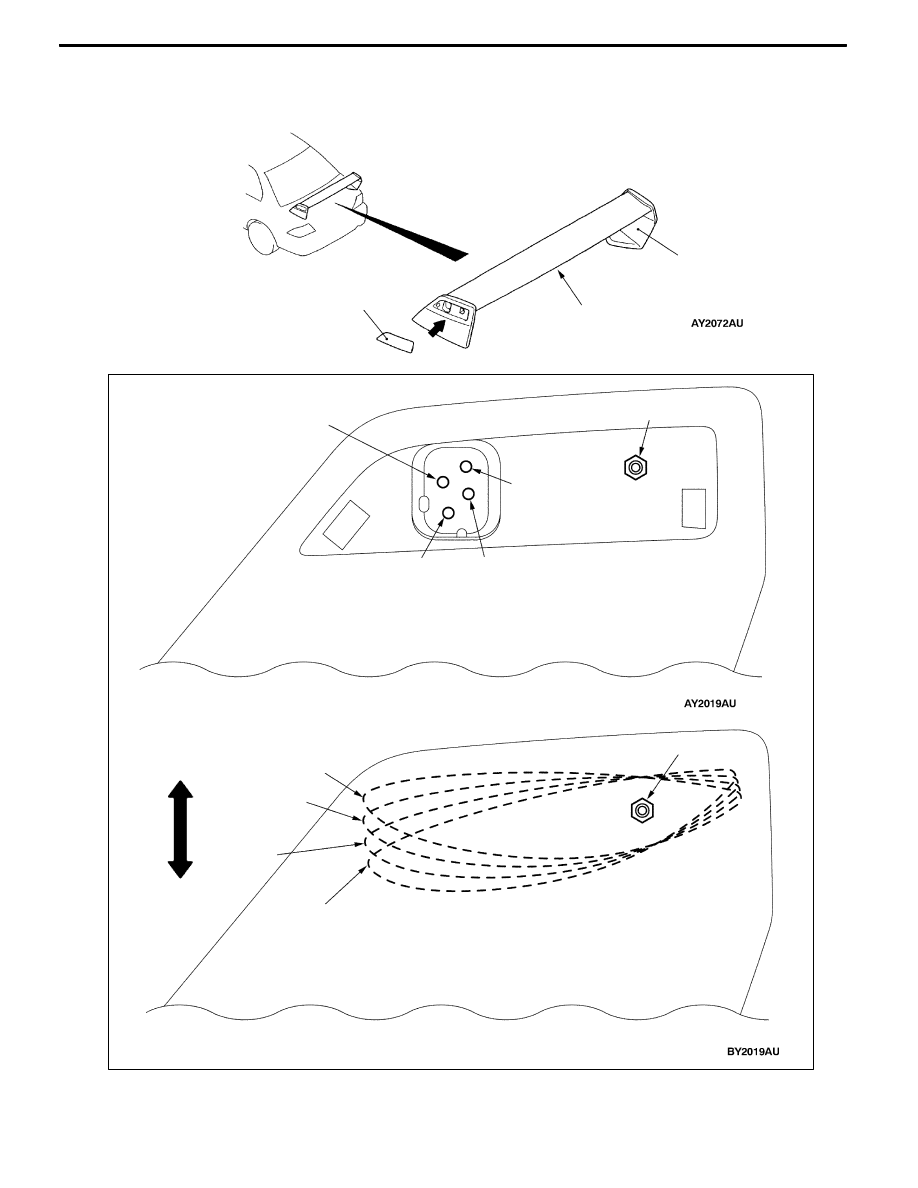

ELEVATION

-ADJUSTABLE LARGE REAR SPOILER

Remove the cap of the rear spoiler, loosen the elevation fulcrum nut, and change the four installing

holes of the adjustment bolts to adjust the elevation of the spoiler wing according to the driving conditions.

Rear spoiler

Cap

A

View A <Adjustment Bolt Installing Hole

Positions>

View A <Movable Angle>

Step 1 installing hole

Step 2 installing

hole

Step 3 installing hole

Step 4 installing hole

Elevation fulcrum nut

Step 1

Step 2

Step 3

Step 4

Elevation fulcrum nut

Wing

Down force (Large)

Down force (Small)
