Mitsubishi Lancer Evolution 7. Manual - part 32





EXTERIOR

- Outside Mirror

5-5

OUTSIDE MIRROR

A power remote control type <RS-II>, or manual type <RS> outside mirror has been installed.

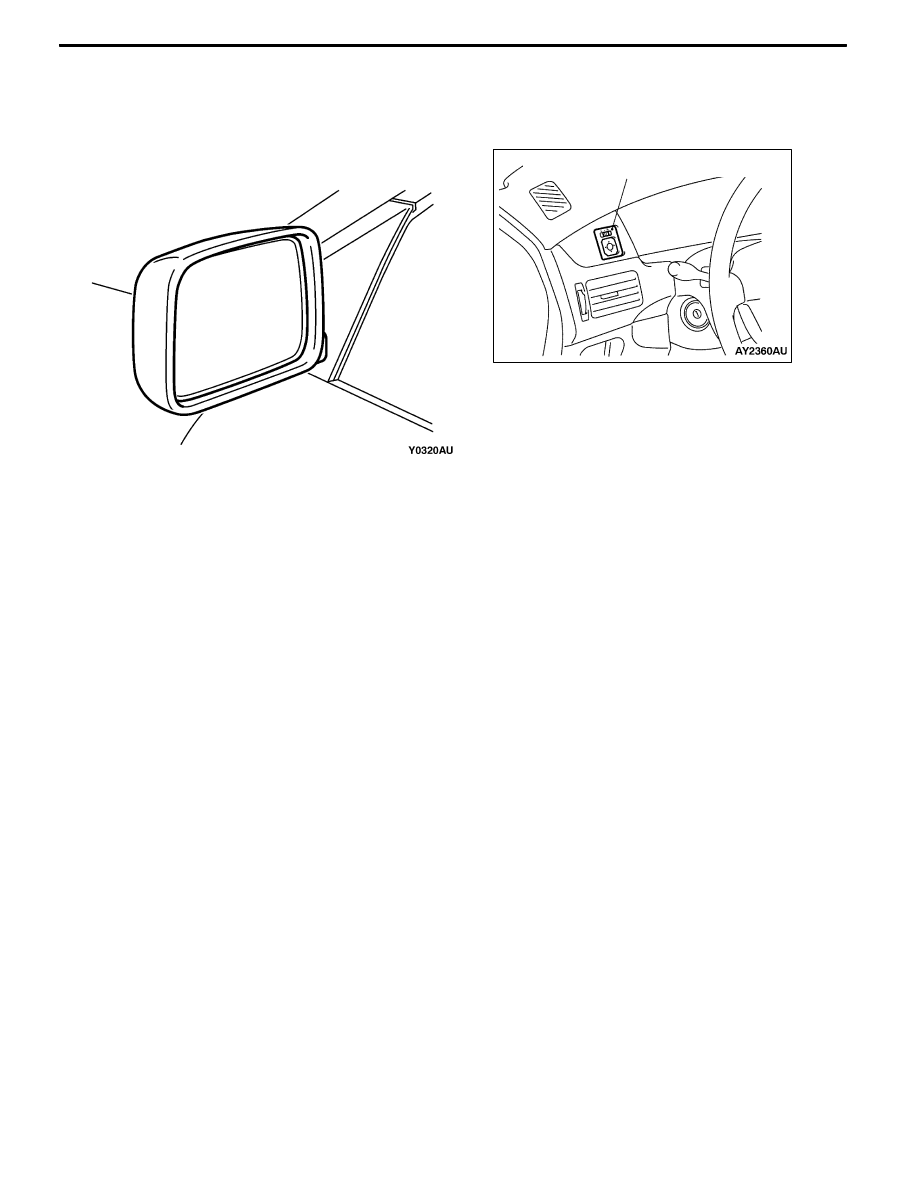

CONSTRUCTION DIAGRAM

Power remote control mirror switch

EXTERIOR

- Wiper and Washer

5-6

WIPER AND WASHER

WINDSHIELD WIPER

D

Two-speed type windshield wipers to be operable in a low or high speed have been adopted.

D

Intermittent wipers with the variable intermittent time have been adopted.

D

Due to the installation of wiper link assembly with frames, higher rigidity of link assembly has achieved

reduction of incomplete cleaning by smoother wiper operation and improvements in quiet wiper operation.

D

The adoption of mist wiper function to turn the mist switch in the opposite direction of the wiper

switch movement has improved easiness-to-use. The wipers operate in a high speed while the mist

switch is turned to the ON position. When the mist switch is turned to the OFF position, the speed

of wiper operation becomes slow and the wipers move to the stop position. When the mist switch

is turned to the ON position for a moment, the wipers operate once in a low speed.

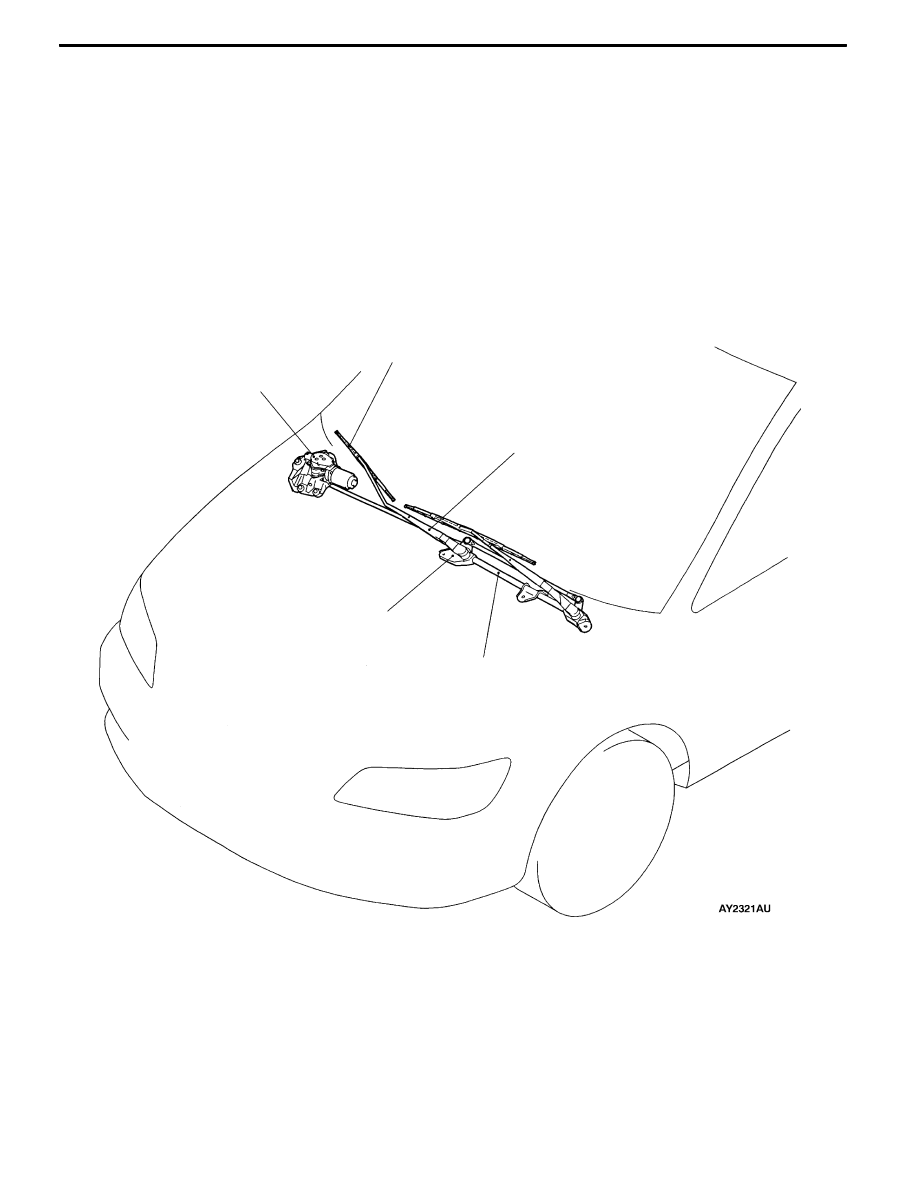

CONSTRUCTION DIAGRAM

Wiper link assembly

Wiper arm

Wiper blade

Wiper motor

Frame

EXTERIOR

- Wiper and Washer

5-7

WINDSHIELD WASHER

D

2-nozzle and 4-jet type indoor shield washers have been installed. Furthermore, the wiper related

to washers function has been adopted.

D

A washer tank has been installed in the trunk room.

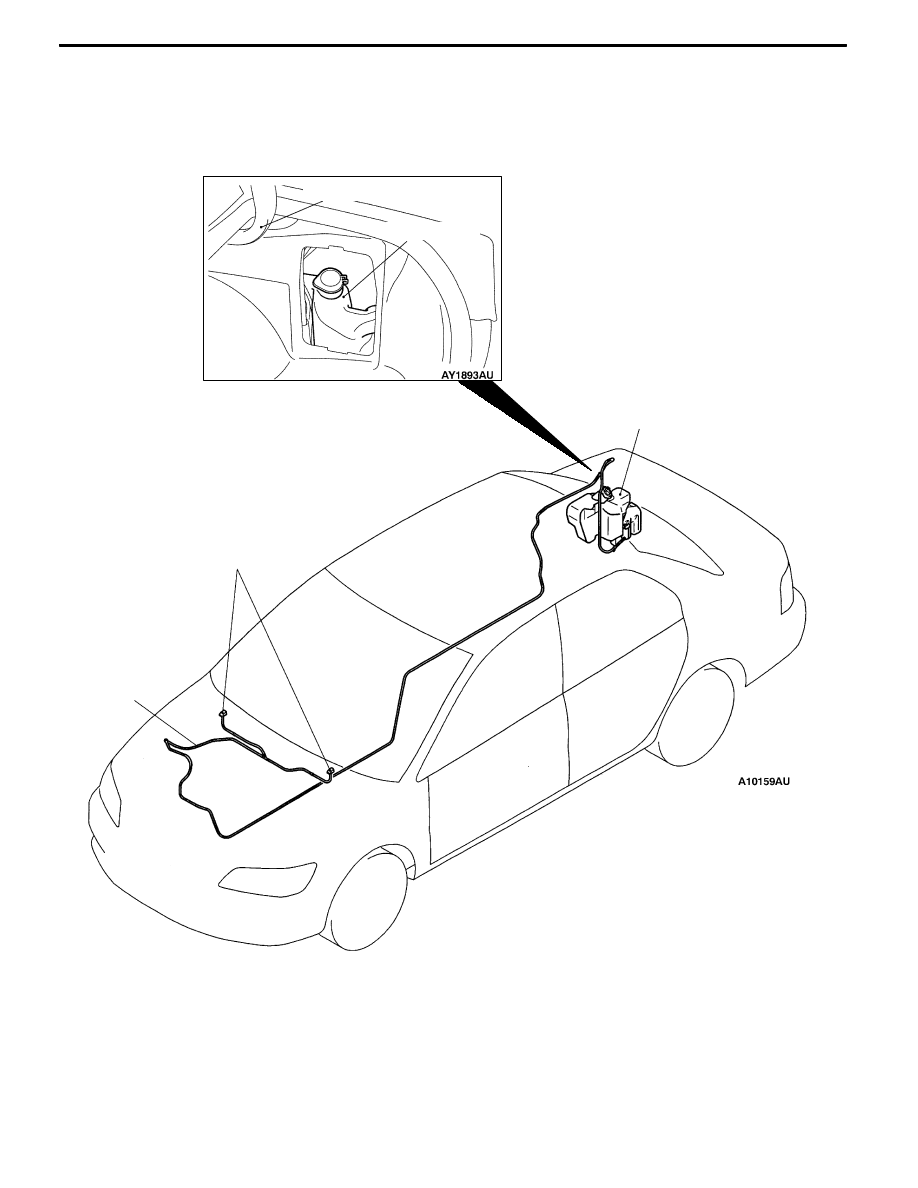

CONSTRUCTION DIAGRAM

Washer nozzle

Washer hose

Washer tank

Trunk lid hinge

Washer tank

NOTES
