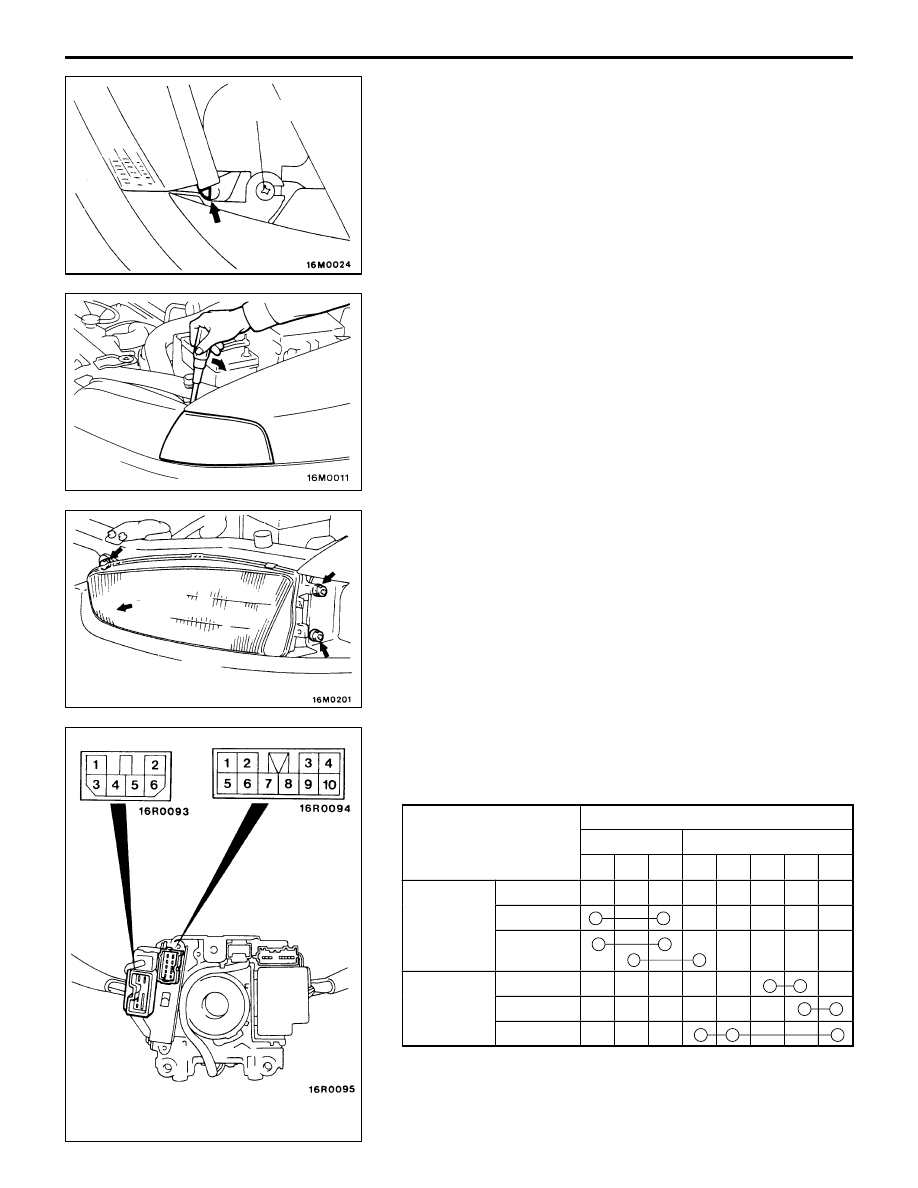

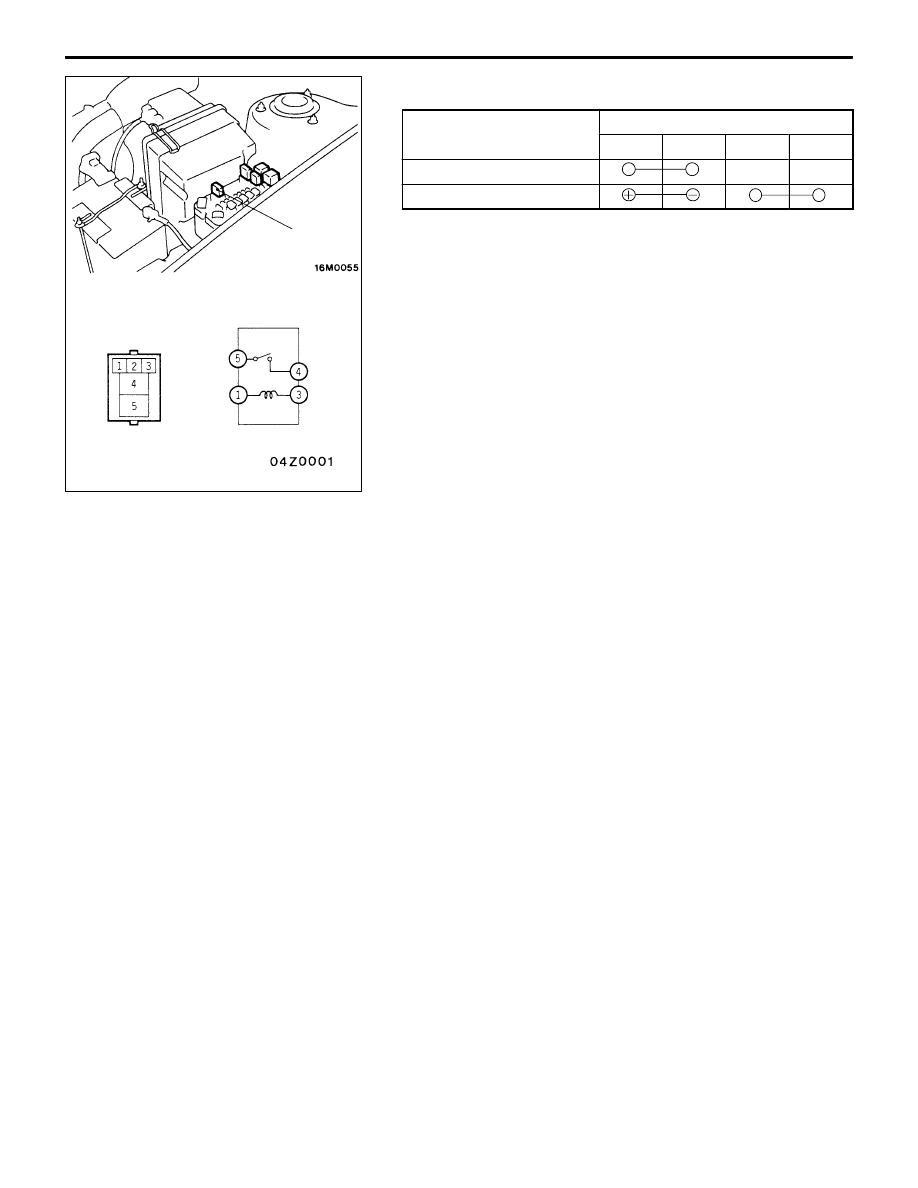

CHASSIS ELECTRICAL –

Headlamp

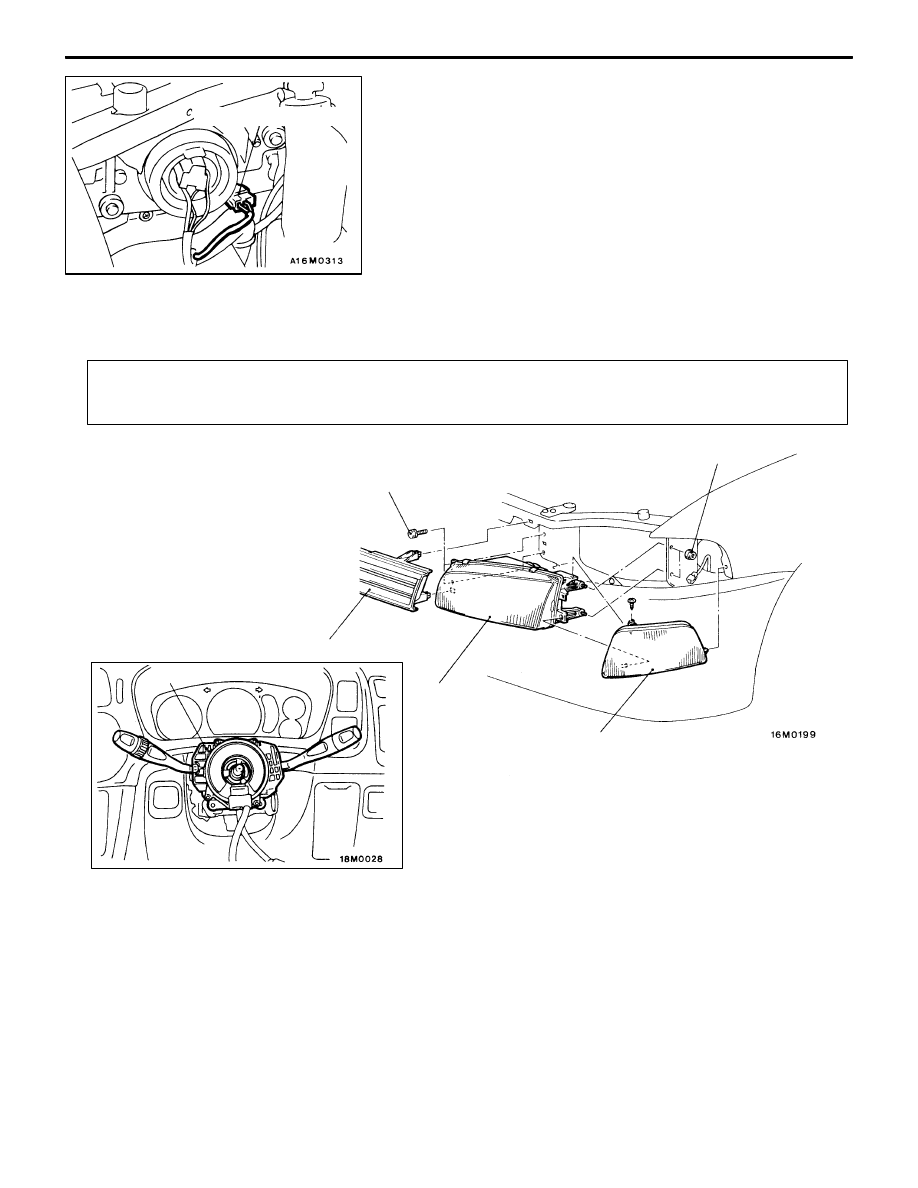

CHASSIS ELECTRICAL –

Headlamp

54-36

  4. After the bulb is replaced, reinstall the socket cover with

the TOP mark facing upward.

NOTE
To prevent the clouding of lens and ingress of water into
the lamp unit, install the socket cover correctly.

POSITION LAMP BULB REPLACEMENT

Remove the position lamp by turning it together with the lamp
socket, then replace its bulb.

HEADLAMP AND FRONT TURN-SIGNAL LAMP

REMOVAL AND INSTALLATION

CAUTION: SRS
Before removal of air bag module and clock spring, refer to GROUP 52B – SRS Service Precautions and Air
Bag Module and Clock Spring.

5 Nm

2

3

4

5 Nm

1

1. Column switch

Removal steps

A

A

"

2. Front turn-signal lamp
3. Radiator grille

"

A

A

4. Headlamp

Position lamp connector

CHASSIS ELECTRICAL –

Headlamp

54-37

REMOVAL SERVICE POINT

A

A

"

FRONT TURN-SIGNAL LAMP REMOVAL

1.

Loosen the tapping screw connecting the headlamp to
the front turn-signal lamp. Put a screwdriver in the space
produced between the headlmap and the front turn-signal
lamp.

2.

Prying the screwdriver in the direction shown, thrust the
front turn-signal lamp in the direction of the vehicle.

3.

Unplug the connector and remove the front turn-signal
lamp.

INSTALLATION SERVICE POINT

"

A

A

HEADLAMP INSTALLATION

Tighten attaching bolts and nuts in the order of A, B, C and
D.

INSPECTION

LIGHTING SWITCH, DIMMER/PASSING SWITCH
CONTINUITY CHECK

Switch position

Terminal No.

Connector A

Connector B

5

6

7

1

2

3

4

6

LIGHTING
SWITCH

OFF

SWITCH

TAIL

HEAD

DIMMER/
PASSING

LOWER

PASSING
SWITCH

UPPER

SWITCH

PASSING

Tapping screw

A

D

B

C

Connector A

Connector B

CHASSIS ELECTRICAL –

Headlamp

54-38

HEADLAMP RELAY CONTINUITYCHECK

Battery voltage

Terminal No.

1

3

4

5

Not supplied

Supplied

Headlamp relay

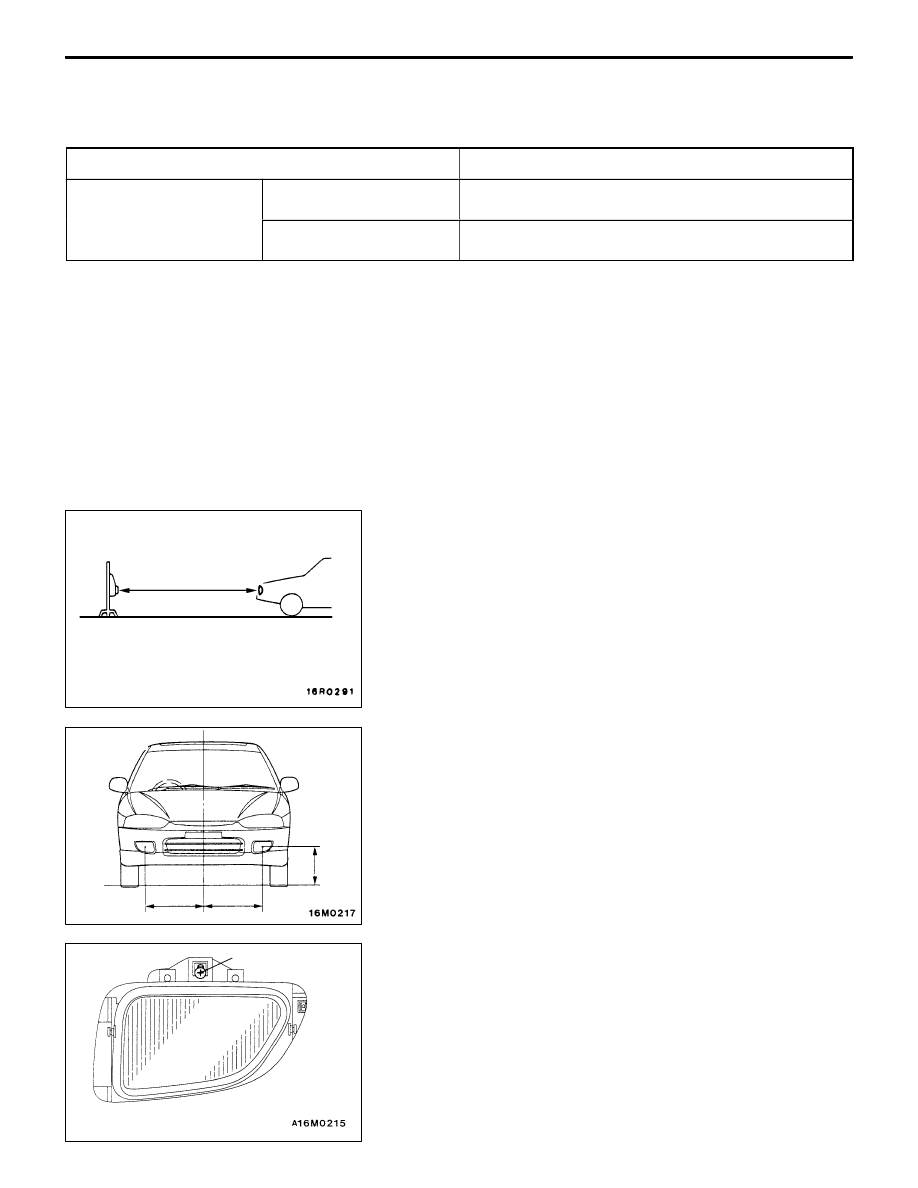

CHASSIS ELECTRICAL –

Front Fog Lamp

54-39

FRONT FOG LAMP

SERVICE SPECIFICATIONS

Items

Standard value

Headlamp aiming [Paren-
thesized are allowable

Vertical direction

2

°

 (349 mm) below horizontal line (H)

t
beam axis deviations 10 m
ahead of headlamp.]

Horizontal direction

3

°

 (524 mm) leftward from vertical line (V)

ON-VEHICLE SERVICE

HEADLAMP AIMING

Bring the vehicle in the following conditions before aiming
the headlamp.

D

Check the tires for inflation pressure. Pump them up if
necessary to the labeled pressure level.

D

Set the vehicle unladen on a level floor.

D

Place one person (approximately 55 kg) on the driver’s
seat.

D

Maintain an engine speed of 2,000 r/min to keep the
battery in the charged condition.

1.

Position the tester so that its converging lens faces the
fog lamp center to center at a distance of 10 m.

NOTE
Measure the center of the fog lamp as shown.
A: 572.5 mm (from the center of the vehicle body)
B: 360 mm

2.

Remove the fog lamp bezel, and using the aiming
adjustment screw, aim the fog lamp to the standard value.

NOTE
The horizontal direction is non-adjustable. If the  beam
axis deviation exceeds the standard value, check the
fog lamp to determine if it is installed out of position and
correct if necessary.

Face to face 10 m apart from
each other

A

A

B

Adjusting screw
