EXTERIOR  –

Front Bumper / Aero Parts

51-4

DISASSEMBLY SERVICE POINT

A

A

"

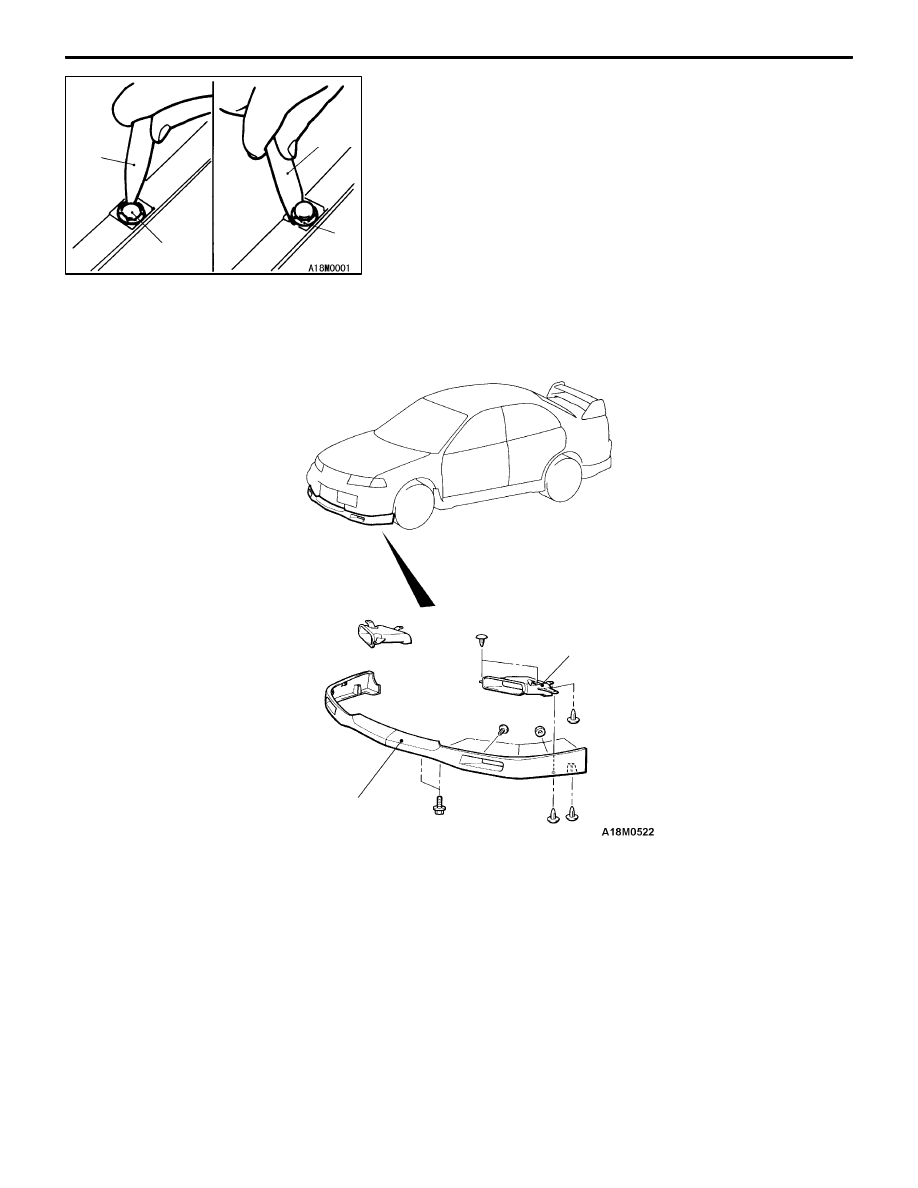

CLIP REMOVAL

1.

Use the special tool to pull up the center pin in the clip.

2.

Remove the clip.

AERO PARTS

REMOVAL AND INSTALLATION

2

1

Front airdam removal steps

1. Air blow duct

A

A

" "

A

A

2. Front airdam

NOTE
The removal and installation service points for the new model
are the same as those for the preceding models.

Pin

Clip

MB990784

MB990784

EXTERIOR  –

Aero Parts

51-5

2

1

3

5 Nm

Adhesive tape: double-sided tape [1.6 mm thickness]

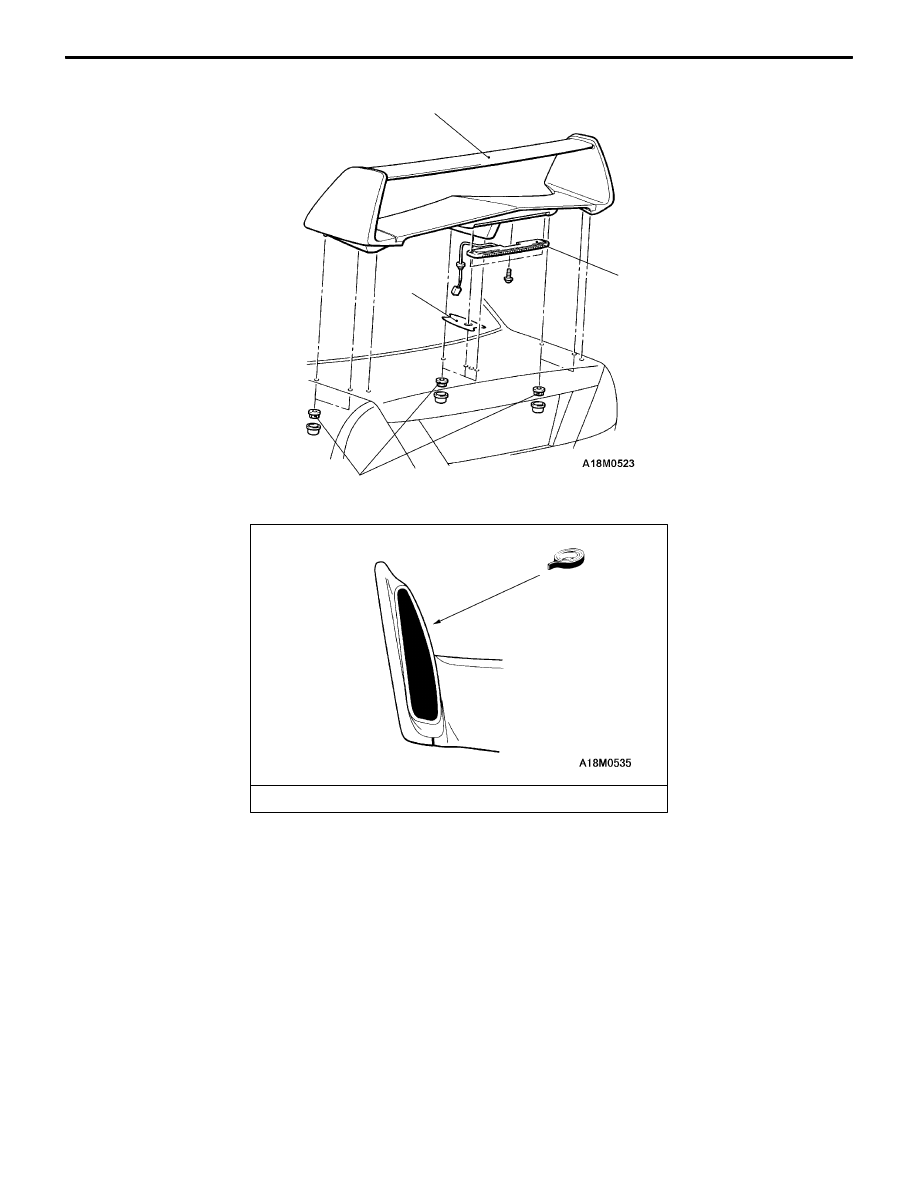

Rear spoiler removal steps

1. Rear spoiler
2. Packing
3. High-mount stop lamp

EXTERIOR  –

Washer Tank and Hoses

51-6

WASHER TANK AND HOSES

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operations

D

Washer Fluid Draining and Pouring

D

Trunk Side Trim (L.H.) Removal and Installation
<GSR>

2

1

3

5

4

6

To rear washer

To windshield washer

5 Nm

6

6

5

5

6

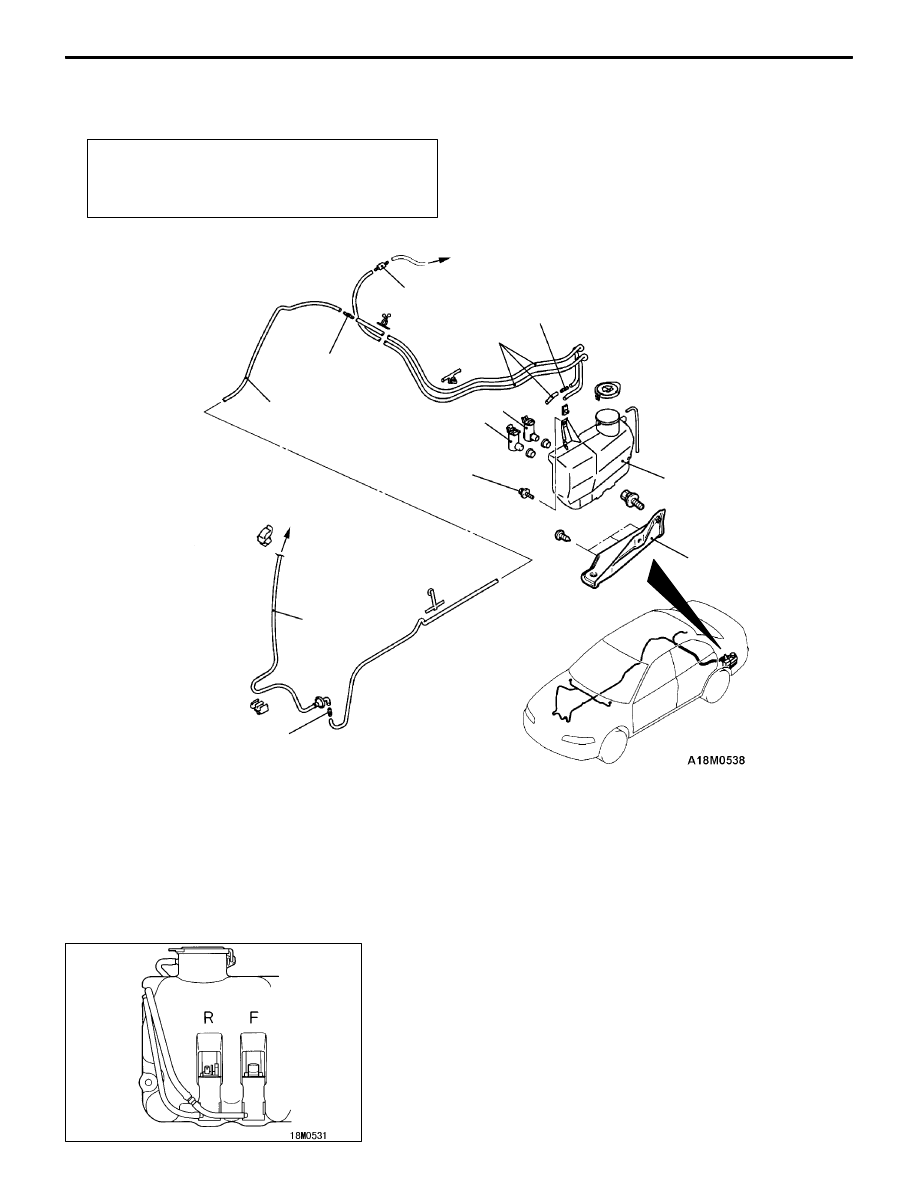

Washer tank removal steps

1. Washer tank assembly
2. Washer tank bracket

"

A

A

3. Washer motor (rear)

"

A

A

4. Washer motor (front)

Washer hose removal steps

D

Front seat and rear seat

D

Floor carpet

5. Washer hose
6. Joint

INSTALLATION SERVICE POINT

"

A

A

WASHER MOTOR (FRONT) / WASHER MOTOR
(REAR) INSTALLATION

When installing the washer motors, pay special attention to
the following:
1.

Connector shape (front: 2-pole round connector, rear:
2-pole square connector)

2.

Connection of washer tubes

EXTERIOR  –

Intercooler & Radiator Water Spray System

51-7

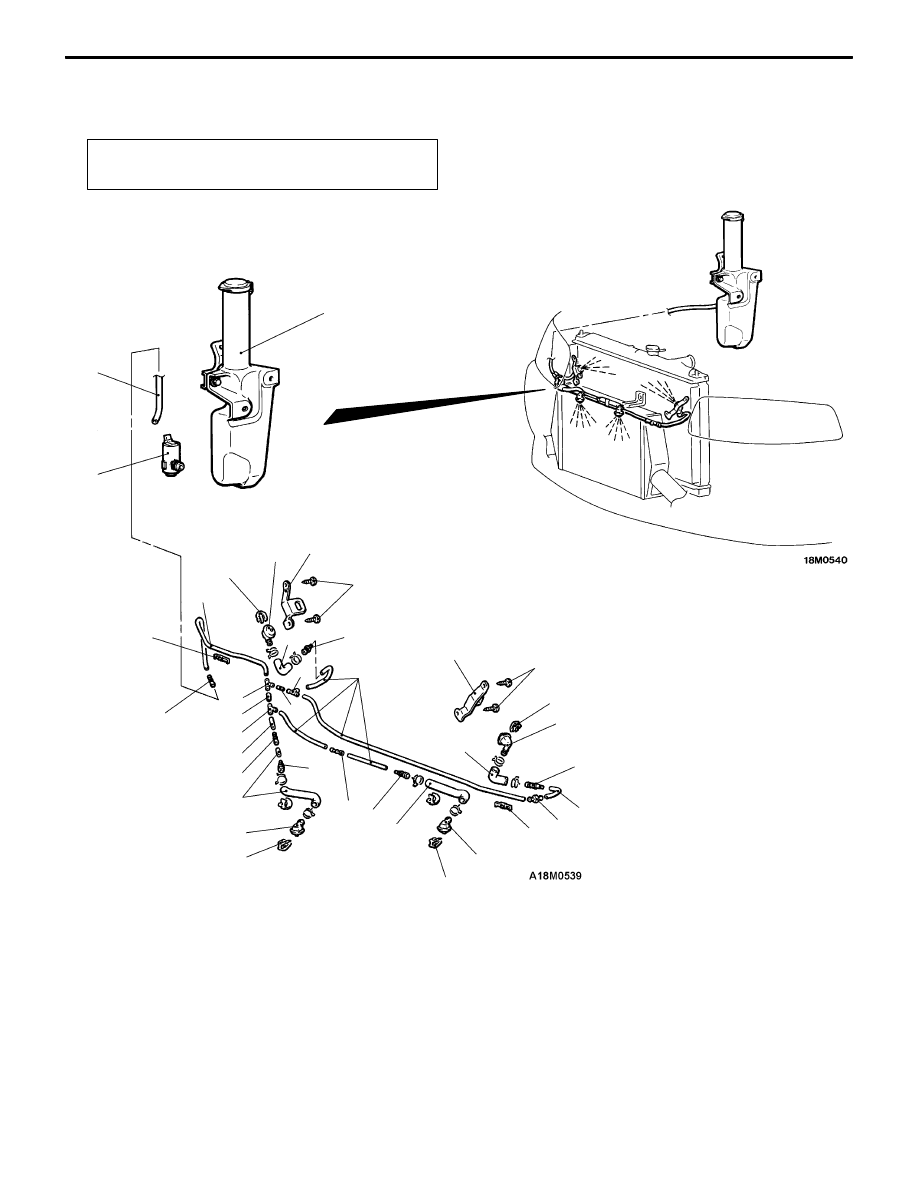

INTERCOOLER & RADIATOR WATER SPRAY SYSTEM

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operations
Front Bumper Removal and Installation (Refer to P.51-2)

2

1

3

5

4

6

8

7

9

10

2.5 Nm

2.5 Nm

4

5

4

4

5

5

6

4

4

4

2

1

5

6 5

4

2

1

7

5

4

4

3

2

1

5

1. Clamp
2. Water spray nozzle
3. Water spray nozzle bracket

"

A

A

4. Water spray hose
5. Joint
6. Stop valve

"

A

A

7. Clip

Water spray motor removal steps

8. Water spray tank
9. Water spray hose

10. Water spray tank

NOTE
(1) The installation service points for the new model are the

same as those for preceding models.

(2) The water spray switch can be serviced in the same

procedure as for the preceding models.
