Mitsubishi Lancer Evolution VI. Manual - part 86

BODY –

Sunroof

42-18

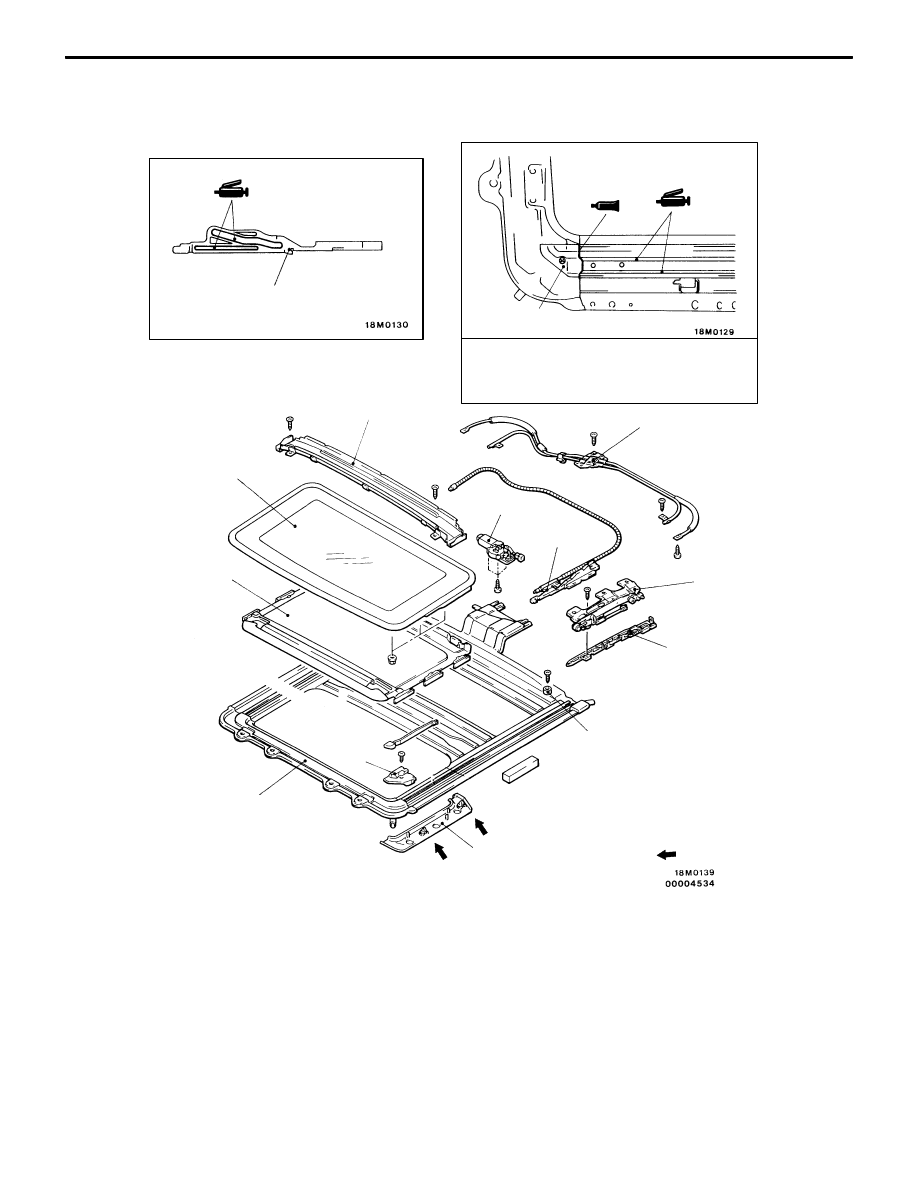

DISASSEMBLY AND REASSEMBLY

Sealant:
3M ATD Part No.8531 or 3M Part
No.8646, or equivalent

NOTE

:Clip position

Disassembly steps

1. Side decoration cover

(Refer to P.42-15.)

2. Roof lid glass assembly
3. Sunroof motor
4. Drip rail assembly
5. Sunshade assembly
6. Cushion (B) assembly

7. Drive unit assembly
8. Decoration link
9. Guide (A) assembly

10. Slider assembly

11. Rail cover assembly

12. Frame sub assembly

EXTERIOR –

General / Special Tool / Front Bumper

51-2

GENERAL

OUTLINE OF CHANGE

As the following changes had been made, the service procedures for the relating components have
been newly established.

Front bumper and aero parts changed

Front and rear window washer tank relocated to the luggage compartment

Intercooler & radiator water spray system changed

Marks changed

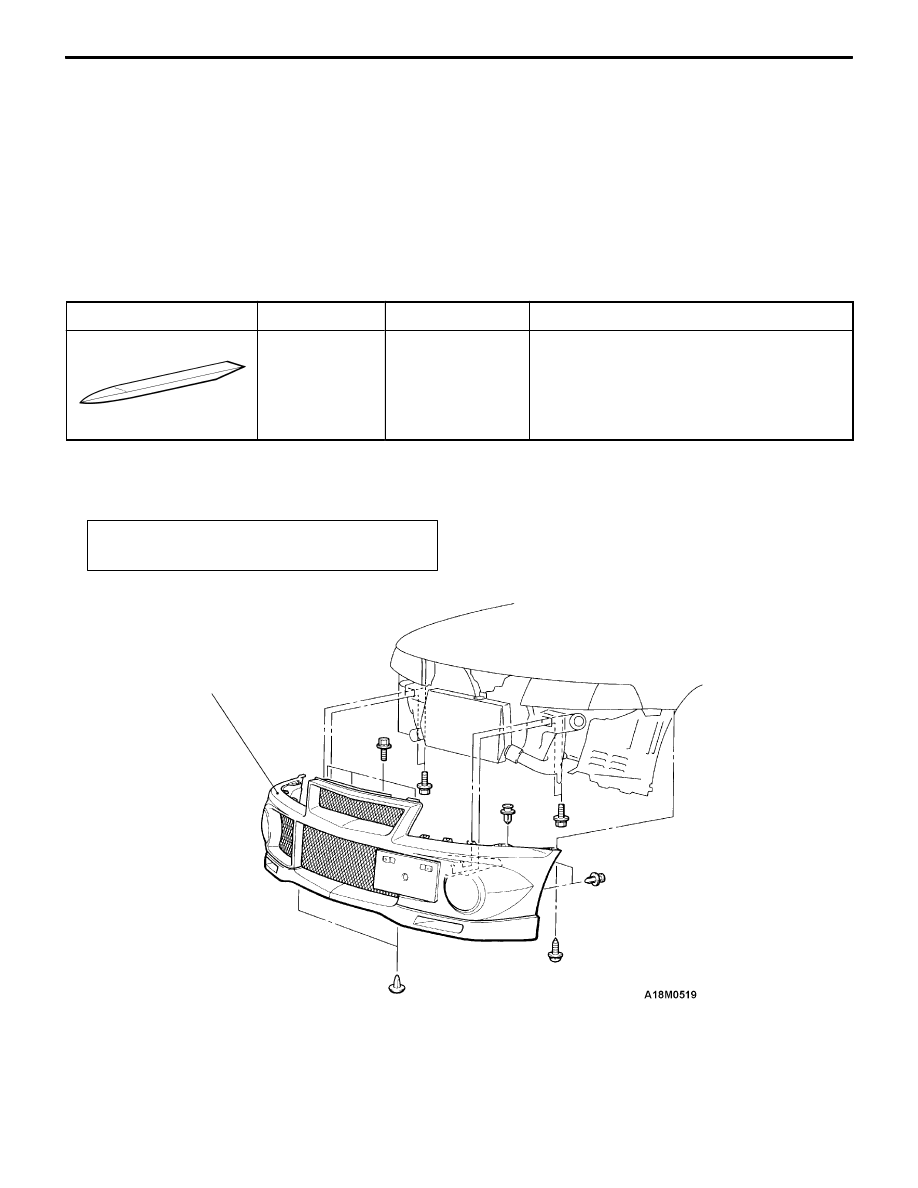

SPECIAL TOOL

Tool

Number

Name

Use

B990784

MB990784

Ornament remover

Removal of front bumper

FRONT BUMPER

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operations

Front Turn Signal Lamp Removal and Installation

Front bumper assembly

EXTERIOR –

Front Bumper

51-3

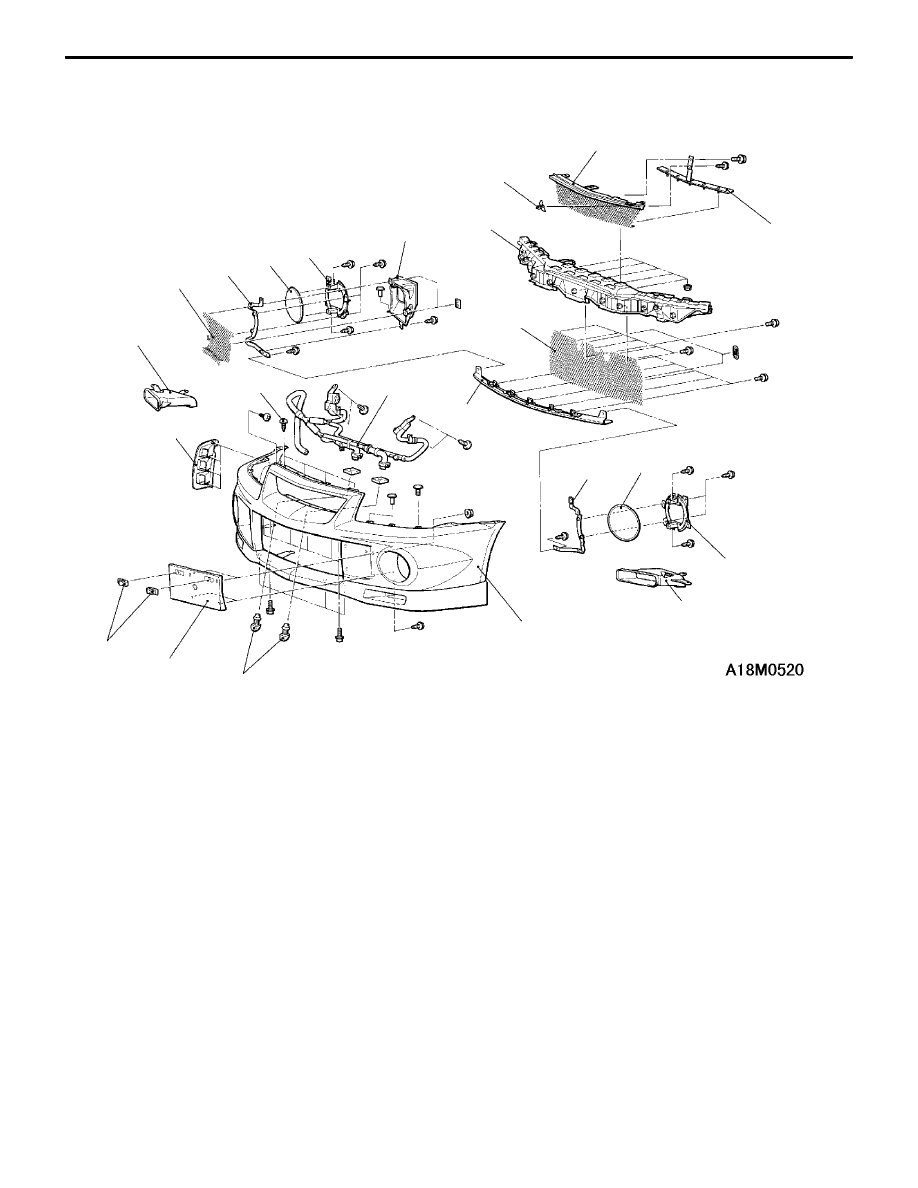

DISASSEMBLY AND REASSEMBLY

Disassembly steps

Front airdam (Refer to P.51-4)

1. Licence plate bracket
2. Licence plate garnish
3. Three-diamond mark
4. Front fog lamp cover
5. Front fog lamp plate
6. Oil cooler duct
7. Bumper side stay
8. Air outlet garnish (R.H. side only)
9. Bumper side net

10. Bumper bolt plate

11. Clip

12. Bumper upper reinforcement

assembly

13. Bumper lower reinforcement
14. Bumper reinforcement
15. Bumper center net
16. Water spray hose assembly
17. Water spray nozzle
18. Air blow duct
19. Bumper face
