ENGINE  –

Timing Belt

11-15

TIMING BELT

REMOVAL AND INSTALLATION

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18 19

20

21

22

23

24

25

26

27

28

29

30

31

32

 9 Nm

 9 Nm

 49 Nm

 11 Nm

 11 Nm

 19 Nm

 3.5 Nm

 30 Nm

 45 Nm

 49 Nm

 118 Nm

 88 Nm

 48 Nm

 49 Nm

 11 Nm

 24 Nm

 24 Nm

 54 Nm

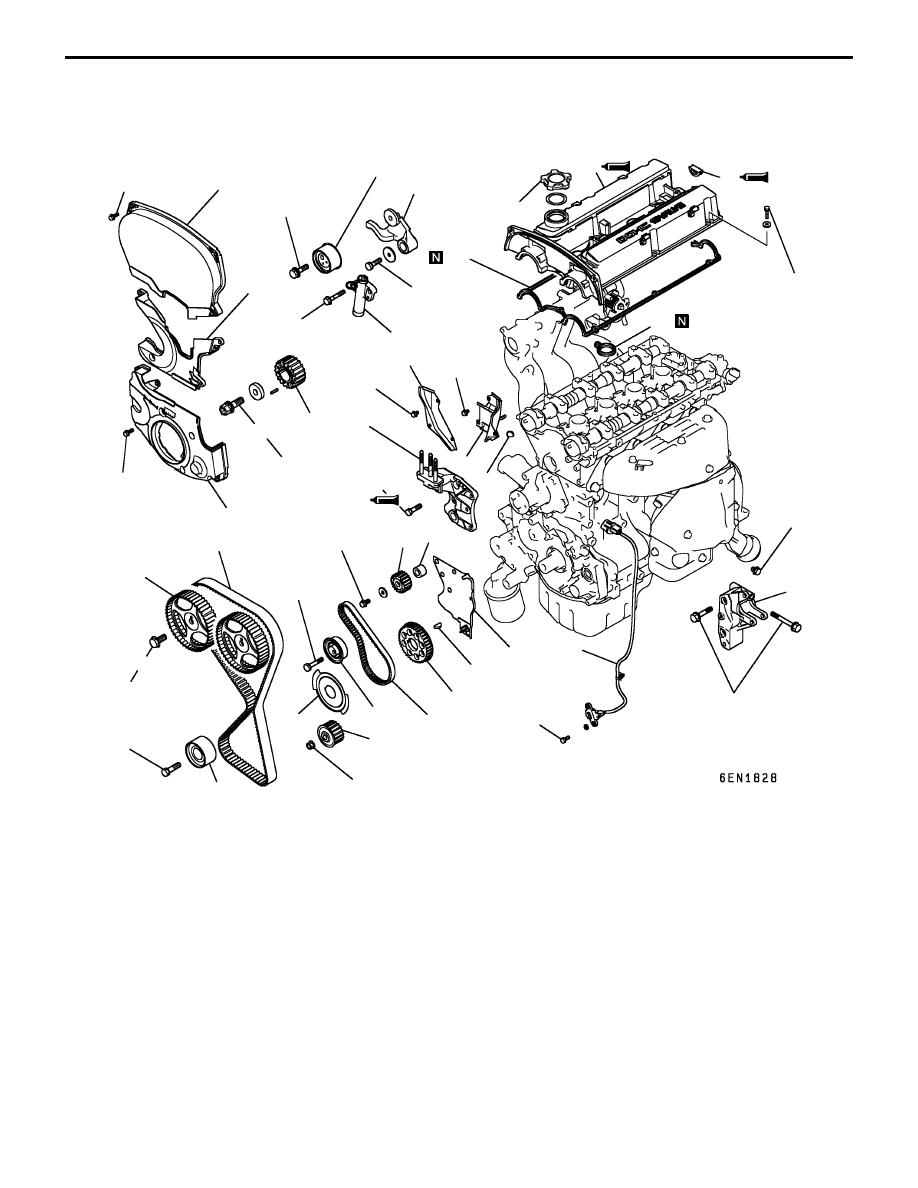

Removal steps

1. Timing belt front upper cover
2. Timing belt front center cover
3. Rubber plug
4. Timing belt front lower cover
5. Power steering pump bracket

A

A

" "

L

A

6. Timing belt

"

K

A

7. Tensioner pulley
8. Tensioner arm

"

J

A

9. Auto tensioner

10. Idler pulley

11. Crank angle sensor

A

B

" "

I

A

12. Oil pump sprocket

A

C

" "

H

A

13. Crankshaft sprocket bolt

A

D

"

14. Crankshaft sprocket
15. Crankshaft sensing blade
16. Tensioner B

A

E

" "

G

A

17. Timing belt B

A

F

" "

F

A

18. Counterbalance shaft sprocket

"

E

A

19. Crankshaft spacer

A

G

"

20. Crankshaft sprocket B
21. Crankshaft key
22. Oil filler cap

"

D

A

23. Rocker cover
24. Rocker cover gasket A
25. Rocker cover gasket B

"

C

A

26. Semi-circular packing

"

B

A

27. Engine support bracket

A

H

" "

A

A

28. Camshaft sprocket bolt
29. Camshaft sprocket
30. Timing belt rear right cover
31. Timing belt rear left upper cover
32. Timing belt rear left lower cover

ENGINE  –

Timing Belt

11-16

REMOVAL SERVICE POINTS

A

A

"

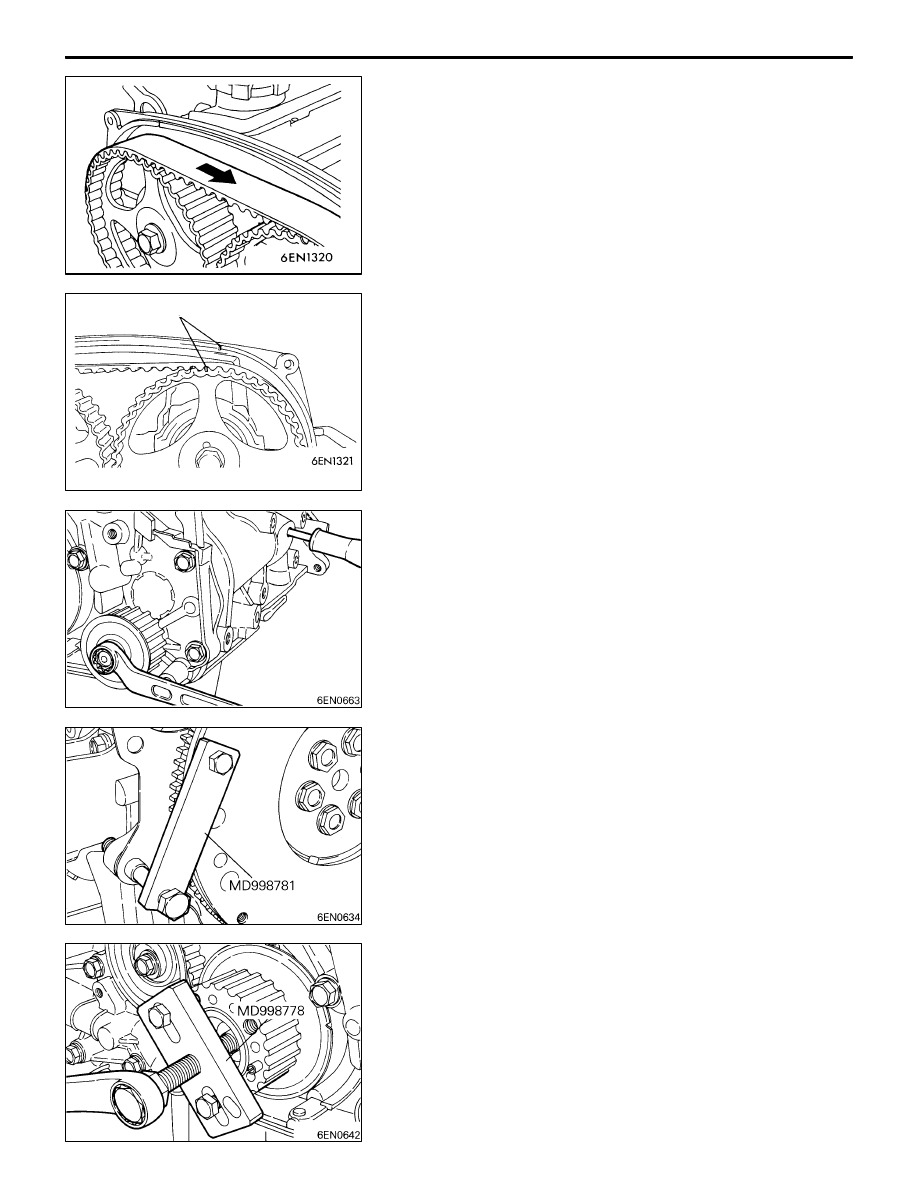

TIMING BELT REMOVAL

(1) If the timing belt is to be reused, chalk an arrow mark

on the back surface of the belt so that the belt can be
reinstalled in the same direction.

(2) Place the exhaust camshaft sprocket in a position where

the timing mark for No. 1 cylinder is positioned about
one tooth before the top dead center of the compression
stroke.

Caution
The camshaft sprocket on the exhaust side can turn
very easily because of the valve spring tension. Use
care not to allow your fingers to get caught by the
sprocket.

(3) Loosen the lock nut of the tensioner pulley, then remove

the timing belt.

A

B

"

OIL PUMP SPROCKET REMOVAL

(1) Remove the plug on the left side of cylinder block.
(2) Insert a screwdriver (shank diameter 8 mm) to block the

counterbalance  shaft.

(3) Remove the nut.
(4) Remove the oil pump sprocket.

A

C

"

CRANKSHAFT BOLT LOOSENING

(1) Hold the drive plate with the special tool as shown.
(2) Remove the crankshaft bolt.

A

D

"

CRANKSHAFT SPROCKET REMOVAL

If it is difficult to remove the sprocket, use the special tool.

Timing mark

ENGINE  –

Timing Belt

ENGINE  –

Timing Belt

11-17

A

E

"

TIMING BELT “B” REMOVAL

Make a mark on the back of the timing belt indicating the
direction of rotation so it may be reassembled in the same
direction if it is to be reused.

NOTE
(1) Water or oil on the belt shortens its life drastically, so

the removed timing belt, sprocket, and tensioner must
be free from oil and water. These parts should not be
washed. Replace parts if seriously contaminated.

(2) If there is oil or water on each part check front case

oil seals, camshaft oil seal and water pump for leaks.

A

F

"

COUNTERBALANCE SHAFT SPROCKET
REMOVAL

(1) Set the special tool as shown to prevent the

counterbalance  shaft sprocket from turning together.

(2) Loosen the bolt and remove the sprocket.

A

G

"

CRANKSHAFT SPROCKET “B” REMOVAL

If it is difficult to remove the sprocket, use the special tool.

A

H

"

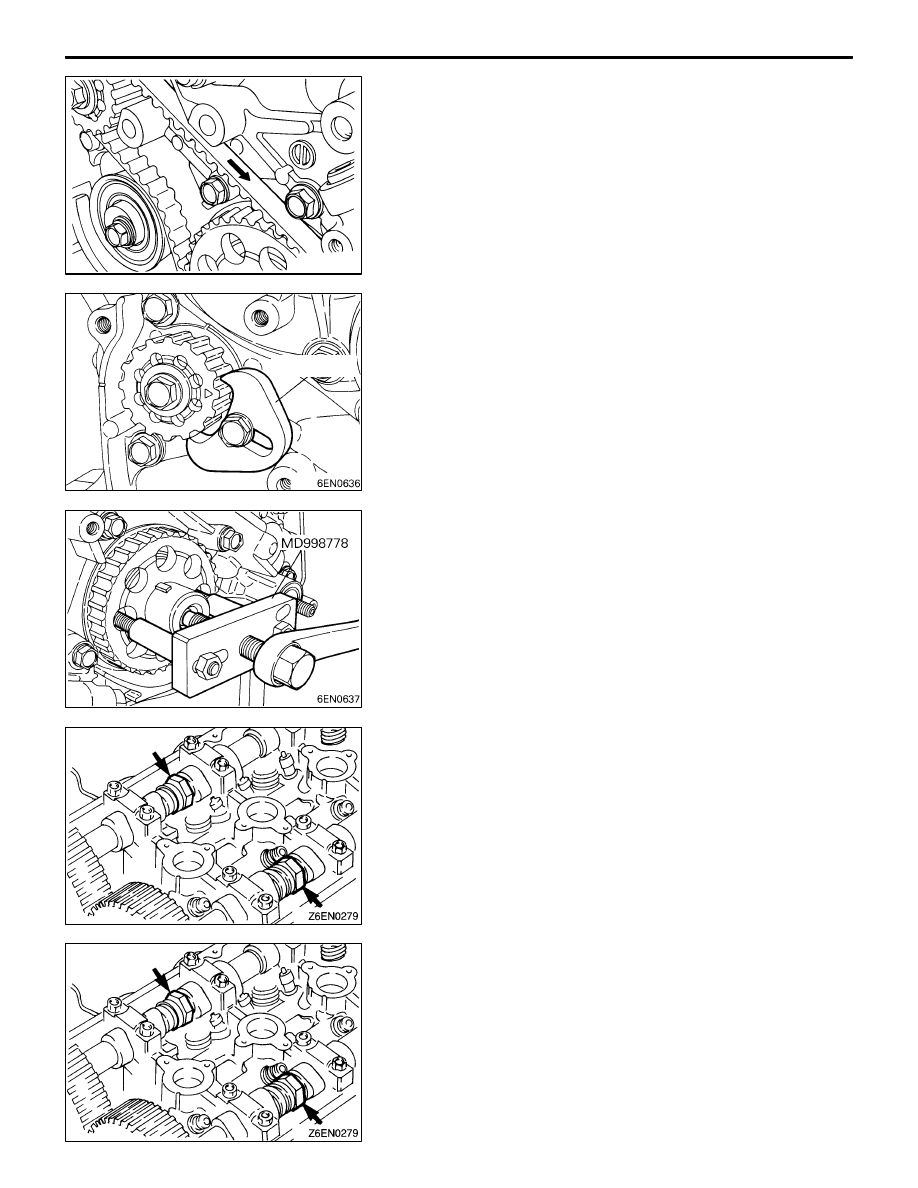

CAMSHAFT SPROCKET BOLT LOOSENING

Use a wrench to hold the hexagonal part of the camshaft,
and then remove the camshaft sprocket mounting bolt.

INSTALLATION SERVICE POINTS

"

A

A

CAMSHAFT SPROCKET BOLT TIGHTENING

Using a wrench, hold the camshaft at its hexagon and tighten
the bolt to the specification.

6EN1322

MD998785

ENGINE  –

Timing Belt

11-18

"

B

A

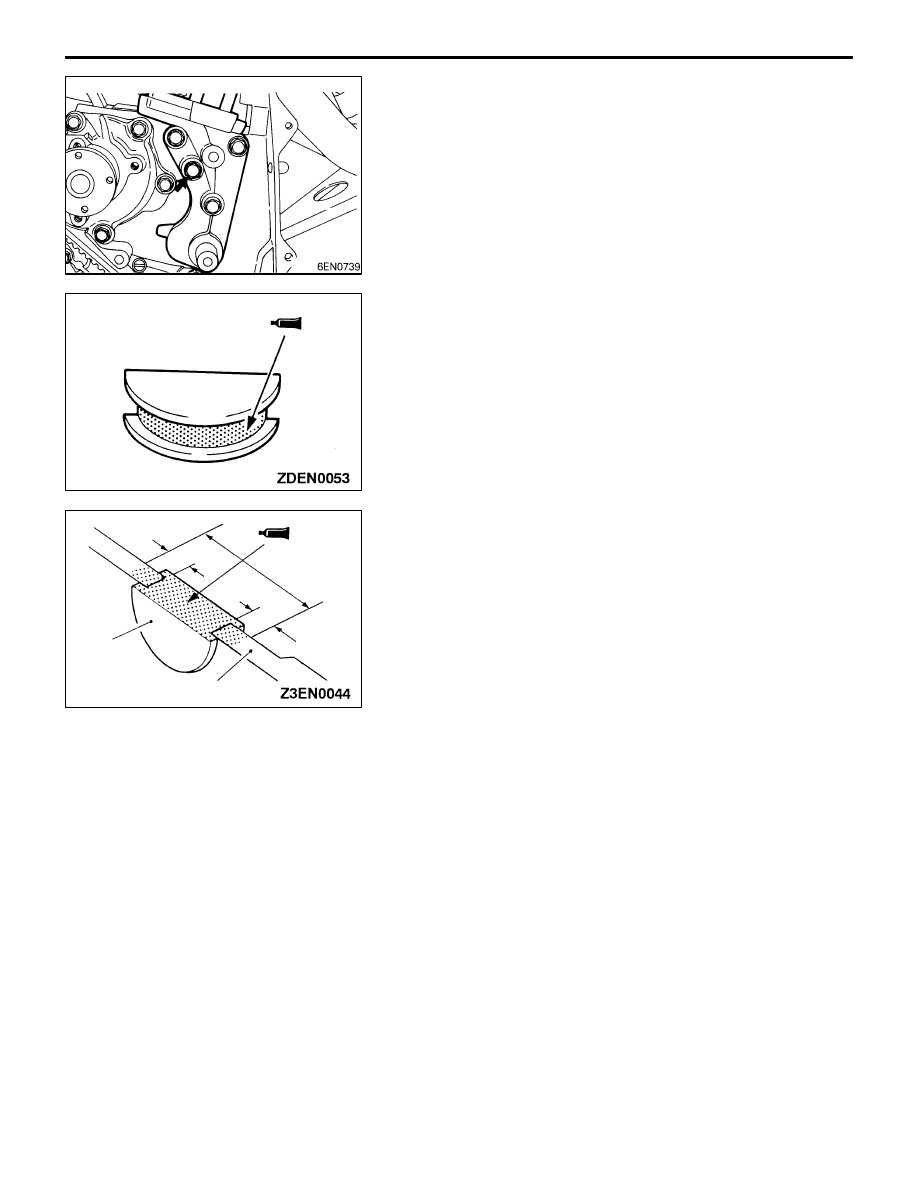

ENGINE SUPPORT BRACKET INSTALLATION

Coat the bolts illustrated with sealant before tightening.

Specified sealant: 3M

TM

 AAD Part No. 8672 or equivalent

"

C

A

SEALANT APPLICATION TO SEMI-CIRCULAR
PACKING

Specified sealant: 3M

TM

 AAD Part No. 8672 or equivalent

10 mm

10 mm

Semi-
circular
packing

Cylinder head
