ENGINE  –

Special Tools

11-11

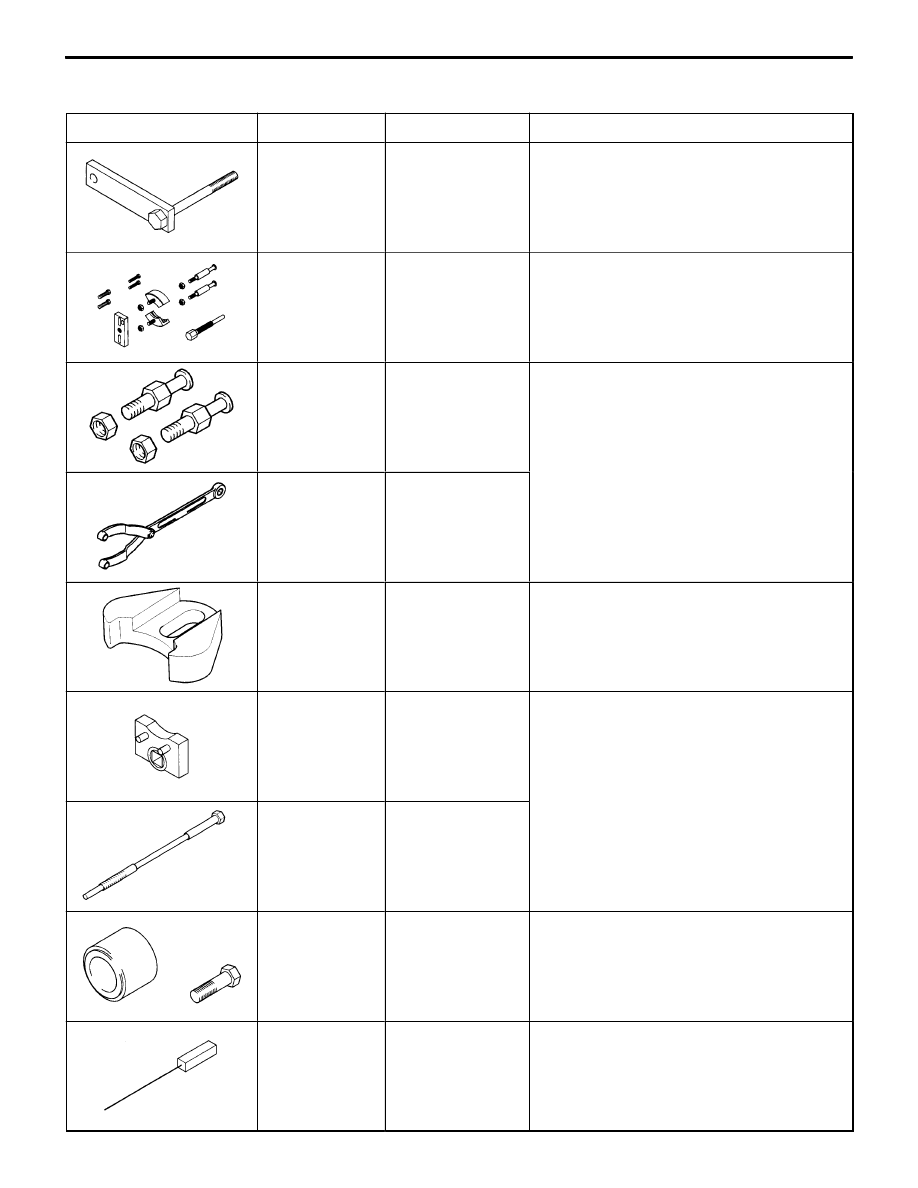

SPECIAL TOOLS

Tool

Number

Name

Use

MD998781

Flywheel stopper

Holding of flywheel and drive plate

MD998778

Crankshaft
sprocket puller

Removal of crankshaft sprocket

MD998719

Pulley holder pin

Holding camshaft sprocket

MB990767

Crankshaft pulley
holder

MD998785

Sprocket stopper

Holding silent shaft sprocket

MD998767

Tensioner puller
socket wrench

Adjustment of timing belt tension

MD998738

Set screw

MD998713

Camshaft oil seal
installer

Installation of camshaft oil seal

MD998442

Lash adjuster wire

Air bleeding of lash adjuster

ENGINE  –

Special Tools

11-12

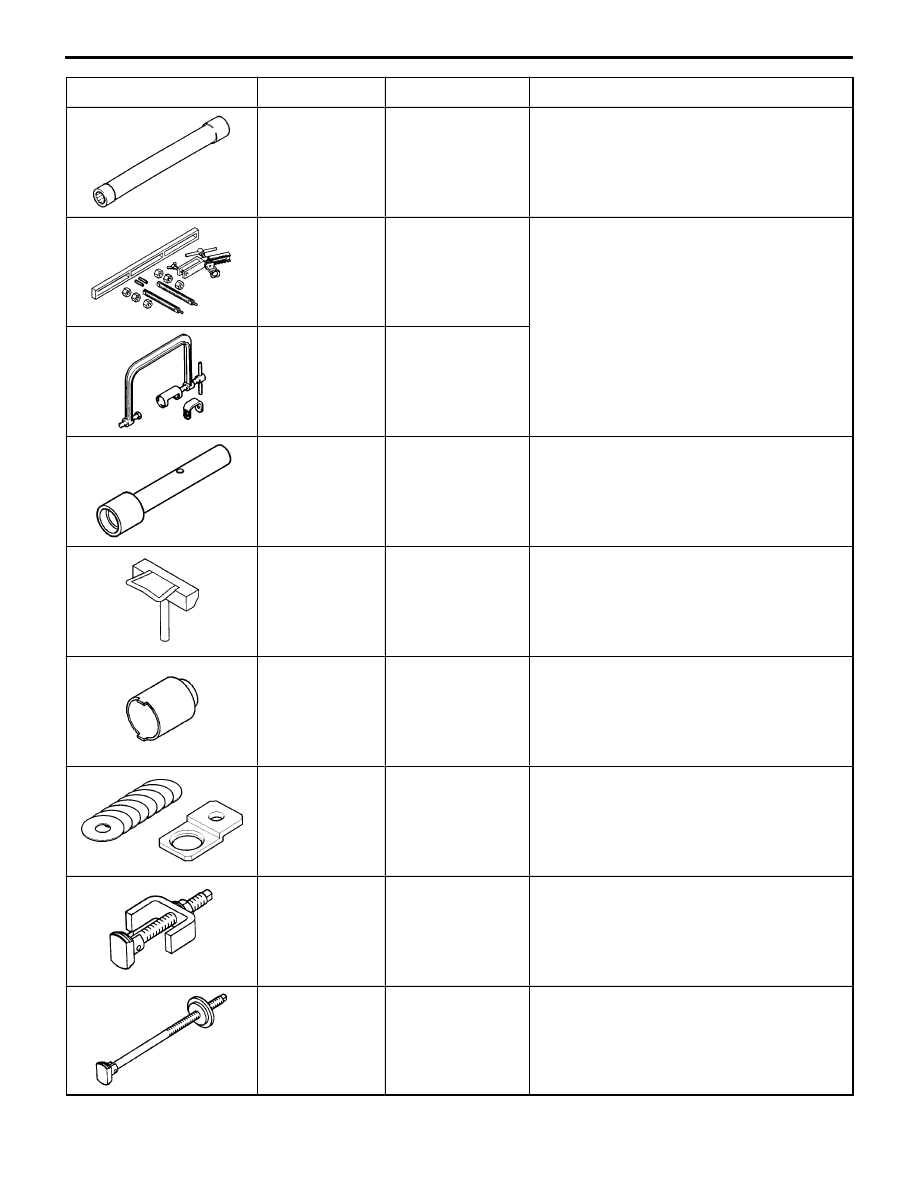

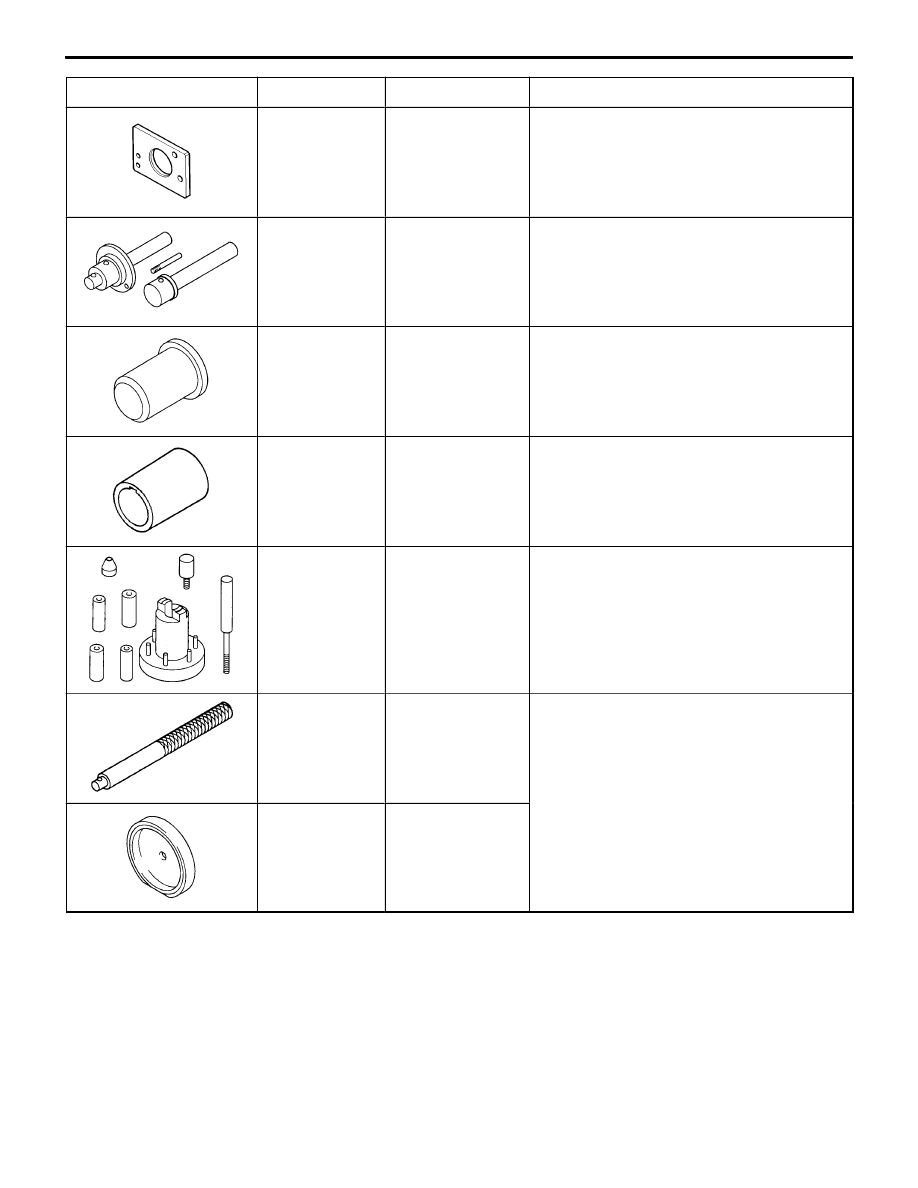

Tool

Use

Name

Number

MB991654

Cylinder head bolt
wrench (12)

Removal and installation of cylinder head bolt

MD998772

Valve spring
compressor

Removal and installation of valve and related
parts

MD998735

Valve spring
compressor

MD998737

Valve stem seal
installer

Installation of valve stem seal

MD998727

Oil pan remover

Removal of oil pan

MD998162

Plug wrench

Removal and installation of front case cap plug
Use with MD998783.

MD998783

Plug wrench
retainer

Removal and installation of front case cap plug

MD998371

Silent shaft bearing
puller

Removal of counterbalance shaft front bearing

MD998372

Silent shaft bearing
puller

Removal of counterbalance shaft rear bearing

ENGINE  –

Special Tools

11-13

Tool

Use

Name

Number

MB991603

Silent shaft bearing
puller stopper

Guide stopper for removal and installation of
counterbalance shaft rear bearing
Use with MD998372.

MD998705

Silent shaft bearing
installer

Installation of counterbalance shaft front and
rear bearing

MD998375

Crankshaft front
seal installer

Installation of crankshaft front oil seal

MD998285

Crankshaft front oil
seal guide

Guide for installation of crankshaft front oil seal
Use with MD998375.

MD998780

Piston setting tool

Removal and installation of piston pin

MB990938

Handle

Installation of crankshaft rear oil seal

MD998776

Crankshaft rear oil
seal installer

ENGINE  –

Alternator and Ignition System

11-14

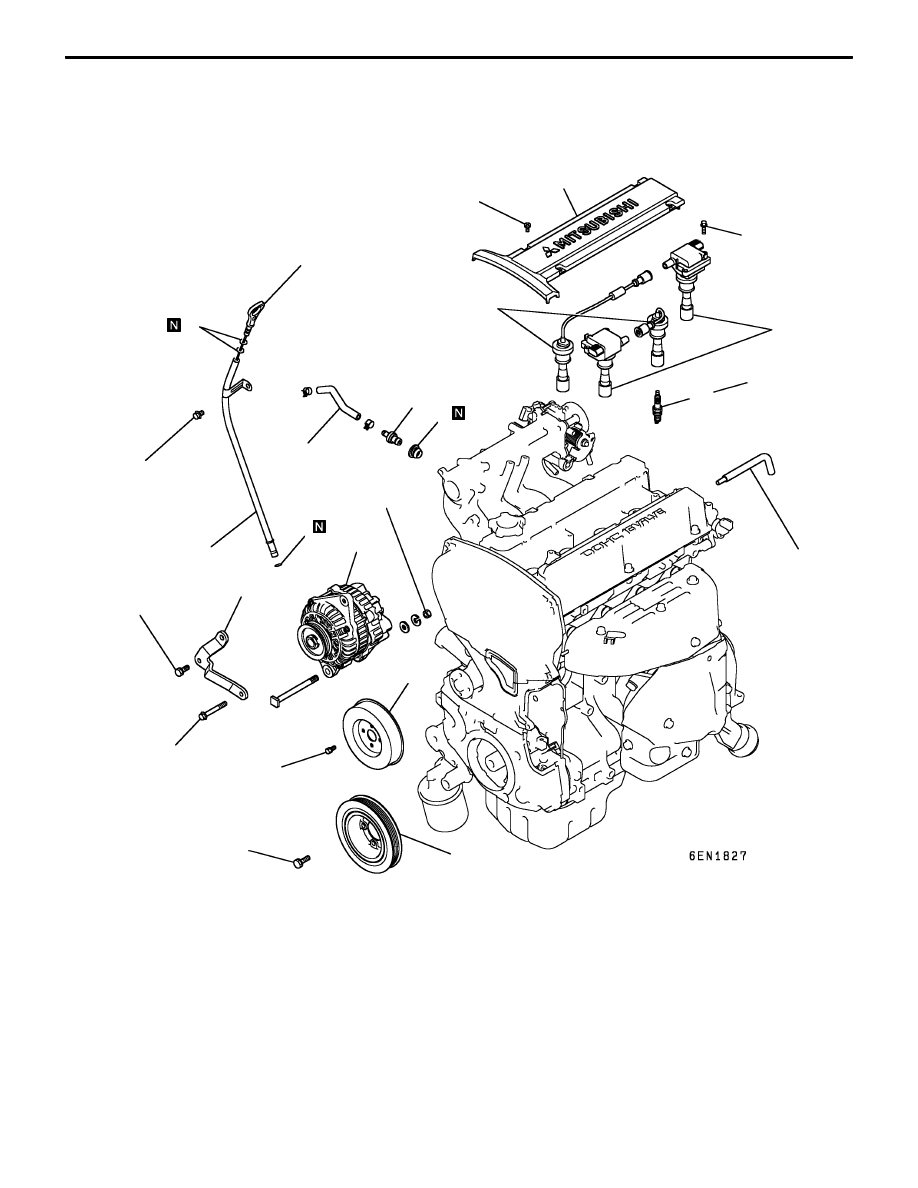

ALTERNATOR AND IGNITION SYSTEM

REMOVAL AND INSTALLATION

 44 Nm

 10 Nm

 25 Nm

 21 Nm

 9 Nm

 13 Nm

 23 Nm

 25 Nm

 3 Nm

2

1

3

4

5

6

7

8

9

10

11

12

13

14

15

16

Removal steps

1. Oil level gauge
2. O-ring
3. Oil level gauge guide
4. O-ring
5. Water pump pulley
6. Alternator brace
7. Alternator
8. Crankshaft pulley

9. Center cover

10. Spark plug cable

11. Ignition coil

12. Spark plug
13. Breather hose
14. PCV hose
15. PCV valve
16. PCV valve gasket
