CENTRALIZED JUNCTION
TSB Revision

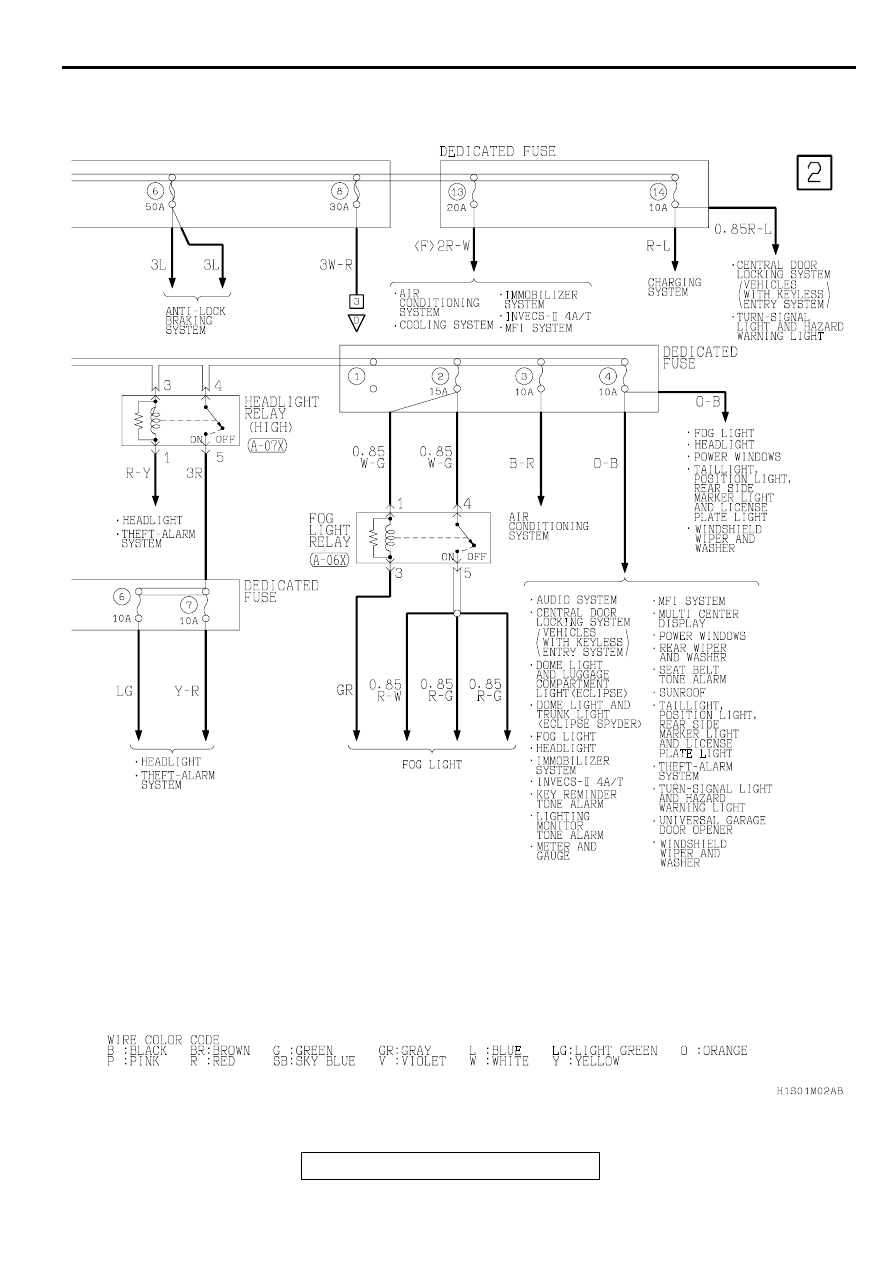

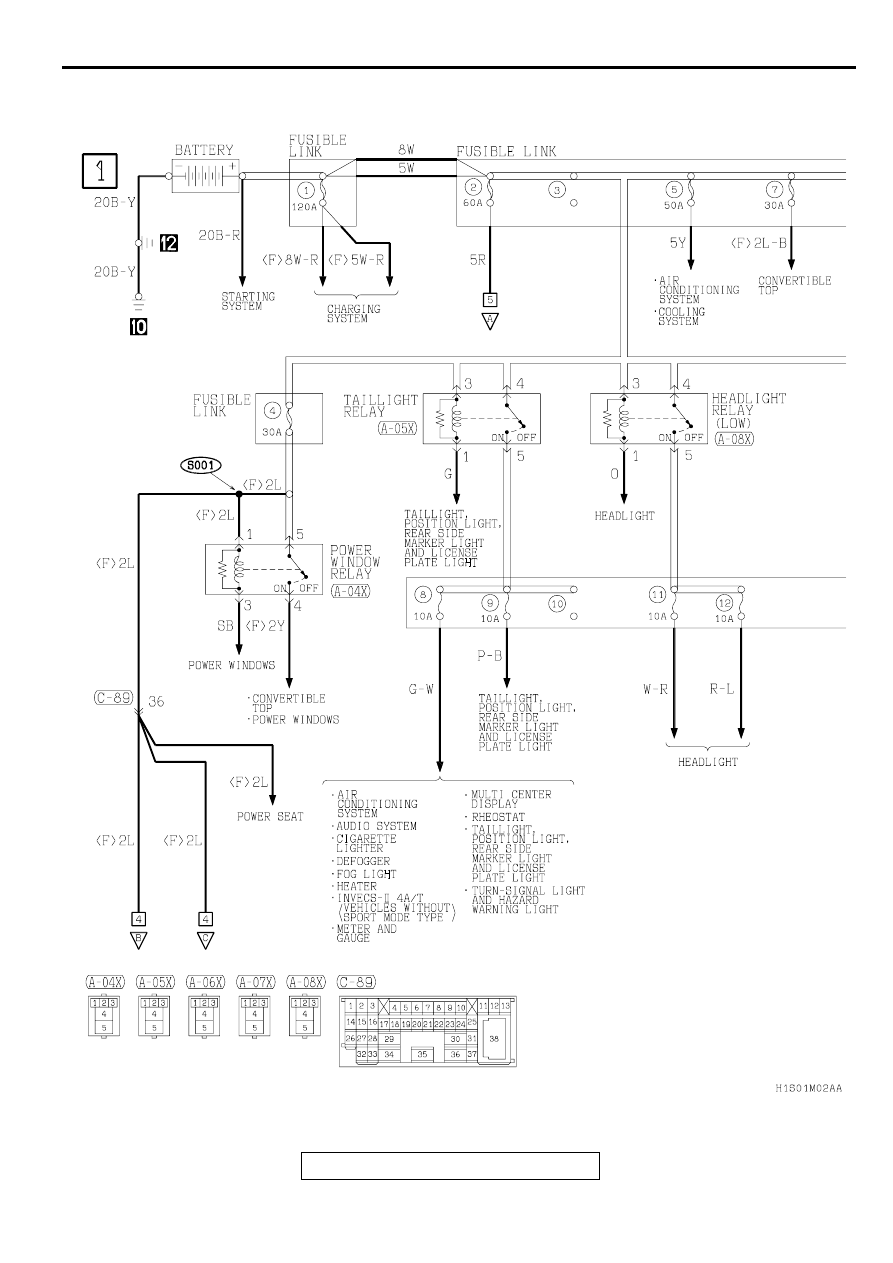

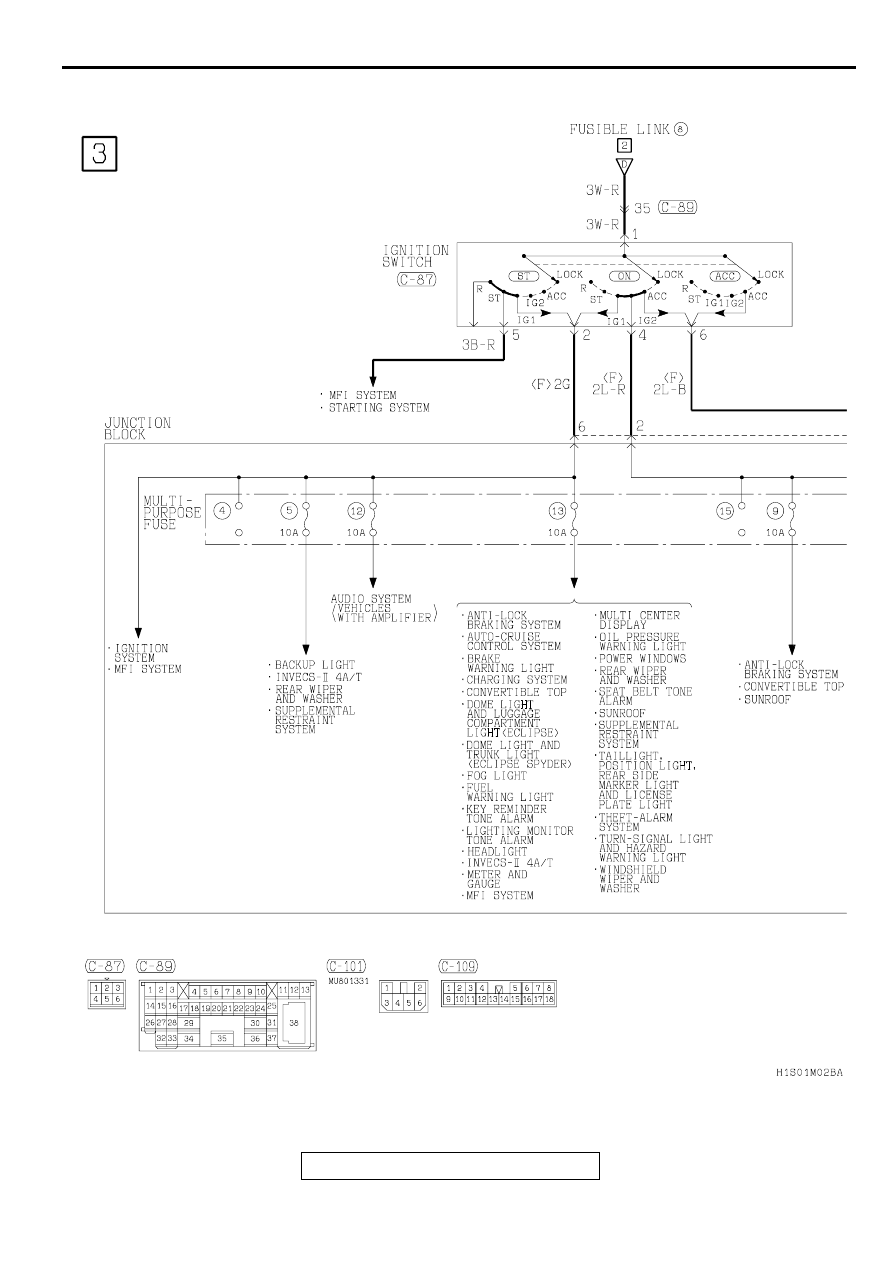

CIRCUIT DIAGRAMS
90-19

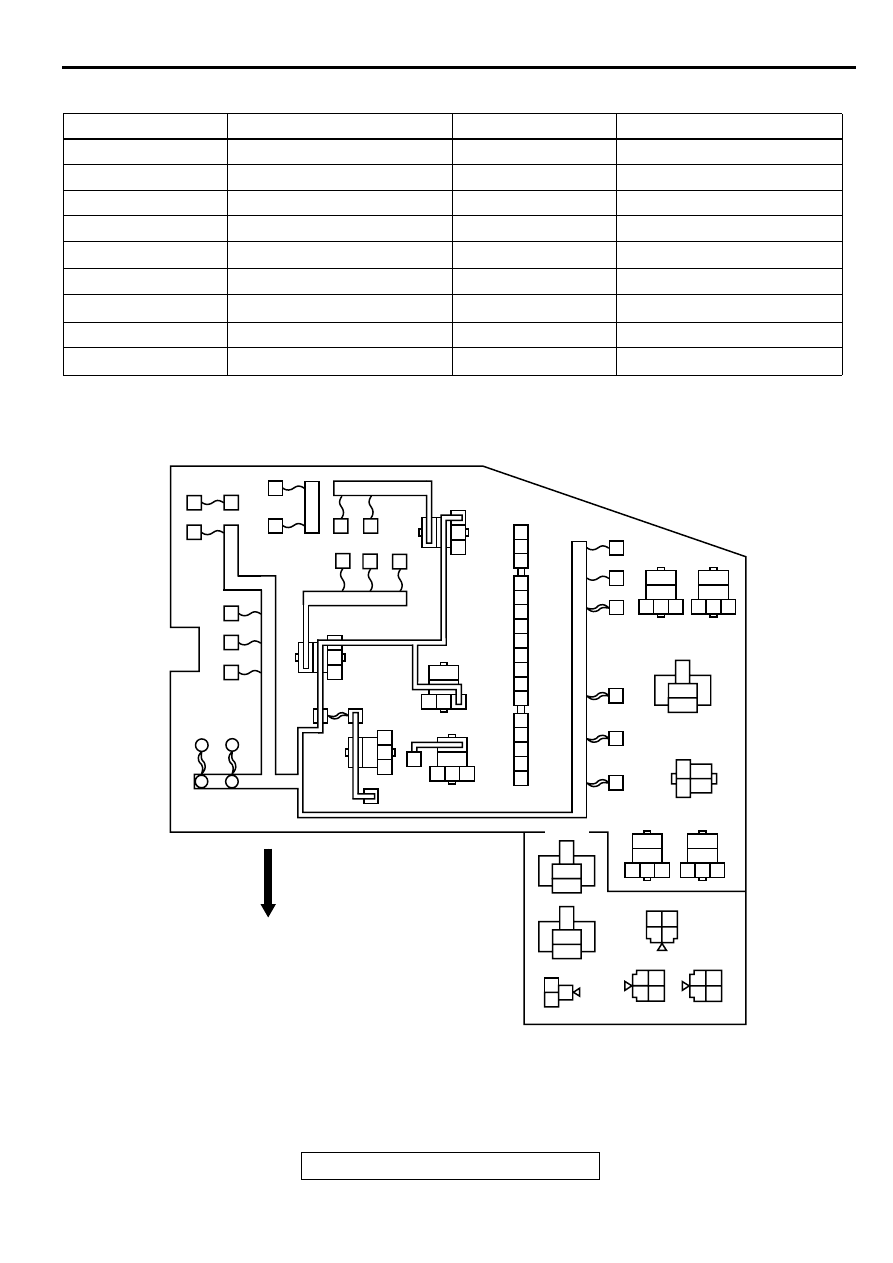

CENTRALIZED RELAY
CONNECTOR NO.
NAME
CONNECTOR NO.
NAME
A-04X
Power window relay
A-13X
Fan control relay
A-05X
Taillight relay
A-14X
A/C compressor relay
A-06X
Fog light relay
A-15X
Horn relay
A-07X
Headlight relay (High)
A-16X
Inspection connector
A-08X
Headlight relay (Low)
A-17X
−
A-09X
Front-ECU
A-18X
Starter relay <M/T>
A-10X
−
A-19X
A/T control relay
A-11X
Theft-alarm horn relay
A-20X
Fuel pump relay
A-12X
−
A-21X
MFI relay
AC000312
(RELAY BOX IN ENGINE COMPARTMENT)
FRONT OF VEHICLE
A-05X
A-04X
A-06X
A-07X
A-08X
A-09X
A-14X
A-15X
A-13X
A-12X
A-10X
A-11X
A-18X
A-17X
A-16X
A-19X
A-20X
A-21X
AC
