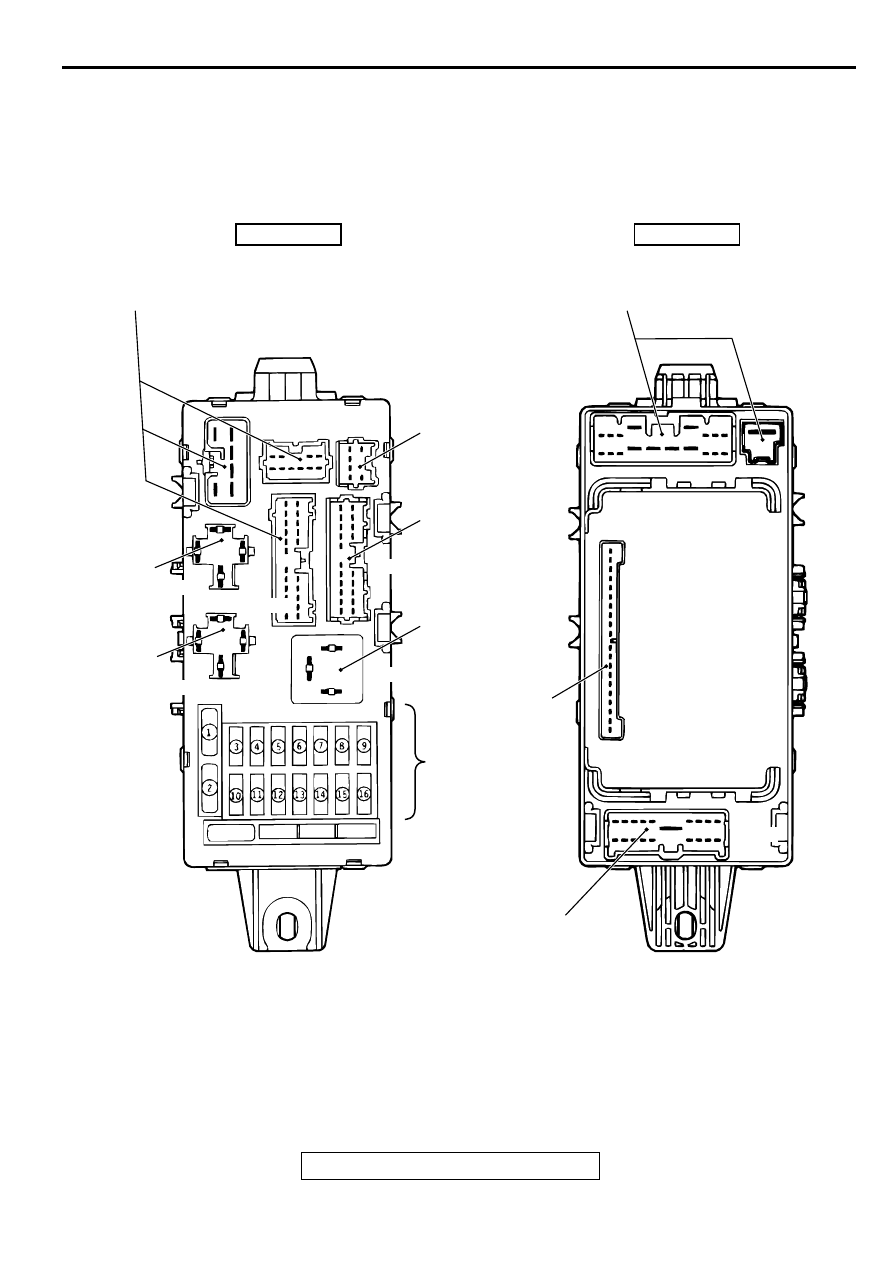

JUNCTION BLOCK

TSB Revision

CIRCUIT DIAGRAMS

90-11

AC000313

FRONT SIDE

REAR SIDE

AD

BLOWER
RELAY

DEFOGGER
RELAY

TO INSTRUMENT
PANEL WIRING HARNESS

TO ROOF
WIRING
HARNESS

TO
INSTRUMENT
PANEL WIRING
HARNESS

NO
CONNECTION

ETACS-ECU

TO INSTRUMENT PANEL
WIRING HARNESS

TO FLOOR
WIRING HARNESS

MULTI-PURPOSE
FUSE

C-101

C-102

C-103

C-104

C-105

C-106

C-108

C-107

C-113

C-114

C-109

C-110

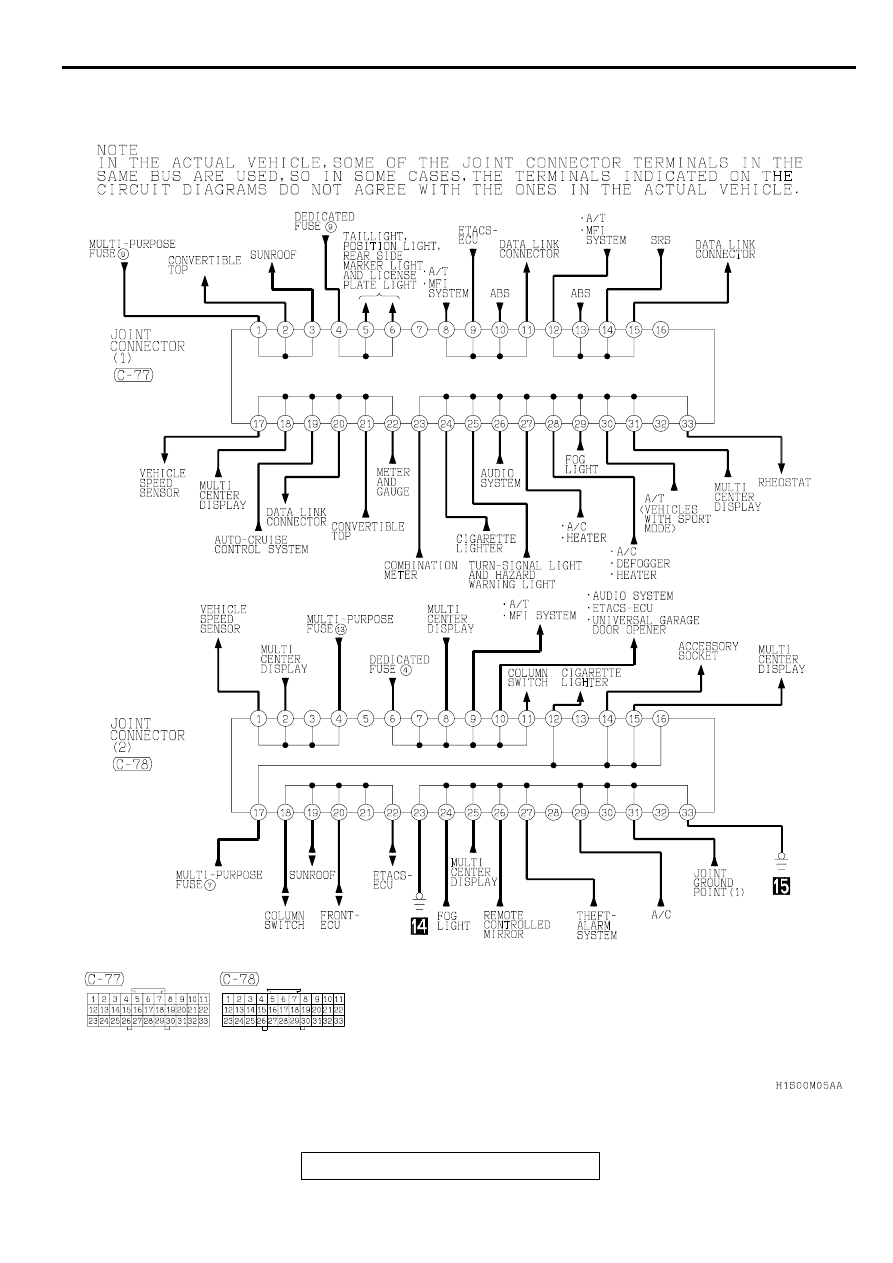

JOINT CONNECTOR

TSB Revision

CIRCUIT DIAGRAMS

90-12

JO IN T C O N N EC TO R

M1901014200072

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-13

C EN TR A LIZED  JU N C TIO N

M1901000300106

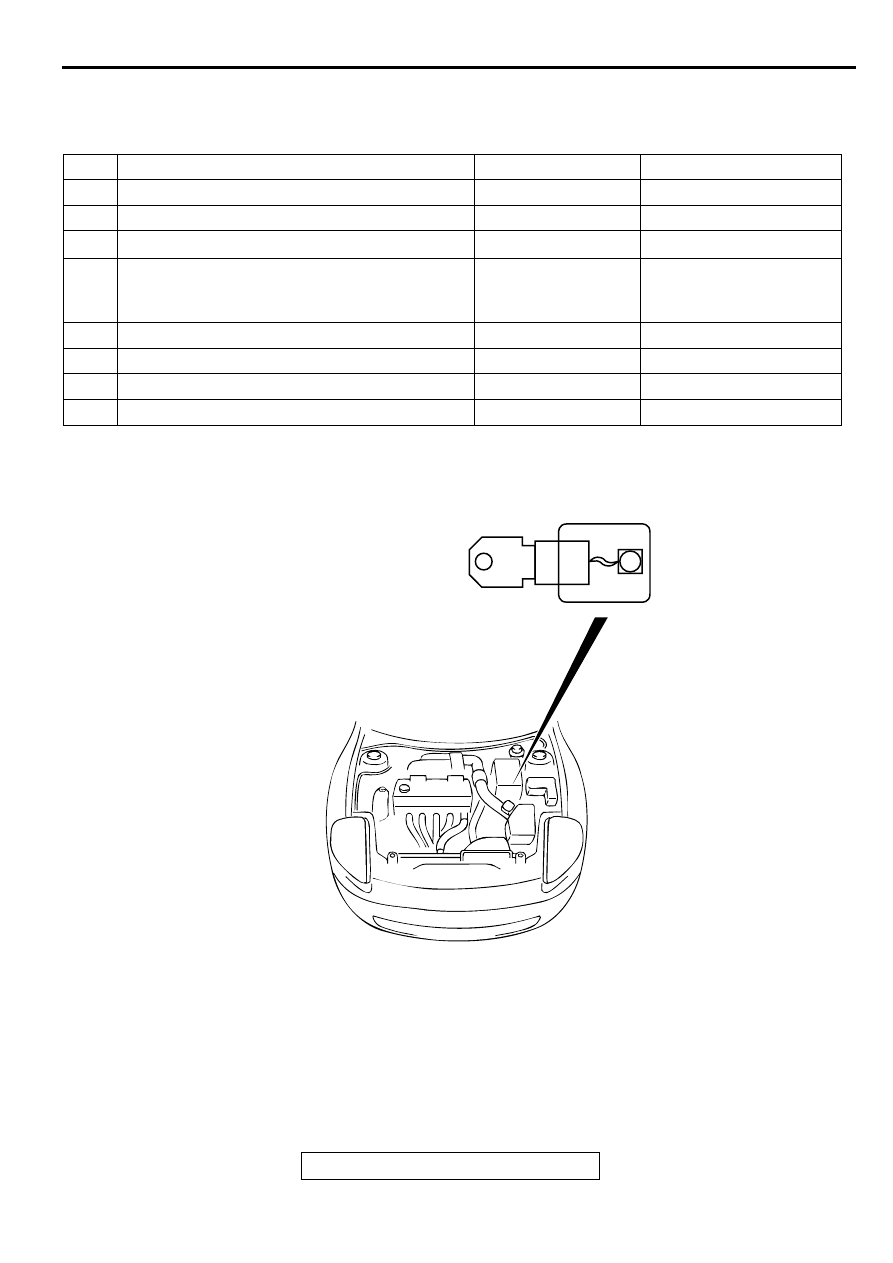

FUSIBLE LINK

NO.

CIRCUIT

HOUSING COLOR

RATED CAPACITY (A)

1

Generator circuit

White

120

2

Multi-purpose fuse No.1, 2, 3, 10, 11

Yellow

60

3

−

−

−

4

Dedicated fuse No.15, 17, power windows,
power seat, convertible top and audio system
<Vehicles with amplifier>

Pink

30

5

Air conditioning system and cooling system

Red

50

6

Anti-lock braking system

Red

50

7

Convertible top circuit

Pink

30

8

Ignition switch circuit

Pink

30

AC004954

(CONNECTED DIRECTLY TO BATTERY POSITIVE TERMINAL)

FUSIBLE LINK 1

1

AB

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-14

AC004955

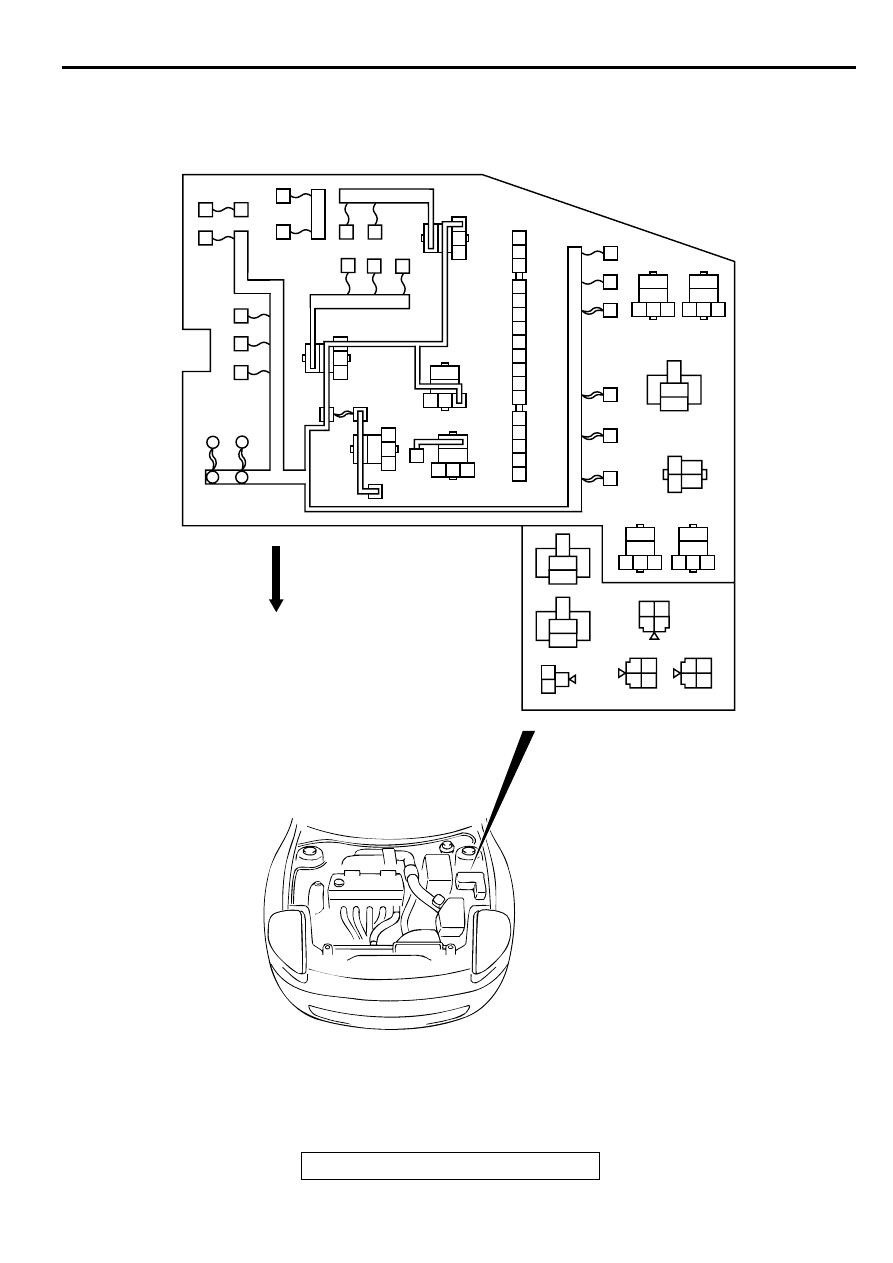

(RELAY BOX IN ENGINE COMPARTMENT)

FUSIBLE LINKS 2 TO 8

2

3

4

5

6

7

8

FRONT OF VEHICLE

AB
