Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 724

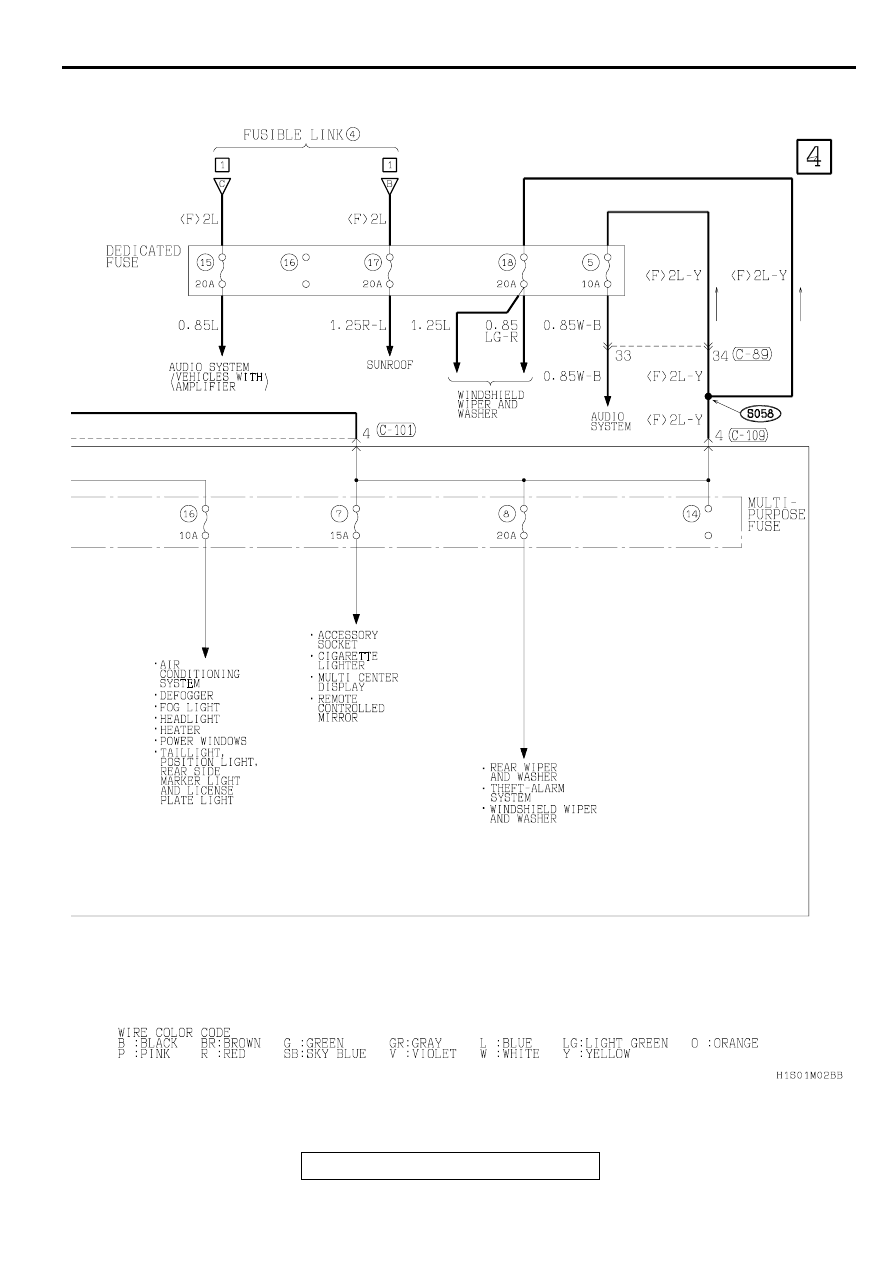

POWER DISTRIBUTION SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-23

POWER DISTRIBUTION SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-24

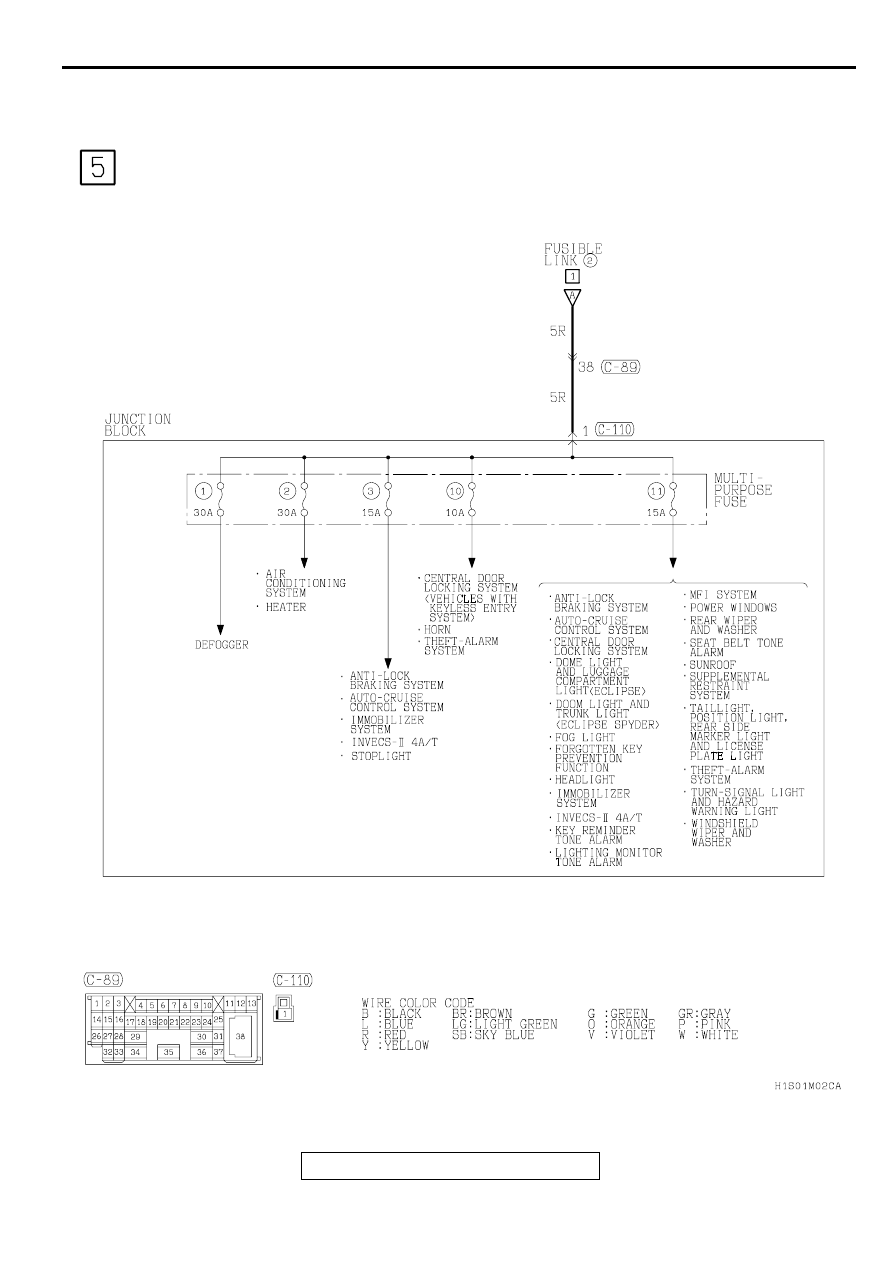

POWER DISTRIBUTION SYSTEM (CONTINUED)

POWER DISTRIBUTION SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-25

NOTES

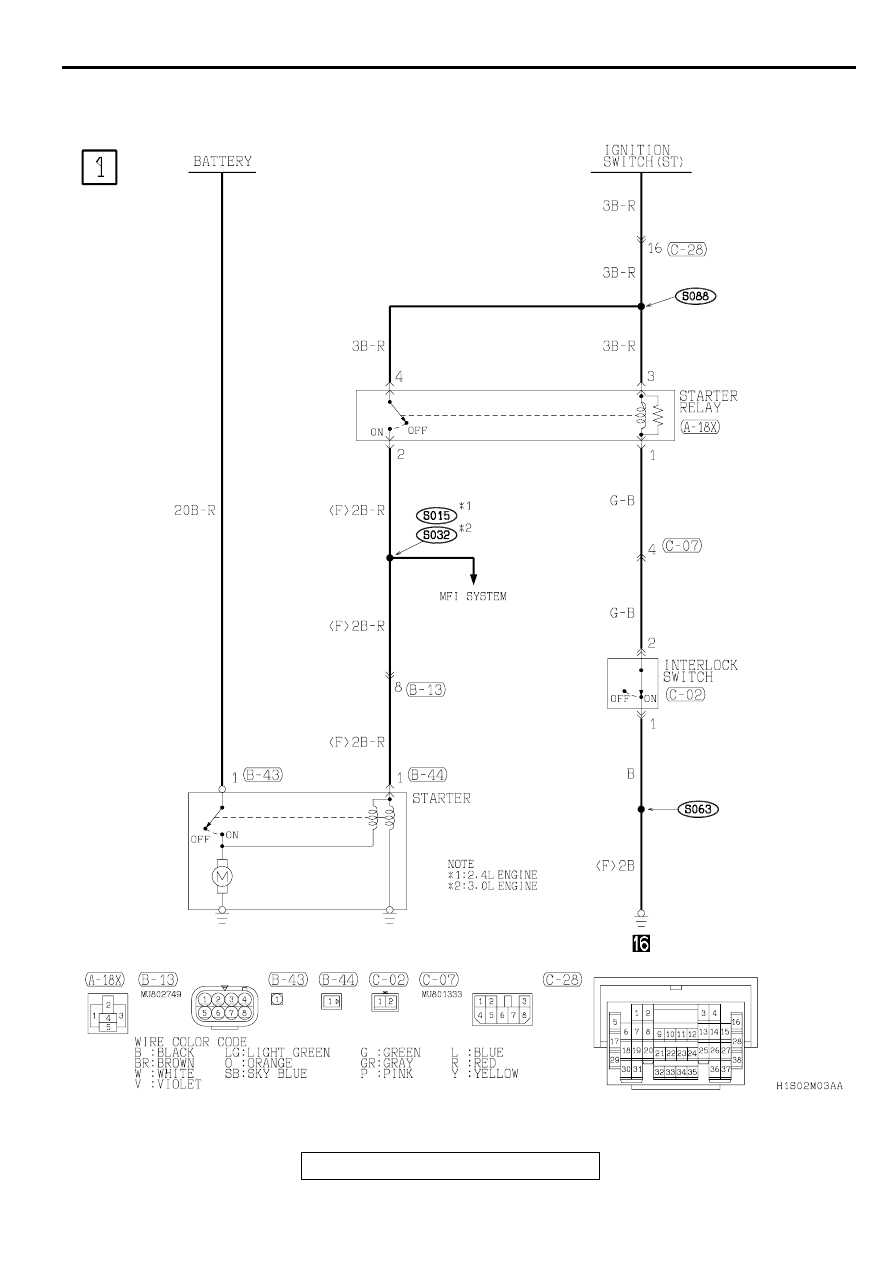

STARTING SYSTEM <M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-26

STAR TING  SYSTEM  <M /T>

M1901000500081
