Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 660





DOOR MIRROR

TSB Revision

EXTERIOR

51-27

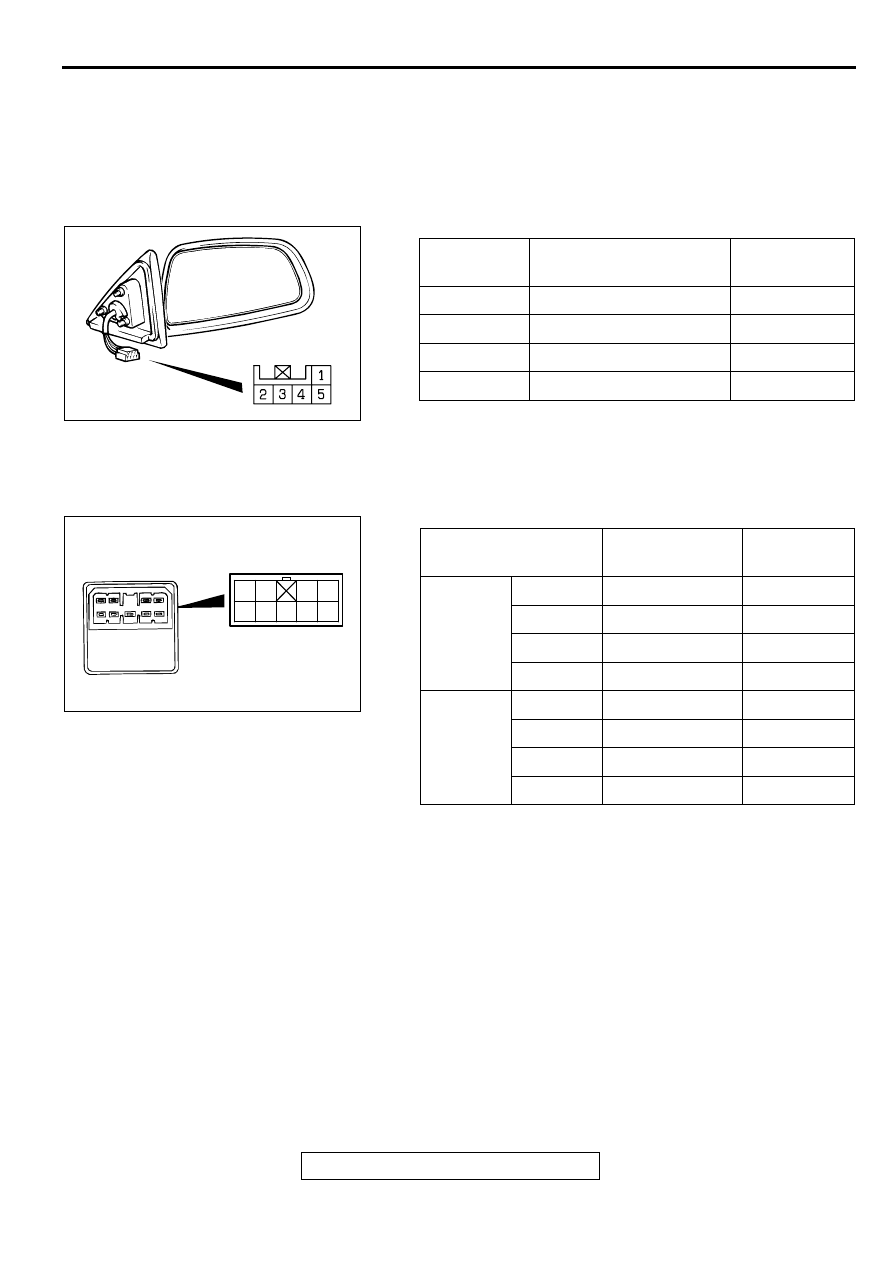

DOOR MIRROR INSPECTION

ELECTRIC REMOTE CONTROL MIRROR
OPERATION CHECK

M1511016800028

Check that the mirror moves as described in the table when
each terminal is connected to the battery.

DOOR MIRROR CONTROL SWITCH CONTINUITY
CHECK

M1511013500062

DIRECTION
OPERATION

TESTER CONNECTION

SPECIFIED
CONDITION

Up

1-Battery(+), 3-Battery(-)

Continuity

Down

1-Battery(-), 3-Battery(+)

Continuity

Right

3-Battery(-), 2-Battery(+)

Continuity

Left

3-Battery(+), 2-Battery(-)

Continuity

AC001681

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Left side

Up

4 - 8, 6 - 7

Continuity

Down

4 - 7, 6 - 8

Continuity

Right

3 - 6, 4 - 7

Continuity

Left

3 - 4, 6 - 7

Continuity

Right side

Up

2 - 4, 6 - 7

Continuity

Down

2 - 6, 4 - 7

Continuity

Right

4 - 7, 6 - 9

Continuity

Left

4 - 9, 6 - 7

Continuity

5

4

6

3

2

1

9

8

7

AC001682

SPECIFICATIONS

TSB Revision

EXTERIOR

51-28

SPECIFIC ATIO NS

FASTENER TIGHTENING SPECIFICATIONS

M1511015300086

SERVICE SPECIFICATIONS

M1511000300079

ADHESIVE

M1511000500084

ITEMS

SPECIFICATIONS

Front bumper

 Front turn signal light screw

0.69

±

 0.09 N

m (5.2

±

 0.8 in-lb)

 Front fog light assembly screw

4.9

±

 0.7 N

m (43

±

 6 in-lb)

Front fog light bracket bolt

4.9

±

 0.7 N

m (43

±

 6 in-lb)

License plate garish screw

0.9

±

 0.1 N

m (8

±

 1 in-lb)

Windshield wiper and washer

Wiper arm and blade assembly nut 13

±

 3 N

m (113

±

 26 in-lb)

Wiper motor and wiper link
assembly bolt

5.0

±

 0.7 N

m (44

±

 6 in-lb)

Washer tank motor assembly bolt

12

±

 1 N

m (100

±

 13 in-lb)

ITEMS

STANDARD VALUE

Windshield wiper blade position
installation mm (in)

Driver's side

33 - 43 (1.3 - 1.7)

Passenger's side

38 - 48 (1.5 - 1.9)

Rear wiper blade position installation mm (in)

89 - 99 (3.5 - 3.9)

ITEM

SPECIFICATIONS

Rear pillar garnish

Adhesive tape: Double-sided tape [3 mm (0.1 in)
width and 5 mm (0.2 in) thick]

52-1

GROUP 52

INTERIOR AND



SUPPLEMENTAL

SYSTEM (SRS)

CONTENTS

INTERIOR  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52A

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) . . . . . . . . . . . .

52B

52A-2

GROUP 52A

INTERIOR

CONTENTS

SEAT BELT DIAGNOSIS. . . . . . . . . .

52A-3

SEAT BELT WARNING SYSTEM
DIAGNOSIS  . . . . . . . . . . . . . . . . . . . . . . . .

52A-3

SPECIAL TOOLS. . . . . . . . . . . . . . . .

52A-3

INSTRUMENT PANEL ASSEMBLY  .

52A-4

REMOVAL AND INSTALLATION   . . . . . . .

52A-4

DISASSEMBLY AND ASSEMBLY . . . . . . .

52A-8

FLOOR CONSOLE ASSEMBLY . . . .

52A-9

REMOVAL AND INSTALLATION . . . . . . . .

52A-9

TRIMS. . . . . . . . . . . . . . . . . . . . . . . . .

52A-10

 REMOVAL AND INSTALLATION
<ECLIPSE>. . . . . . . . . . . . . . . . . . . . . . . . .

52A-10

HEADLINING . . . . . . . . . . . . . . . . . . .

52A-14

REMOVAL AND INSTALLATION . . . . . . . .

52A-14

INSIDE REAR VIEW MIRROR. . . . . .

52A-15

REMOVAL AND INSTALLATION . . . . . . . .

52A-15

FRONT SEAT ASSEMBLY. . . . . . . . .

52A-17

REMOVAL AND INSTALLATION  . . . . . . . .

52A-17

DISASSEMBLY AND ASSEMBLY  . . . . . . .

52A-18

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52A-22

REAR SEAT ASSEMBLY. . . . . . . . . .

52A-23

REMOVAL AND INSTALLATION  . . . . . . . .

52A-23

DISASSEMBLY AND ASSEMBLY  . . . . . . .

52A-26

FRONT SEAT BELT . . . . . . . . . . . . . .

52A-28

REMOVAL AND INSTALLATION  . . . . . . . .

52A-28

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52A-30

REAR SEAT BELT . . . . . . . . . . . . . . .

52A-30

REMOVAL AND INSTALLATION  . . . . . . . .

52A-30

SPECIFICATIONS  . . . . . . . . . . . . . . .

52A-32

FASTENER TIGHTENING
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . .

52A-32

WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES

WARNING

Improper service or maintenance of any component of the SRS, or any SRS-related component, can lead to
personal injury or death to service personnel (from inadvertent firing of the air bag) or to the driver and
passenger (from rendering the SRS inoperative).

Service or maintenance of any SRS component or SRS-related component must be performed only at an
authorized MITSUBISHI dealer.

MITSUBISHI dealer personnel must thoroughly review this manual, and especially its GROUP 52B - Supplemental
Restraint System (SRS) before beginning any service or maintenance of any component of the SRS or any SRS-
related component.

NOTE
The SRS includes the following components: SRS air bag control unit, SRS warning light, front impact sensors, air bag module,
clock spring, and interconnecting wiring. Other SRS-related components (that may have to be removed/installed in connection
with SRS service or maintenance) are indicated in the table of contents by an asterisk (*).
