AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-200

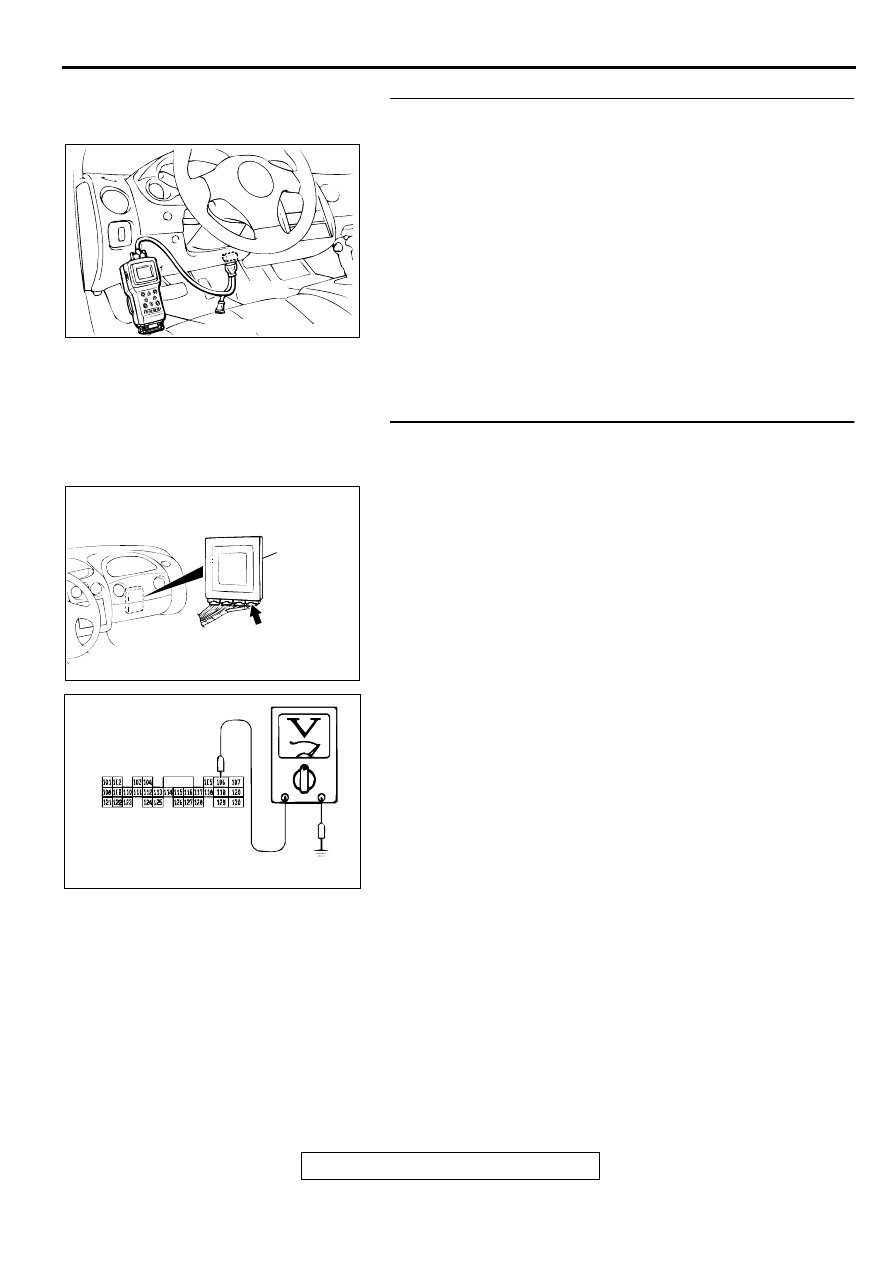

STEP 2. Using scan tool MB991502, check actuator test
item 03: Second Solenoid Valve.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Set scan tool MB991502 to actuator test mode for item 03,

Second Solenoid Valve.

An operation sound should be heard from solenoid
valve when the second solenoid valve is operated.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the solenoid valve operating properly?

YES : This malfunction can be intermittent. Refer to GROUP

00, How to Use Troubleshooting/Inspection Service
Points

 How to Cope with Intermittent Malfunction

P.00-6

.

NO :  Go to Step 3.

STEP 3. Check the solenoid valve output voltage at PCM
connector C-61 <2.4L Engine> or C-63 <3.0L Engine> by
backprobing.
(1) Do not disconnect connector C-61 <2.4L Engine> or C-63

<3.0L Engine>.

(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 106 and ground by

backprobing.

Voltage should be battery positive voltage.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 4.
NO :  Go to Step 9.

AC001252

MB991502

16 PIN

AB

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AC001963

C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>
CONNECTOR HARNESS
SIDE VIEW

AD

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-201

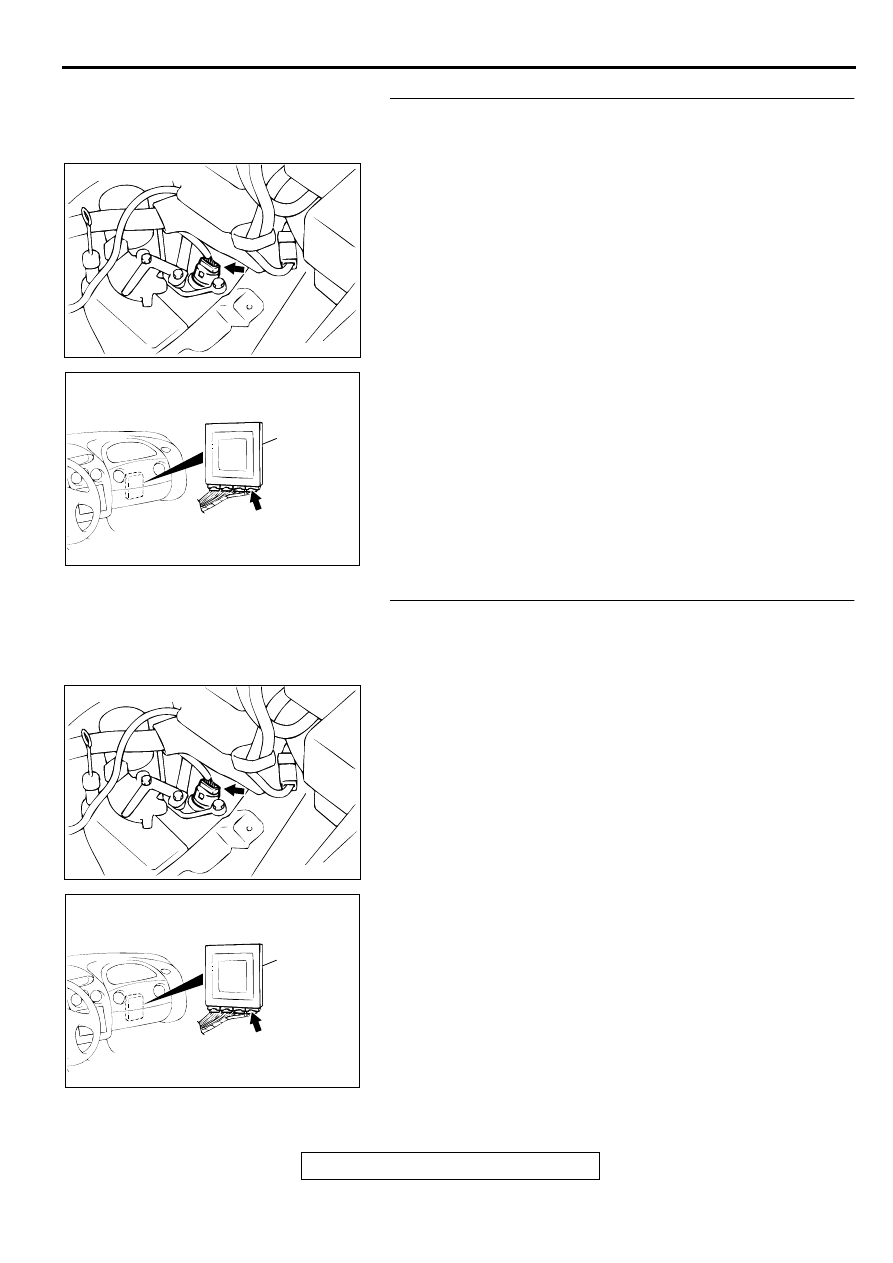

STEP 4. Check connectors B-40 at solenoid valve
assembly and C-61 <2.4L Engine> or C-63 <3.0L Engine> at
PCM for damage.
Q: Are the connectors in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

STEP 5. Check harness for damage between solenoid
valve assembly connector B-40 terminal 4 and PCM
connector C-61 <2.4L Engine> or C-63 <3.0L Engine>
terminal 106.
Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair it.

ACX02479

CONNECTOR: B-40

AE

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

ACX02479

CONNECTOR: B-40

AE

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-202

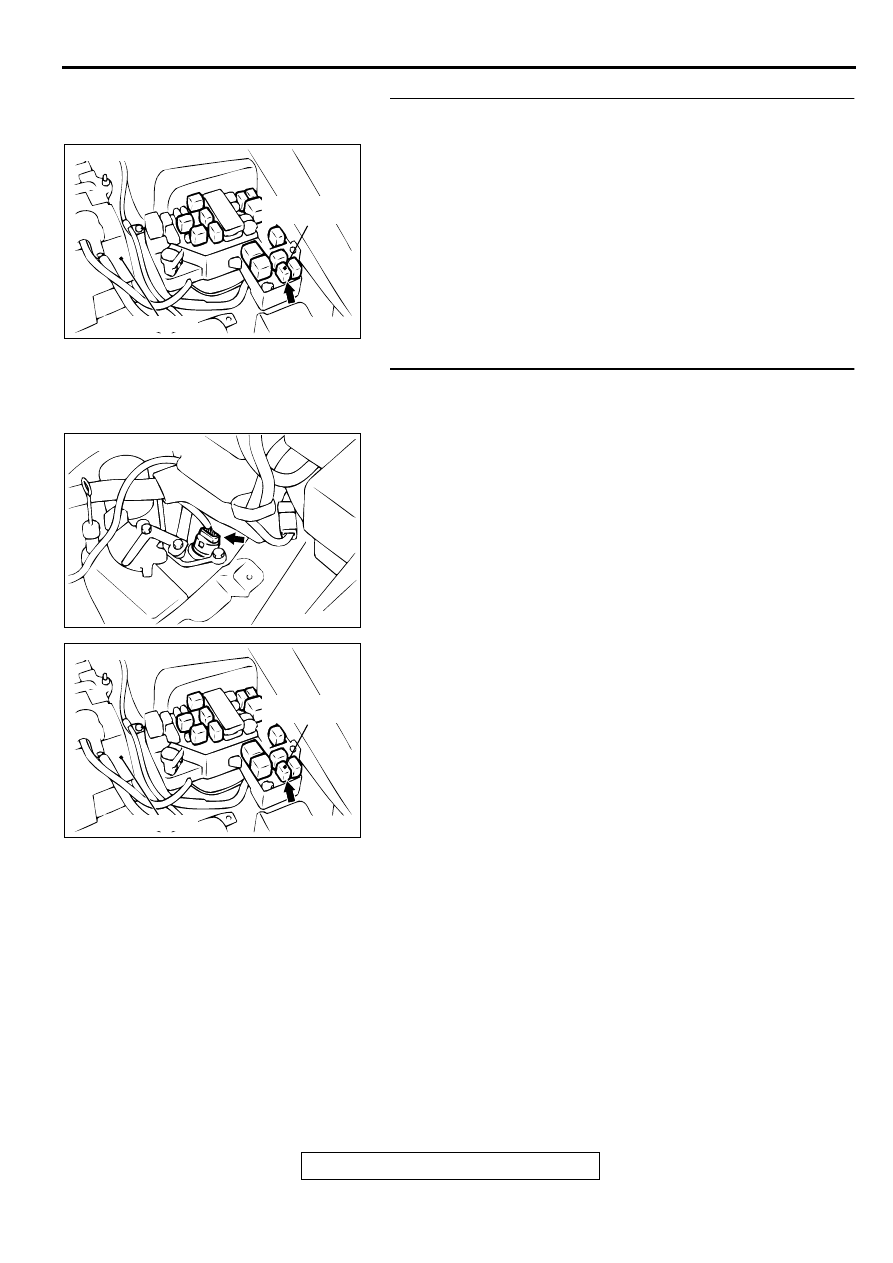

STEP 6. Check connector A-19X at A/T control relay for
damage.
Q: Is the connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

STEP 7. Check harness for damage between solenoid
valve assembly connector B-40 terminal 9 and A/T control
relay connector A-19X terminal 3.
Q: Is the harness wire in good condition?

YES : Go to Step 8.
NO :  Repair it.

AC001655

CONNECTOR: A-19X

BATTERY

A/T CONTROL
RELAY

AD

ACX02479

CONNECTOR: B-40

AE

AC001655

CONNECTOR: A-19X

BATTERY

A/T CONTROL
RELAY

AD

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-203

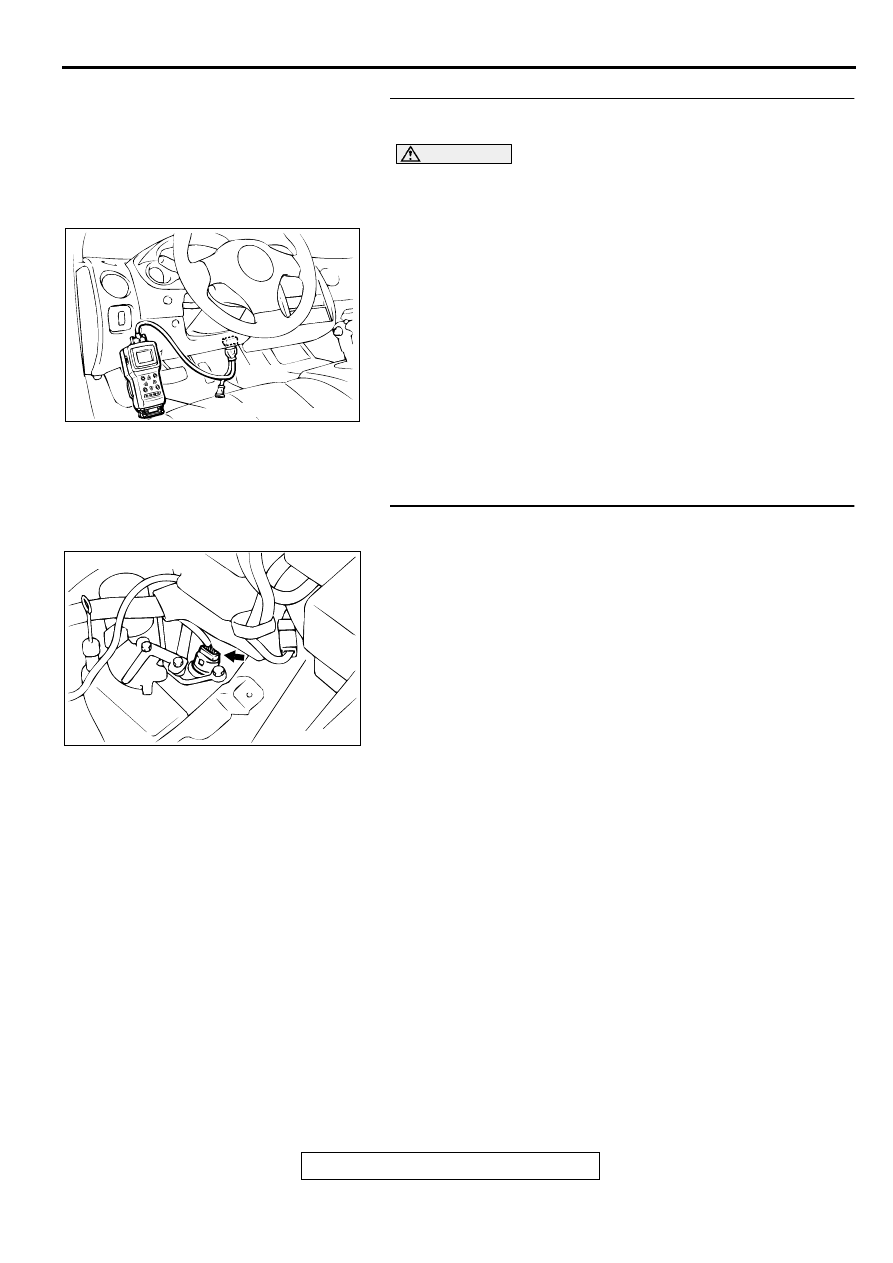

STEP 8. Using scan tool MB991502, check actuator test
item 03: Second Solenoid Valve.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Set scan tool MB991502 to the actuator test mode for item

03: second Solenoid Valve.

An operation sound should be heard from solenoid
valve when the second solenoid valve is operated.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the solenoid valve operating properly?

YES : This malfunction can be intermittent. Refer to GROUP

00, How to Use Troubleshooting/Inspection Service
Points

 How to Cope with Intermittent Malfunction

P.00-6

.

NO :  Replace the PCM.

STEP 9. Check connector B-40 at solenoid valve assembly
for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001252

MB991502

16 PIN

AB

ACX02479

CONNECTOR: B-40

AE
