AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-196

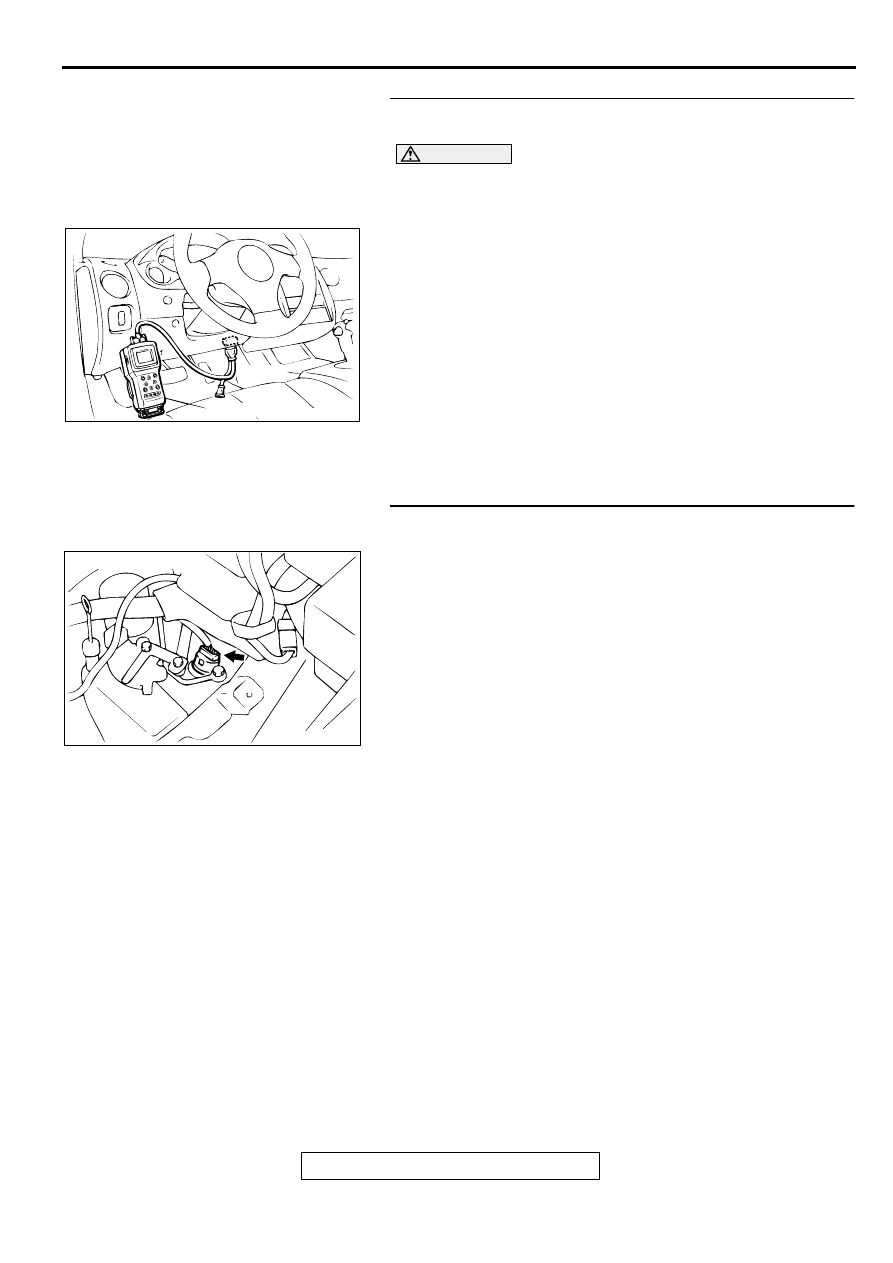

STEP 8. Using scan tool MB991502, check actuator test
item 02: Underdrive Solenoid Valve.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Set scan tool MB991502 to the actuator test mode for item

02: Underdrive Solenoid Valve.

An operation sound should be heard from solenoid
valve when the underdrive solenoid valve is operated.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the solenoid valve operating properly?

YES : This malfunction can be intermittent. Refer to GROUP

00, How to Use Troubleshooting/Inspection Service
Points

 How to Cope with Intermittent Malfunction

P.00-6

.

NO :  Replace the PCM.

STEP 9. Check connector B-40 at solenoid valve assembly
for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001252

MB991502

16 PIN

AB

ACX02479

CONNECTOR: B-40

AE

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-197

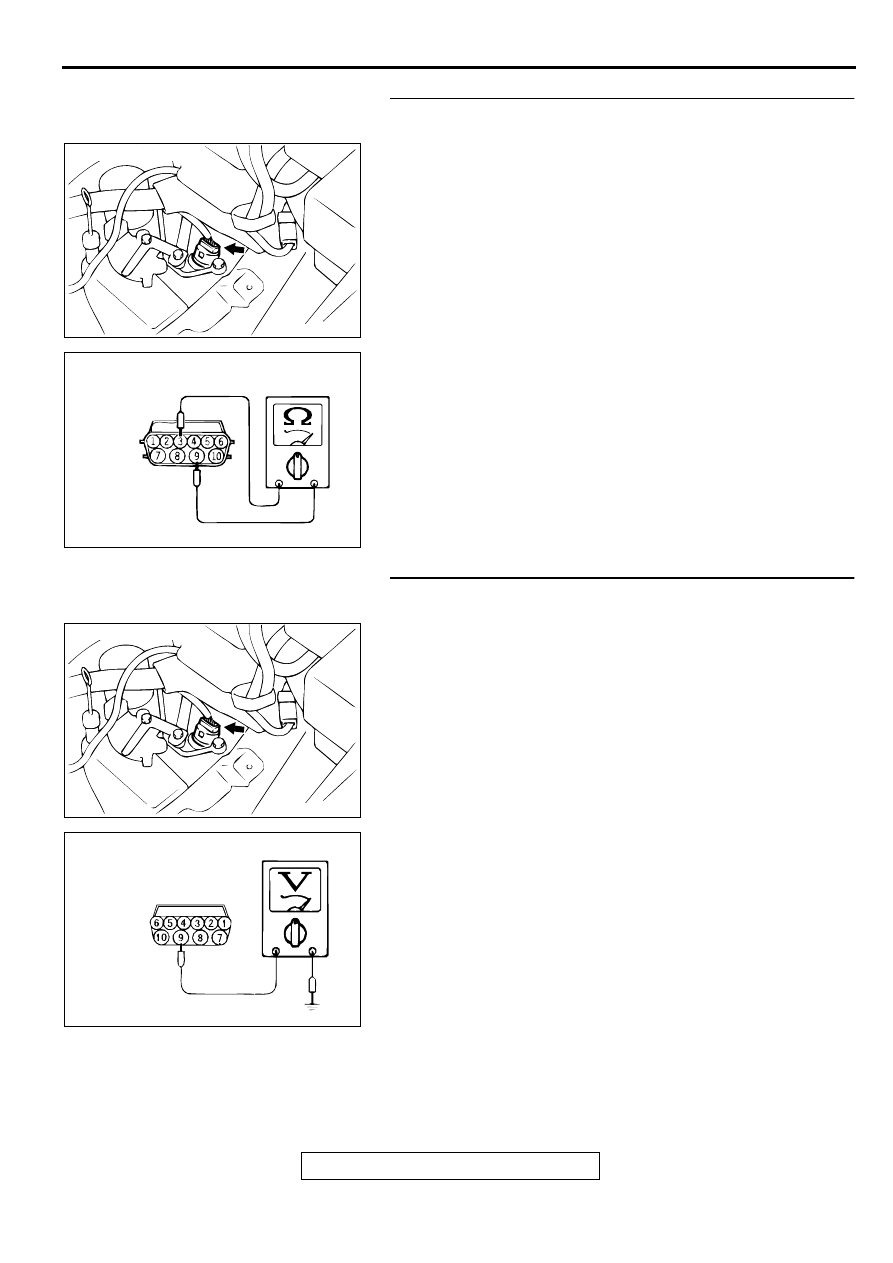

STEP 10. Check the underdrive solenoid valve at solenoid
valve assembly connector B-40.
(1) Disconnect connector B-40 and measure at the solenoid

valve side.

(2) Measure the resistance between terminal 3 and 9.

Standard value: 2.7 - 3.4

Q: Is the resistance at the standard value?

YES : Go to Step 11.
NO :  Replace the underdrive solenoid valve. Refer to

GROUP 23B, Valve Body

P.23B-69

.

STEP 11. Check the power supply voltage at solenoid
valve assembly connector B-40.
(1) Disconnect connector B-40 and measure at the harness

side.

(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 9 and ground.

Voltage should be battery positive voltage.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 13.
NO :  Go to Step 12.

ACX02479

CONNECTOR: B-40

AE

AC001962

HARNESS
CONNECTOR: B-40

AD

ACX02479

CONNECTOR: B-40

AE

AC001967

HARNESS
CONNECTOR: B-40

AD

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-198

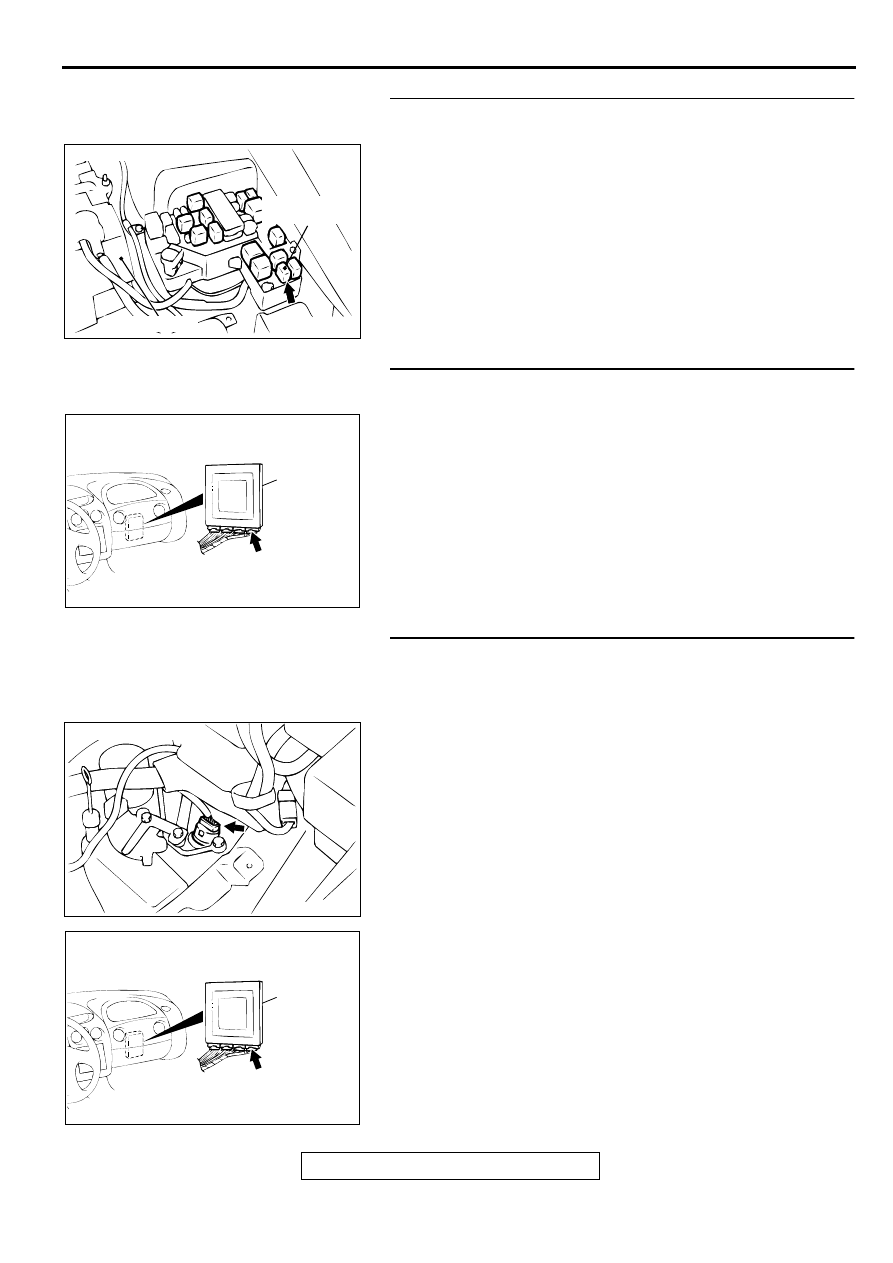

STEP 12. Check connector A-19X at A/T control relay for
damage.
Q: Is the connector in good condition?

YES : Repair it because of harness open circuit or short

circuit to ground between solenoid valve assembly
connector B-40 terminal 9 and A/T control relay
connector A-19X terminal 3.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

STEP 13. Check connectors C-61 <2.4L Engine> or C-63
<3.0L Engine> at PCM connector for damage.
Q: Are the connectors in good condition?

YES : Go to Step 14.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

STEP 14. Check harness for open circuit, or short circuit to
ground between solenoid valve assembly connector B-40
terminal 3 and PCM connector C-61 <2.4L Engine> or C-63
<3.0L Engine> terminal 120.
Q: Is the harness wire in good condition?

YES : Replace the PCM.
NO :  Repair it.

AC001655

CONNECTOR: A-19X

BATTERY

A/T CONTROL
RELAY

AD

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

ACX02479

CONNECTOR: B-40

AE

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

AN

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-199

DTC 33: Second Solenoid Valve System

Solenoid Valve System Circuit
Refer to

P.23A-185

.

CIRCUIT OPERATION
Refer to

P.23A-185

.

DTC SET CONDITIONS
If the resistance value for a solenoid valve circuit is
greater than 3.5

 for 4 seconds at 100

°

C (212

°

F) or

less than 2.6

 for 4 seconds at 100

°

C (212

°

F), it is

judged that there is a short circuit or an open circuit
in the solenoid valve and the diagnostic trouble code
number "33" is displayed. The transmission is locked
into 3rd gear as a fail-safe measure, and the "N"
range light flashes once per second.

TROUBLESHOOTING HINTS (The most likely

causes for this code to be set:)

Malfunction of second solenoid valve

Damaged harness, connector

Malfunction of the PCM

DIAGNOSIS

Required Special Tool:
MB991502: Scan Tool (MUT-II)

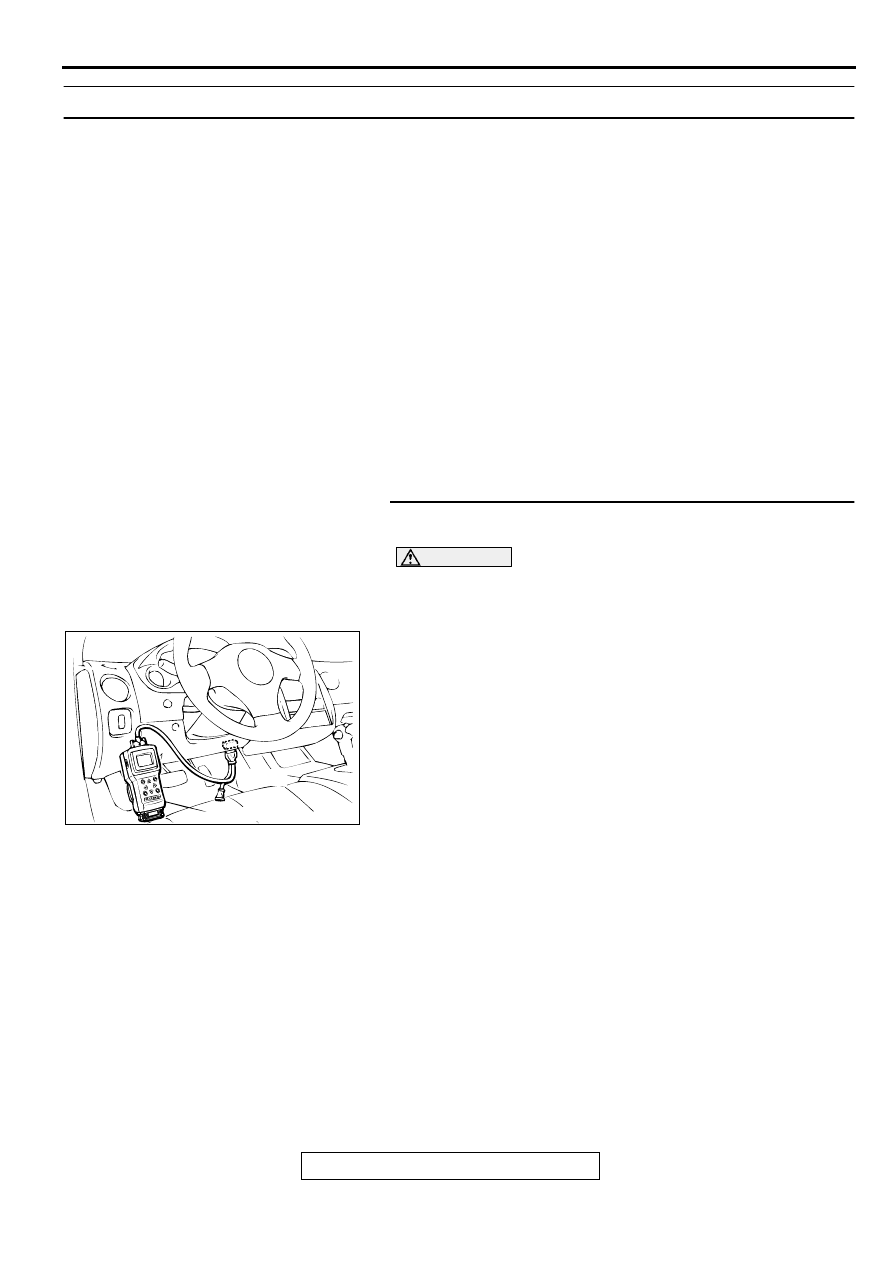

STEP 1. Using scan tool MB991502, read the A/T
diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Read the A/T diagnostic trouble code.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the A/T diagnostic trouble code number "54" output?

YES : Refer to

P.23A-237

, code number 54: A/T control

relay system.

NO :  Go to Step 2.

AC001252

MB991502

16 PIN

AB
