MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-139

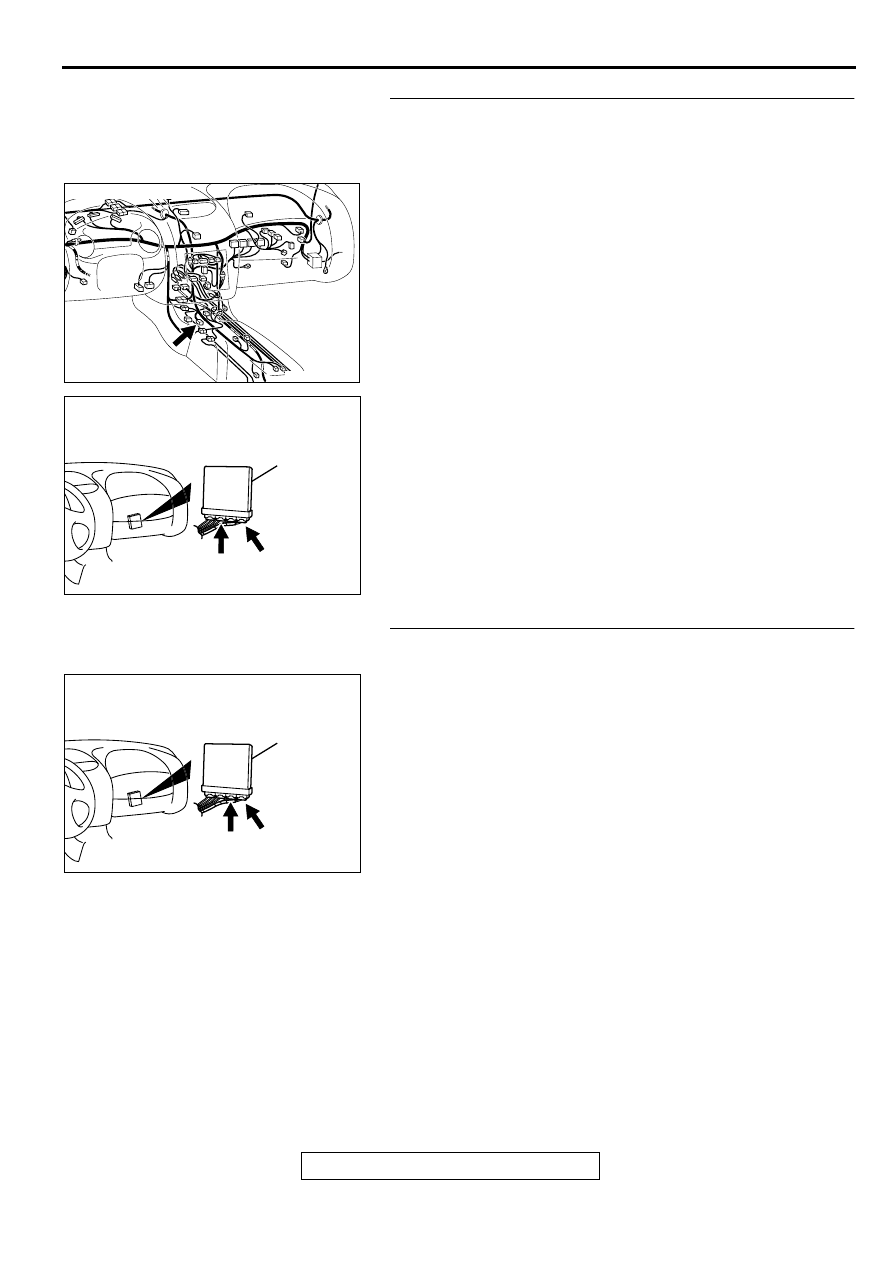

STEP 10. Check for open circuit and harness damage
between heated oxygen sensor (rear) connector C-23
terminal 4 and ECM connector C-60 terminal 92 <M/T> or
PCM connector C-54 terminal 57 <A/T>.
Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 15.
NO :  Repair it. Then go to Step 15.

STEP 11. Check connector C-60 at ECM <M/T> or
connector C-57 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 12.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 15.

AK000733AB

CONNECTOR:C-23

AK000280

C-54

C-60

ECM<M/T>
OR
PCM<A/T>

CONNECTORS:C-60<M/T>,C-54<A/T>

BB

AK000280

C-60

ECM<M/T>
OR
PCM<A/T>

CONNECTORS:C-60<M/T>,C-57<A/T>

BE

C-57

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-140

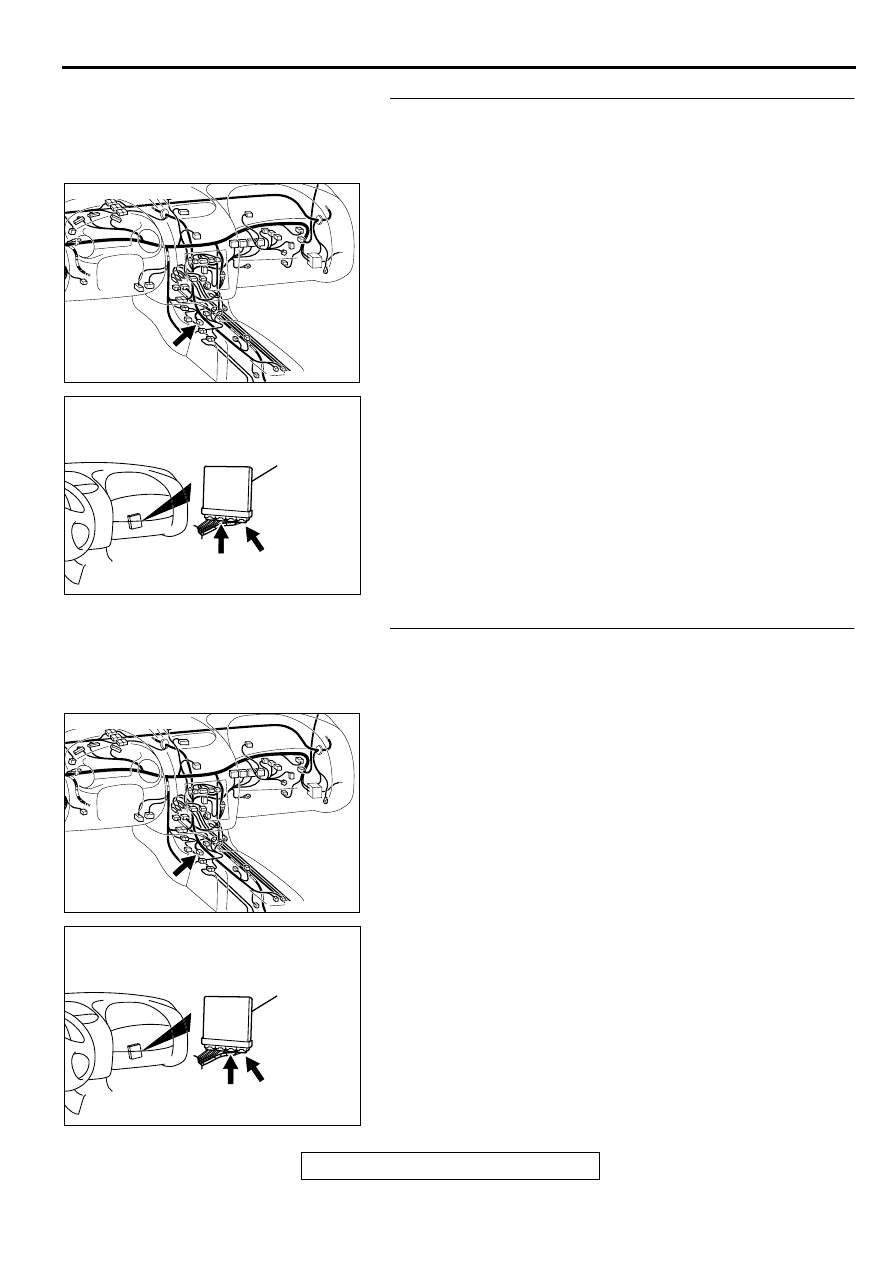

STEP 12. Check for harness damage between heated
oxygen sensor (rear) connector C-23 terminal 4 and ECM
connector C-60 terminal 92 <M/T> or PCM connector C-54
terminal 57 <A/T>.
Q: Is the harness wire in good condition?

YES : Go to Step 13.
NO :  Repair it. Then go to Step 15.

STEP 13. Check for short circuit to ground and harness
damage between heated oxygen sensor (rear) connector
C-23 terminal 3 and ECM connector C-60 terminal 75 <M/T>
or PCM connector C-57 terminal 73 <A/T>.
Q: Is the harness wire in good condition?

YES : Go to Step 14.
NO :  Repair it. Then go to Step 15.

AK000733AB

CONNECTOR:C-23

AK000280

C-54

C-60

ECM<M/T>
OR
PCM<A/T>

CONNECTORS:C-60<M/T>,C-54<A/T>

BB

AK000733AB

CONNECTOR:C-23

AK000280

C-60

ECM<M/T>
OR
PCM<A/T>

CONNECTORS:C-60<M/T>,C-57<A/T>

BE

C-57

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-141

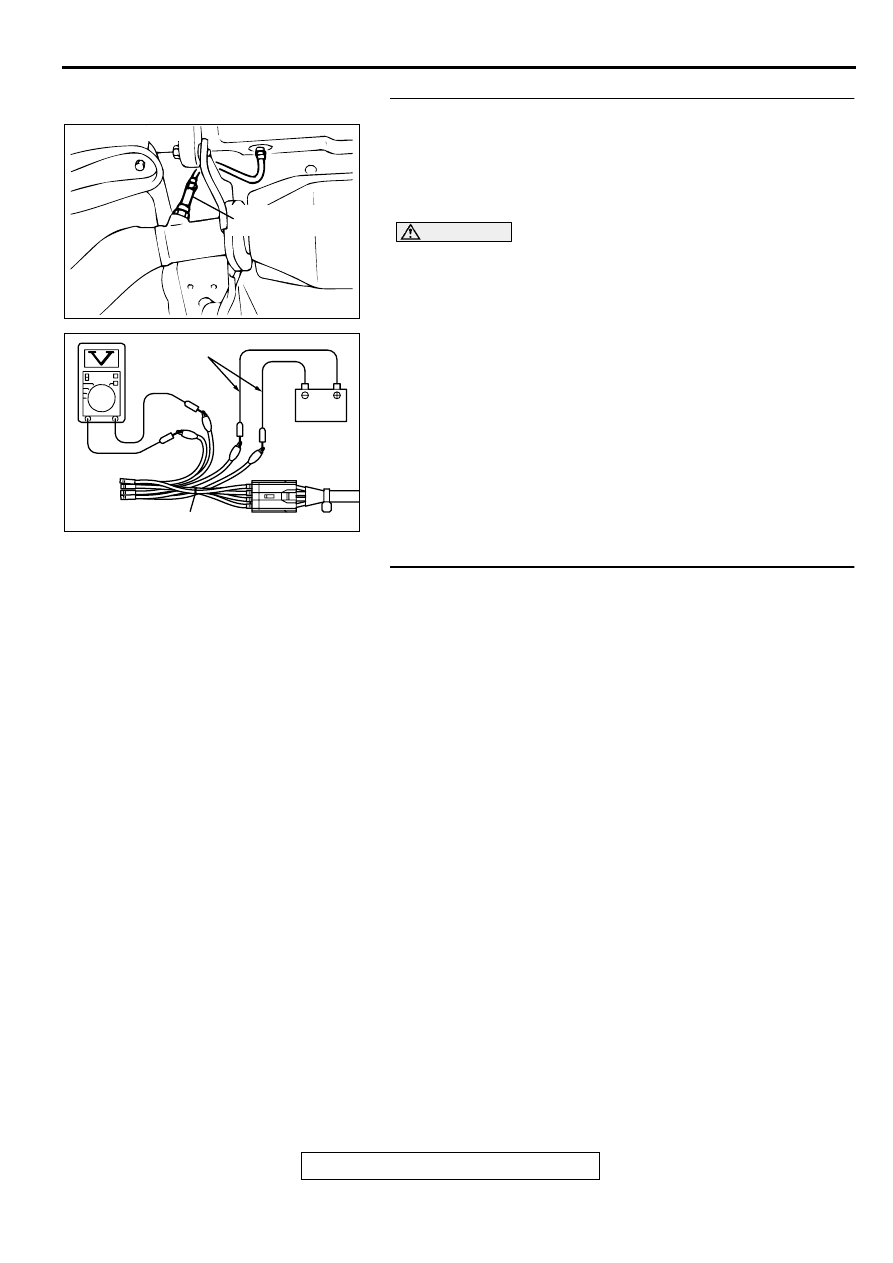

STEP 14. Check the heated oxygen sensor (rear).
(1) Disconnect the heated oxygen sensor (rear) connector C-

23 and connect test harness special tool, MB991658, to the
connector on the heated oxygen sensor (front) side.

(2) Warm up the engine until engine coolant 80

°

 C (176

°

 F) or

higher.

CAUTION

Be very careful when connecting the jumper wires;
incorrect connection can damage the right bank heated
oxygen sensor (rear).
(3) Use the jumper wires to connect terminal 5 to the positive

battery terminal and terminal 6 to the negative battery
terminal.

(4) Connect a digital volt meter between terminal 3 and

terminal 4.

(5) While repeatedly revving the engine, measure the heated

oxygen sensor (rear) output voltage.

Standard value: 0.6

 1.0 V

Q: Is the voltage at the standard value?

YES : Replace the ECM or PCM. Then go to Step 15.
NO :  Replace the heated oxygen sensor (rear). Then go to

Step 15.

STEP 15. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to,

Procedure 4

 Heated Oxygen Sensor Monitor and

Procedure 6

 Other Monitor (

P.13A-5

).

(2) Check the diagnostic trouble code (DTC).

Q: Is the DTC P0136 is output?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

ACX02495

HEATED OXYGEN
SENSOR (REAR)

AE

CONNECTOR:C-23

AK000122

JUMPER
WIRES

MB991658

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-142

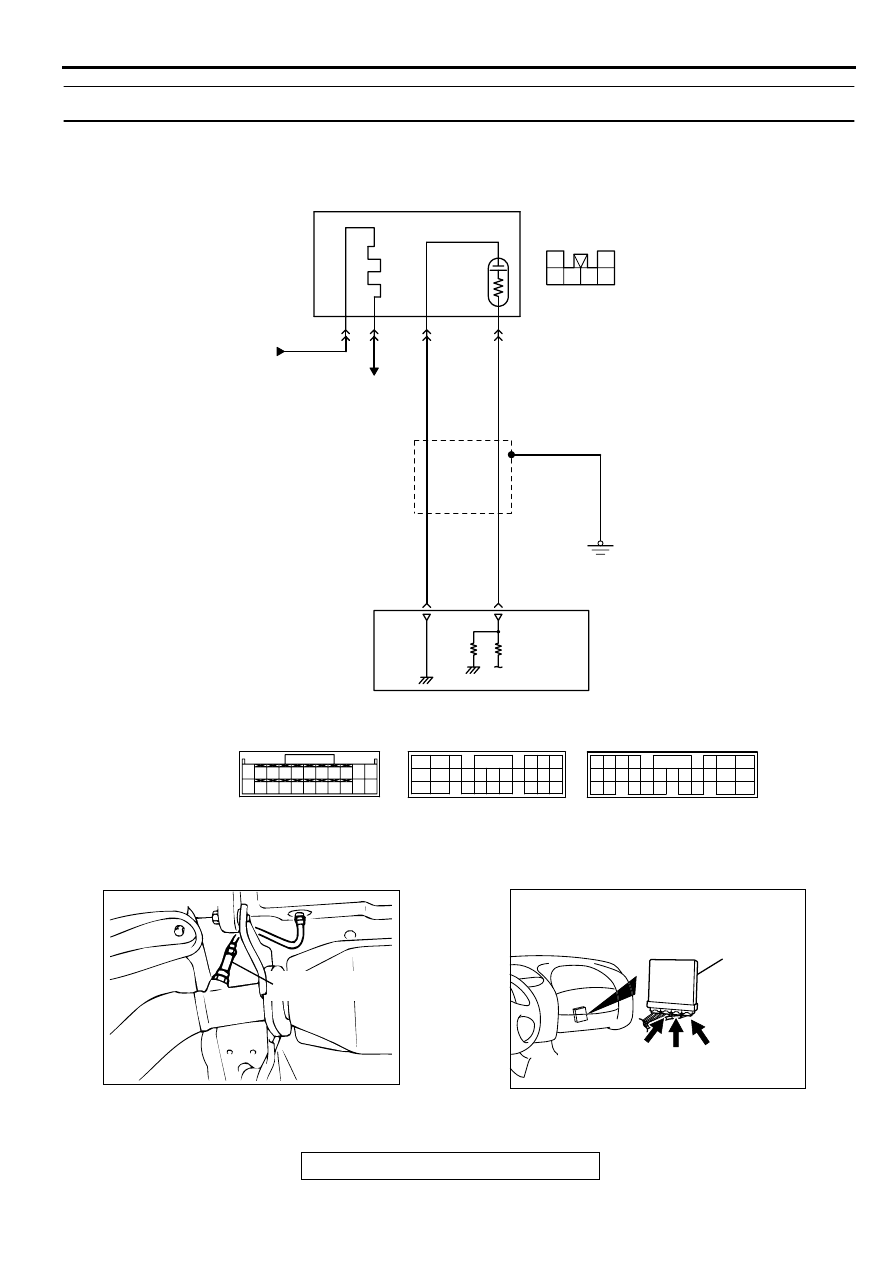

DTC P0139: O

2

  Sensor Circuit Slow Response (sensor 2)

AK000659

BL

ACK

BL

ACK

GREEN

FROM MFI RELAY

HEATED OXYGEN
SENSOR(REAR)

     C-23
MU801448

TO ECM
OR PCM

ENGINE CONTROL
MODULE(ECM)<M/T>
OR
POWERTRAIN CONTROL
MODULE(PCM)<A/T>

75<M/T>
73<A/T>*2

92<M/T>
57<A/T>*1

 C-60<M/T>
(MU803772)

 C-54<A/T>
(MU803781)

 C-57<A/T>
(MU803782)

NOTE
*1:PCM connector C-54<A/T>
*2:PCM connector C-57<A/T>

5

6

4

3

1

2

3 4 5 6

98

78

71

88 89

76 77

72
79

91

73
80

74

75

81

92

82 83
93

84 85

94

86 87

95 96

90

97

82

78

81

80

89 90 91 92

79

87

71

74

73

72

76

75

77

85

88

83 84

86

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 61 62 63

64 65 66

47

41

ACX02495

HEATED OXYGEN
SENSOR (REAR)

AE

CONNECTOR:C-23

AK000280

C-54

C-60

ECM<M/T>
OR
PCM<A/T>

CONNECTORS:C-60<M/T>,C-54,C-57<A/T>

BD

C-57
