REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-21

INSTALLATION SERVICE POINTS

.

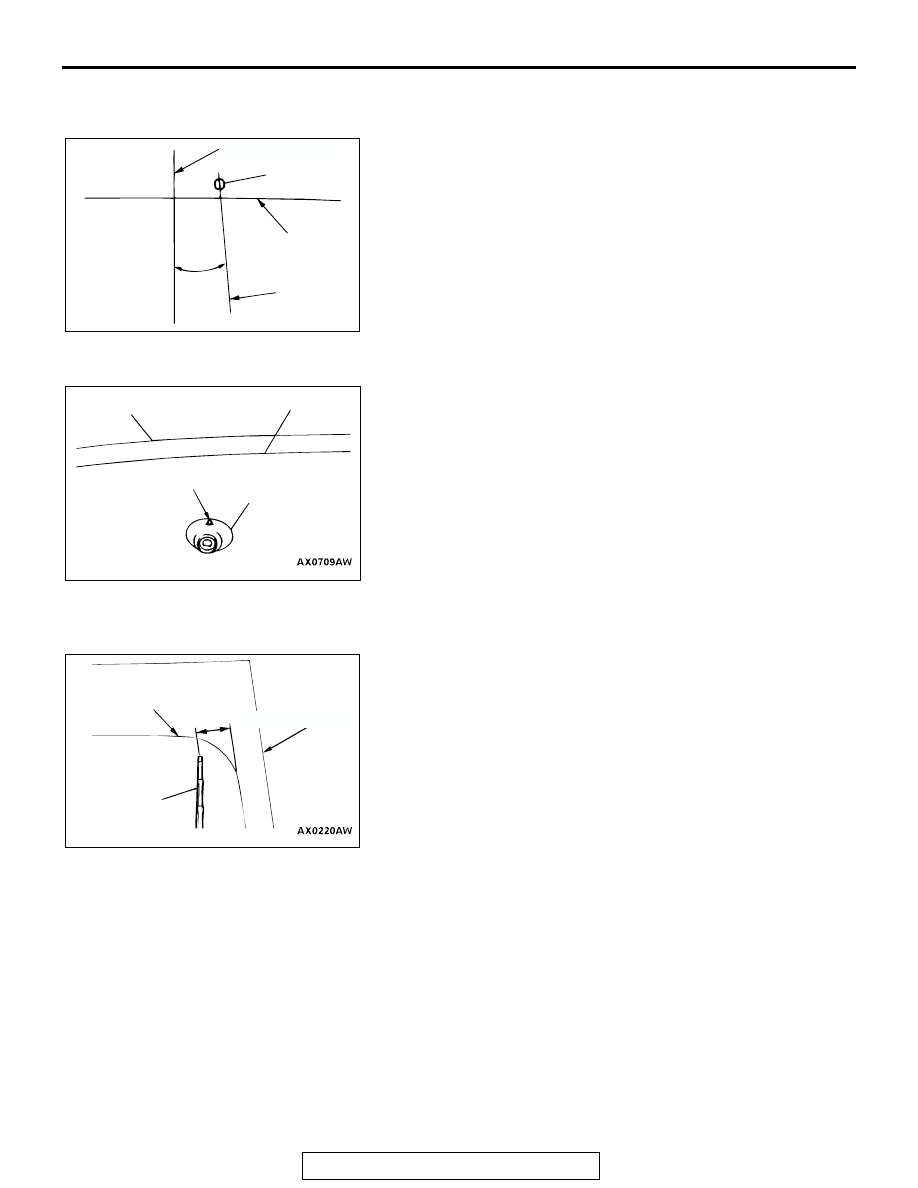

>>A<< WASHER NOZZLE INSTALLATION
Install the washer nozzle in the specified direction.

.

>>B<< GROMMET INSTALLATION
Install the grommet so that the arrow points upwards.

.

>>C<< REAR WIPER ARM AND BLADE ASSEMBLY
INSTALLATION
Install the wiper blade so that the tip stops at the standard posi-
tion (standard value), and also so that the lower section of the
wiper blade enters the middle of the defogger pattern.

Standard value (A): 89

 99 mm (3.5 ± 3.9 inches)

AX0707AW

AC003636

DISCHARGE
DIRECTION

CERAMIC LINE

WASHER NOZZLE

GLASS CENTER LINE

AB

5

AC003637

GROMMET

ARROW

GLASS END LINE

CERAMIC LINE

AB

AC003638

CERAMIC LINE

WIPER ARM AND
BLADE ASSEMBLY

A

AB

GLASS END LINE

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-22

INSPECTION

M1511019100578

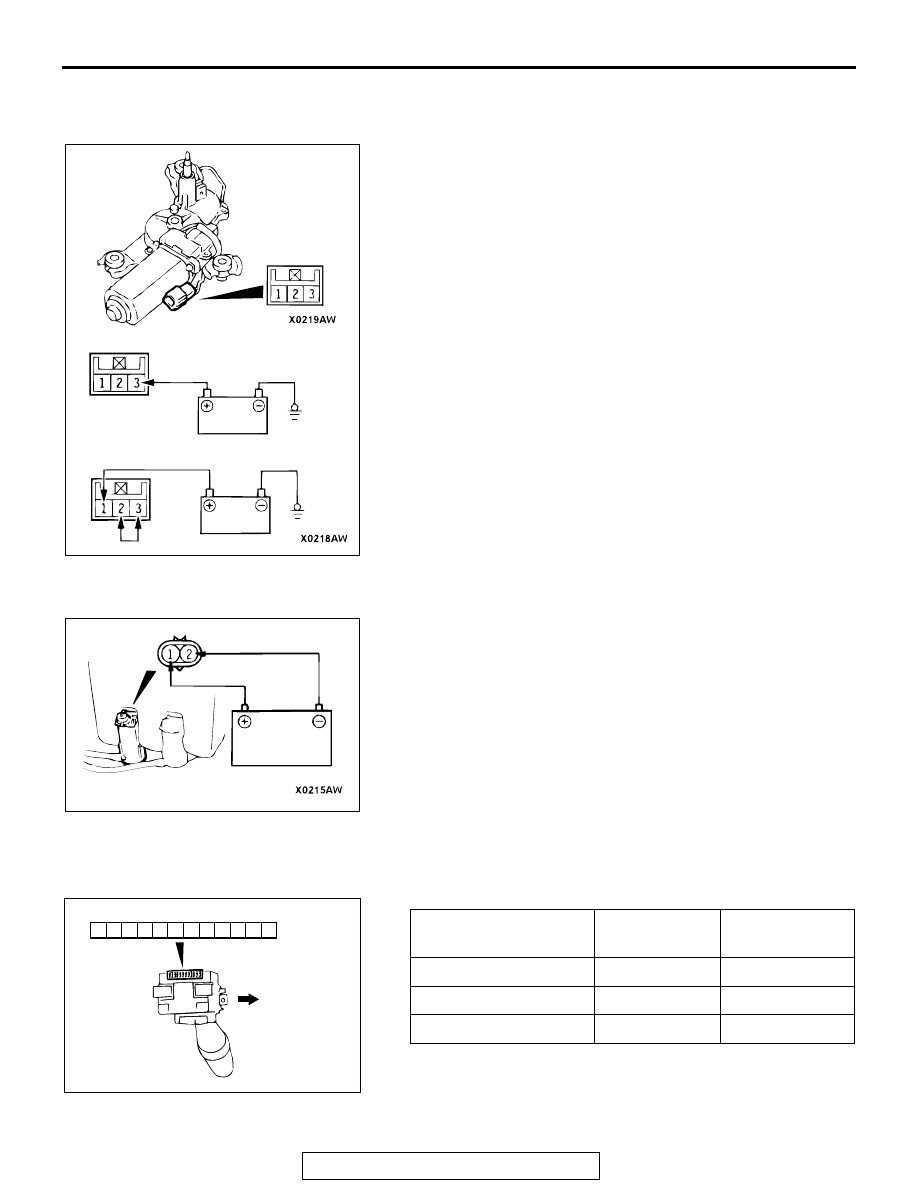

REAR WIPER MOTOR CHECK

Check the wiper motor after first disconnecting the wiring har-
ness connector, and with the wiper motor remaining installed to
the body.

.

Wiper Motor Operation
Connect a battery to the wiper motor as shown in the illustra-
tion and inspect the motor operation.

.

Wiper Motor at Stop Position Operation
1. Run the wiper motor, disconnect the battery, and stop the

motor.

2. Reconnect the battery as shown in the illustration, and

confirm that after the motor starts turning it stops at the
automatic stop position.

REAR WASHER MOTOR CHECK

1. With the washer motor installed to the washer tank, fill the

washer tank with water.

2. When the battery is connected as shown in the figure, check

that the washer squirts out strongly.

REAR WIPER AND WASHER SWITCH
INSPECTION

AC003639

OPERATION CHECK

STOP POSITION CHECK

AB

AC003640

 SWITCH POSITION

TERMINAL
CONNECTION

SPECIFIED
CONDITION

OFF

25

− 26, 25 − 29 Open circuit

Rear wiper switch ON

25

− 26

Less than 2 ohm

Rear washer switch ON 25

− 29

Less than 2 ohm

21

22

23

24

25

26

27

28

29

30

31

32

AC002017AC

UPPER SIDE

MARK

TSB Revision

EXTERIOR

51-23

MARK

SPECIAL TOOL

M1511000600575

MARK

REMOVAL AND INSTALLATION

M1511011800067

Required Special Tool:

• MB990528: Stripe Tape Spatula

INSTALLATION SERVICE POINT

.

>>A<< MARK INSTALLATION
1. APPLICATION LOCATION

The distance A (from the mark right end to the notch) should
be identical to the distance A' (from the front door opening
line to the mark right end).

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB990528 Stripe tape
spatula

-

Bonding of the mark

MB990528

AC003660

< ECLIPSE >

< ECLIPSE SPYDER >

AB

1

2

3

1

4

1

2

3

1

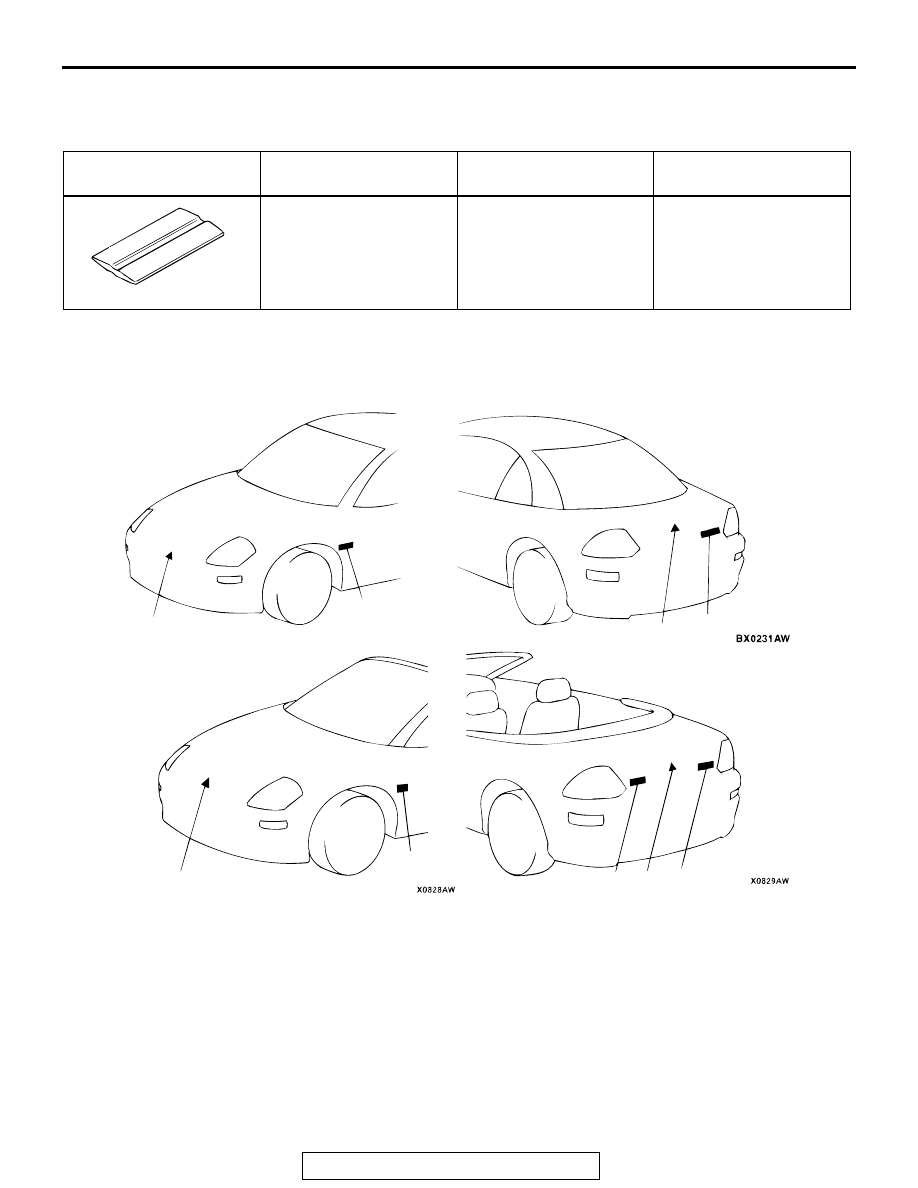

1. TOP MARK

>>A<<

2. ENGINE SPECIFICATION MARK

>>A<<

3. GRADE MARK (GT, RS, GS)

>>A<<

4. SPYDER MARK

MARK

TSB Revision

EXTERIOR

51-24

CAUTION

• Work in a dust-free workplace with temperature of 20

38

°C (60 - 100°F).

• If workplace temperature is under 20°C (60°F), warm

tape and vehicle body (adhesion area) to 20

 38°C (60

100

°F).

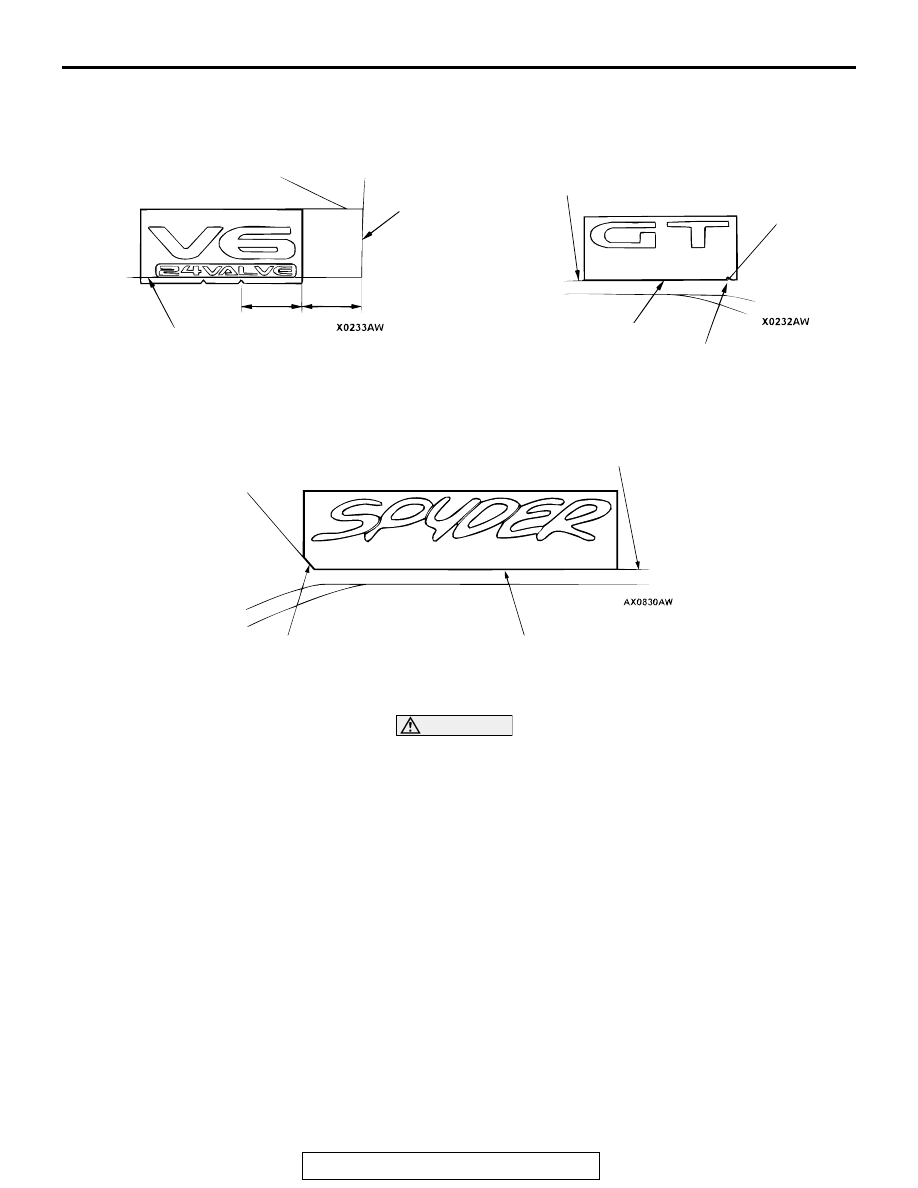

2. Install the tape by the following procedure.

(1) Use 3M

 AAD Part number 8906 or equivalent to wipe

off oil from stripe tape adhesion area.

(2) Remove protective paper from back of stripe tape and

adhere entirely to indicated area.

AC003661

FRONT FENDER PANEL

PRESS LINE

A

A'

FRONT DOOR

OPENING LINE

ALIGN THE MARK BOTTOM END

WITH THE LIFTGATE BOTTOM END.

ALIGN THE MARK NOTCH WITH

THE LIFTGATE RIGHT END.

ALIGN THE MARK BOTTOM END WITH

THE TRUNK LID BOTTOM END.

 TRUNK LID END LINE

ALIGN THE MARK LINE END WITH

THE TRUNK LID LIFT END.

AB

SPYDER MARK

GRADE MARK
GT (ALSO APPLICABLE FOR GS)

ENGINE SPECIFICATION MARK
LH SIDE

NOTE

RH SIDE IS SYMMETRICAL ON LH SIDE.
