DOOR MIRROR

TSB Revision

EXTERIOR

51-25

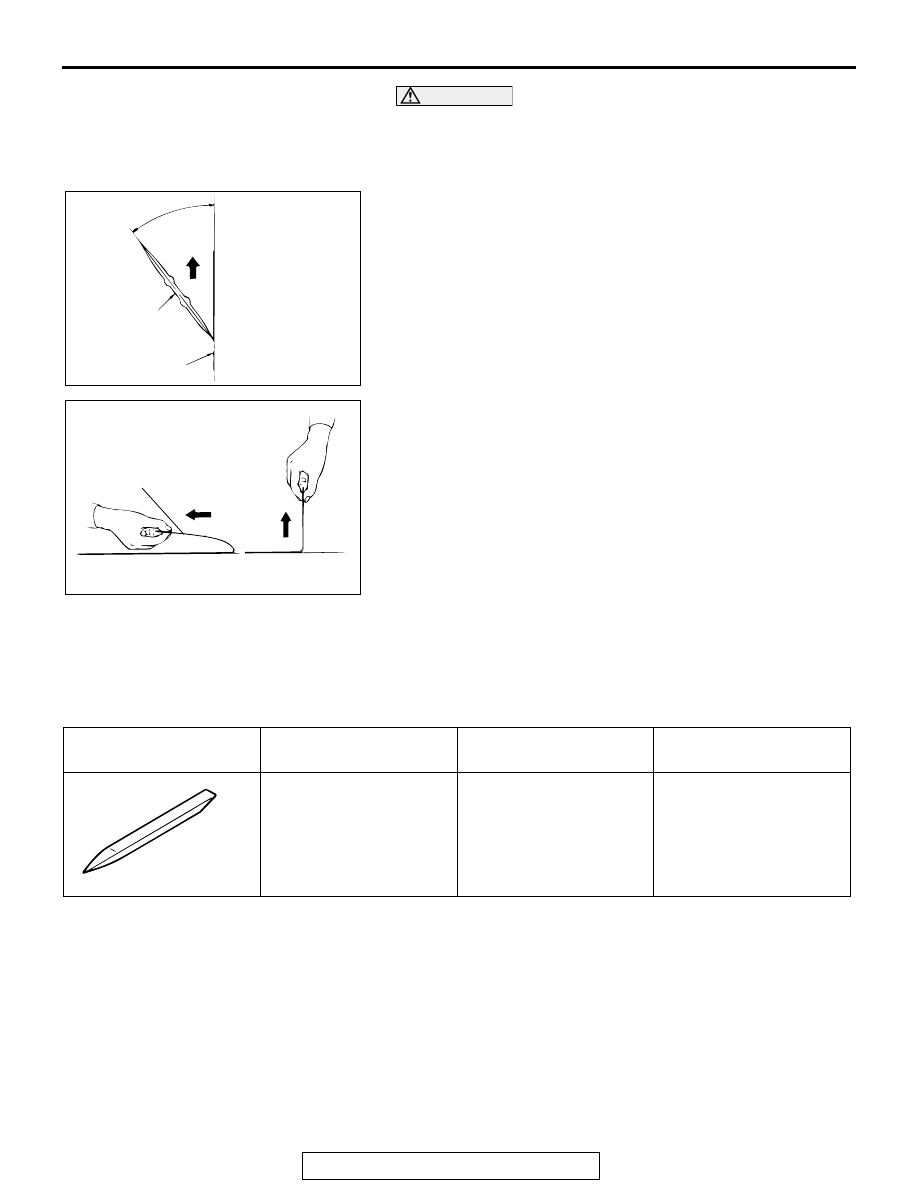

CAUTION

• Pressing the mark horizontally may lead to a slack,

clinching or improper position.

• If the mark is pressed improperly, the mark may be eas-

ily peeled off.

(3) Make sure that air bubbles are not trapped in the

application surface. When applying the mark, use special
tool MB990528 to press the mark from its center to top
and bottom gradually.

(4) Peel off an application tape (top protection paper)

horizontally and carefully from one end. If an air bubble is
left in the mark, open a hole by using a needle, and then
use special tool MB990528 to expel the air bubble.

DOOR MIRROR

SPECIAL TOOL

M1511000600586

AC000548 AB

30 - 45˚

MB990528

APPLICATION TAPE

AC000549

CORRECT INCORRECT

AB

APPLICATION TAPE

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB990784
Ornament remover

General service tool

Removal of remote
controlled mirror switch

MB990784

DOOR MIRROR

TSB Revision

EXTERIOR

51-26

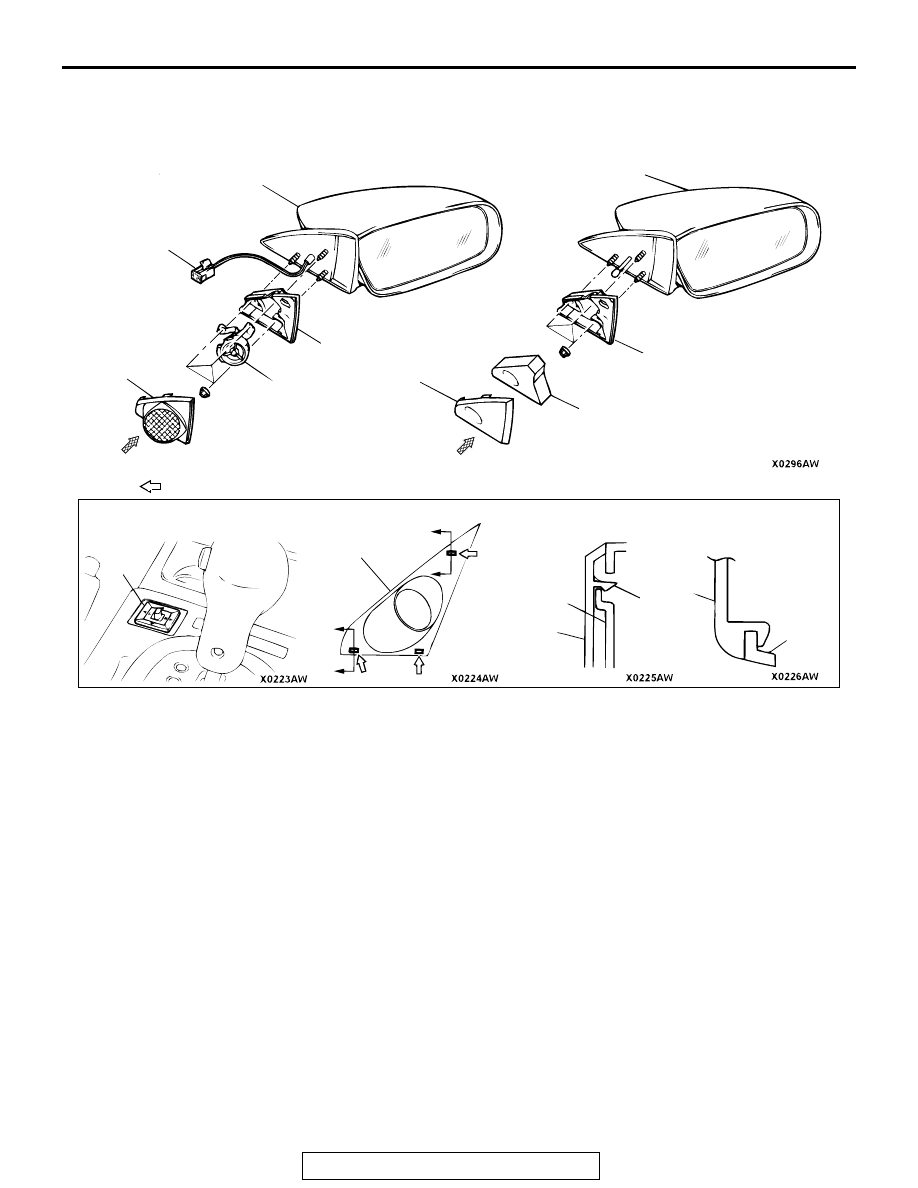

DOOR MIRROR

REMOVAL AND INSTALLATION

M1511006400342

AC003328

8

7

6

5

3

VIEW A

VIEW A

2

4

6

8

1

B

B

A

A

CLAW

SECTION A – A

6

2,3

2,3

6

SECTION B – B

VIEW A

2,3

(ELECTRIC)

(DIRECT)

AB

NOTE
      : CLAW POSITION

1.

REMOTE CONTROLLED MIRROR
SWITCH

DOOR MIRROR REMOVAL STEPS
• DOOR TRIM (REFER TO GROUP

42

P.42-54

.)

2. DELTA COVER, INNER
3. TWEETER COVER
4. PAD

5. TWEETER
6. DELTA COVER BASE
7. HARNESS CONNECTOR

<VEHICLES WITH REMOTE
CONTROLLED MIRROR>

8. DOOR MIRROR ASSEMBLY

DOOR MIRROR REMOVAL STEPS

DOOR MIRROR

TSB Revision

EXTERIOR

51-27

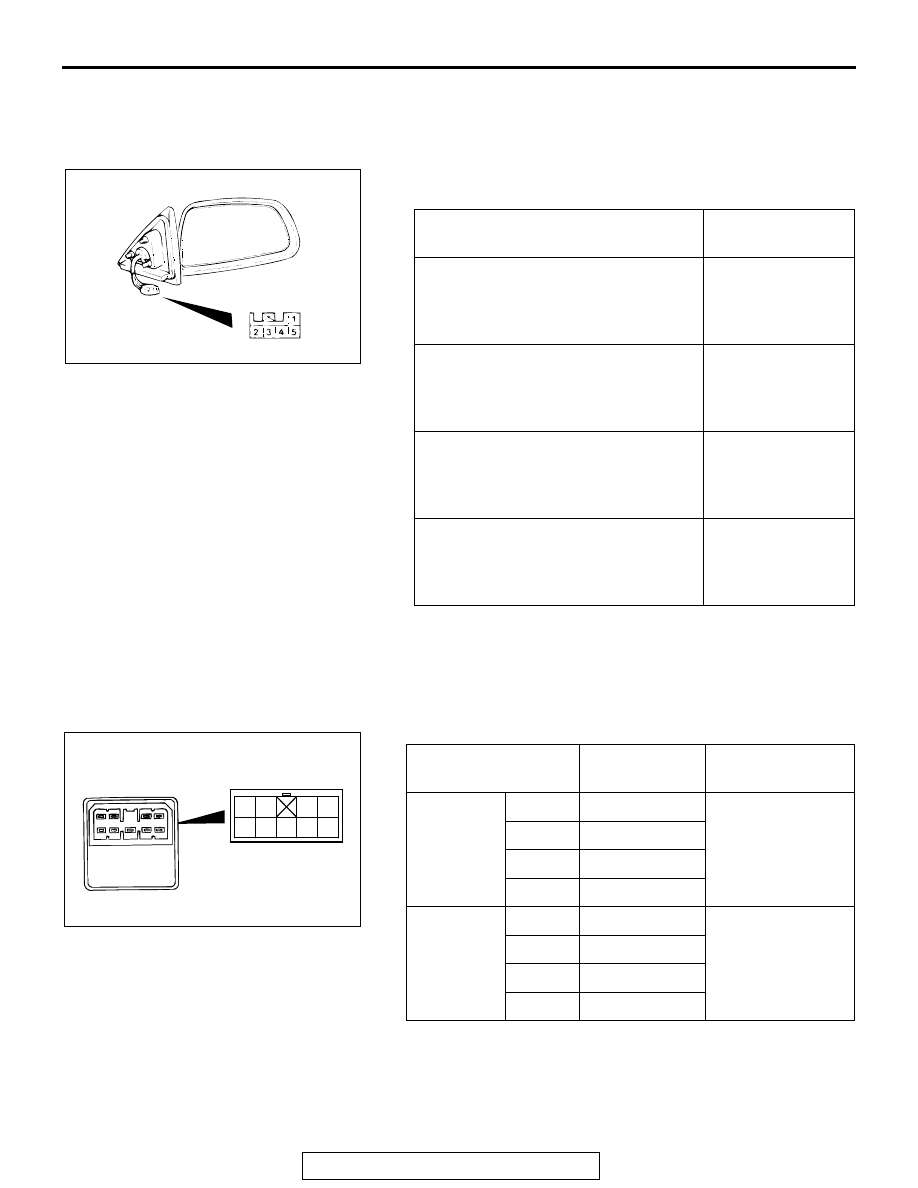

INSPECTION

M1511019100277

REMOTE CONTROLLED MIRROR ASSEMBLY
CHECK

1. Check that the mirror moves as described in the table when

each terminal is connected to the battery

2. Check if there is continuity between terminals 4 and 5.

<Vehicles with heated mirror>

REMOTE CONTROLLED MIRROR SWITCH
CONTINUITY CHECK

BATTERY CONNECTION

DIRECTION
OPERATION

• Connect terminal 3 to the negative

battery terminal

• Connect terminal 1 to the positive

battery terminal

Mirror glass should
face upward

• Connect terminal 1 to the negative

battery terminal.

• Connect terminal 3 to the positive

battery terminal.

Mirror glass should
face downward

• Connect terminal 2 to the negative

battery terminal.

• Connect terminal 3 to the positive

battery terminal.

Mirror glass should
face to the left

• Connect terminal 3 to the negative

battery terminal.

• Connect terminal 2 to the positive

battery terminal.

Mirror glass should
face to the right

AC003582

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Left side

Up

4

− 8, 6 − 7

Less than 2 ohms

Down

4

− 7, 6 − 8

Right

3

− 6, 4 − 7

Left

3

− 4, 6 − 7

Right side

Up

2

− 4, 6 − 7

Less than 2 ohms

Down

2

− 6, 4 − 7

Right

4

− 7, 6 − 9

Left

4

− 9, 6 − 7

5

4

6

3

2

1

9

8

7

AC001682

SPECIFICATIONS

TSB Revision

EXTERIOR

51-28

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1511015300280

SERVICE SPECIFICATIONS

M1511000300369

SEALANT AND ADHESIVE

M1511000500459

ITEM

SPECIFICATION

Front bumper

Front turn signal light screw

0.69

± 0.09 N⋅m (5.2 ± 0.8 in-lb)

Front fog light assembly screw

4.9

± 0.7 N⋅m (43 ± 6 in-lb)

Front fog light bracket bolt

4.9

± 0.7 N⋅m (43 ± 6 in-lb)

License plate garish screw

0.9

± 0.1 N⋅m (8 ± 1 in-lb)

Windshield wiper and washer

Wiper arm and blade assembly nut

13

± 3 N⋅m (113 ± 26 in-lb)

Wiper motor and wiper link assembly bolt 5.0

± 0.7 N⋅m (44 ± 6 in-lb)

Washer tank motor assembly bolt

12

± 1 N⋅m (100 ± 13 in-lb)

ITEM

STANDARD VALUE

Windshield wiper blade position installation
mm (in)

Driver's side

33

− 43 (1.3 − 1.7)

Passenger's side

38

− 48 (1.5 − 1.9)

Rear wiper blade position installation mm (in)

89

− 99 (3.5 − 3.9)

ITEM

SPECIFICATION

Rear pillar garnish

Adhesive tape: Double-sided tape [3 mm (0.1 in) width and
5 mm (0.2 in) thick]
